Product Description

Paper Coating Machine Winding Plating Equipment R2r Coating Production Line

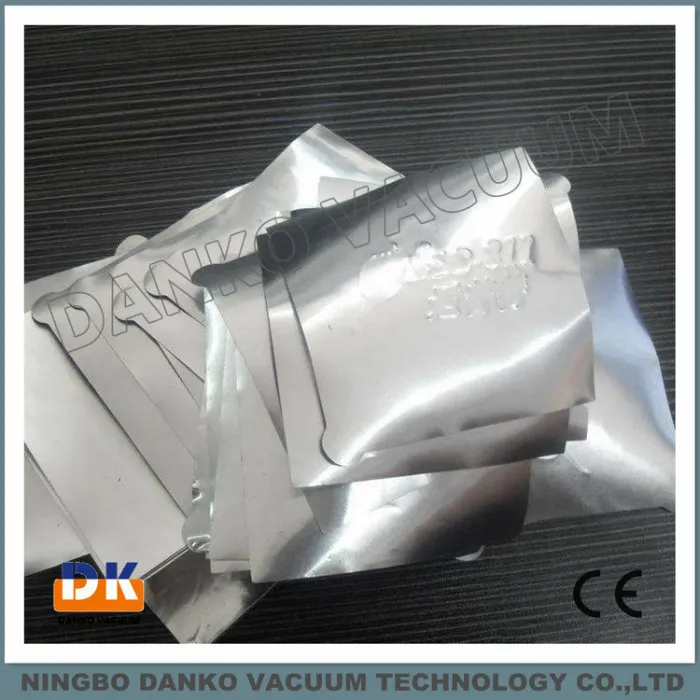

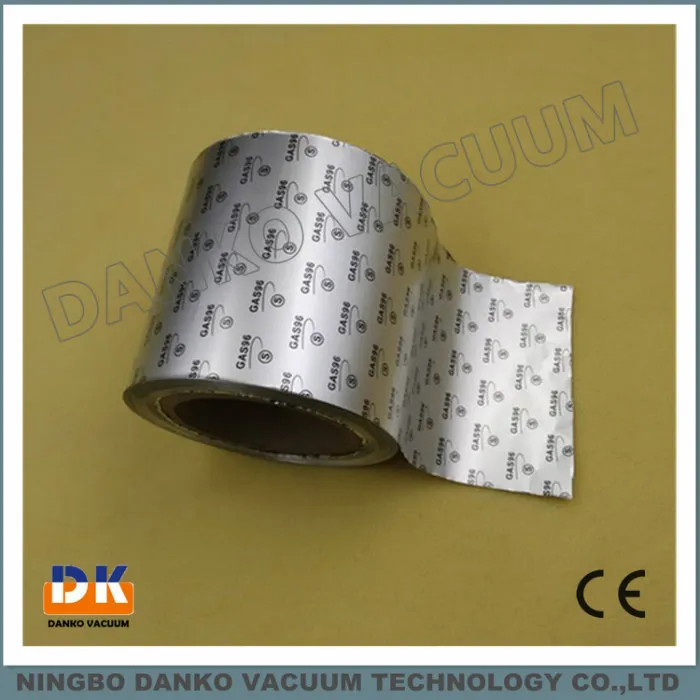

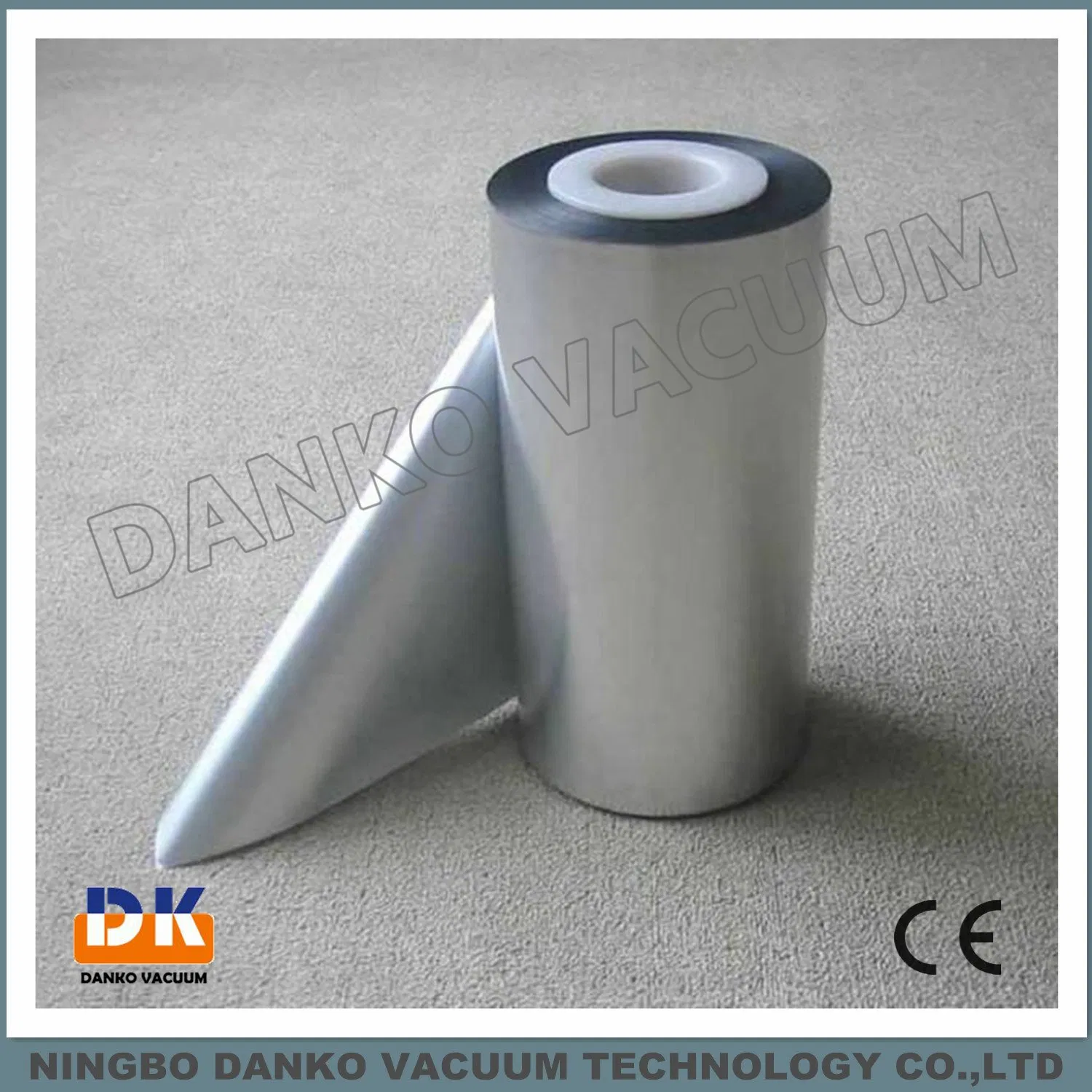

DankoVAC Magnetron Series roll to roll Vacuum Plating Machine is mainly used in the metal film coating on the surface on the plastic, cloth, paper, tinsel. Magnetron Sputtering Vacuum Winding Coating Machine deposition rate is low, however, it has a wide range application and high adhesion force advantages.

Decription

Product name	Roll to Roll Vacuum Plating Machine
Size	Customized Size
Equipment data	Weight: 20Tons / Power: 370KW / Voltage: 380V

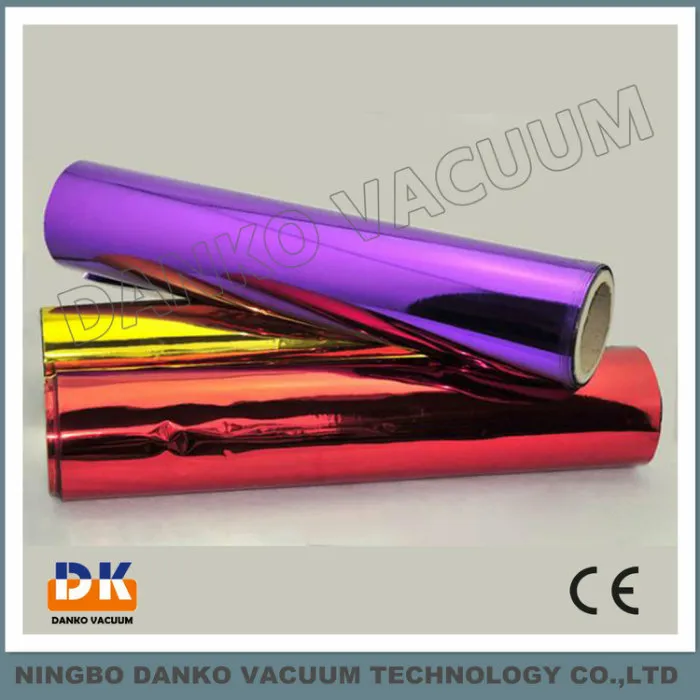

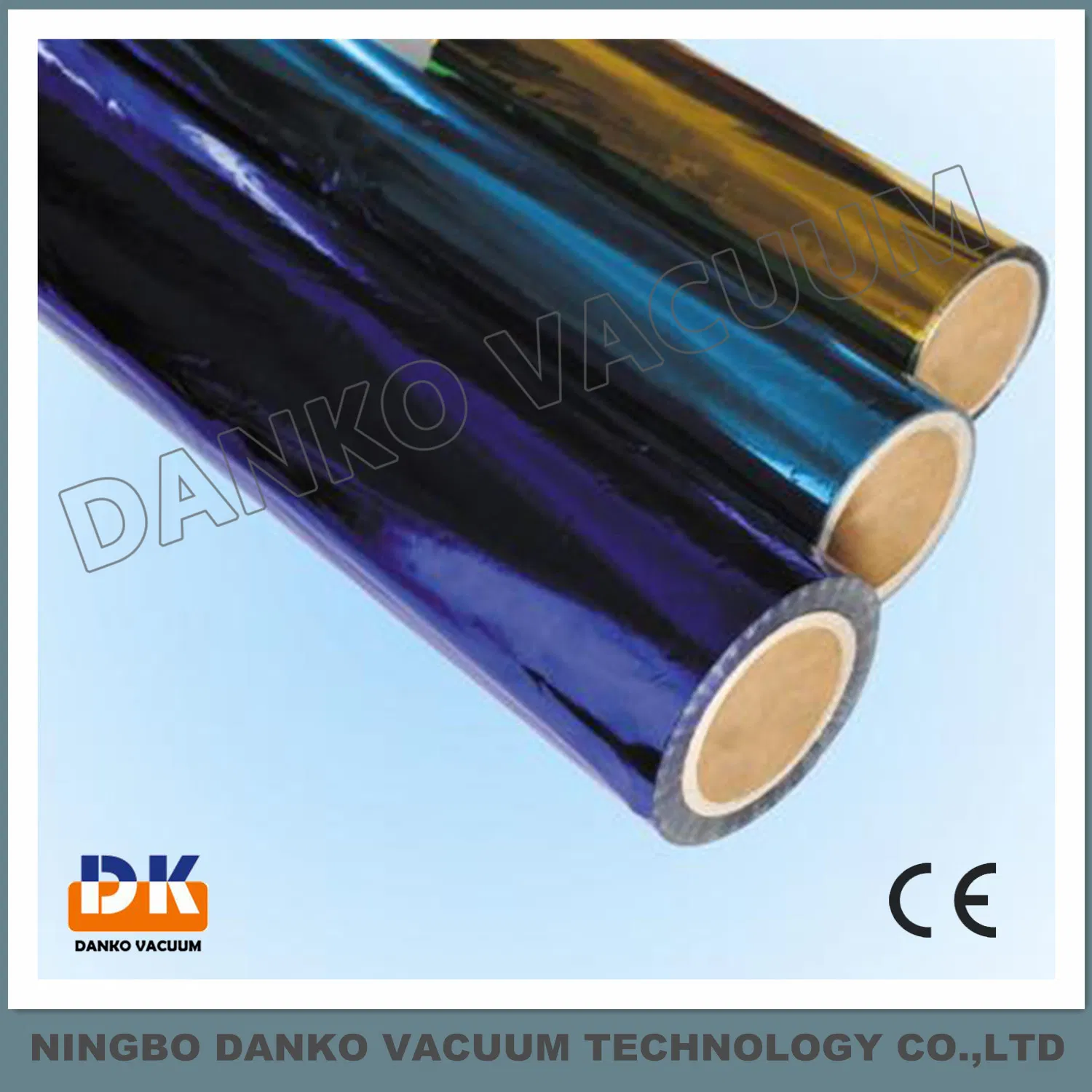

Coating Color	Transparent, Metallic color (Al)
Warranty	1 Year
Film-forming Spec.	Gold Titanium, Black titanium carbide, Colorful Titania, Wear resistant film, Super hard film, Diamond film, Metal decorative film
Coating Technology	Vacuum Magnetic Coating

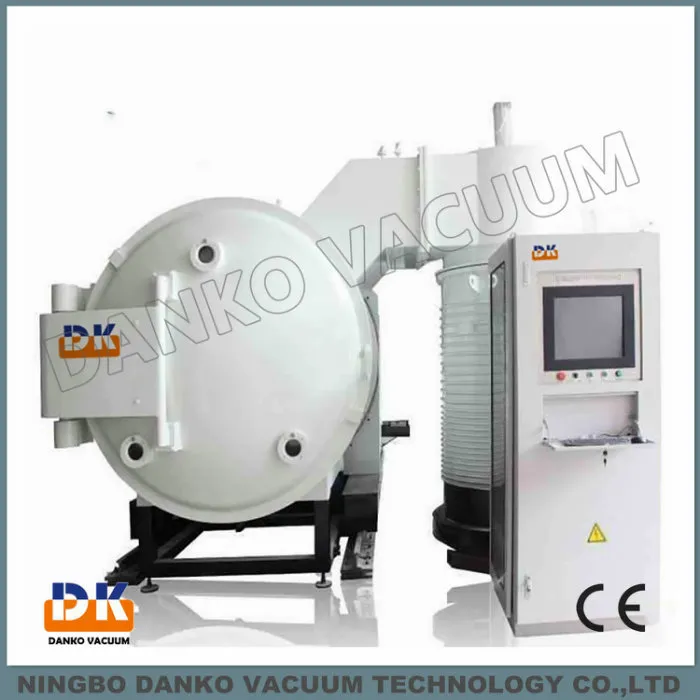

Structure
Structure	Vertical front door opening structure(Double layer water tank cooling or Cooling water jacket), Rear exhaust system
Substrate	Flexible circuit board, flexible material,etc
The chamber material	Stainless steel or Carbon steel
Ultimate	5*10^-4pa
Vacuum time	Pumping from the empty atmosphere to the 5*10^-3pa less than 15 minutes
Control system	Manual, Semi-automatic, Fully automatic
Operating system	Touch screen +PLC
Remarks	Size of the vacuum chamber can be customized according to customer's products and special requirements.

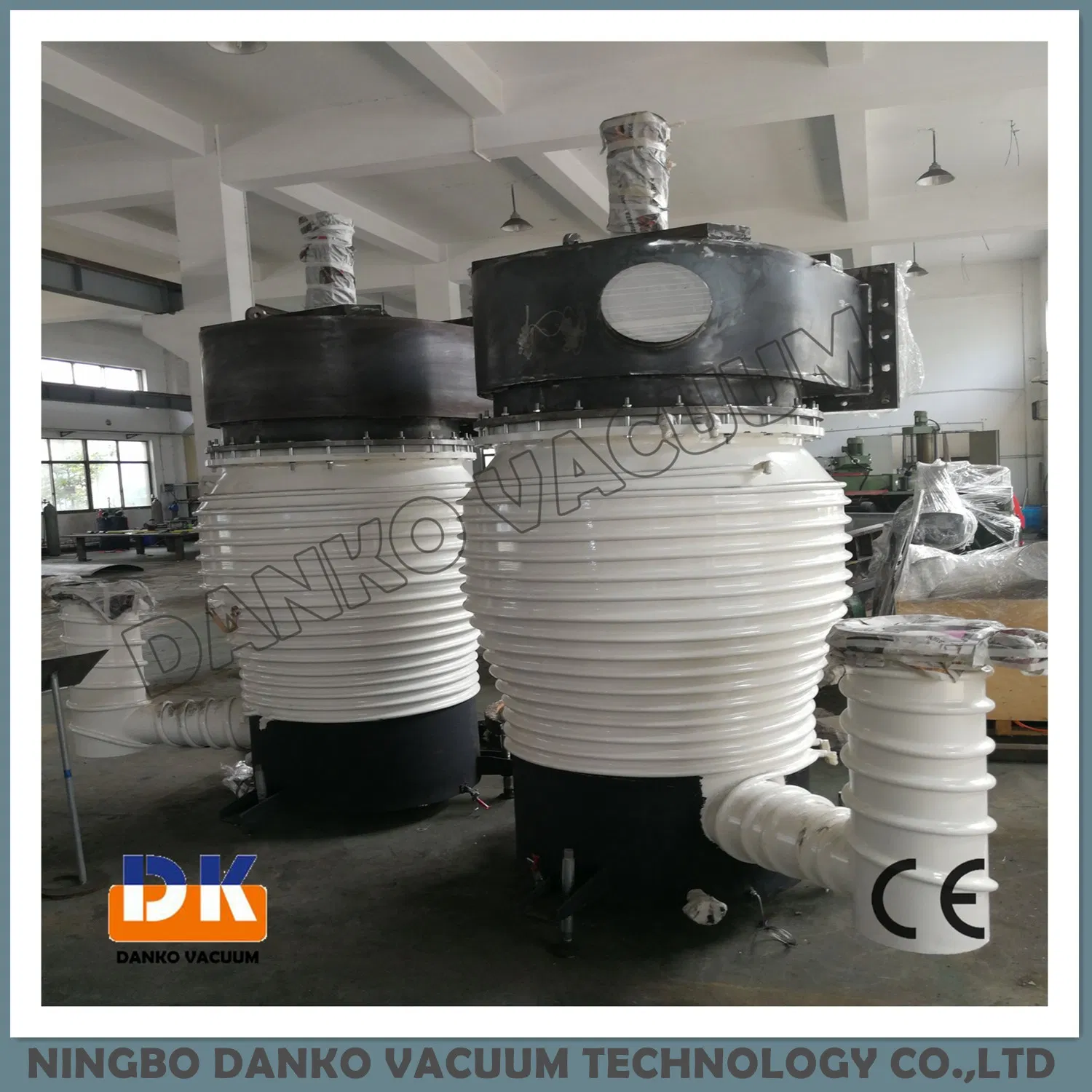

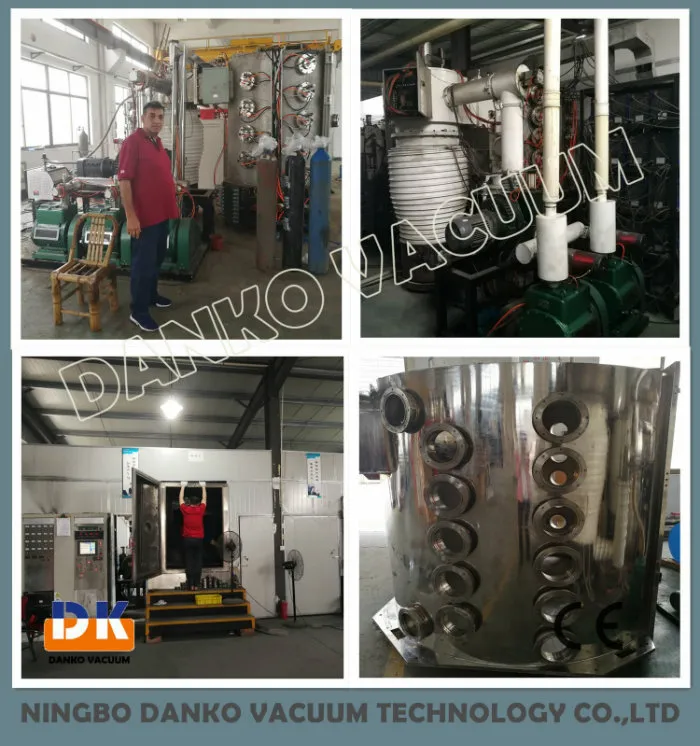

Workshop

For more details on configurations quotations, please contact us.
