Model: Ulyp-518 8 Tons Manual Operated Self Clinching Nut Insertion Press Machine for Size From M3 to M8
Promotional Best Quality 8 Tons Model: ULYP manual operated pneumaticinsertion press machine for size from M3 to M8 1)ULYP Series C-frame console pressess are specialized riveting equipments without rivets. In stead of all previous methodswhich have involved economic and technical problems, they......
Send Inquiry

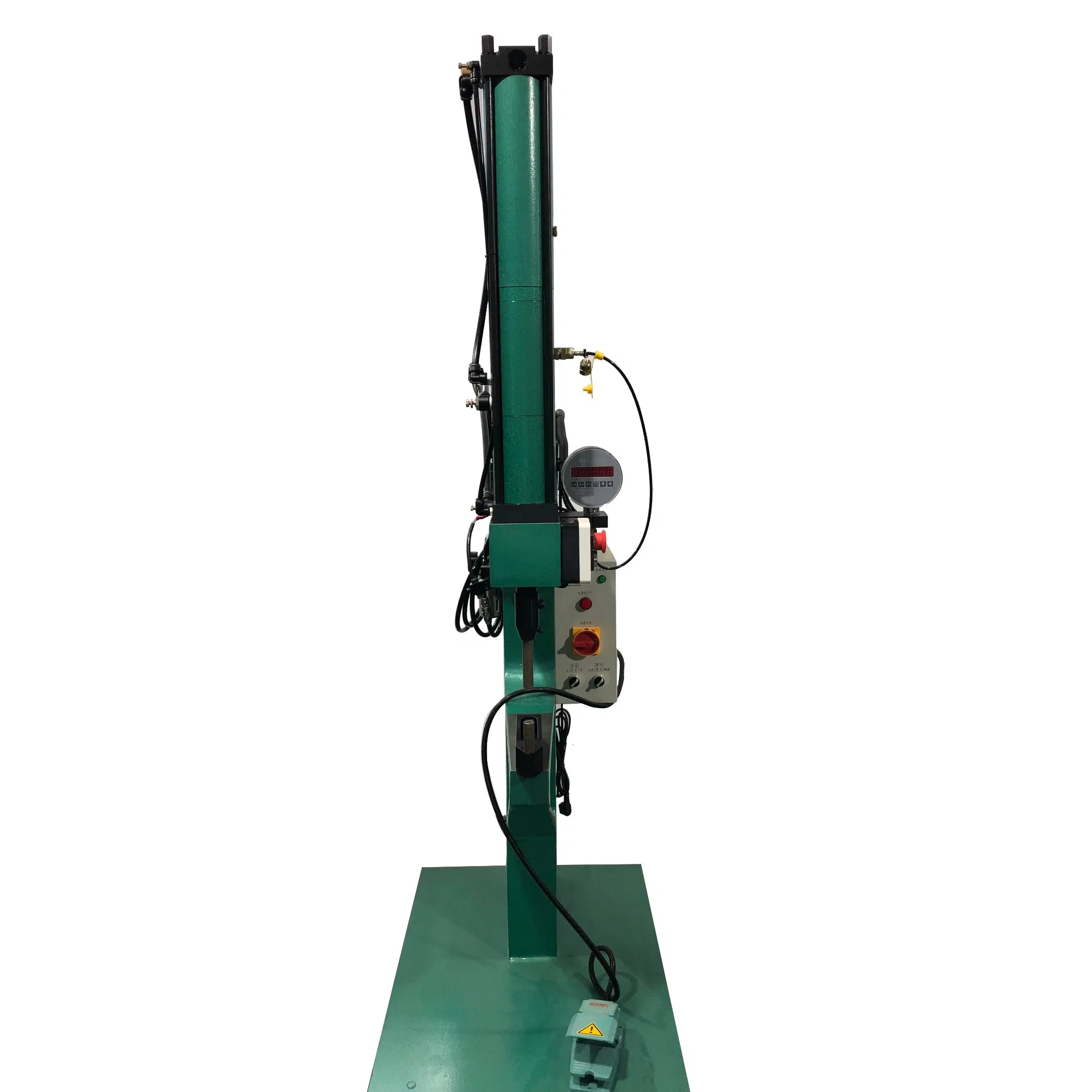

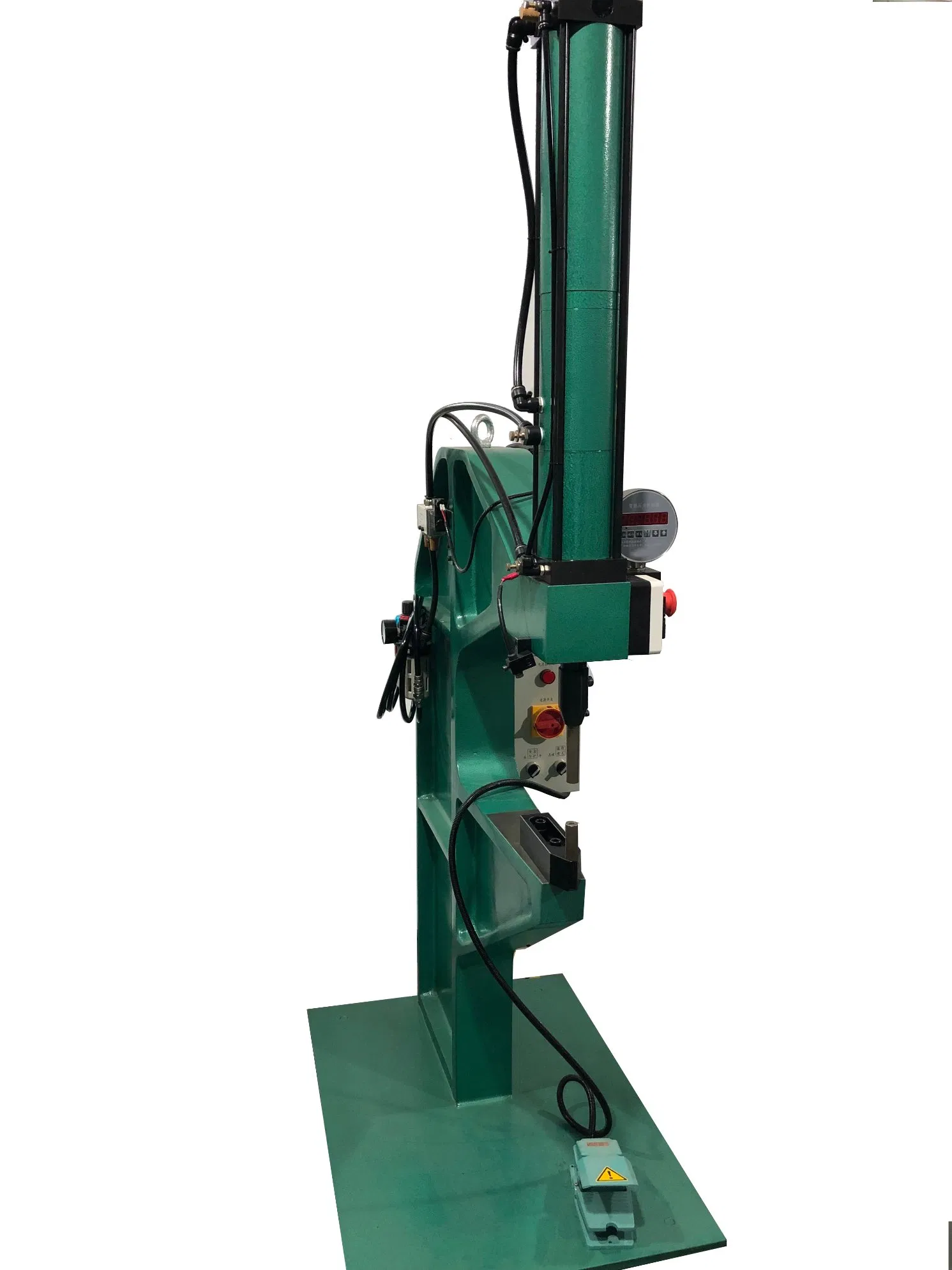

Product Description
Promotional Best Quality 8 Tons Model: ULYP manual operated pneumatic
insertion press machine for size from M3 to M8
1)ULYP Series C-frame console pressess are specialized riveting equipments without rivets. In stead of all previous methods
which have involved economic and technical problems, they will join different materials by means of a deep drawing-pressing process, and which do so without damage to the surface, purely by displacing and forming.
2) It assures you with high productive efficiency as well as full process automaticly monitoring and joining strength checking.
3) In the process of pressing , sheet metals of different thicknesses or materials, even with adhesives or other intermediate layers are fully joined.
4) In industrial applications,Its available of clinching for single sheet thicknesses of 0.5 mm up to a total layer thickness of
11.0 mm and up to 7500 N tensile strength. In laboratory tests significantly higher values have already been
achieved!

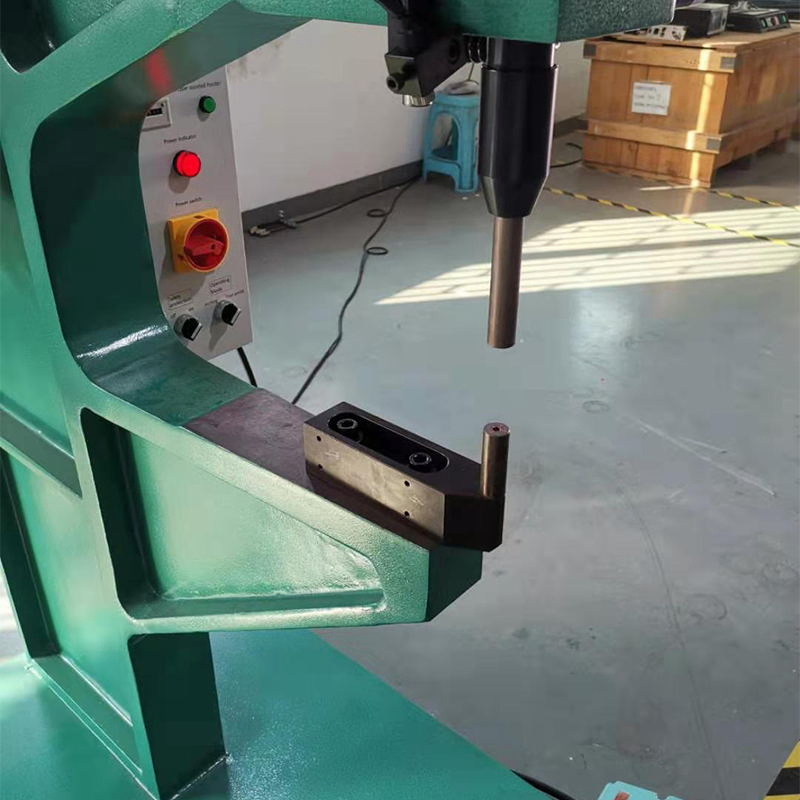

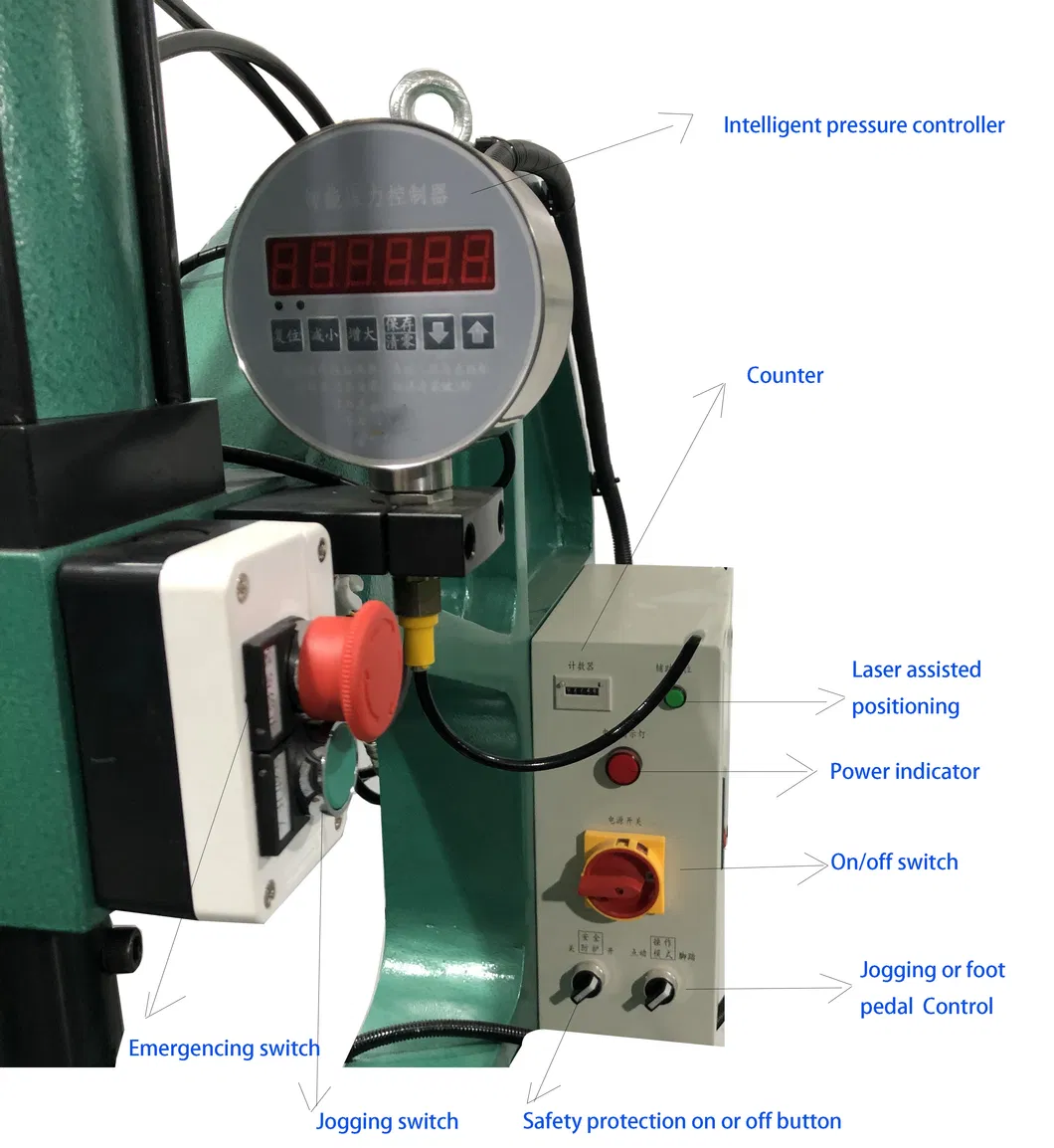

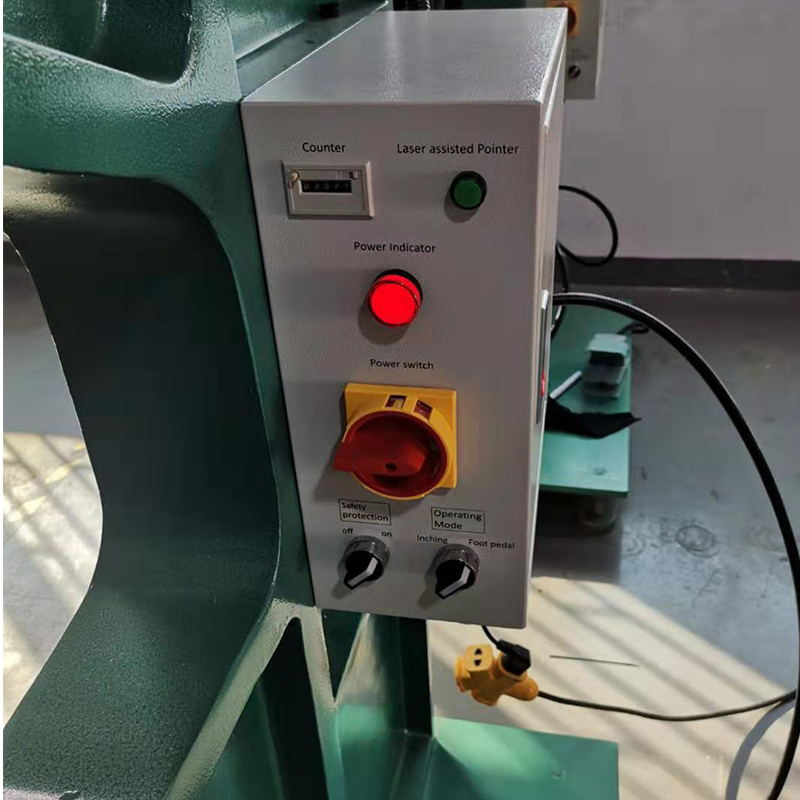

Product Main features
1) Compact structure, clean design
2) Increased productivity with automatic feeding system and multi-point riveting
3) Large anti-ejecting forces and anti-torsion torques
4) High flexibility with height-adjustable
5) High stroke frequency High stroke frequency
6) Easy maintenance and changeable
7) Available for riveting nuts diameter larger than M10
Product specifications
Equipment Name: Pneumatic -hydraulic pressurization cylinder riveting machine for sheet metal fixing
Equipment model: ULYP-4T/8T
The total stroke: 100 mm
Power stroke :6 MM or 10 MM
The maximum oil pressure: 6 bar
The largest power: 80 (KN)
Include electrical control system
Power supply: 220V/60HZ
Rated minimum pressure: 3 bar (lower than the pressure device will act difficulty)
Rated maximum pressure: 6 or 8 bar (higher pressure equipment will be damaged)

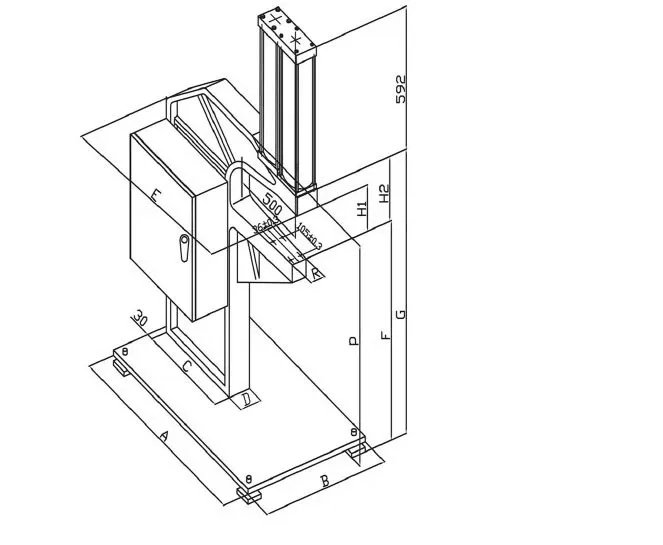

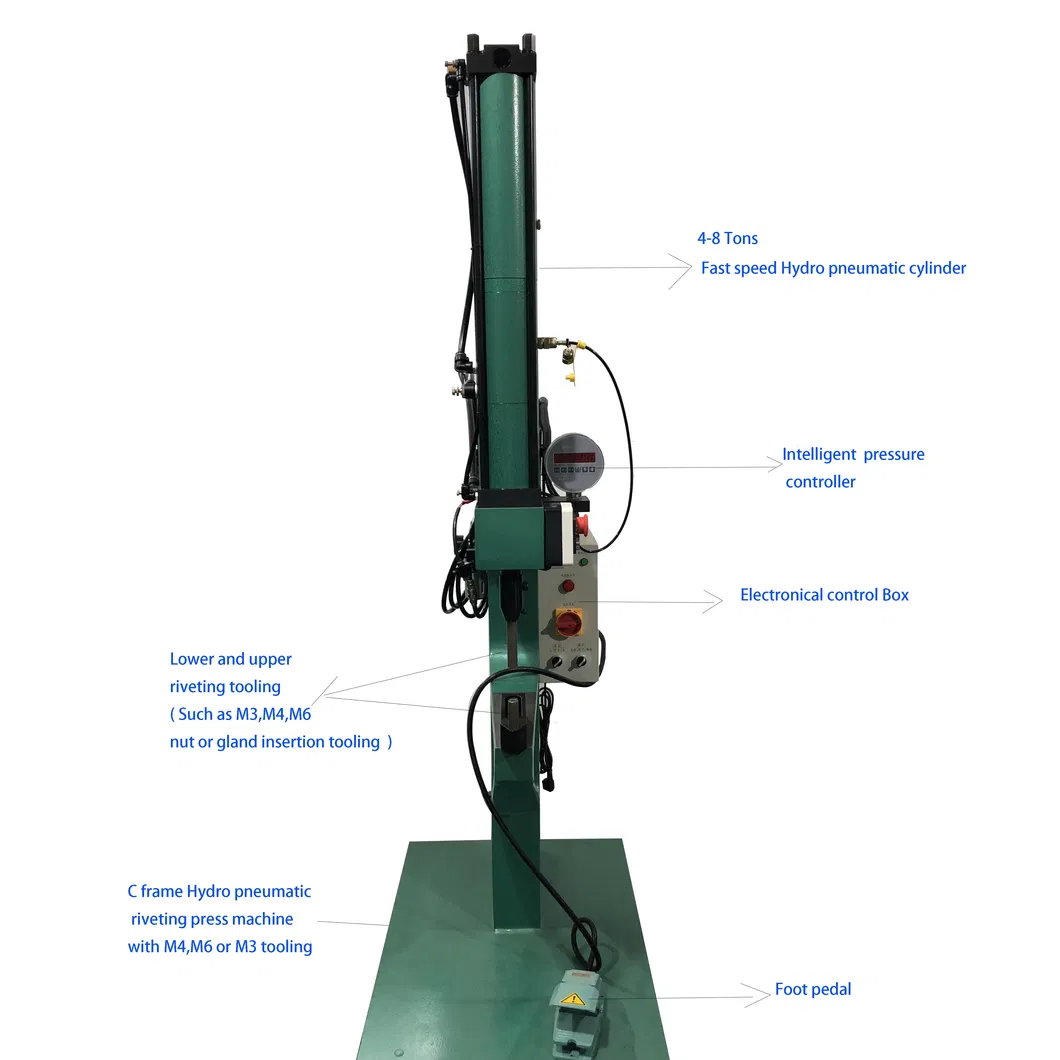

Product layout drawing
Type | ULYP-8 ( maximum 8 tons pressure) |
Max. pressing force | 80KN |
Power source | USUN brand |
Power supply | 220V/ 50Hz |
Max. total stroke | 100 mm |
Compressed air | 5-8 Kg/cm2 |
Weight | 700 Kg |
Performance parameters
Point diameter (mm) | Sheet thickness (mm) | Shear strength (N) | Tensile strength (N) | Punching force (KN) |
Φ3 | 0.5-1.5 | 260-520 | 130-360 | 7-15 |
Φ4 | 0.6-2.0 | 710-1300 | 350-850 | 13-28 |
Φ5 | 0.9-2.5 | 750-2000 | 200-1000 | 15-30 |
Φ6 | 1.0-3.0 | 560-3400 | 300-2200 | 12-40 |
Φ8 | 1.6-6.0 | 510-6200 | 290-2800 | 18-60 |
Φ10 | 1.75-7.0 | 1600-8500 | 800-6200 | 36-105 |
Φ12 | 4.0-11.0 | 2700-10000 | 1100-7500 | 61-125 |

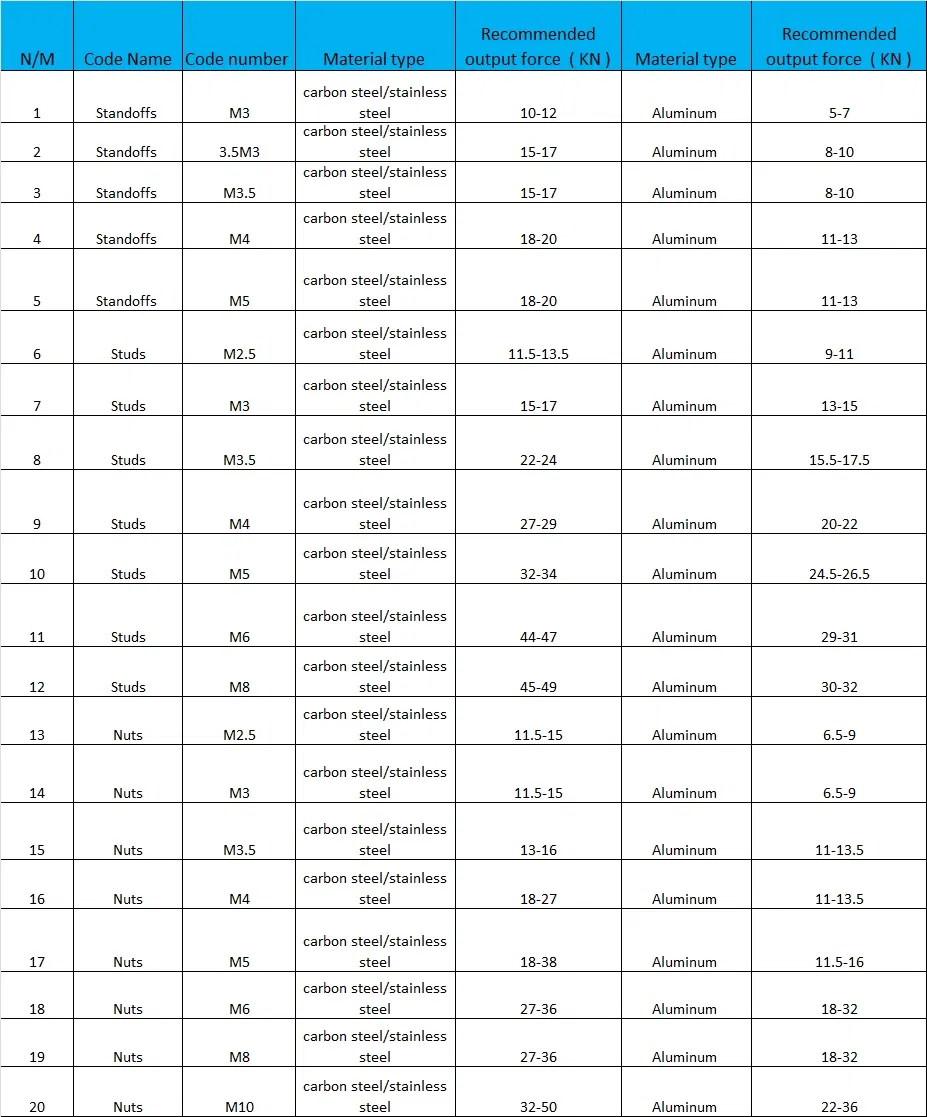

Product recommended output force table

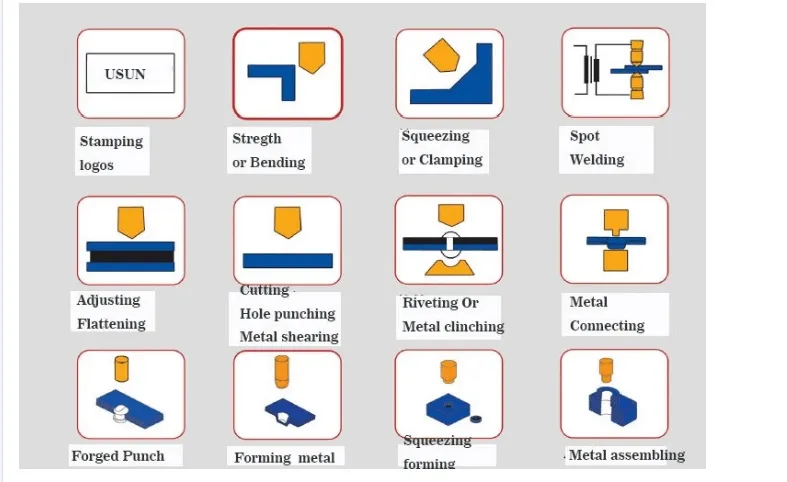

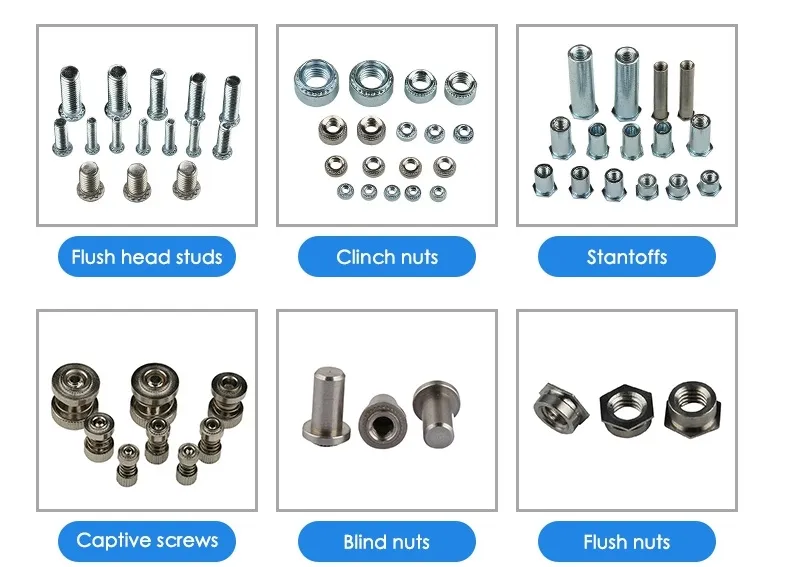

Product applications

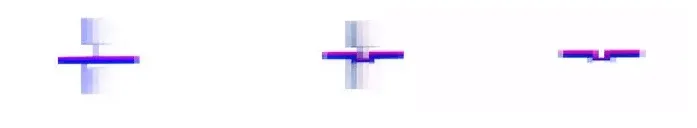

No-rivets clinching procession

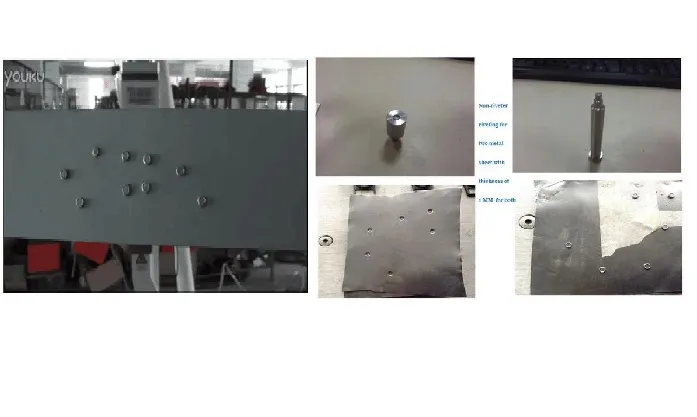

Real clinching samples for riveting machine( Before riveting and after riveting )
