Usun Model: Ulyp-518 Deep Throat Self Clinching Nuts or Studs Insertion Press Machine with Auto Feeder From M3 to M8 Size
Promotional Best Quality 8 Tons Model: ULYP -518 Automatic feedinghydraulic fastener insertion machine for bottom and upper feeding system SUITABLE FIELD1.Riveting ability (Nut below M10,bolt below M8 and srew below M6 carbon steel material riveting fastener)2.Turned edge tapping thread (below M......
Send Inquiry
Product Description
Promotional Best Quality 8 Tons Model: ULYP -518 Automatic feeding
hydraulic fastener insertion machine for bottom and upper feeding system
SUITABLE FIELD
1.Riveting ability (Nut below M10,bolt below M8 and srew below M6 carbon steel material riveting fastener)
2.Turned edge tapping thread (below M6 carbon steel material turned edge tapping thread technology)
3.Convex hull formation(formation arear diameter below 45MM techonlogy
4.No rivet screw conjunction(total thickness below 4.0MM carbon steel material no rivet screw conjunction technology)
5.Pierce out lock rivet conjunction (total thickness below 4.0MM carbon steel material pierce out lock rivet
conjunction technology)
Product Main features
1) Compact structure, clean design
2) Increased productivity with automatic feeding system and multi-point riveting
3) Large anti-ejecting forces and anti-torsion torques
4) High flexibility with height-adjustable
5) High stroke frequency High stroke frequency
6) Easy maintenance and changeable
7) Available for riveting nuts diameter larger than M10

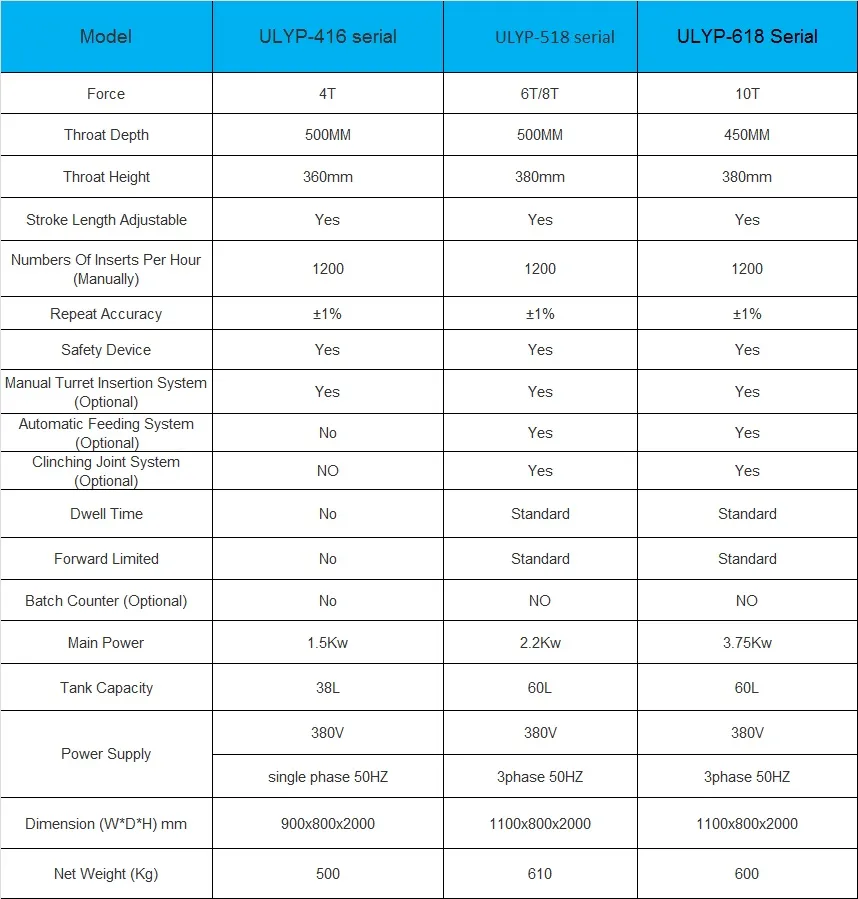

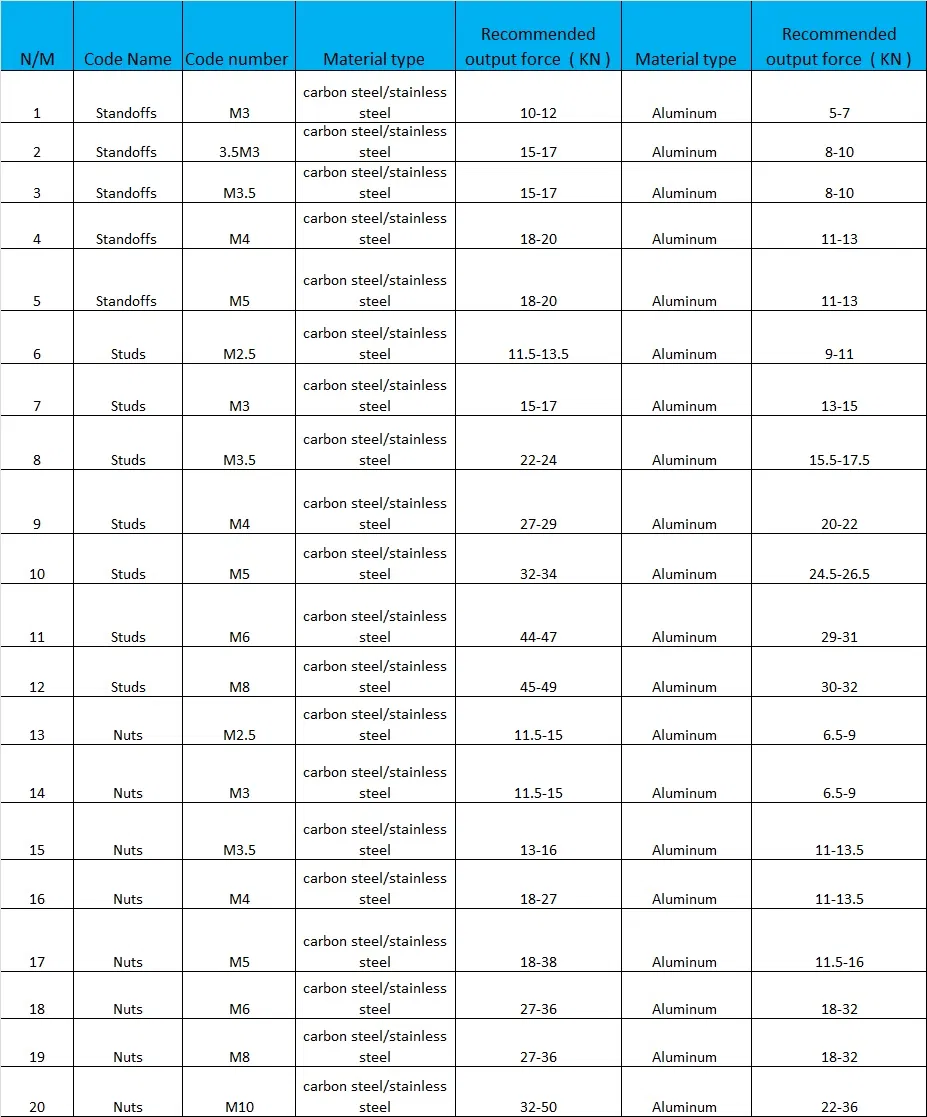

Product specifications
-High Stiffness, structure, high stability, less vibration, high accuracy
-Ergonomic design frame and different size tooling package with easy operation panel to meet most
of the complex insertion process by single operator
-Quick press force setting and repeatability +/-1%
-100% safety system
-Energy saving re-design reliability and eneryy efficiency of a full hydraulic system

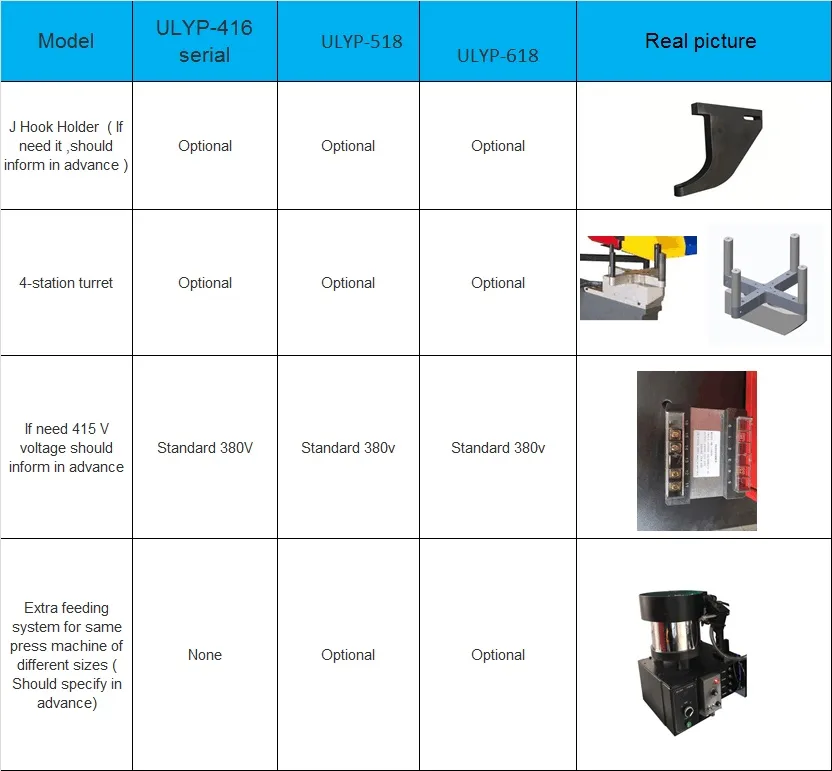

-Optional auto feeding system and clinching joint system
-Possibility to insert M12 nut with the mild steel
-RED & GREY color OR BLUE & WHITE color
-Standard power supply 3 phase 380V/50HZ
-Variable dwell time for use stainless steel M8 nut and materials and the others hard materials

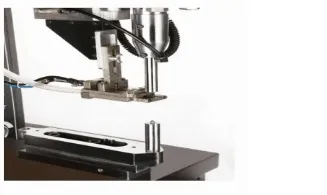

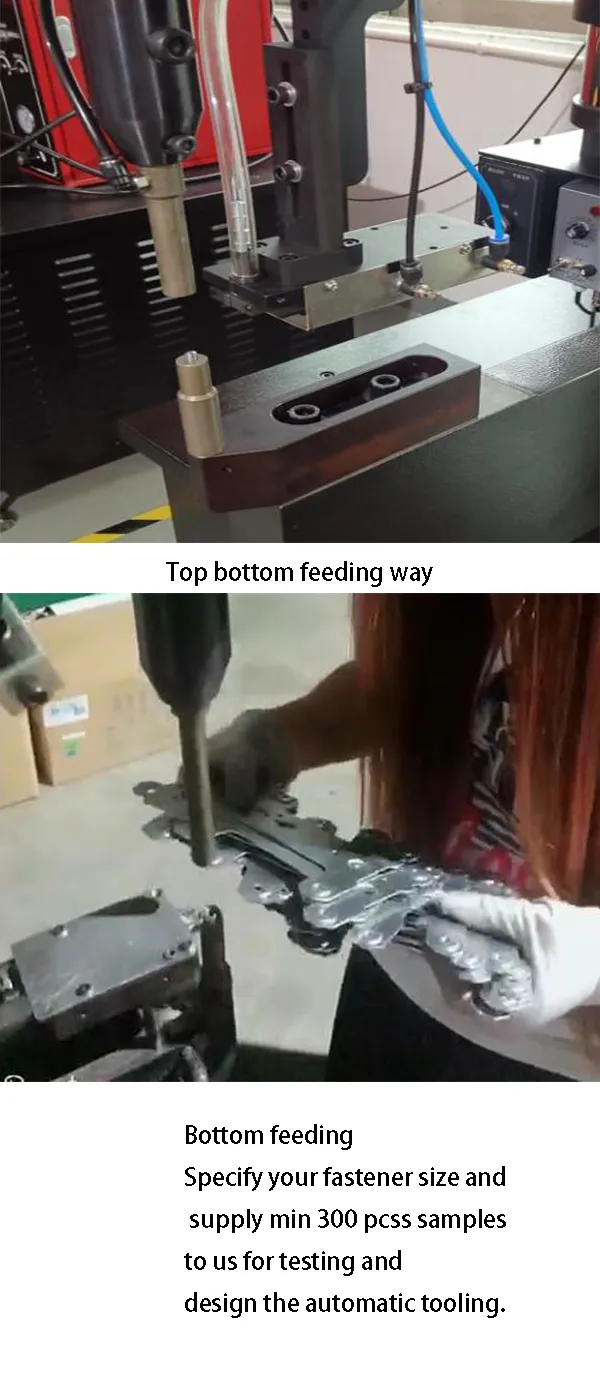

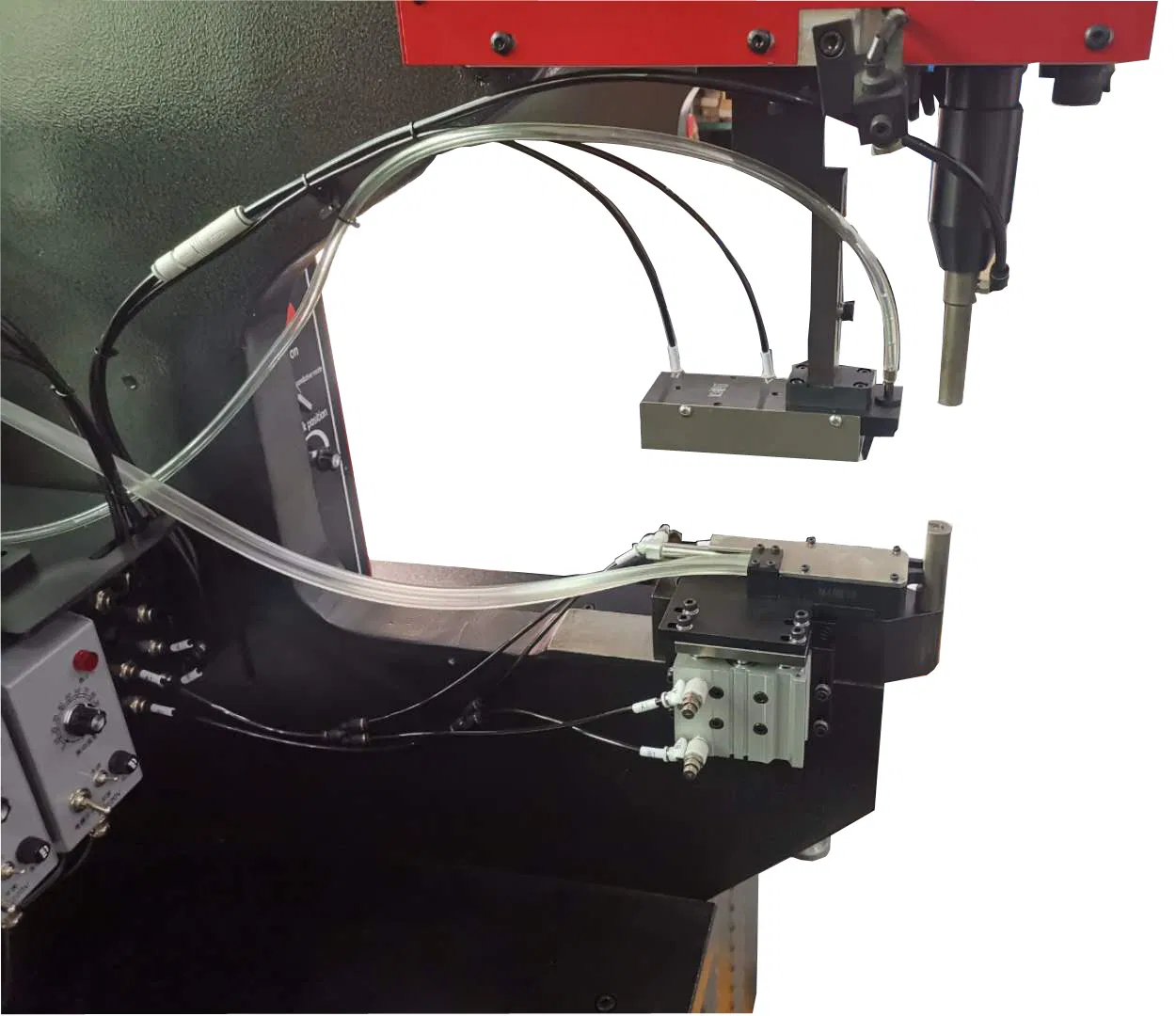

Bottom and top auto feeding tooling

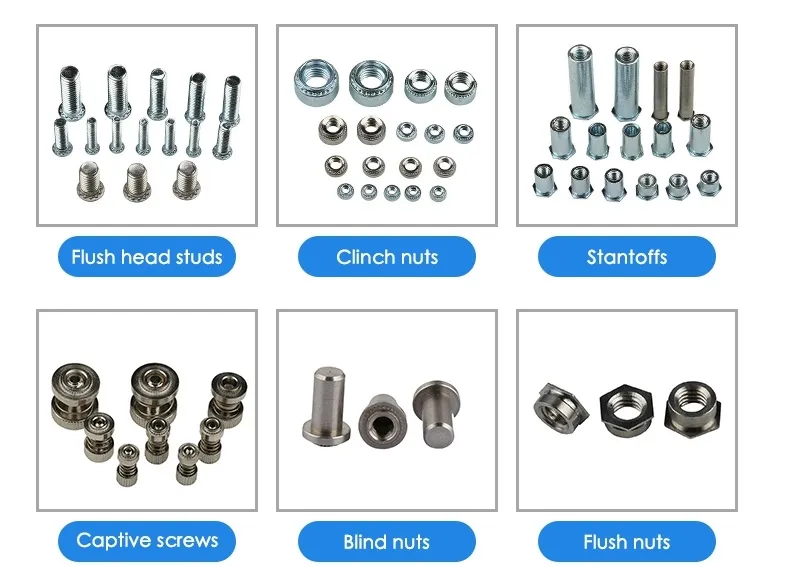

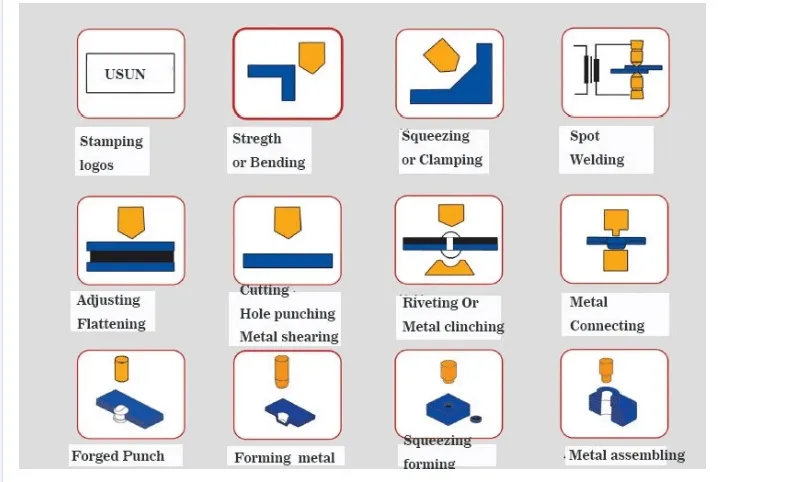

Product Applications
No-rivets clinching procession

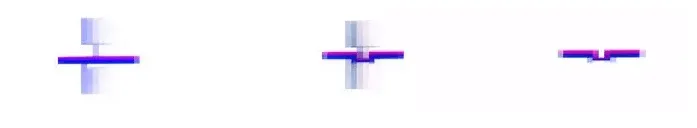

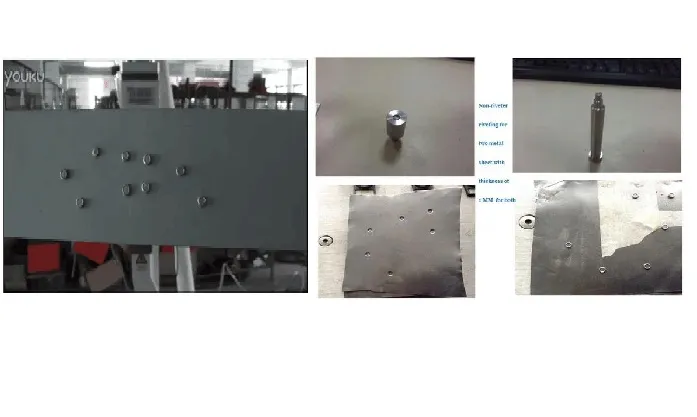

Real clinching samples for riveting machine( Before riveting and after riveting )

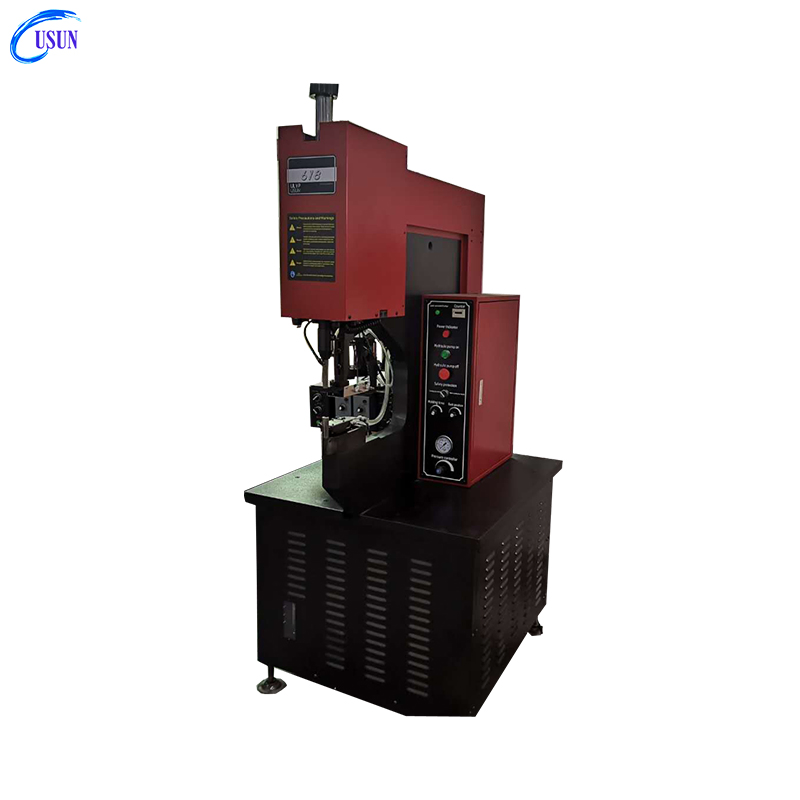

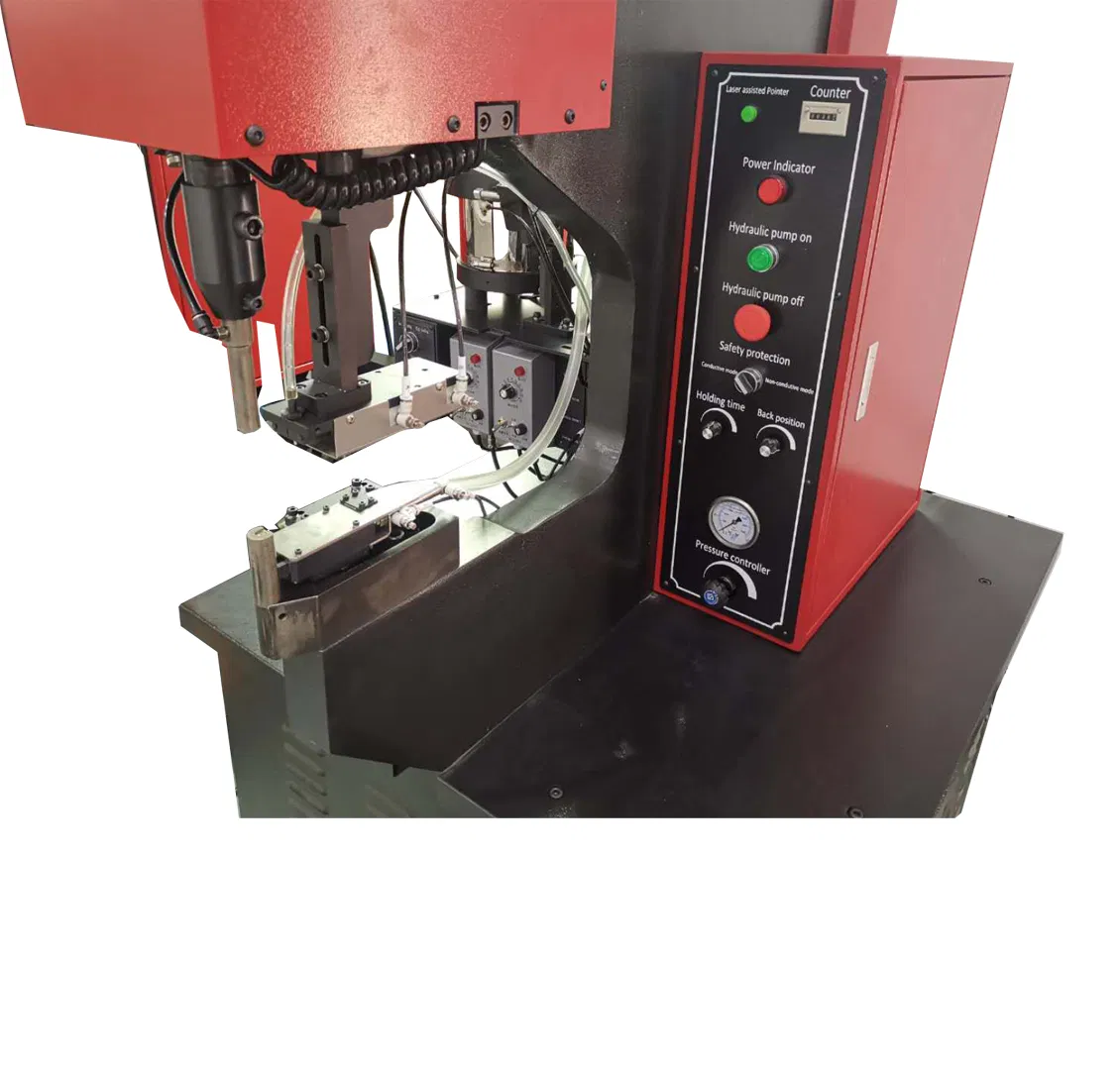

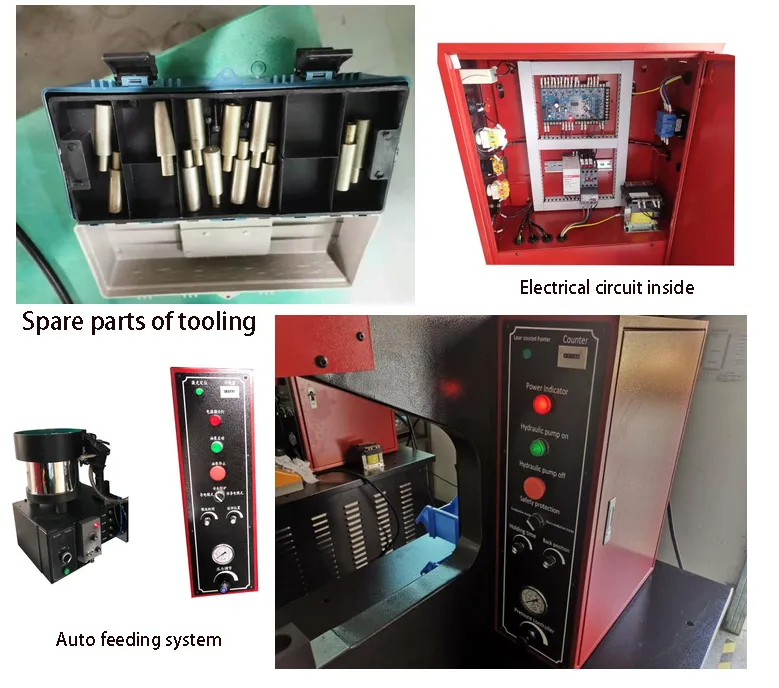

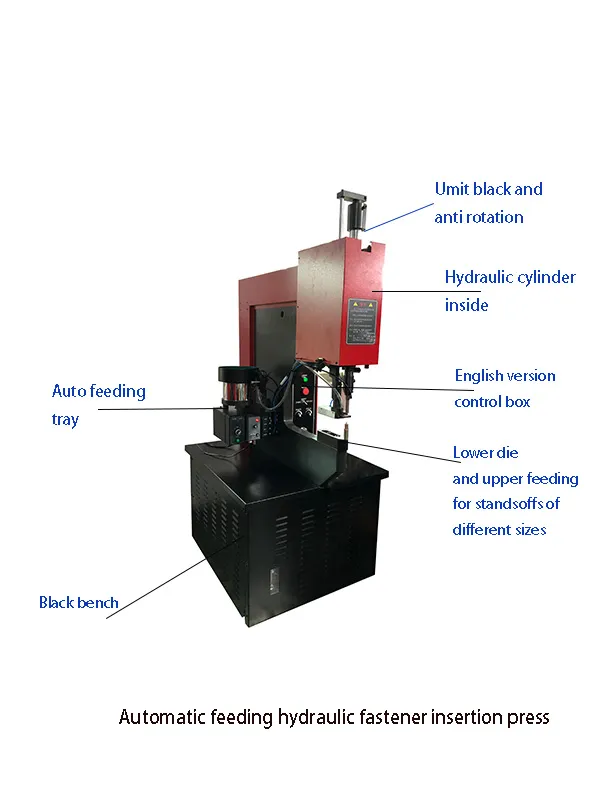

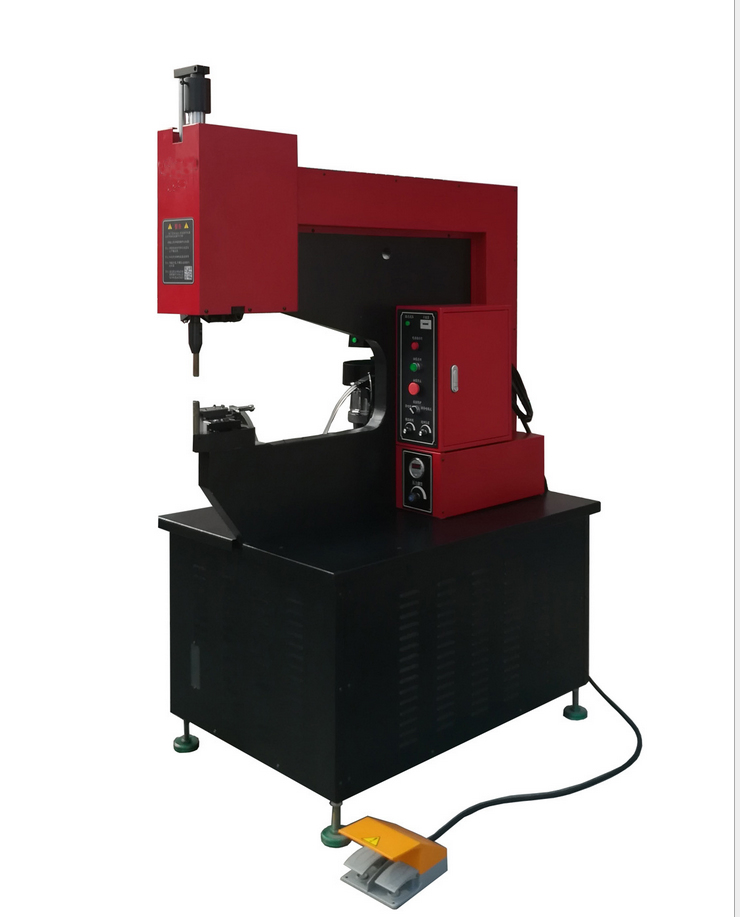

Real machine Pictures
