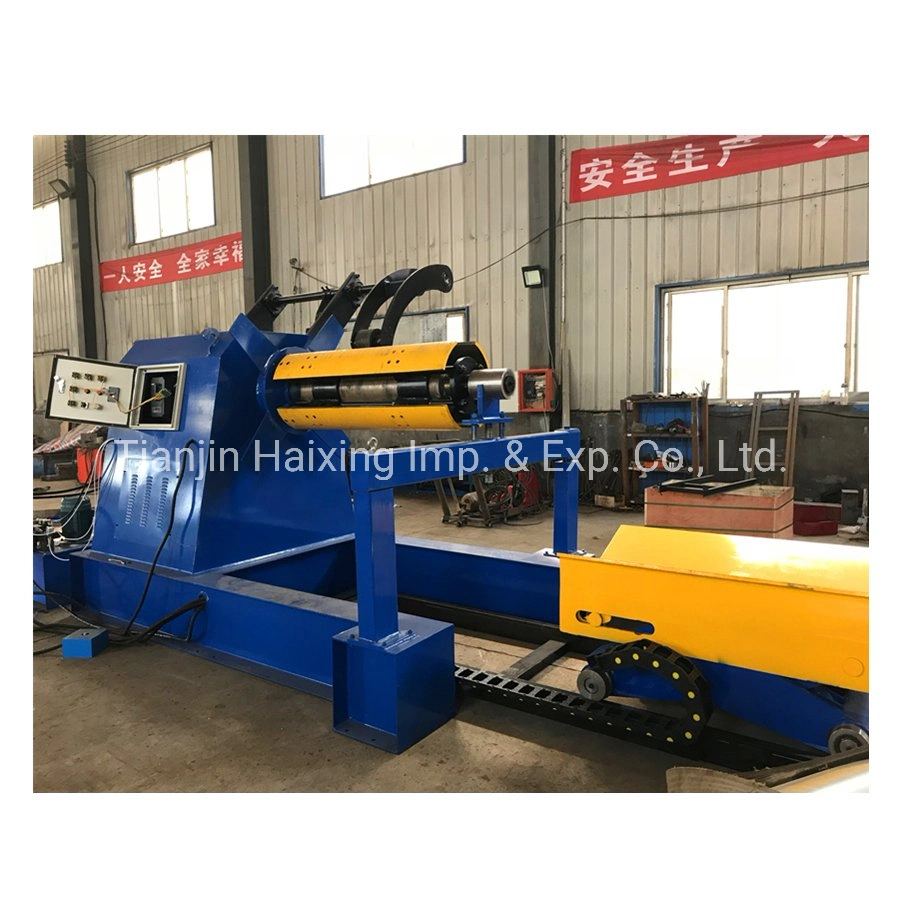

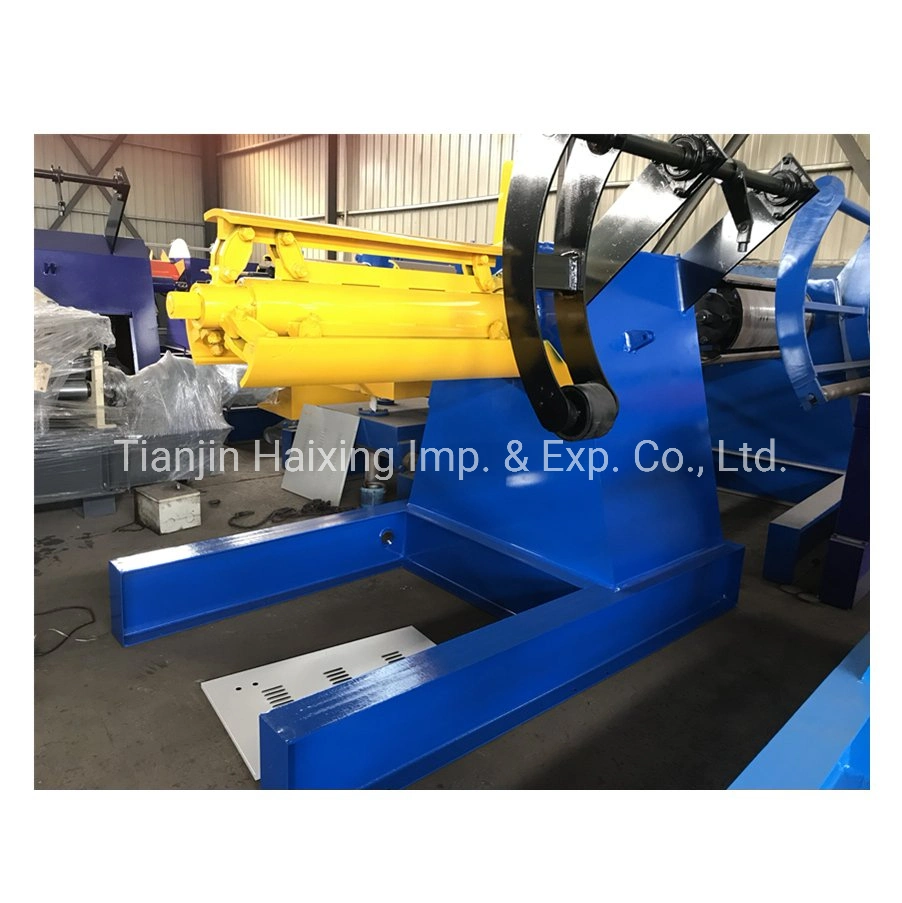

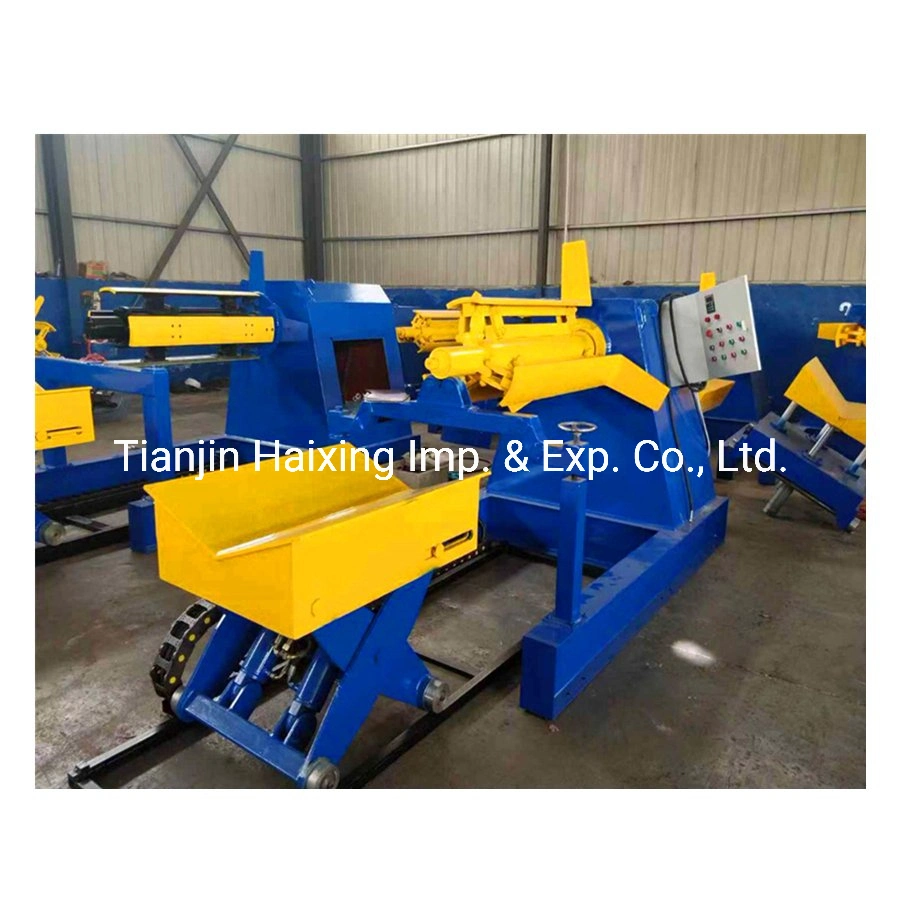

Color Steel Coils Auto Hydraulic Uncoiler

Product Description

♥ Product Description

Color Steel Coils Auto Hydraulic Uncoiler is powered by motor and hydraulic pump. It will save the cost for one worker.

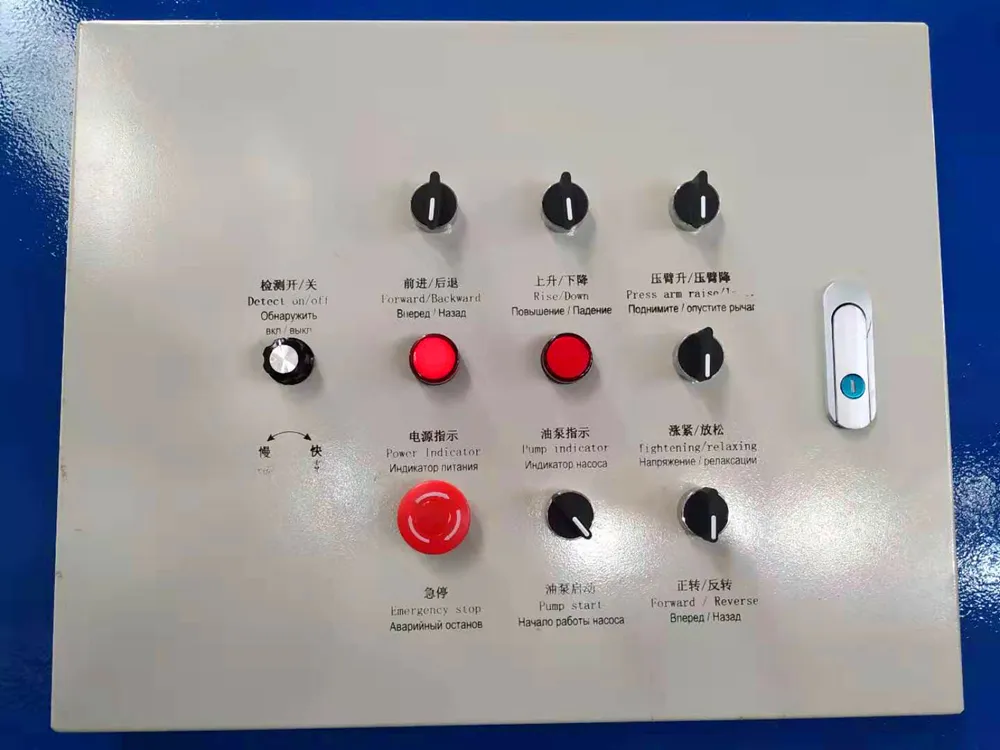

There is a sensor. If the coil between uncoiler and roll forming machine is tight, the sensor will let the uncoiler go forward. If the coil between is loose, the sensor will let the uncoiler stop.

So it is more convenient and more stable.
When you have a steel coil,but you need plane steel panel,you will use this hydraulic decooiler machine

No.	Main Parameter of Color Steel Coils Auto Hydraulic Uncoiler
1	Size	2.91.61.9meters
2	Weight	3.8Tons (Include loading trolley)
3	Main axis	200mm
4	Motor Power	5.5Kw PM250 Steel reducer,Speed ratio 40:17
5	Pump Station Motor	5.5Kw ,Brand Lichao,Shanghai
6	Frequency Inverter	5.5Kw,Sanjing
7	Cylinder type	100 Rotating cylinder
8	Bottom shelf	350 H beams
9	The whole box iron plate	16mm
10	Max put weight	10Tons
11	Max coil width	1000mm(or according to your need)
12	Coil diameter	470-530mm
13	Control Box	Delta ,Taiwan
14	Power	380V 50HZ 3Phase

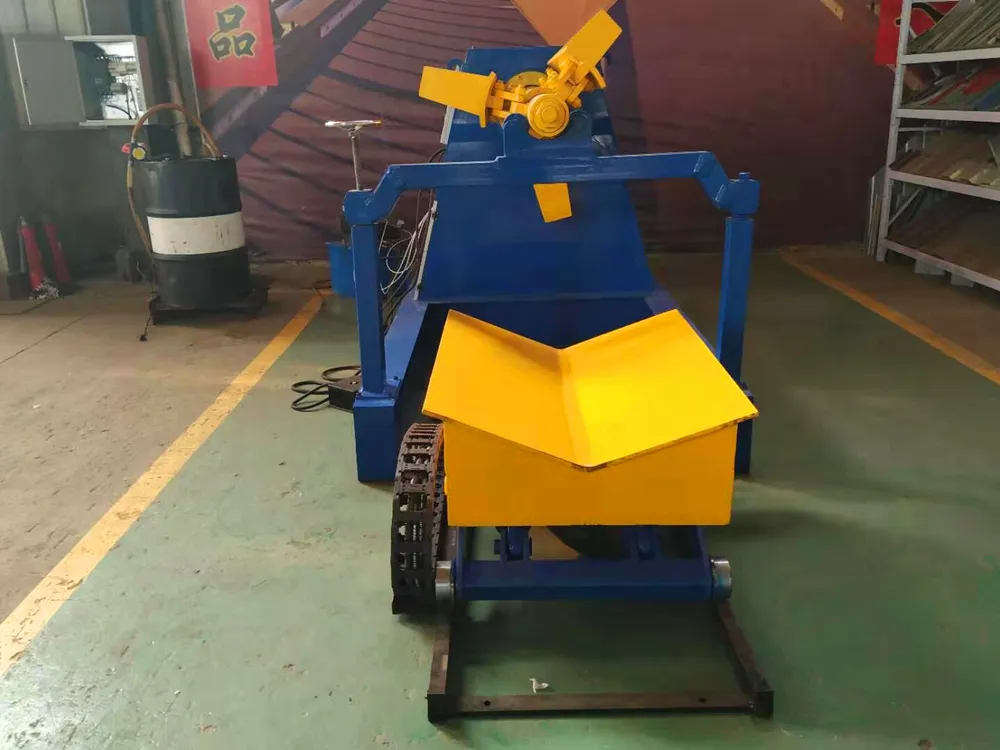

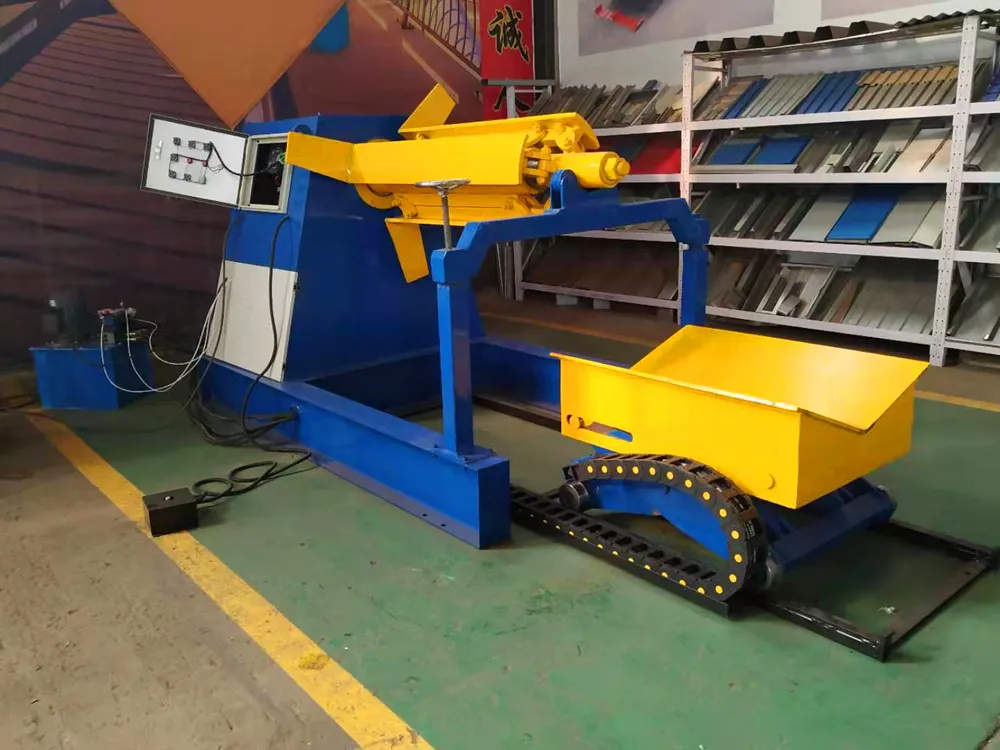

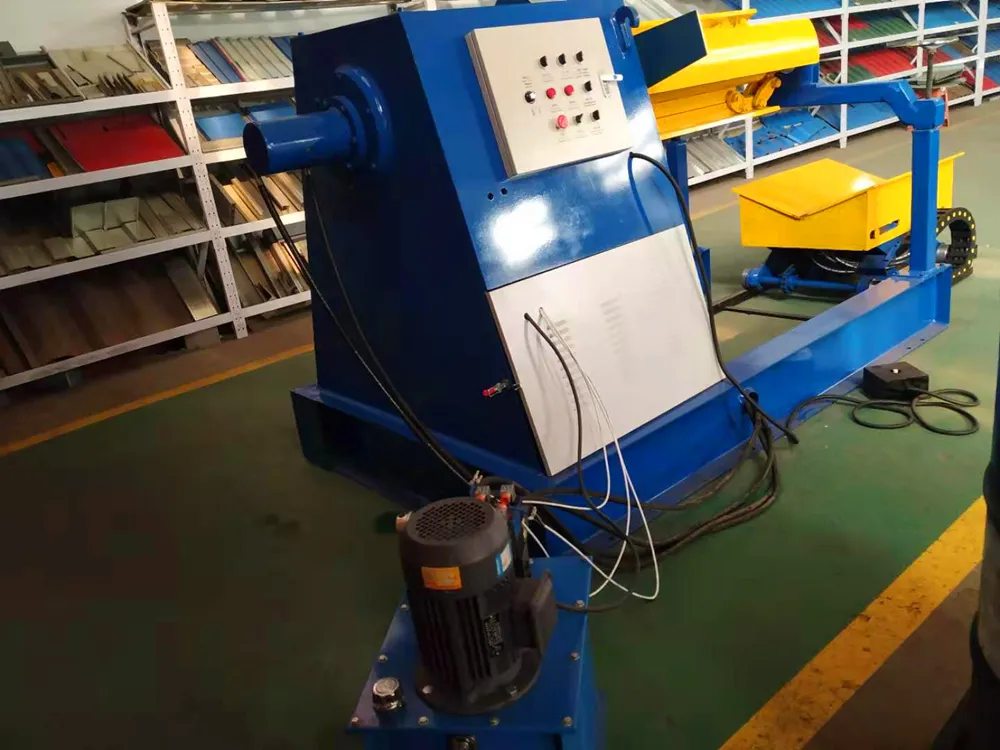

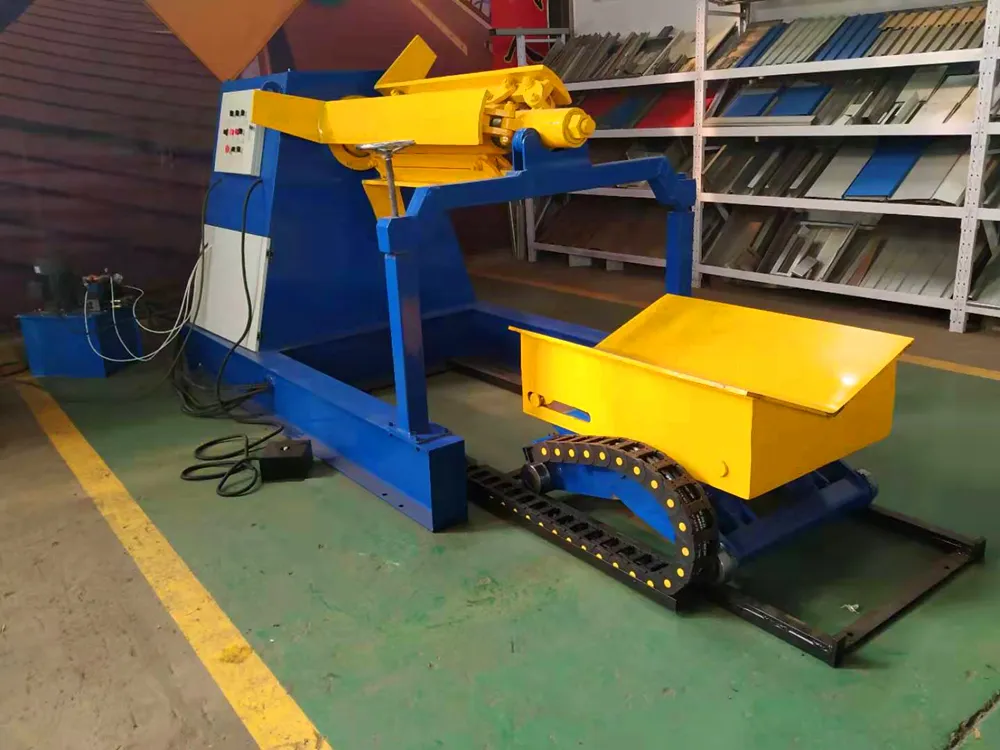

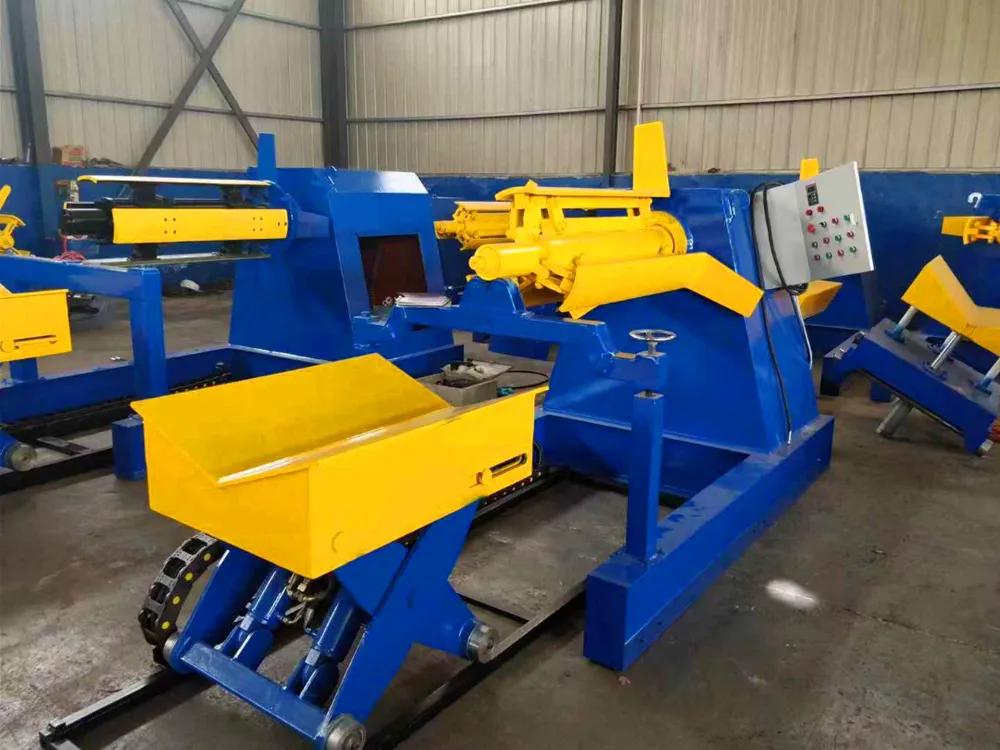

♥ Main details photos showing
Color Steel Coils Auto Hydraulic Uncoiler

♥Why choose us ?

Professional	With 8 years' profesional manufacturing experience in roll forming machinery
Professional	Profesinal production line,well -trained workers,strict QC standard
Main market	Our products have shipped around the world
Main market	Bolivia ,USA,Norway,Denmark,Mexcio ,Germany,Australia,Brazil, Italy etc
Service	We have good and professional team
	We accept any drawings or your samples to develop new product
	Any small problems will be solved at the most prompt time
	We always offer relateive technical support,,quick response,all your inquire will replied within 24 hours
Certification	SGS, CE,ISO ,BV,TUV

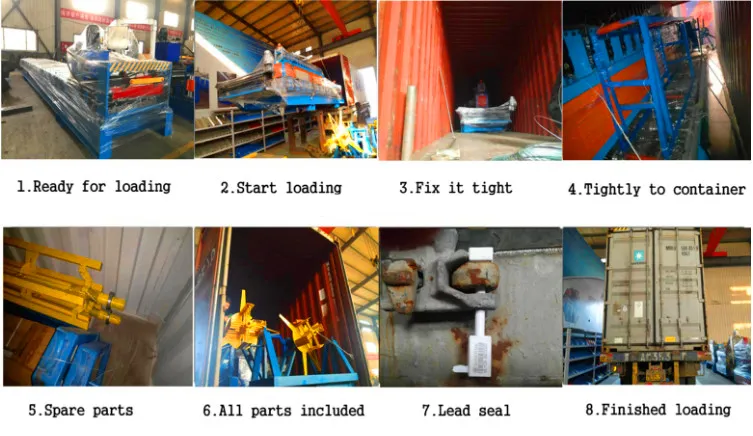

♥ Color Steel Coils Auto Hydraulic Uncoiler packaging and shipment:

1.Main roll forming machine package by Plastic film ;
2.Main machine spare parts package by paper box ;
3.We have professional technicians for loading
Guaranteed the goods load into container without any damage.
4.Transportation : Machines need one 20 feet container to hold;
5.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

♥ Our services about Color Steel Coils Auto Hydraulic Uncoiler

1. Installation and training:
a.If buyers visit our factory and check the stainless steel roll levelling machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2. After Service

a.One year guarantee for whole stainless steel roll levelling machine .

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.
Color Steel Coils Auto Hydraulic Uncoiler
♥ FAQ:

Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll
forming machines.

Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other
parts, processing, assembly, testing and packaging on the roll surface and shaft.

Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged
part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through
negotiation and we provide technical support for the entire life cycle of the device.

Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to
install and have low maintenance requirements.

Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation

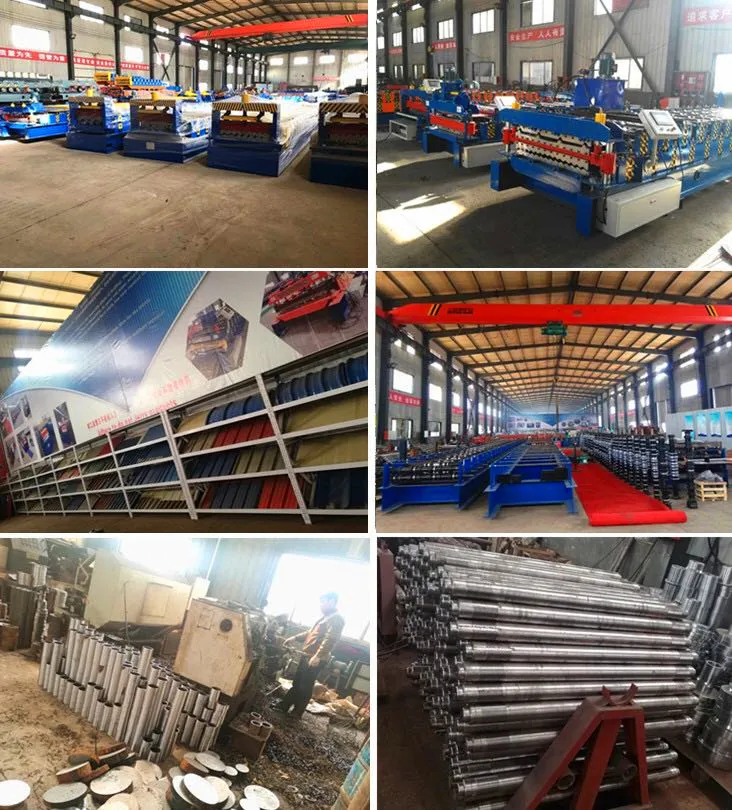

♥ Company Profile Details
Tianjin Haixing Imp&Exp company are specializing in the production of all kinds of Roof Tile Metal Panel Making Roll Forming Machine,glazed roof making machine ,double roof making machine ,floor deck machine,curve roof machine ,ridge cap roof forming machine ,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price ,automatic leveling and cut to length machine slitting machine, satisfied with the quality ,welcome to every customers come to visit and buy ! ! ! We will 24 hourse services for you ,please don't hesitate to contact us when you need .
Color Steel Coils Auto Hydraulic Uncoiler

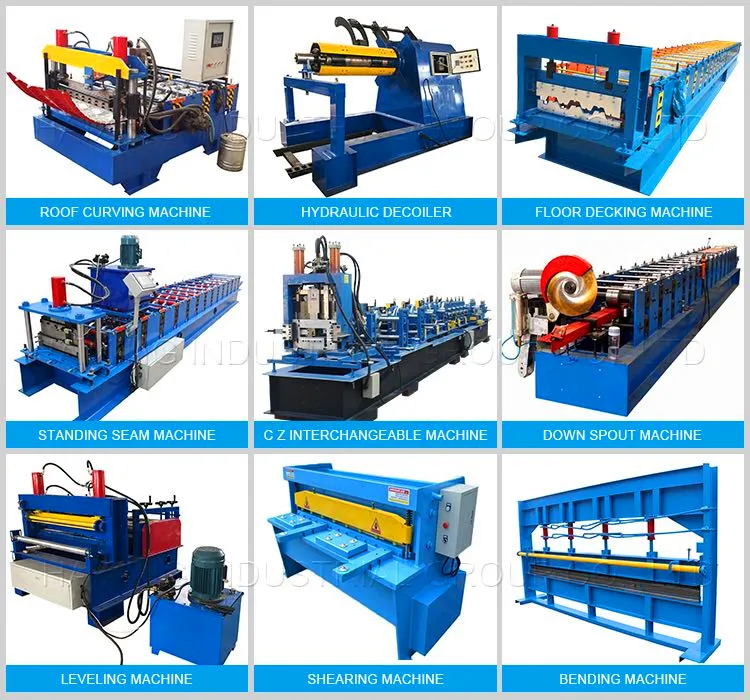

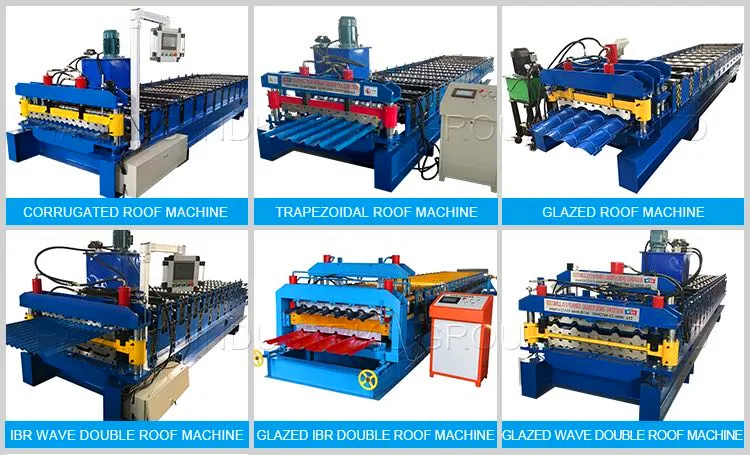

♥ Our Company Main Roll Forming machines

1.Different types roof profile drawing forming machine ;
2.Curve roof roll forming machine ; 3.Ridge cap roll forming machine ;
4.Floor deck roll forming machine ; 5.Rain gutter roll forming machine ;
6.Down pipe roll forming machine ; 7.Highway guardrail roll forming machine ;
8.Roller shutter door forming machine ; 9.Door frame roll forming machine ;
10.CZU purlin roll forming machine ; 11.Light keel roll forming machine ;
12.Slitting machine (lines); 13.Shearing/bending machine ;
14.Decoiler(Hydraulic decoiler ,electric decoiler and manual decoils) and so on .
Color Steel Coils Auto Hydraulic Uncoiler
