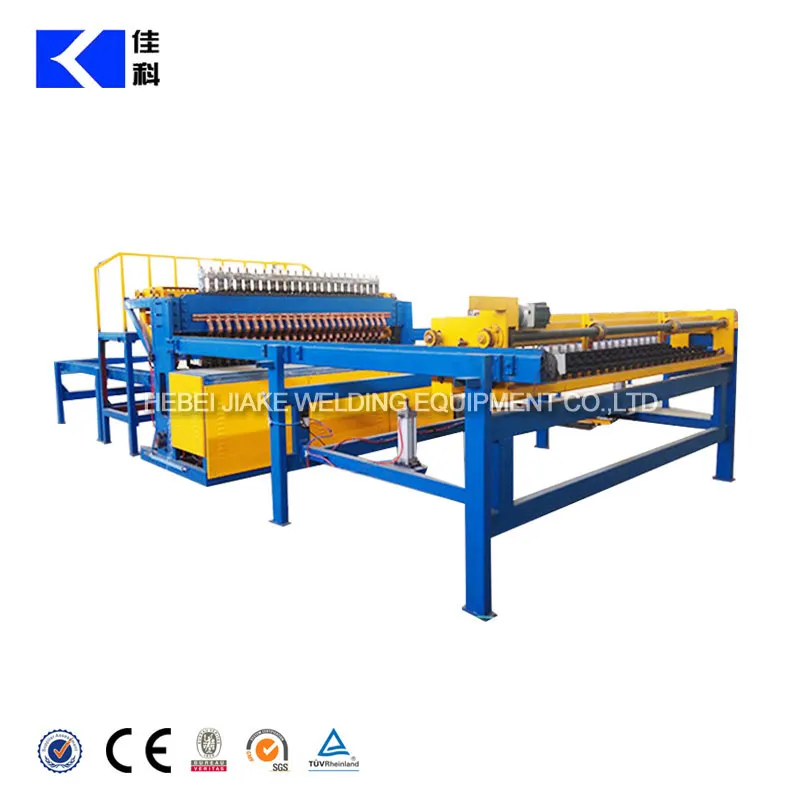

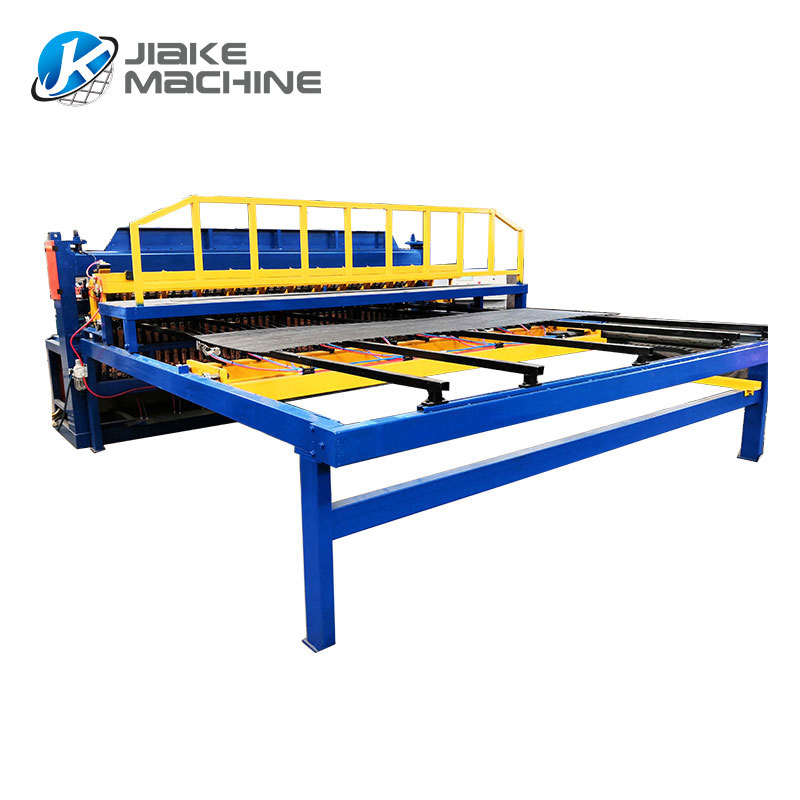

Automatic Reinforcing Mesh Welding Machine

Product Description

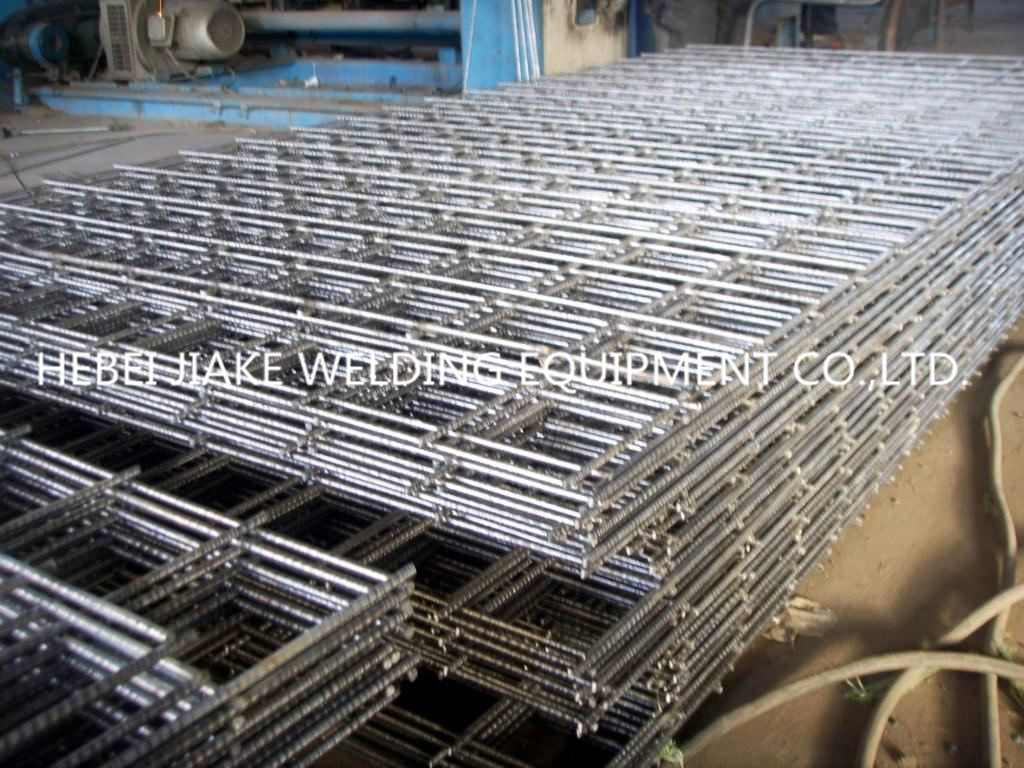

Building construction reinforcing concrete wire mesh welding machine
Automatic Reinforcing Mesh Welding Machine

Machine description:
1.Welding current was controlled by computer synchronously.Each welding current and time of the welding transformer can be adjusted independently.
2.The cross wire is fed by hopper automatically, the longitude wire is fed manually.
Both longitude wire and cross wire are pre-straightened and pre-cut.
3.According to the wire welding pitch,the machine can adjust upper electrodes,each welding point is adjustable.
4.Pulling mesh device adopts servo driver, it can set a variety of wire distance in the same mesh.
5.The control system is PLC. The longitude wire space can be adjust by inputing the width you want.
Technical Parameter:

Wire Diameter	5mm-12mm	Longitud Wire Feeding	Pre-straightened and pre-cut
Longitude Wire Space	100mm-300mm	Cross Wire Feeding	Pre-straightened and pre-cut
Cross Wire Space	50mm-300mm	Rated Electrical Power	100kvaX12 pcs
Width of Mesh	2500mm	Rated Voltage	3phase,380V/220V/415V/440V 50Hz or 60Hz
Welding Electrodes	24 pcs	Weight	6500Kg
Welding Speed	60 times/min	Overall Size	14mX3.2mX2.3m

Packing& delivery

45 days after we receive the prepaid
1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire rope to make it stable.
3. It needs one 20 feet or 40 feet container for shipment.

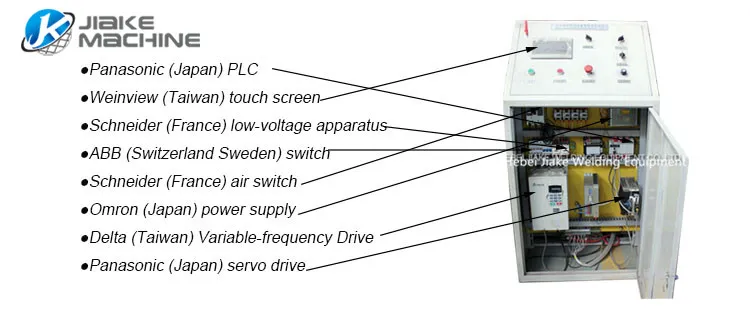

Machine Advantages
Panasonic PLC(Japan) control system
Weiview(Taiwan) touch screen
Automatic Reinforcing Mesh Welding Machine

Delta(Taiwan) variable-frequency drive
CE ISO certification
Our service
1. Guarantee time:one year since machine was at buyer' factory within 18 months against B/L date
2.Within guarantee time, if any components are broken under normal condition, we can change for free.
3.We can send our best technician to buyer's factory for installation, debugging and training.
4.Complete installation instructions, circuit diagram, manual operations and machine layout.
5.24 hours technical support by e-mail.

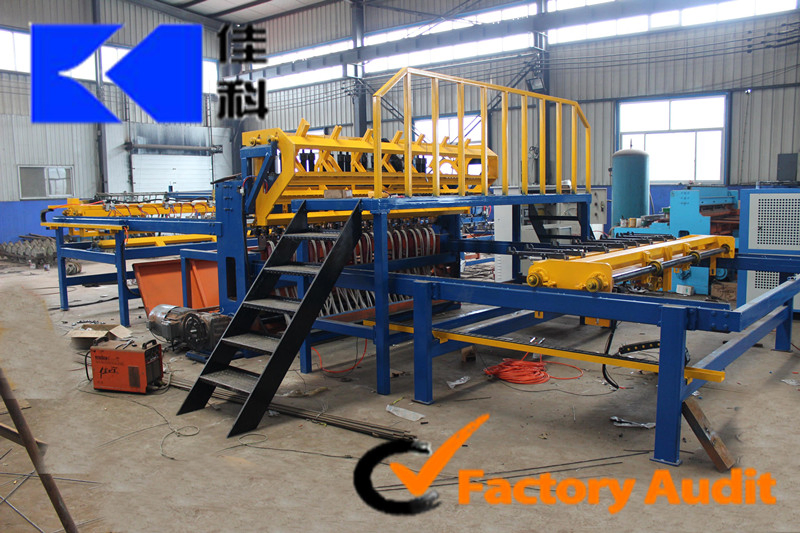

Company Information
Hebei Jiake Welding Equipment Co.,Ltd is a profesinal manufacture have 10000M2 factory with more than 20 years experience ,Specialize in the welding machine and equipment :wire mesh welding machine ,fence mesh welding machine,chicken cage welding machine , rabbiet cage welding machine ,reinforcing mesh welding machine,automatic welded mesh machine and producttion line of wedged screen and steel gratings.
