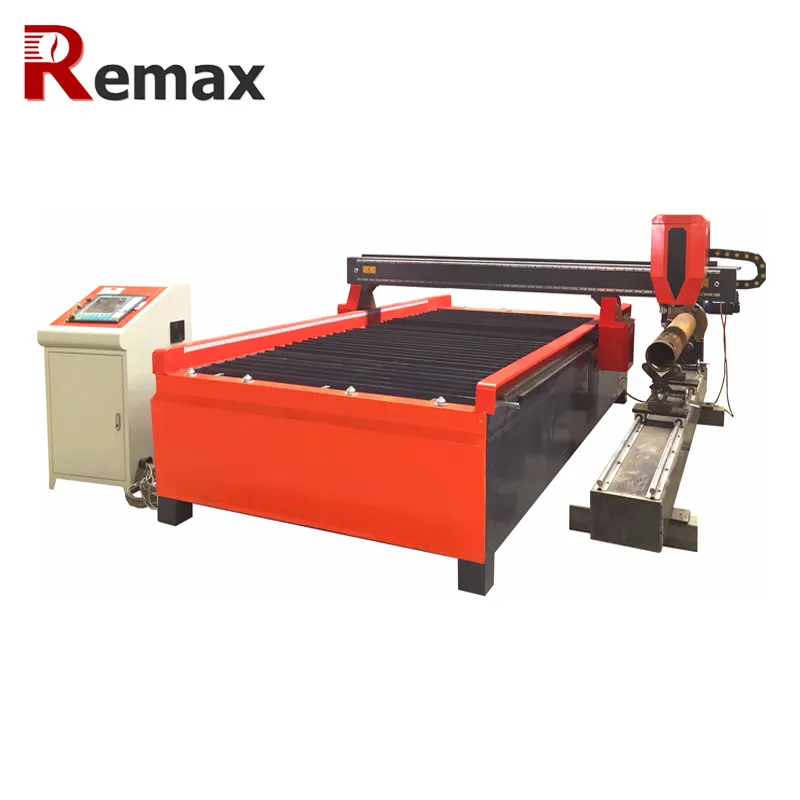

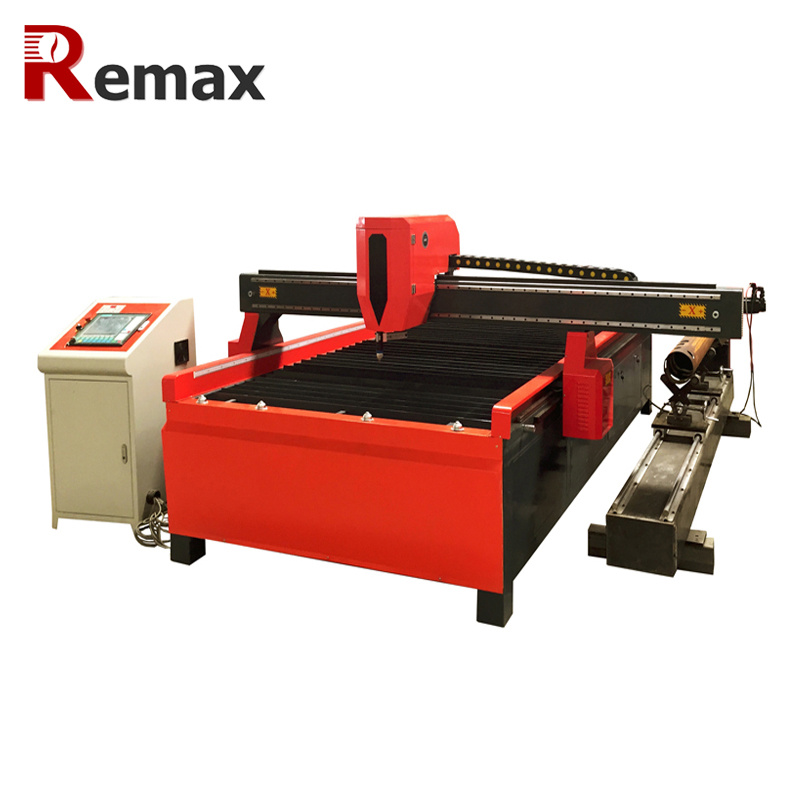

1530 4 Axis Plasma Cutting Machine with Rotary for Metal/Metal Tube

Product Description

1530 plsama cutting machine with rotary

1530 4 Axis Plasma Cutting Machine with Rotary for Metal/Metal Tube

Plasma cutting machine is used to cut steel, iron, aluminum and other metal objects. It has the characteristics of
high cutting efficiency and fast speed. It is widely used in heavy industry.
1530 4 Axis Plasma Cutting Machine with Rotary for Metal/Metal Tube

1. The advantage of the plasma cutting machine is that the cutting speed is fast when cutting metal with small
thickness, especially when cutting ordinary carbon steel plate, the speed can reach 5 to 6 times that of the oxygen
cutting method, and the surface of the carbon steel plate is smooth, small thermal deformation, and thermal influence Few areas.

2. Remax CNC plasma cutting table adopts Hypetherm 125A plasma power supply, the maximum cutting thickness
can reach 27mm. It is very suitable for large thickness metal plates.

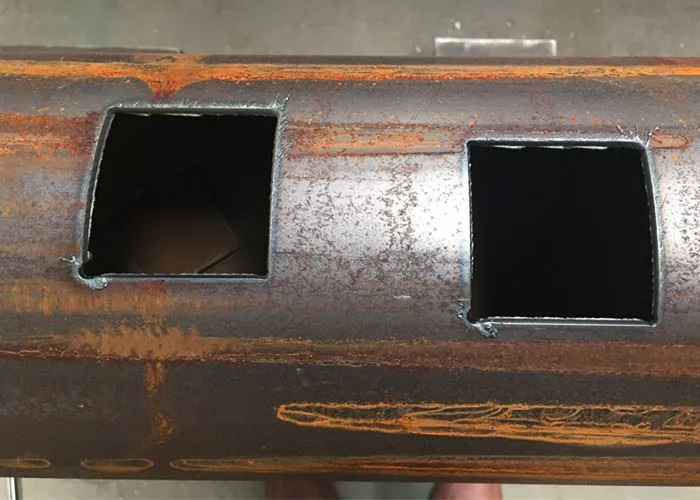

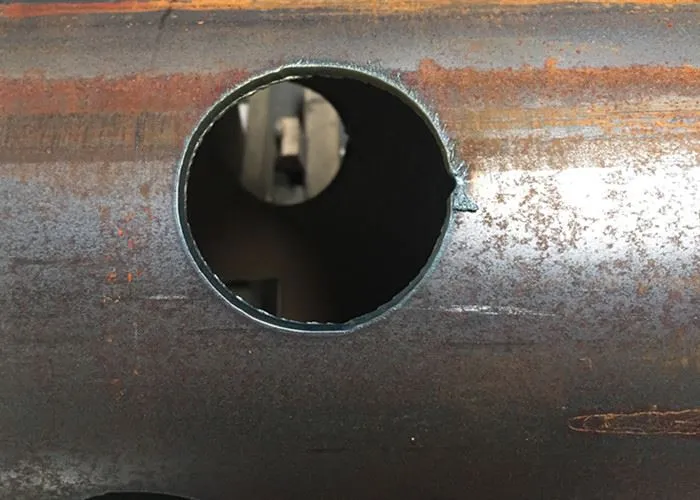

3. The plasma cutting machine with rotating shaft can be used to cut oil pipes.

Model	CNC plasma tube cutting machine
Effective cutting width(X axis)	1300mm
Effective cutting width(Y axis)	2500mm
Plasma power	Hypetherm 125A
Eletric components	Schneider

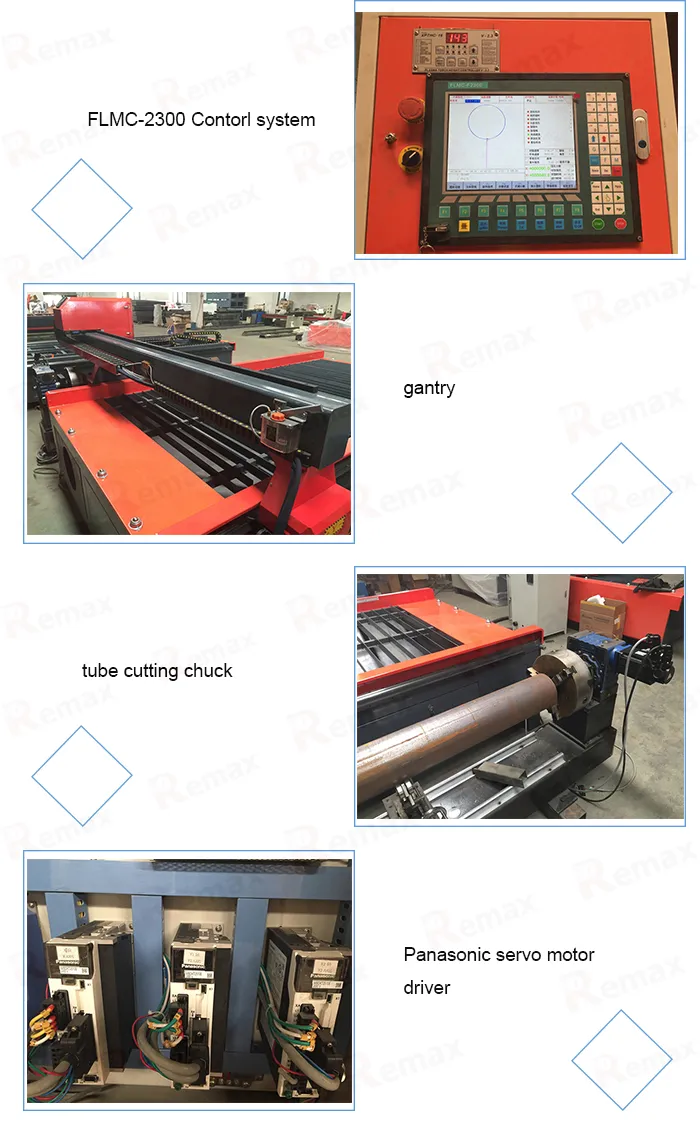

control system	FLMC-2300X
Plasma cutting speed	50-6500mm/min
Cutting torch lifting distance	150mm
Speed setting error	≤±5%
Max idle running speed	12000mm/min
Torch height controller accuracy	≤±1.0mm
Longitudinal line accuracy	±0.2mm/10m
Drvier	Panasonic servo motor and driver
Gear box	Hubei planet
Drive Method	Rack and square rails for X Y Z axis
Moving Precision	0.01mm per step
Machine Voltage	220V 50/60hz ,Single phase Plasma power voltage 380V 50/60hz ,3 phase
Plasma cutting thickness	1-30mm
Length of one side	±0.5mm
Diagonal error	\|AD-BC\| ±0.5mm
Error of returning to base point	±0.2mm
