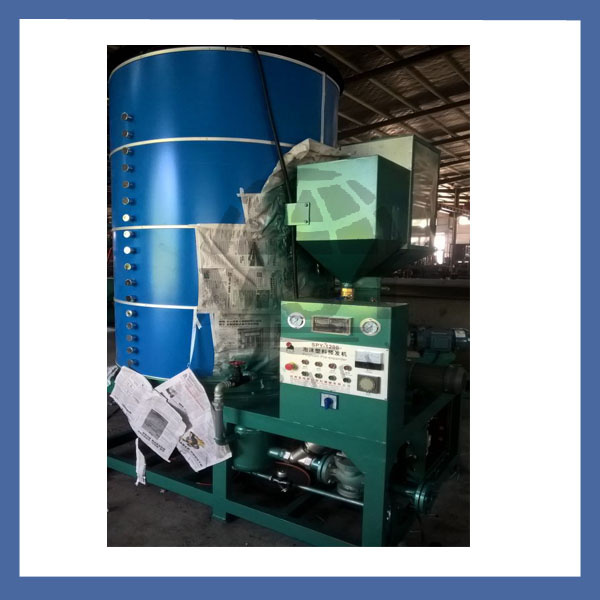

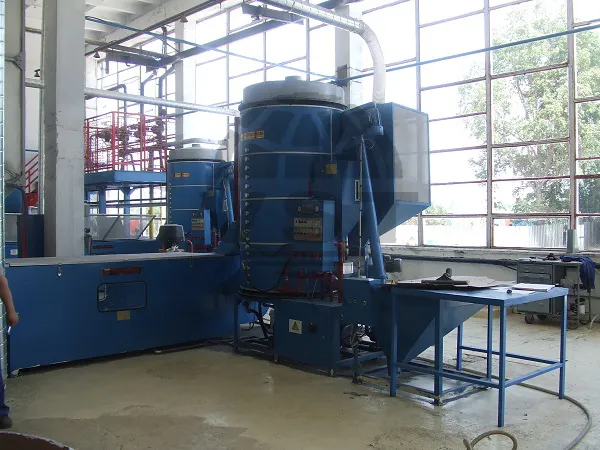

Best Price & High Quality Automatic Pre-Expander Machine
Main Features:1, All process including filling, expanding, sieving, delumping and conveying to silos are done automatically.2, With primary and secondary expansion device to get density of 8-30g/l3, Fist filling is controlled by frequency converter4, With power-off protection device5, With Japan ste......
Send Inquiry
Product Description
Main Features:
1, All process including filling, expanding, sieving, delumping and conveying to silos are done automatically.
2, With primary and secondary expansion device to get density of 8-30g/l
3, Fist filling is controlled by frequency converter
4, With power-off protection device
5, With Japan steam presure reducing valve
1, All process including filling, expanding, sieving, delumping and conveying to silos are done automatically.
2, With primary and secondary expansion device to get density of 8-30g/l
3, Fist filling is controlled by frequency converter
4, With power-off protection device
5, With Japan steam presure reducing valve
TECHNICAL DATA | ||||
| Item | PSY-70 | PSY-90 | PSY-120 | |
| Expansion Chamber | Diameter Volume Useable volume | Φ 700mm 0.6 m³ 0.4m³ | Φ 900mm 1.2 m³ 0.8m³ | Φ 1200mm 2.2m³ 1.5m³ |
| Steam | Entry Consumption Pressure | DN20 80-100kg/cycle 0.6-0.8MPa | DN40 100-150kg/cycle 0.6-0.8MPa | DN40 150-200kg/cycle 0.6-0.8MPa |
| Compressed Air | Entry Pressure | DN15 0.6-0.8MPa | DN20 0.6-0.8MPa | DN20 0.6-0.8MPa |
| Drainage | Condensate | Φ 20mm | Φ 20mm | Φ 20mm |
| Throughout | 15g/l 20g/l 25g/l 30g/l | 100g/l 120g/l 150g/l 200g/l | 150g/l 200g/l 250g/l 300g/l | 250g/l 300g/l 410g/l 500g/l |
| Material Conveying Line | Φ 150mm | Φ 150mm | Φ 150mm | |
| Connected Load | 8.93Kw | 9.73Kw | 13.33Kw | |
| Density | First expansion Second expansion | 12-30g/l 8-11g/l | 12-30g/l 8-11g/l | 14-30g/l 8-13g/l |
| Overall Dimension | (L*W*H) | 4700*2660*2600(mm) | 4700*2930*3200(mm) | 4905*4655*3250(mm) |
| Weight | 1300kg | 1500kg | 1800kg | |
| Room Height Required | 3000mm | 3000mm | 3000mm |
