Pet Granulation Production Line Plastic Granule Making Machine

Product Description
1. Plastic pellet machine extruder Parameter

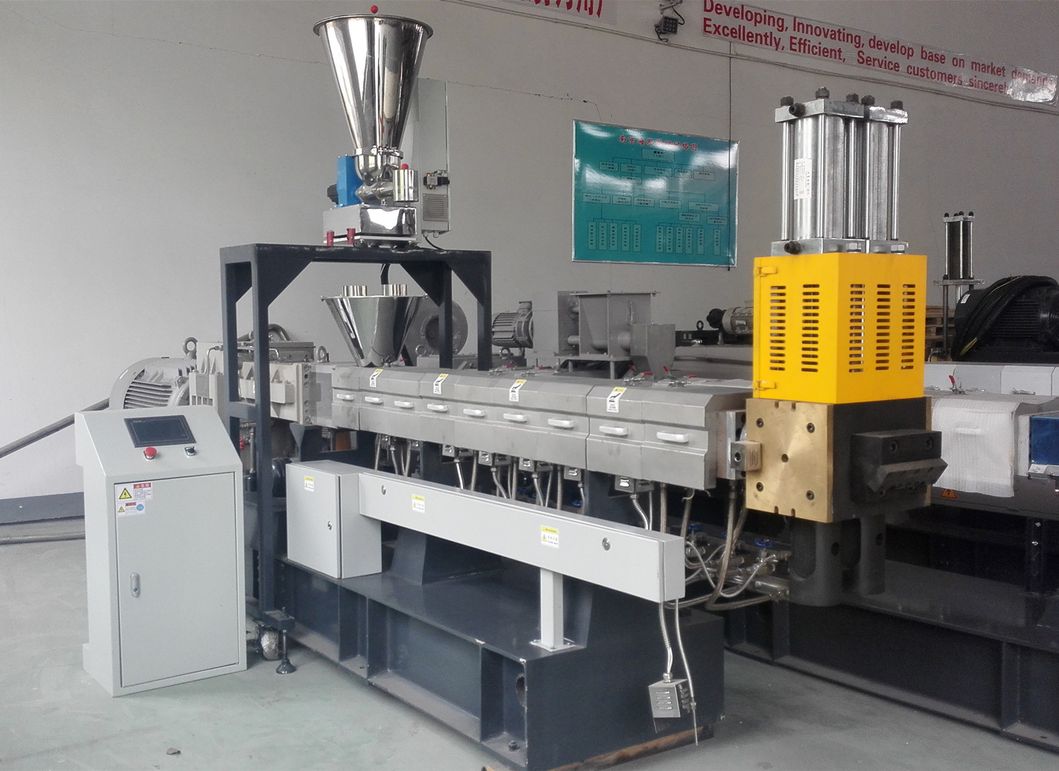

3. TSE Series Twin Screw Plastic Extruder Machine Product Display :

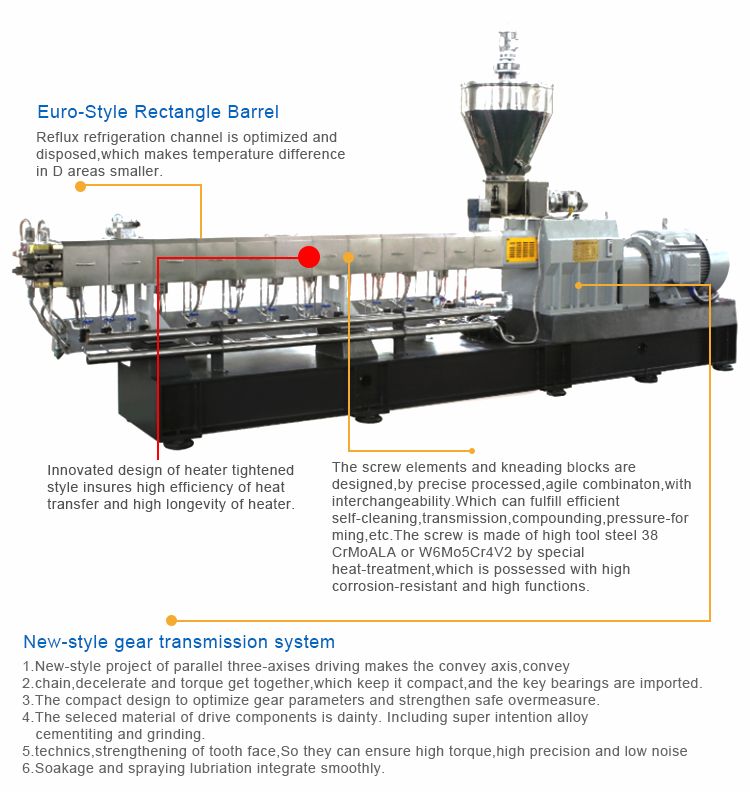

4. Characteristics and spare parts of the extrusion machine
1.The gearbox
·  New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together, which keep it compact, and the key bearings are imported.
· The select material of drive components is dainty, including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.
· Soakage and coerce lubrication integrate smoothly. When the hydraulic circuit is over pressed, it alarms.
2.The feeding system
· Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, liquid-adding system,etc.
3.Screw
· The screw elements and then kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming.
· The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.
4.The barrel
· Eurostyle rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature difference in C areas smaller.
· According to the material and special techinics demands, the material of cylinder can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.
5.The heater
· Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity of heater.

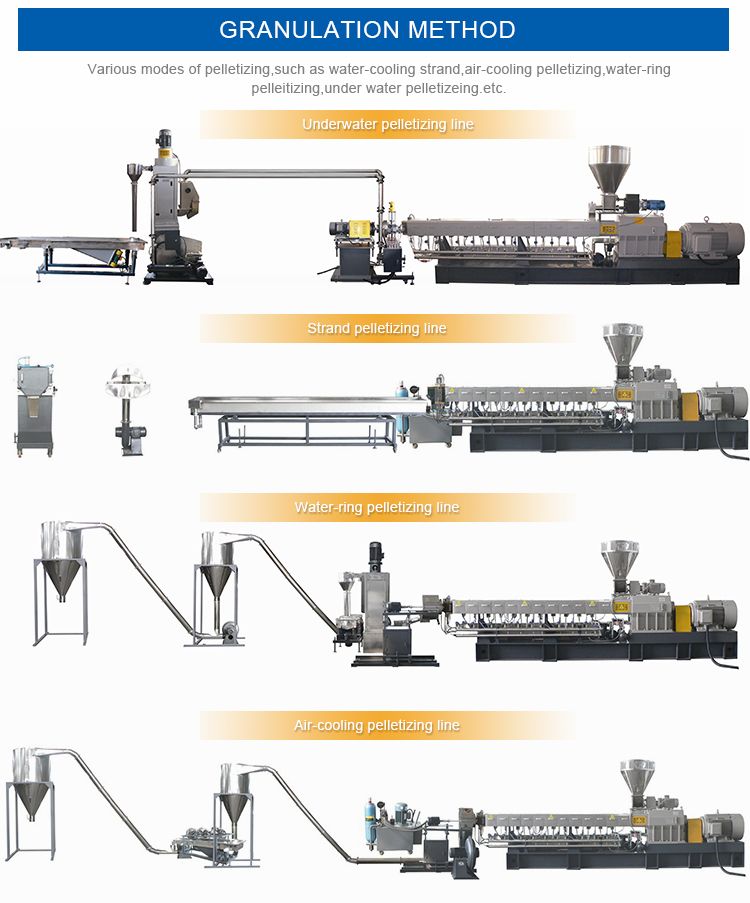

6.Pelletizing
· Variou modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelleting, etc.

Work Line

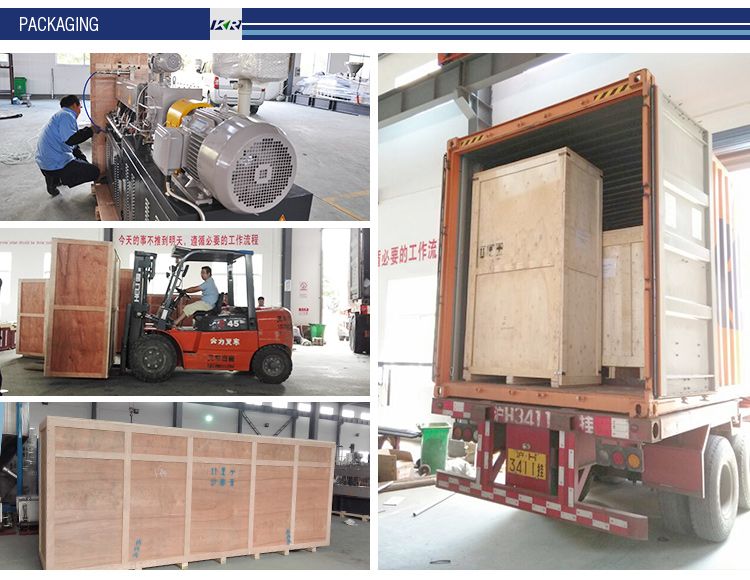

Packaging & Shipping
Our twin screw extruder machine is fisrt painted with anticorrosive oil, and then wrapped in the plastic film before it is finally packed in the wooden case.
