Large Forming Area Microcomputer Control Plastic Egg Tray Forming Machine
I. Introduction With The Machine HY-66/76B is a combination of mechanical, electrical and pneumatic components, and thewhole system was controlled by a micro PLC, which can be operated in man-interface. Itcombines the material sending, heating, forming into one process. It has three operation mod......
Send Inquiry
Product Description
I. Introduction With The Machine
HY-66/76B is a combination of mechanical, electrical and pneumatic components, and the
whole system was controlled by a micro PLC, which can be operated in man-interface. It
combines the material sending, heating, forming into one process. It has three operation models.
" manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment
with telecommuting and memory reserve functions.
Specifications
II. Application Area
It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce
various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food
boxes, supermarket trays, oral liquids trays etc.
III. Machine Picture
1. HY-66/76B Plastic Thermoformer Workshop
2. Machine Details
3. HY-66/76B Products Samples
IV. About Zhejiang Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Hongyin Company has a specialized and efficient working team. If you are new on the
printing and packing area, some samples of your products shown to us will be appreicated, and
we will give you professional suggestions of whole work.
2. Installation Service
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training.
Cost for return flight and suitable accommodation will be charged, and the allowance is USD100 per day.
3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
whole system was controlled by a micro PLC, which can be operated in man-interface. It
combines the material sending, heating, forming into one process. It has three operation models.
" manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment
with telecommuting and memory reserve functions.
Specifications
| Forming Area | 660×760 mm |
| Forming Depth | 100 mm |
| Sheet Thickness Range | 0.10-1.0 mm |
| Sheet Roller Diameter | 900 mm |
| Air Pressure | 0.7 Mpa |
| Water Consumption | 15 Liters/min(15-20ºC) |
| Air Consumption | 2400 Liters/min |
| Production Speed | 600-1200 recycles/hr. |
| Voltage | Tri-phase, AC380V±15V,50HZ |
| Mould Plate Heating Power | 9 kw |
| Heating Plate Power | 18 kw |
| Weight | 3000 kg |
| Dimensions(L×W×H)mm | 4850×1500×2130 mm |
II. Application Area
It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce
various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food
boxes, supermarket trays, oral liquids trays etc.
III. Machine Picture

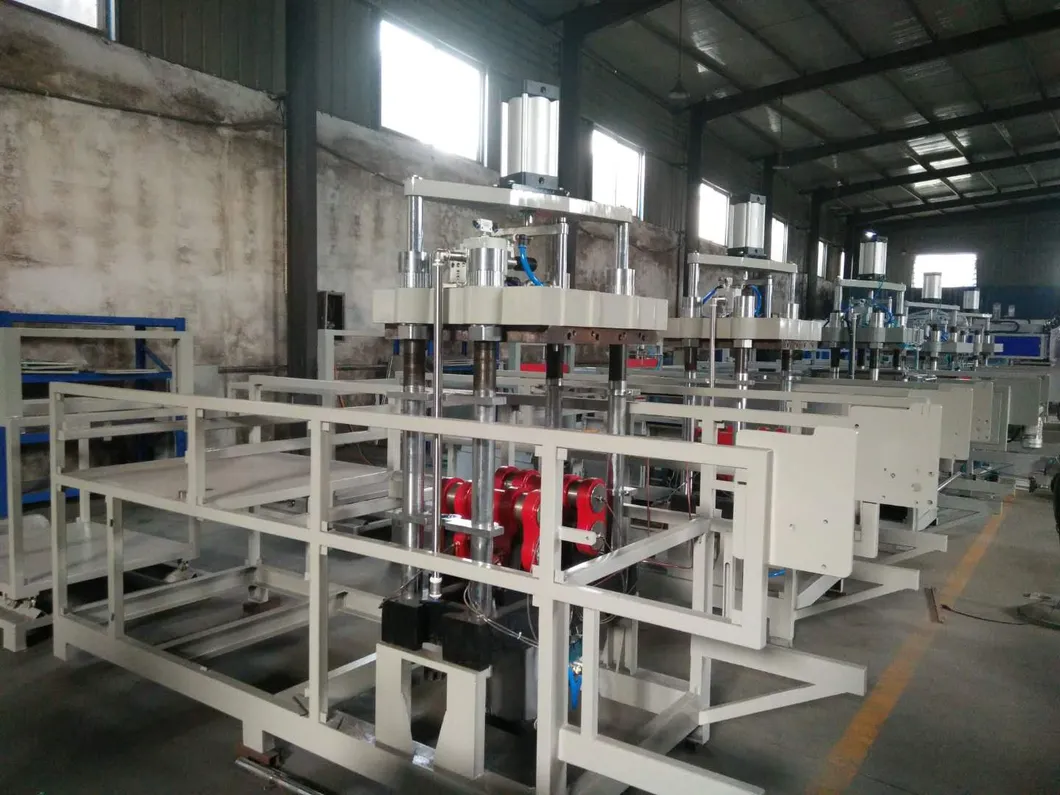

1. HY-66/76B Plastic Thermoformer Workshop

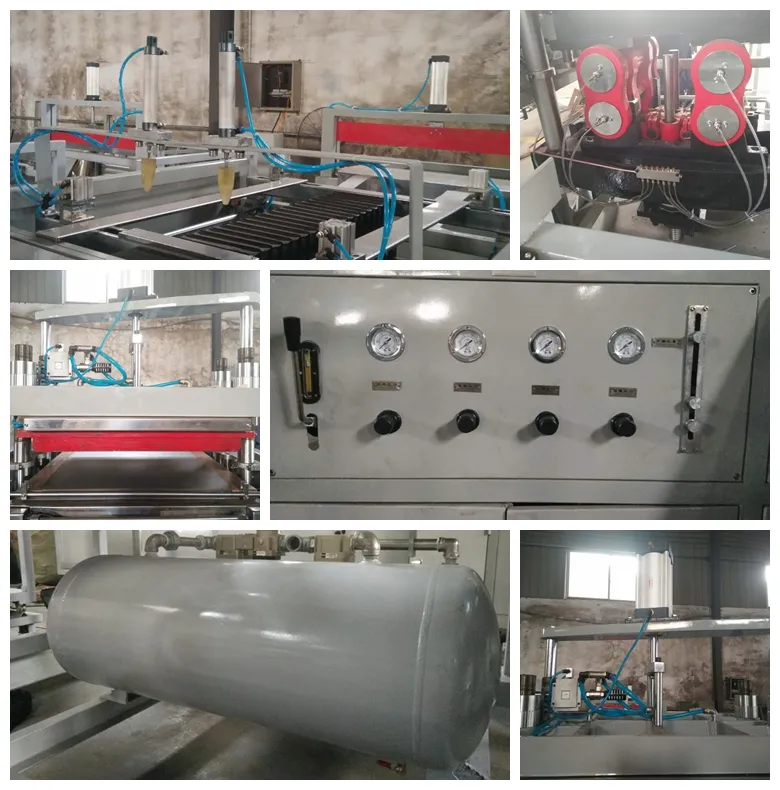

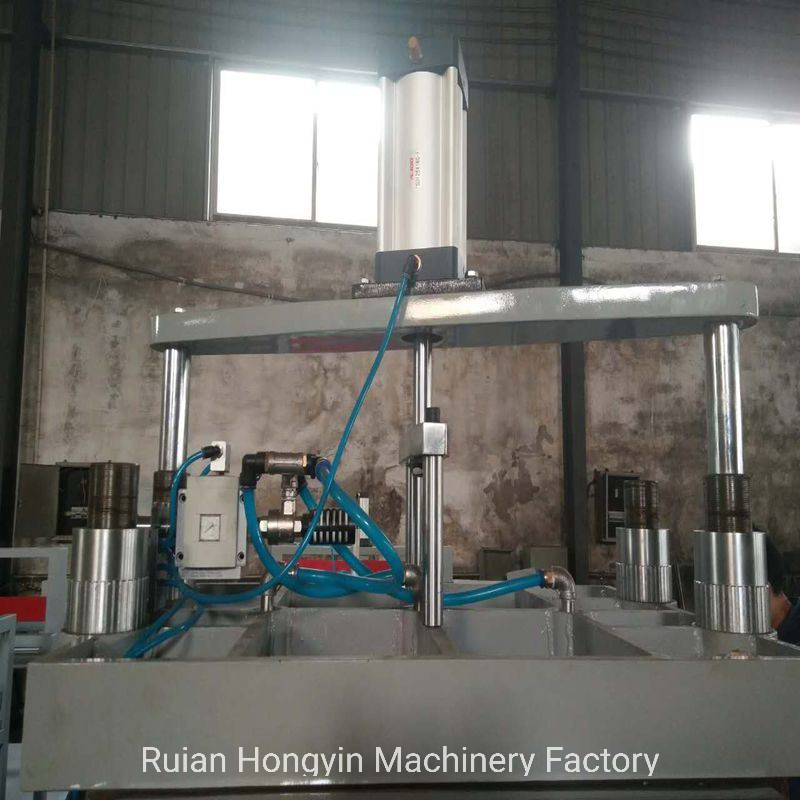

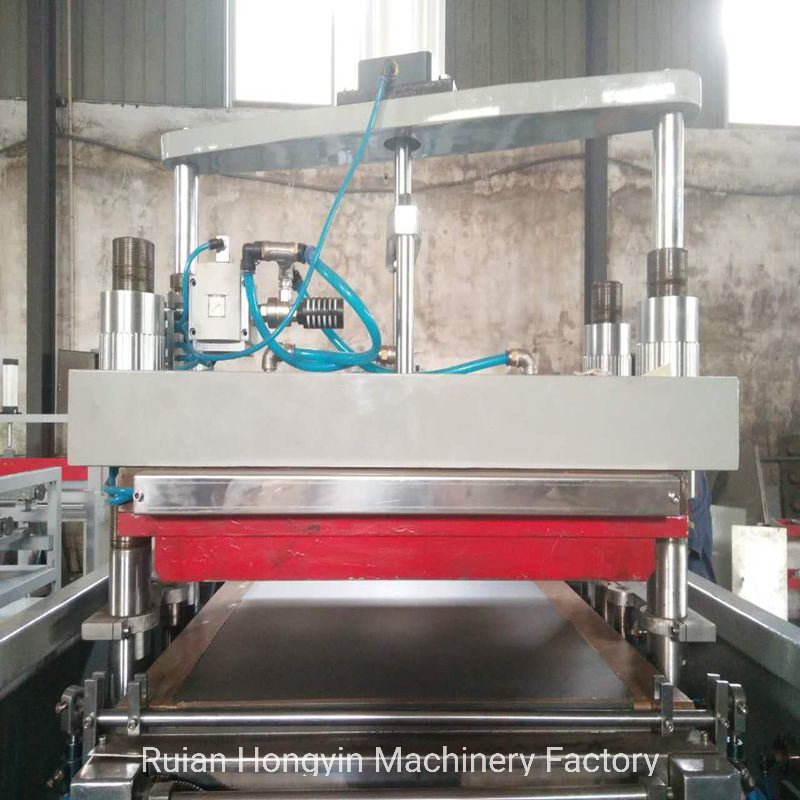

2. Machine Details

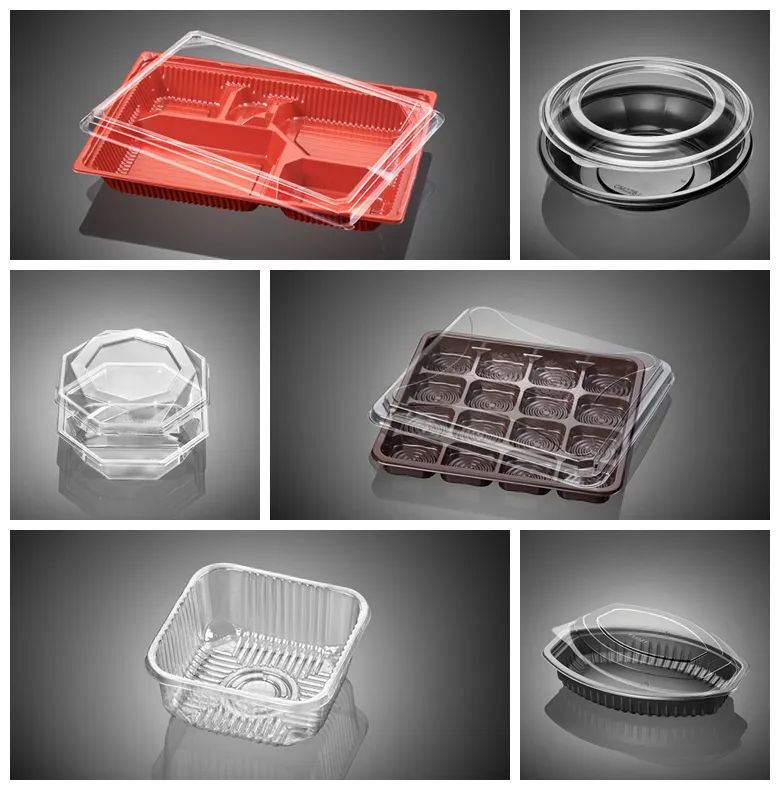

3. HY-66/76B Products Samples
IV. About Zhejiang Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Hongyin Company has a specialized and efficient working team. If you are new on the
printing and packing area, some samples of your products shown to us will be appreicated, and
we will give you professional suggestions of whole work.
2. Installation Service
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training.
Cost for return flight and suitable accommodation will be charged, and the allowance is USD100 per day.
3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
If you are interested in our machine, please feel free and contact me.
