Automatic Edge Banding Machine for Carpentry
Automatic Edge Banding Machine for Carpentry ABOUT OUR FACTORY: We are Qingdao Zhongding Machinery Co.,ltd and specialized in woodworking machines such as edge banding machine, sliding table saw, cold press, drilling machine and so on. We have professional technology, full range of testing......
Send Inquiry
Product Description
ABOUT OUR FACTORY:
We are Qingdao Zhongding Machinery Co.,ltd and specialized in woodworking machines such as edge banding machine, sliding table saw, cold press, drilling machine and so on. We have professional technology, full range of testing lines and pipelining. We are looking forward to establishing long term cooperation relationship with you and offer you high quality products and perfect service.

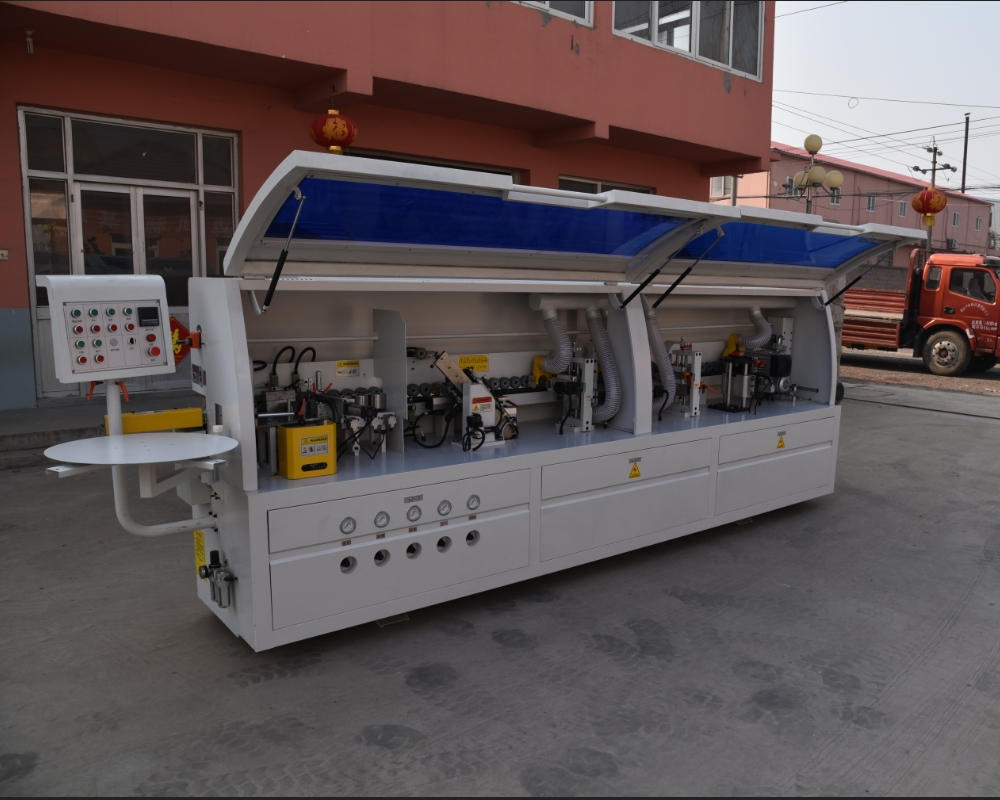

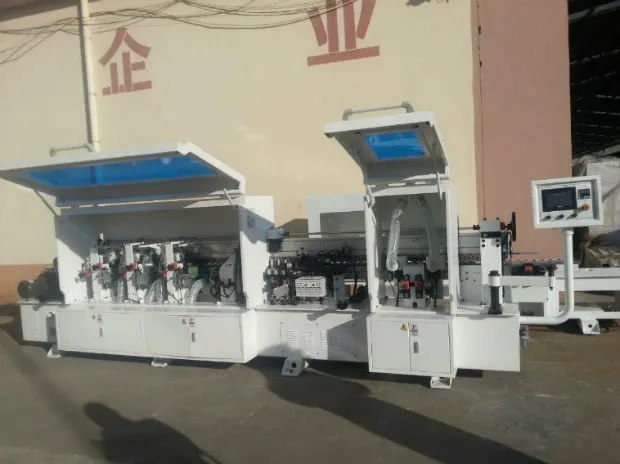

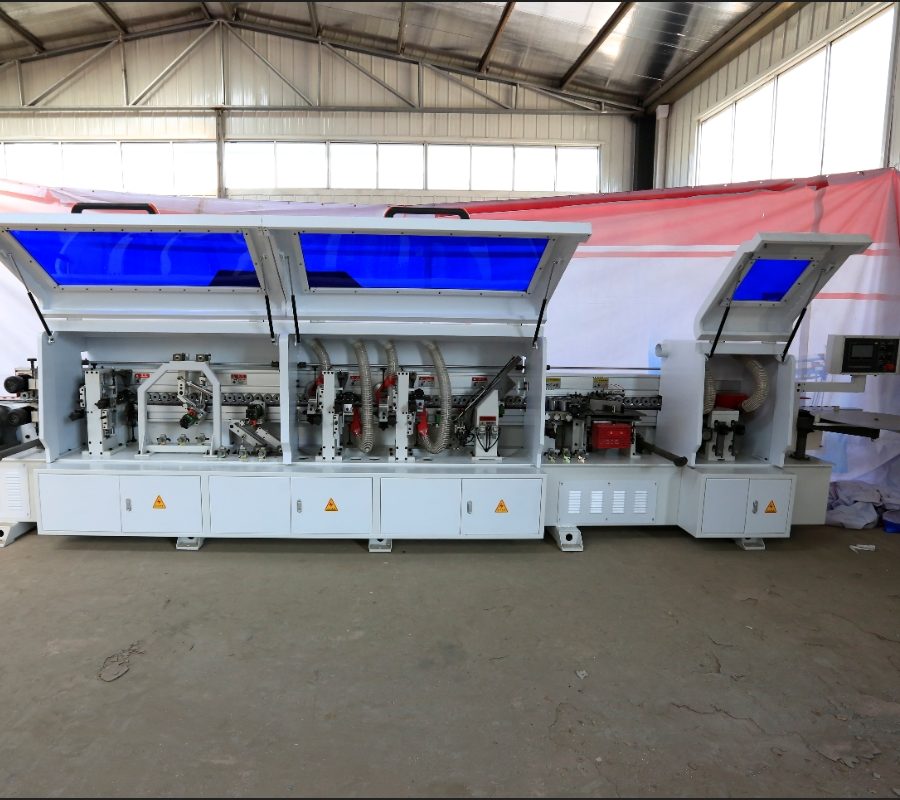

Automatic Edge Bander
Technical specifications:
| Type | MF450E |
| Banding tape thickness | 0.4-3 mm |
| Banding tape width | 12-65 mm |
| Work piece thickness | 10-60 mm |
| Work piece length | >=100 mm |
| Work piece width | >=50 mm |
| Heating power | 1.8 KW |
| Feeding motor power | 2.2 KW |
| Glue spreading power | 0.75 KW |
| End trimming power | 0.5 KW x 2 |
| Fine trimming power | 0.75 KW x 2 |
| Polishing motor power | 0.37 KW x 2 |
| Feeding speed | 10-23 m/min |
| Air pressure | 0.8 Mpa |
| Overall dimension | 4120x850x1520 mm |
| Packing size | 4150x880x1580 mm |
| N.W. | 1800 KGS |
| G.W. | 1900 KGS |
Advantages:
- R5A New type of banding machine high-tech form
germany,lengthened machine body.
- Functions: Automatic feeding , gluing , end trimming , fine
finishing , rotating scraping , polishing.
- Highlight: Nover construction , stable performance , easy
operation , frequency converter for different kinds of
banding material.
I believe that you can choose the most suitable one from our products because of the high quality and good service.
Quality certificate
ISO9001 and CE security certificate
Business terms
Payment terms: TT or L./C with deposit
Delivery time : Within 10 days or negotiate
Packing :wooden case or what you want
