220kw Wood Sawdust Pellet Machine
220kw Wood Sawdust Pellet Machine Specification Of Wood Sawdust Pellet Machine√ ManufacturerZhangqiu YULONG Machine Co., Ltd√ Model No.XGJ850√Capacity2500-3000KG/H√ Mainly motor220 KW√Lubrication pump motor0.37KW√Cutter motor3KW√......
Send Inquiry
Product Description

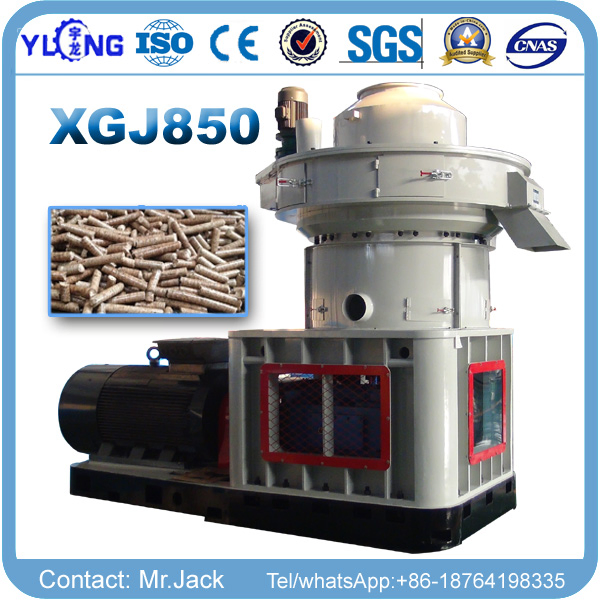

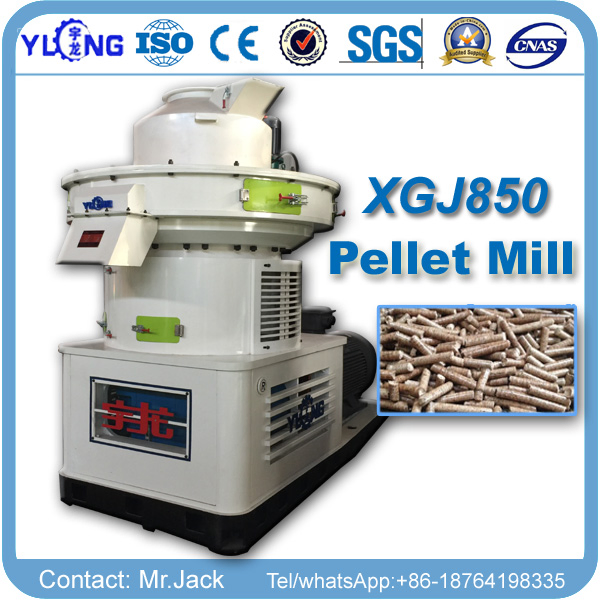

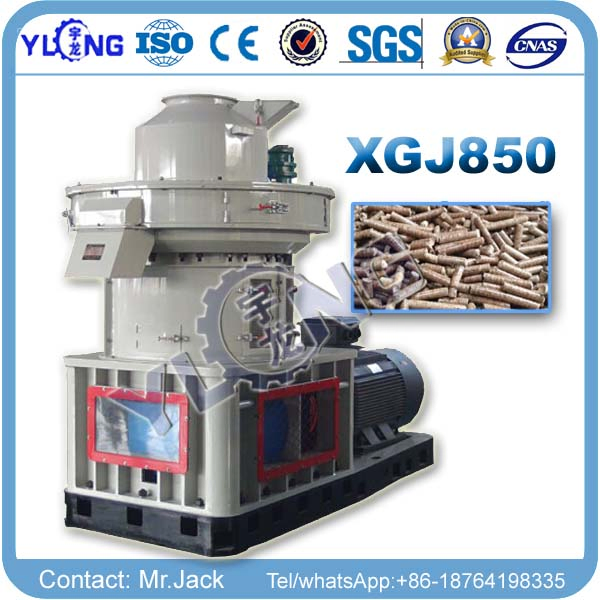

220kw Wood Sawdust Pellet Machine
| Specification Of Wood Sawdust Pellet Machine | ||
| √ | Manufacturer | Zhangqiu YULONG Machine Co., Ltd |
| √ | Model No. | XGJ850 |
| √ | Capacity | 2500-3000KG/H |
| √ | Mainly motor | 220 KW |
| √ | Lubrication pump motor | 0.37KW |
| √ | Cutter motor | 3KW |
| √ | Cooling motor | 2.2KW |
| √ | Type | Vertical ring die |
| √ | Dimension of machine | 2600x1300x2300mm |
| √ | Weight of machine | 14500KG |
| √ | Output pellets diameter | 4mm, 6mm, 8mm, 10mm |
| √ | Length of pellets | 1-10cm |
| √ | Pellets density | 1.0-1.4g/cm3 |
| √ | Suitable materials | Wood, Sawdust, Rice husk, EFB, Palm fiber, Sunflower husk, Stalk, Grass…. |
| √ | Bug dust filter | Yes |
| √ | Electrical control cabinet | Yes |

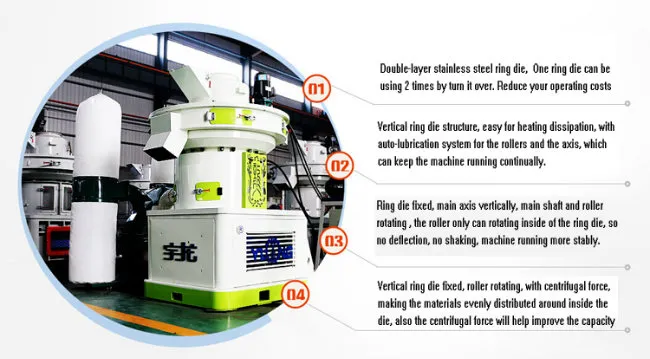

| Advantage of the wood biomass pellet mill |
| Video link for the working wood sawdust pellet machine |
| XGJ560 pellet machine: http://youtu.be/ZR3HmNvJxdE |
| XGJ560 running in our customer's workshop: http://youtu.be/OPG4J5hCu-w |
| 2 sets XGJ560 pellet making machine normally running: https://youtu.be/ltQ2LYC6rn8 |
| Parameter Of wood sawdust pellet machine |
| Model | Power (KW) | Capacity for wood pellets(KG/H) | Weight of the machine(KG) | Dimension of the machine |
| XGJ560 | 90+1.5+0.37+1.5 | 1000-1500 | 6100 | 2600x1300x2300 |
| XGJ720 | 160+1.5+0.37+1.5 | 1500-2500 | 9500 | 2900x1300x2400 |
| XGJ850 | 220+3+0.37(0.55)+2.2 | 2500-3000 | 14500 | 3300x1400x3100 |
| XGJ920 | 315+5.5+0.55+1.5+2.2 | 3000-4000 | 18000 | 3800x1680x3400 |
| XGJ1050 | 450+5.5+0.55+1.5+3 | 5000-6000 | 23000 | 3980×2060×3450 |

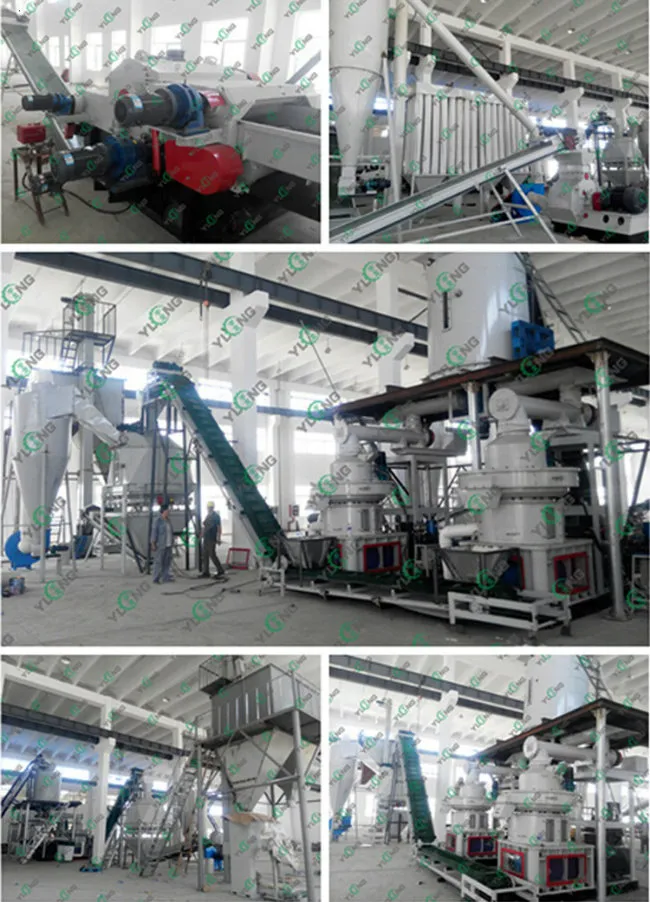

| Some successful case for the complete pellet making line |
| FAQ |
| Q: What kind of materials can be using for pellet making? |
| A: Sawdust, EFB, Rice husk, straw, agriculture waste, grass, and other different kind of biomass materials |
| Q: Which moisture content is suitable for pellet making? |
| A: Most suitable moisture content is 10-15%. |
| Q: Which size can be feeding into pellet machine? |
| A: normally need the raw materials size smaller than the diameter of the output pellets diameter. |
| Q: What's your warranty time of the machine? |
| A: The roller husk and the ring die |
| Q: What's the wearing parts for the pellet machine? |
| A: 1 year, except the wearing parts. |
| Q: What 's the density of the output pellets |
| A: pellets density is 1.0-1.4g/cm3 |
| Free To Contact Us: Jack Yan (Sales Manager) ZHANGQIU YULONG MACHINE CO.,LTD Xiuhui Town, Zhangqiu, Jinan, Shandong Pro, China Tel: +86-531-83483995 Web: jnxucheng.en.made-in-china.com Video of our company: http://jnxucheng.en.made-in-china.com http://jnxucheng.en.made-in-china.com |
