Product Description

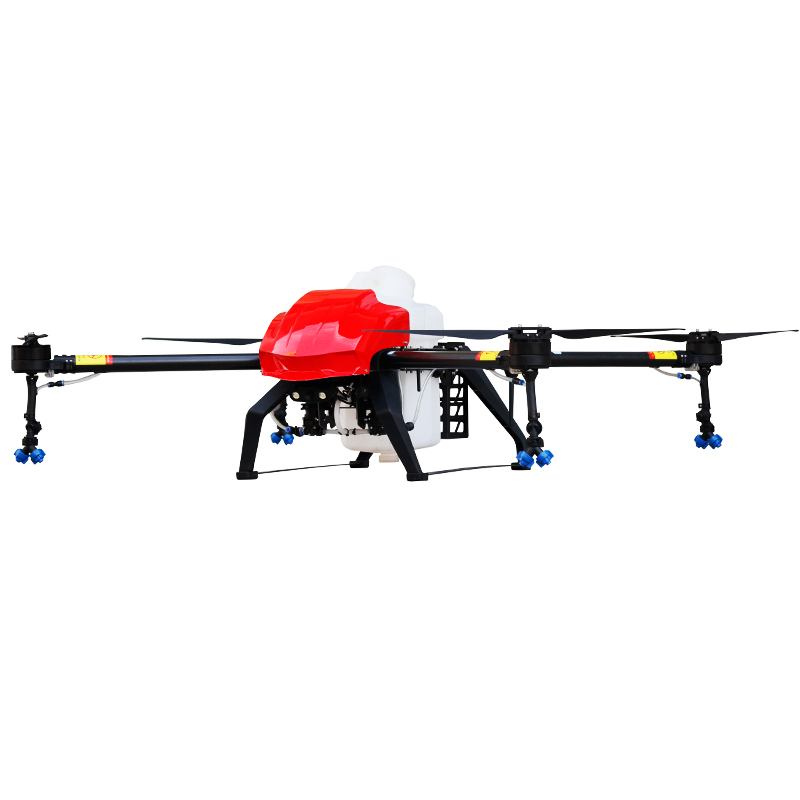

2021 Unid New Long range agriculttural sprayer de drones
- OEM & ODM Service -

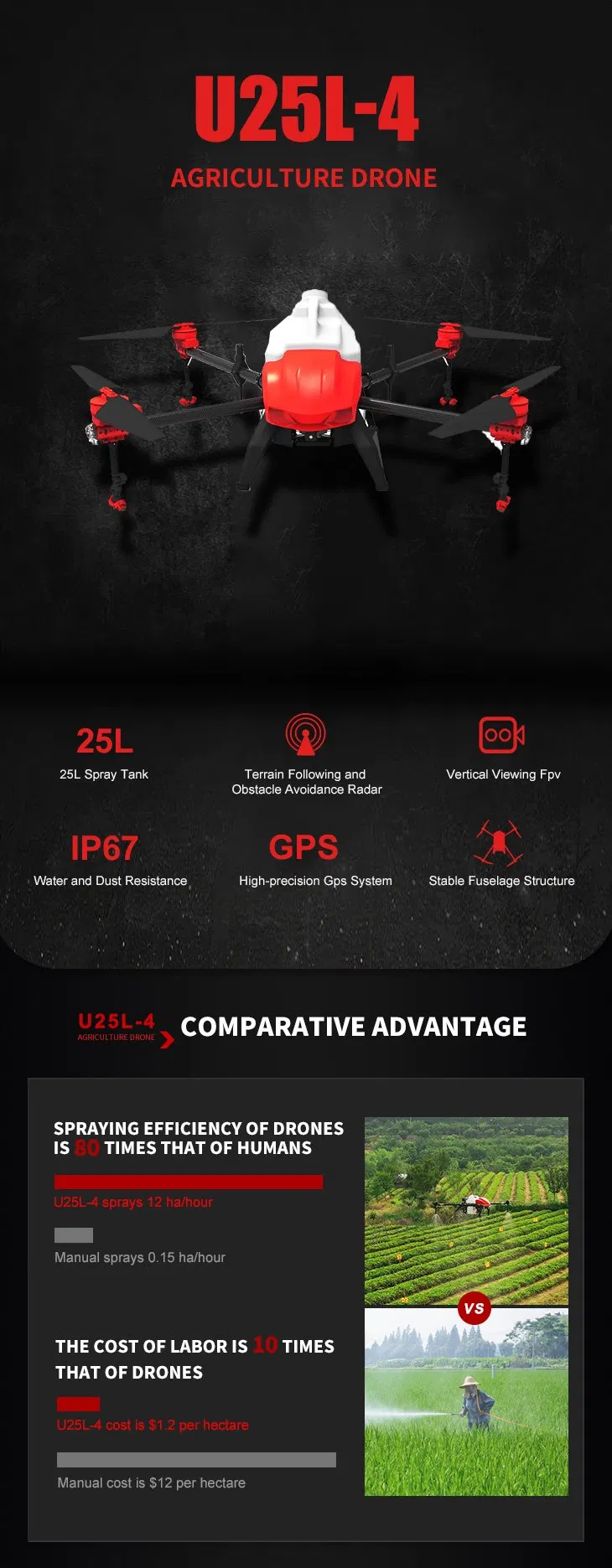

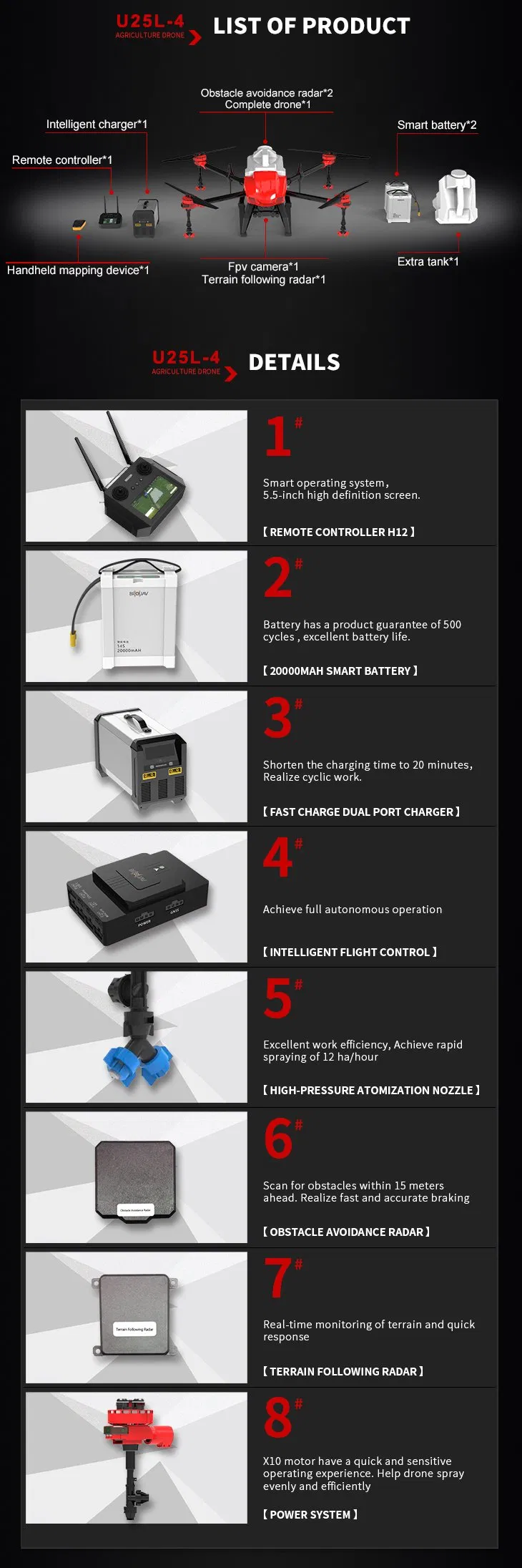

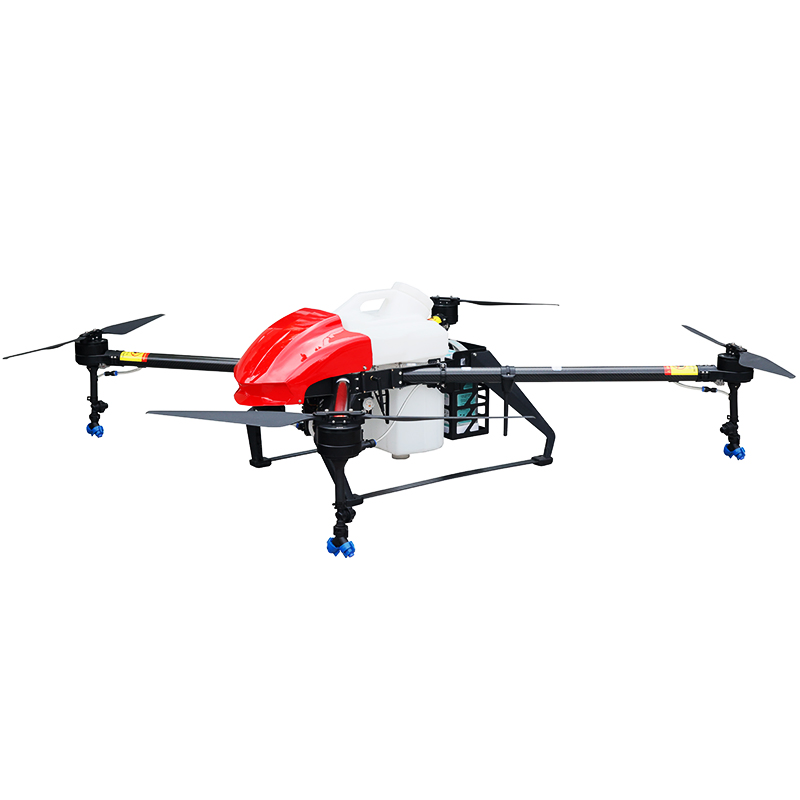

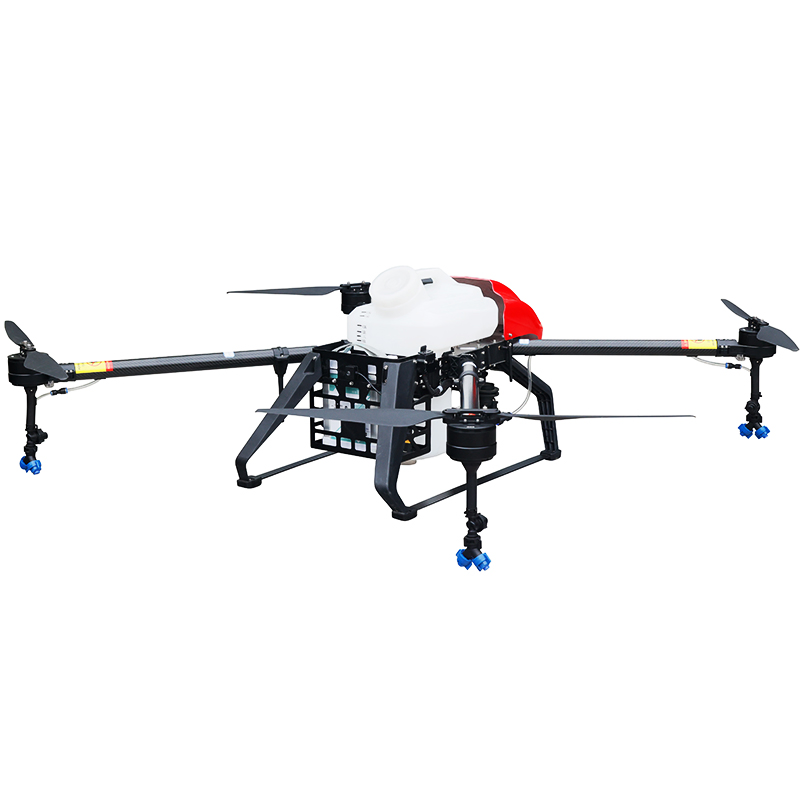

Model	U25L-4
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	1990mm1990mm600mm
Product folding size	1220mm1220mm600mm
Maximum takeoff weight	51KG
Aircraft weight	16.6KG
Aircraft medicine box capacity	25L
Flight altitude	≤30 meters
Fly time(unloaded)	20~25 minutes
Fly time(loaded)	10~13 minutes when fully loaded
Flight speed	1-10 m / sec
Structrue life span	≥10 years
Spray width	4-8 meters
Hovering in the air	Hovering in any direction
Spray flow	3-8L/min double pump adjustable
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	≥8 hectares/hour
Motor speed	5000 rpm
Safe takeoff and landing wind speed	≤5
Power system	56V power polymer computer battery
Charger	AC Input100-240V
Lithium-polymer battery	20000mAh*1

Function
1. Automatic line-feeding spray (recyclable spraying);
2. Automatic flight spraying at point AB (plant protection aircraft can fly autonomously and record automatically after spraying);
3. Fully autonomous spraying of plots (the area and terrain of the selected plots of the ground station are determined, and the aircraft can be autonomously sprayed);
4. One-click record of medicine break point (automatically record the main point after pesticide spraying in the spraying process and return to take-off point to change medicine);
5. One-click return to the medicine break point (after spraying pesticides, the main points are automatically recorded after spraying, and then return to the take-off point to change the coloring medicine. After changing the medicine, the machine will automatically return to the medicine break-off point. spray);
These advantages make our products more efficient and useful.
