Product Description

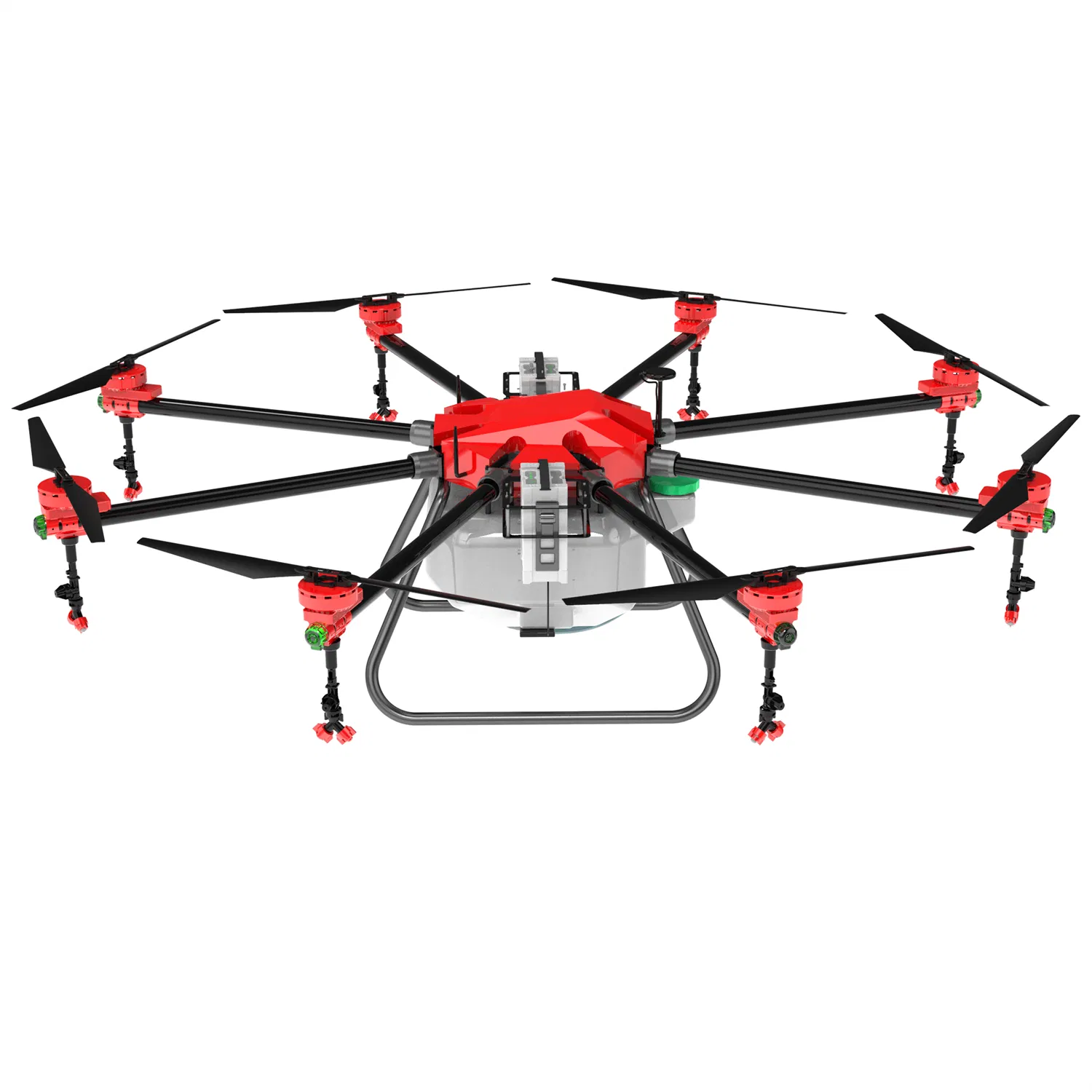

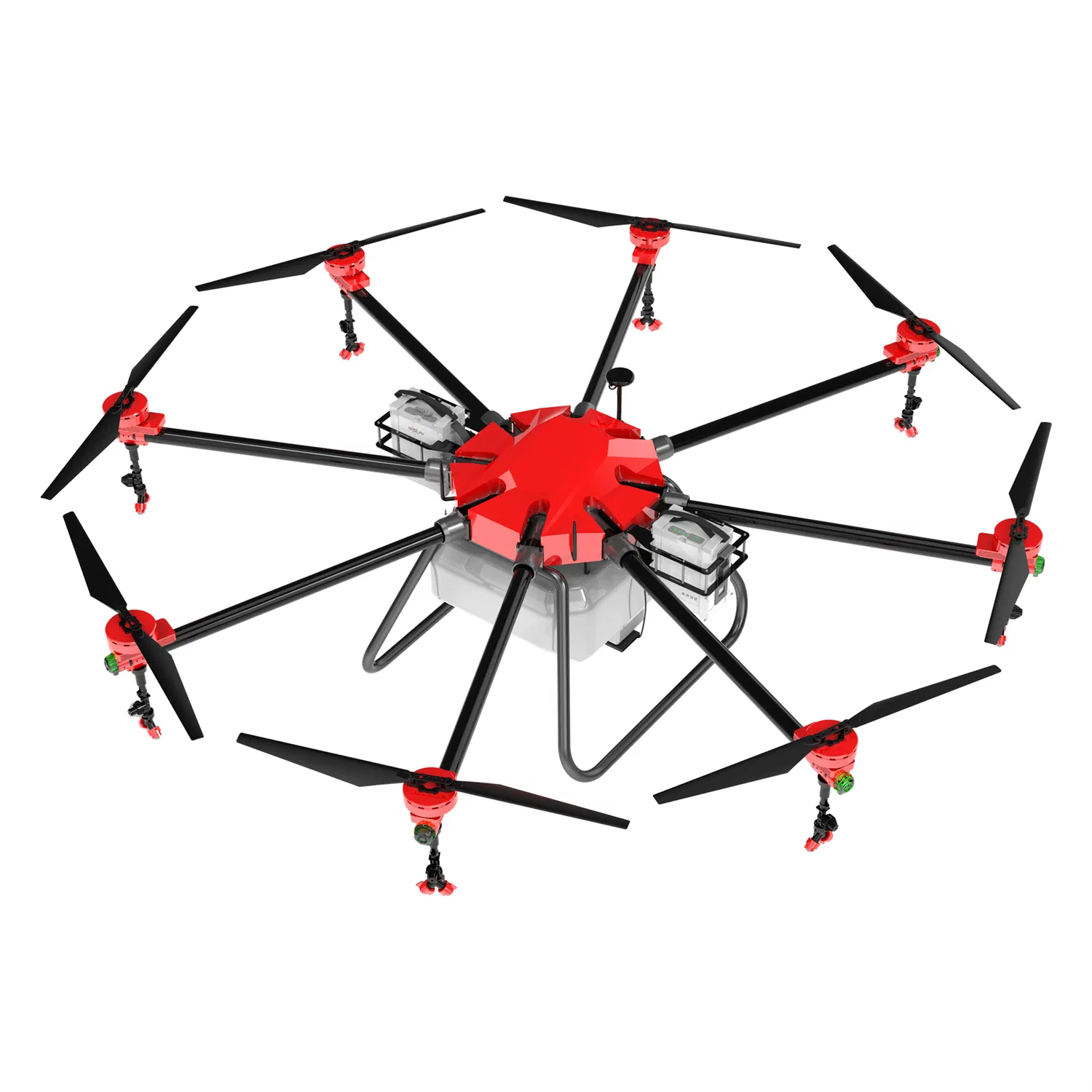

Agricultural Drone Sterilizing and Locust Insecticide Spraying Drone
- OEM & ODM Service -

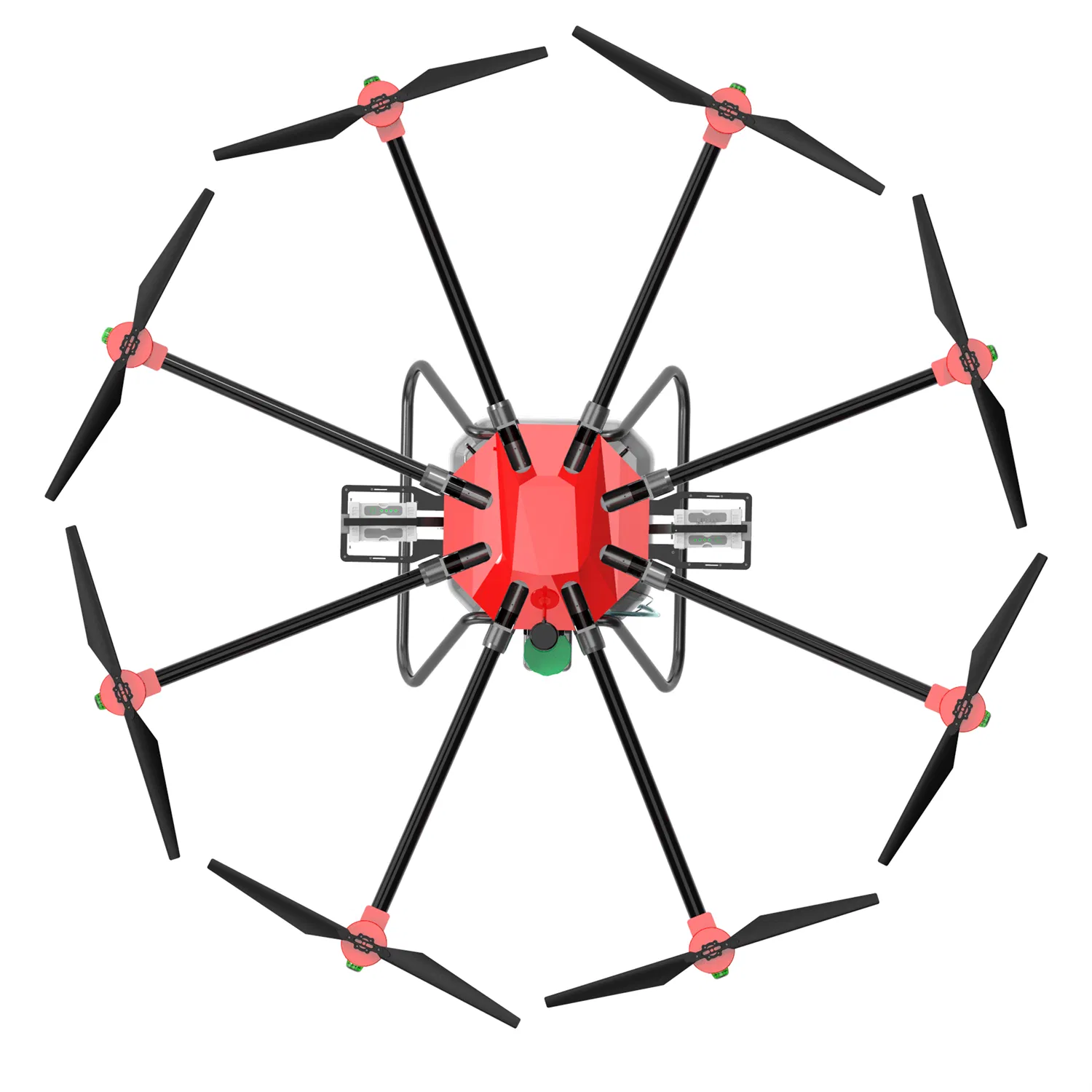

The D30L-8 integrates a number of cutting-edge UNID technologies, including a Radar Sensing System that provides additional reliability during flight. The spraying system and flow sensor ensure accurate operations. When used with the Intelligent Operation Planning System and the UNID Agriculture Management Platform,a user can plan operations, manage flights in real-time, and closely monitor aircraft operating
status. The D30L-8 is a high performance aircraft capable of offering comprehensive solutions for agricultural care.

Model	D30L-8
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	3090mm3090mm910mm
Product folding size	900mm730mm1760mm
Packaging size	1730mm1200mm790mm
Maximum takeoff weight	75KG
Aircraft weight	20-21KG
Pesticide Barrel	30L
Flight altitude	≤30 meters
Fly time(unloaded)	20~2530 minutes
Fly time(loaded)	10~13minutes when fully loaded
Flight speed	1-10 m / sec
Structure lift span	≥10 years
Spray width	6-12 meters
Hovering in the air	Hovering in any direction
Spray flow	8-10L/min
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	≥10hectares / hour
Safe takeoff and landing wind speed	≤5
Motor speed	5000rpm
Power system	48V power polymer computer battery
Charer	AC Input 100-240V
Lithium-polymer battery	20000mAh*2
