1- 2tph Household Feed Machine /Livestock Pellet Equipment/Animal Pellet Mill Machine in China with Best Quality
China manufacture cattle chicken livestock fish poultry pig animal feed pellet mill feed pelleting making machine : The feed production line plays for feed industry to produce pellet or powder feed for aqua, livestock and poultry. We are manufacturing animal feed making machine, for example, Chicken......
Send Inquiry
Product Description
The feed production line plays for feed industry to produce pellet or powder feed for aqua, livestock and poultry. We are manufacturing animal feed making machine, for example, Chicken feed making machine, pig feed making machine, cattle feed making machine, fish feed making machine, poultry feed making machine for exportation.

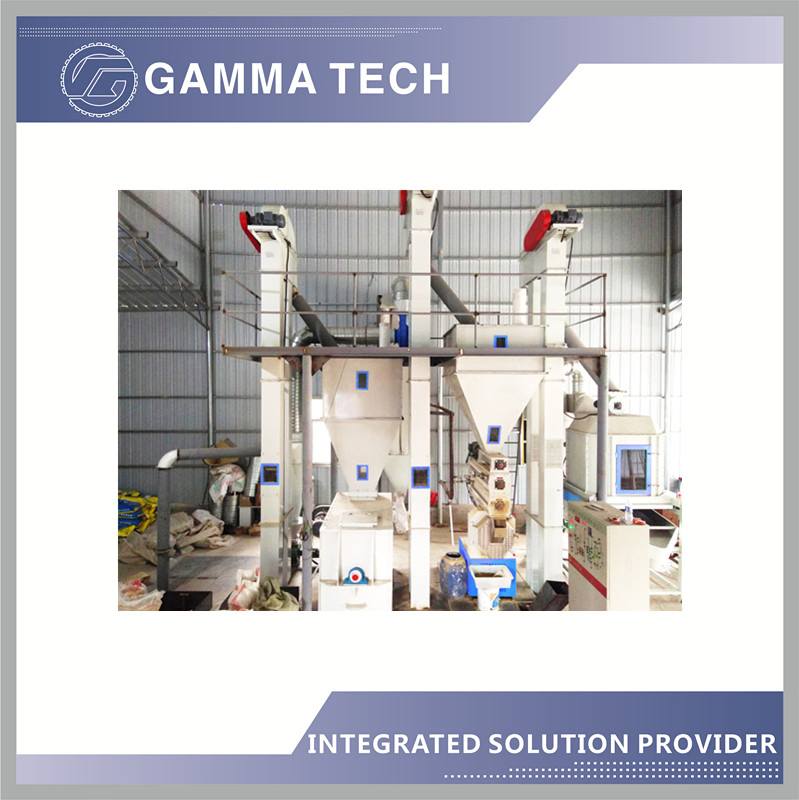

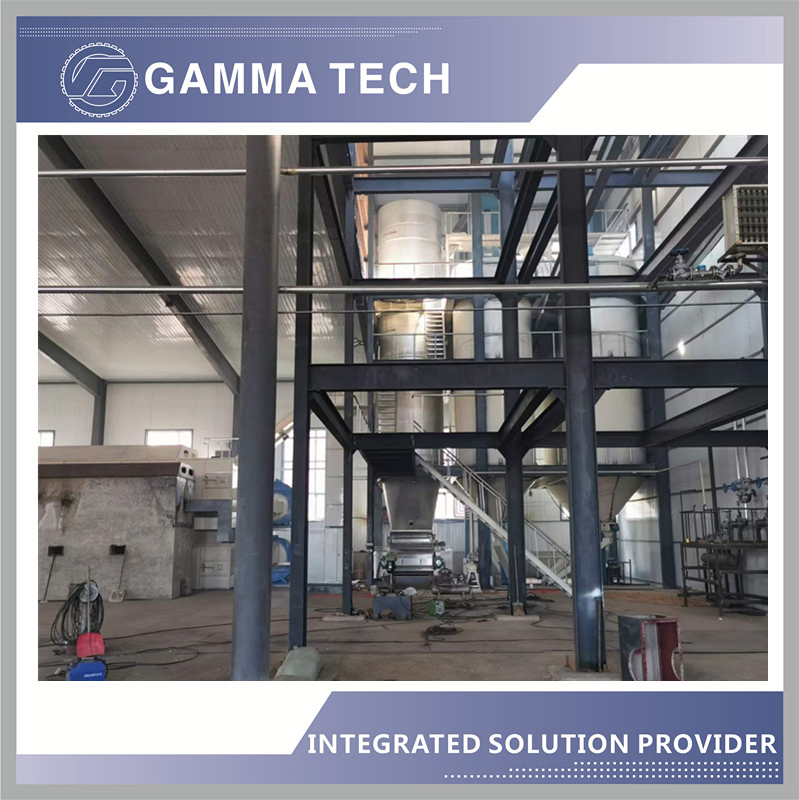

Poultry Feed Pellet Plant
Features:
1.Widely applied product with mature technology .
2.The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
3.Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation . the granulating room is equipped with air suction temperature reducing system .
4.The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .

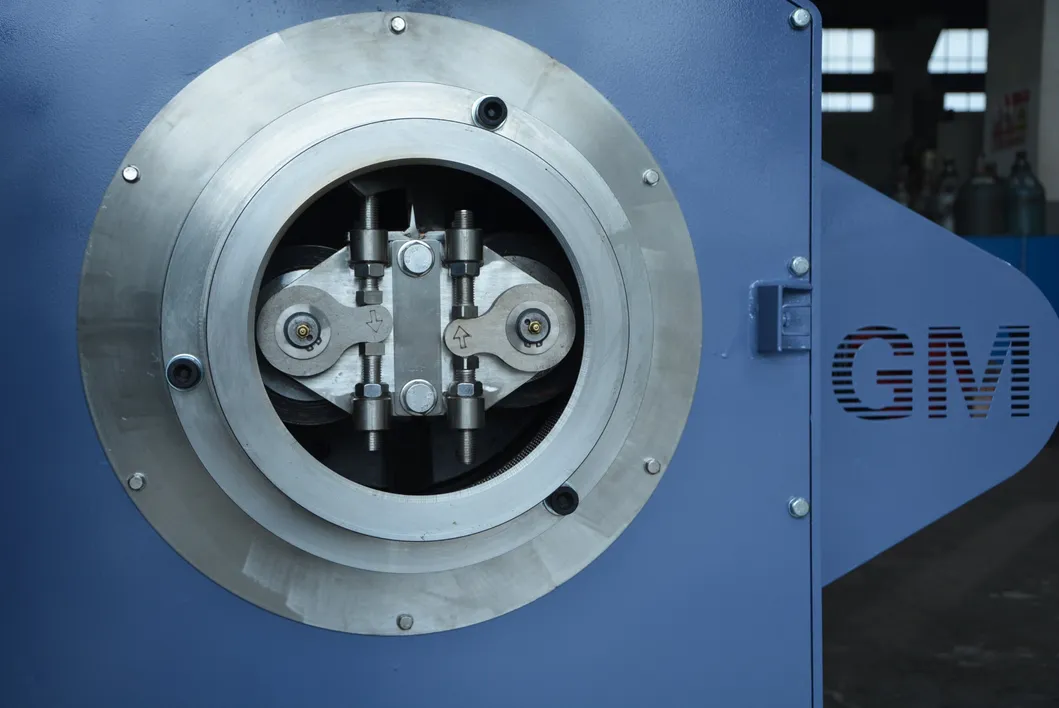

5.Ring dies with multiple kinds of bore diameters are optional . and high-quality craft ring dies are adopted, so that the service life is long. The discharged particles are smooth and the quality is high .
6.International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.
7.Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.
Technical Parameters:
| Model | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
| Capacity | 2-5T/H | 1.5-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
| Main Motor Power | 37KW | 55KW | 75/90KW | 110KW | 132/160KW |
| Screw Feeder Power | 0.55KW | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
| Conditioner Power | 2.2KW | 2.2KW | 2.2KW | 5.5KW | 7.5KW |
| Ring die inner diameter | 320mm | 350mm | 400mm | 420mm | 508mm |
| Ring die rotational speed | 305PRM | 336PRM | 307PRM | 287PRM | 287PRM |
| Roller outer diameter | 140mm | 165mm | 190mm | 206mm | / |
| Dimension | 2300*1000*2100 | 3200*1100*1700 | 3200*1300*1900 | 3500*1300*2800 | 3500*1500*2900 |
| Raw materials | corn,wheat bran,fish meal,bone powder,meat,alfafa,grassetc. |
| Diameter of feed pellet | 2-10mm |
| Application | feed pellet machine/plant widely be used for home,poultry and livestock farm. |
| Capacity | can customized according to your demand |
| Process Step | crushing-mixing-pelletizing--cooler&screener--packing |
| Warranty | 1Year(except spare parts) from delivery date |
| Certication | CE |
| Motor | Siemens Brand Motor for main machines |
| Bearing | SKF/NSK Brand for pellet mill |
| Service after sales | Engineer can provide technical support |

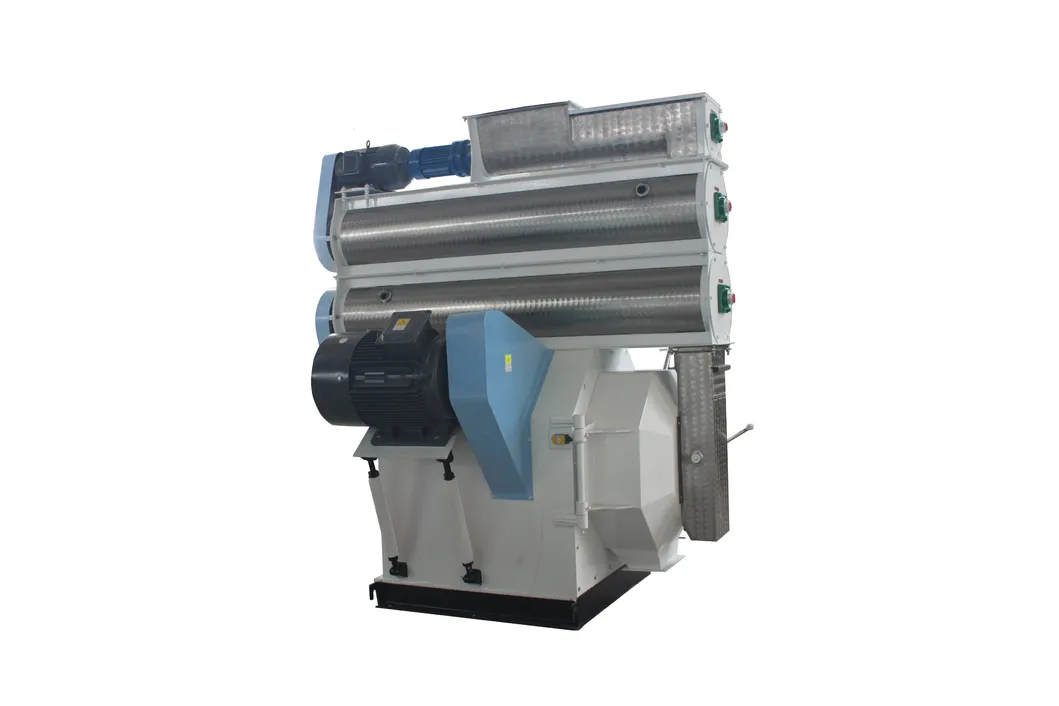

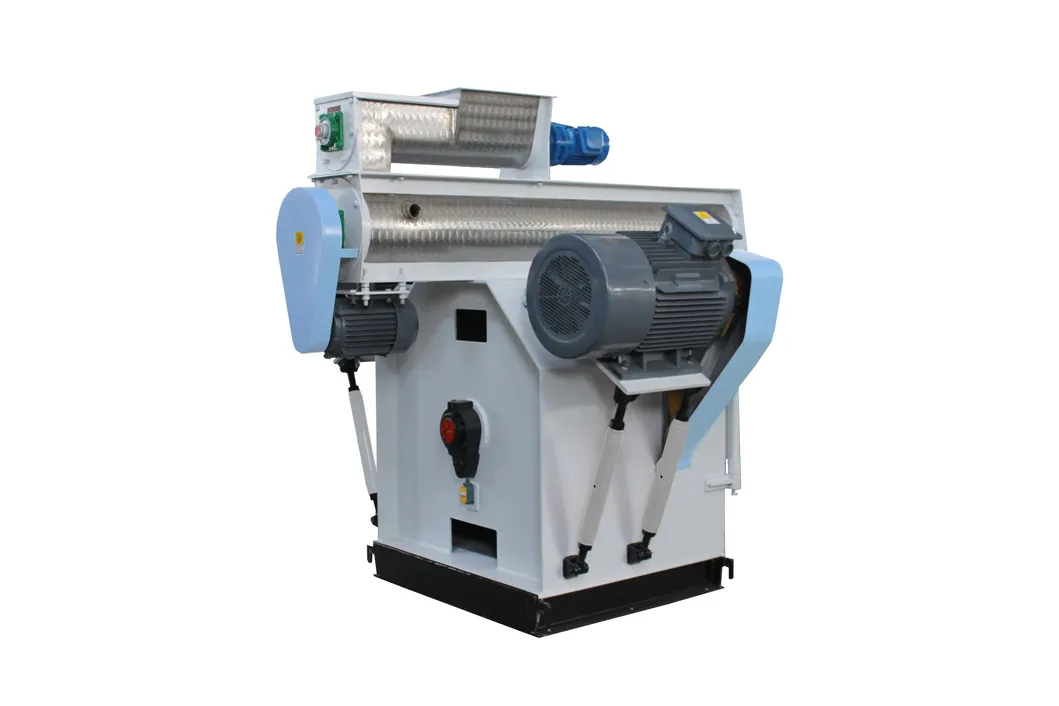

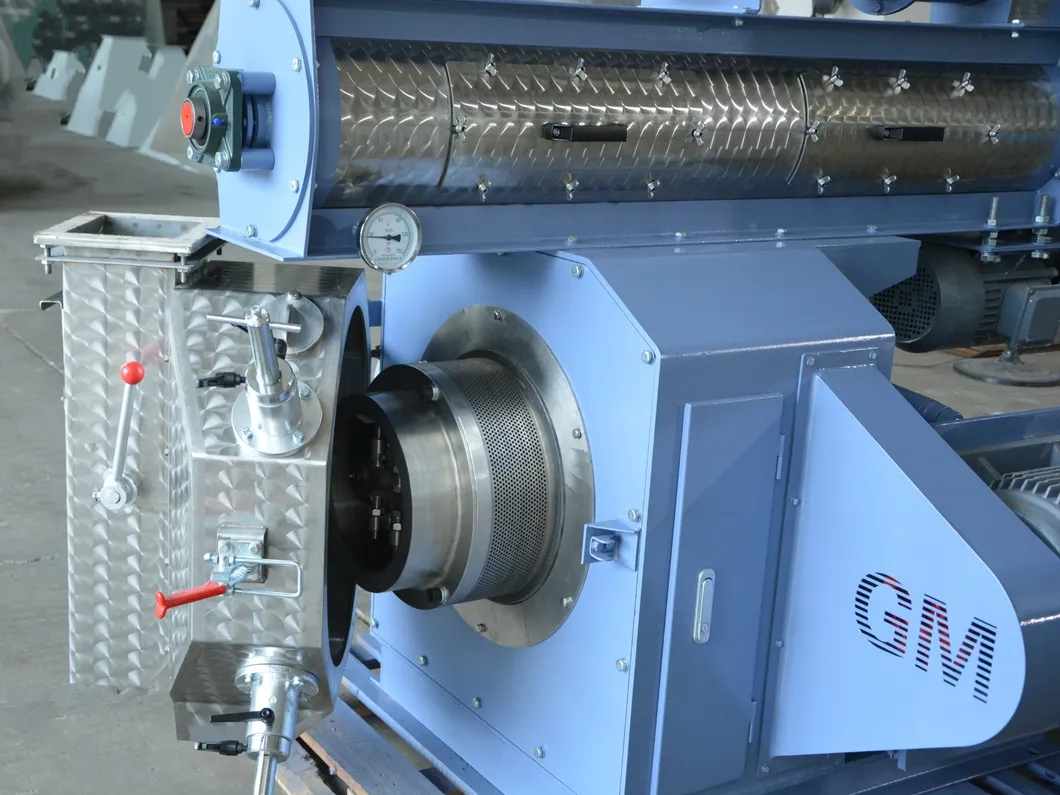

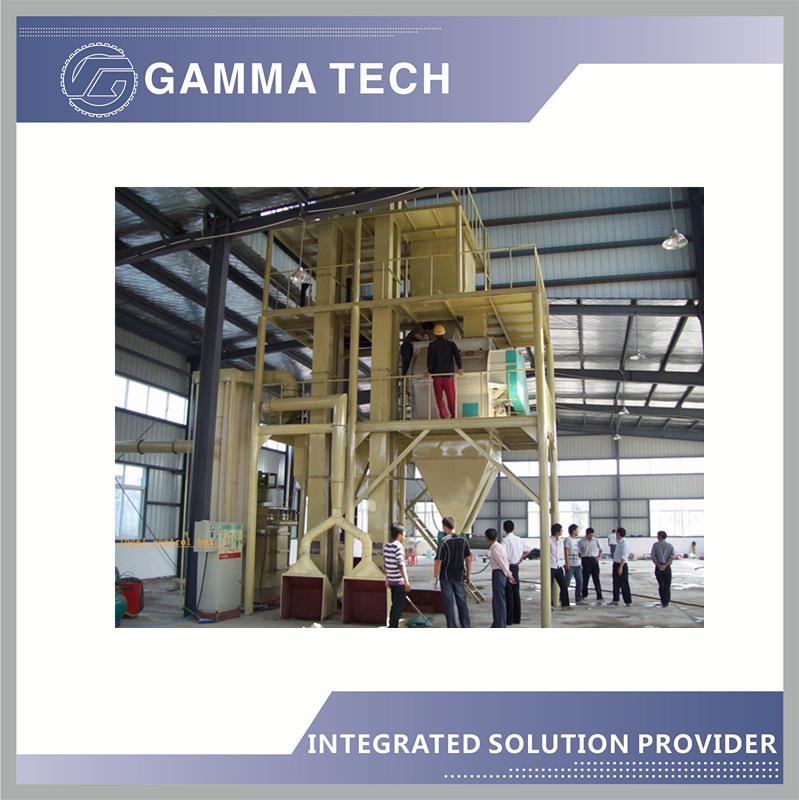

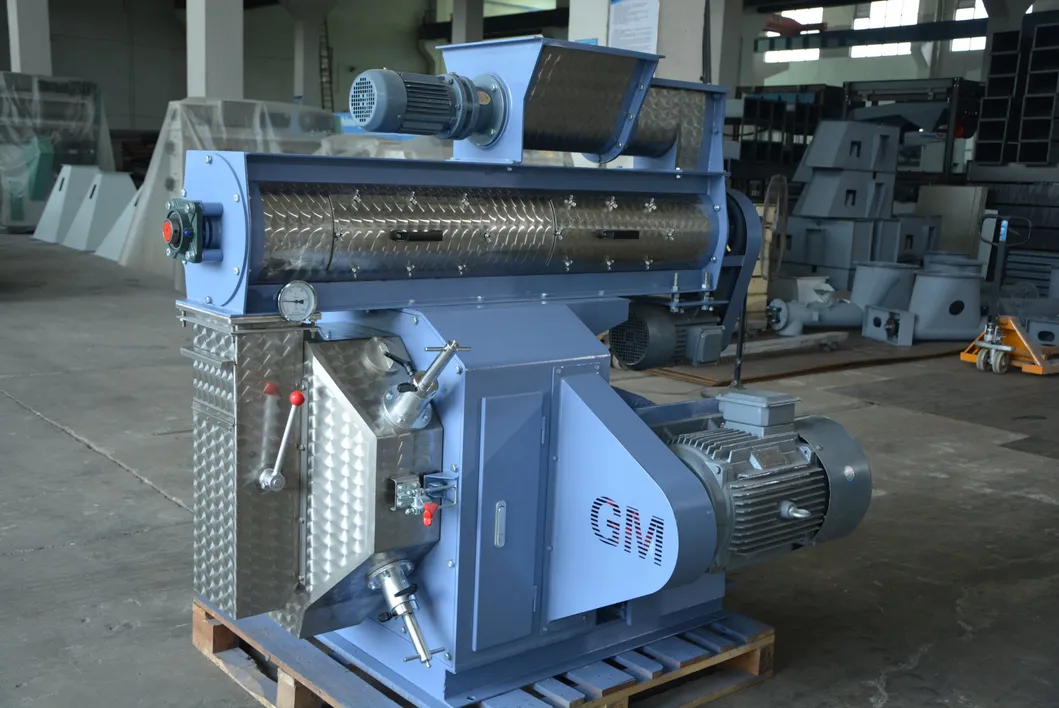

Commercial Poultry Chicken Feed/Food Pellet Mill Photos:
Technical Parameters Of Main Pellet Mill(SZLH320)
| Model | SZLH320 | SZLH350 | SZLH400 | SZLH420 | SZLH508 |
| Capacity | 2-5T/H | 1.5-8T/H | 2-10T/H | 3-12T/H | 4-20T/H |
| Main Motor Power | 37KW | 55KW | 75/90KW | 110KW | 132/160KW |
| Screw Feeder Power | 0.55KW | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
| Conditioner Power | 2.2KW | 2.2KW | 2.2KW | 5.5KW | 7.5KW |
| Ring die inner diameter | 320mm | 350mm | 400mm | 420mm | 508mm |
| Ring die rotational speed | 305PRM | 336PRM | 307PRM | 287PRM | 287PRM |
| Roller outer diameter | 140mm | 165mm | 190mm | 206mm | / |
| Dimension | 2300*1000*2100 | 3200*1100*1700 | 3200*1300*1900 | 3500*1300*2800 | 3500*1500*2900 |
Final Product Photo:
&Livestock and poultry feed

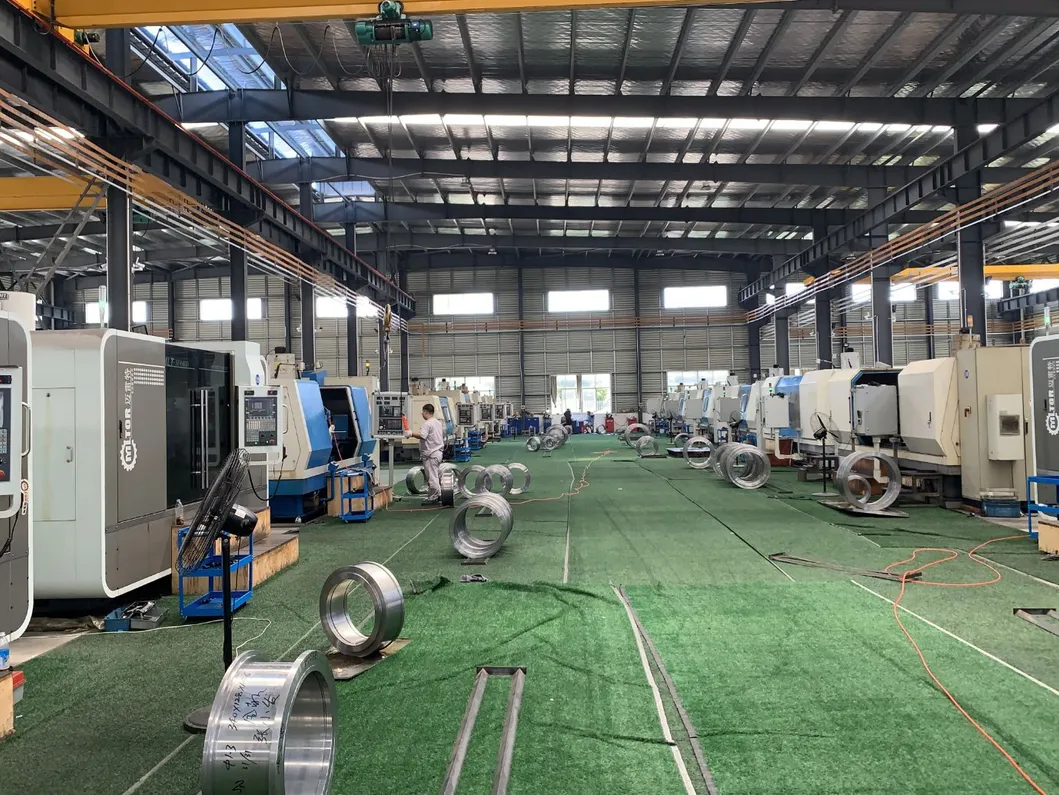

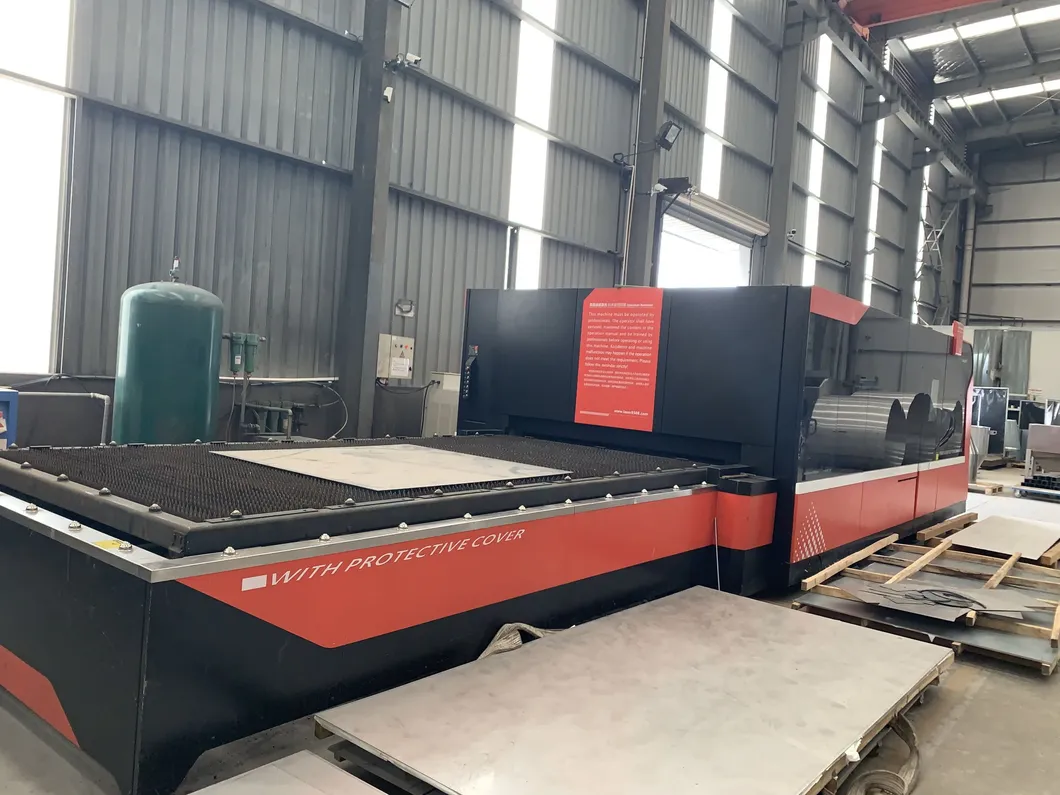

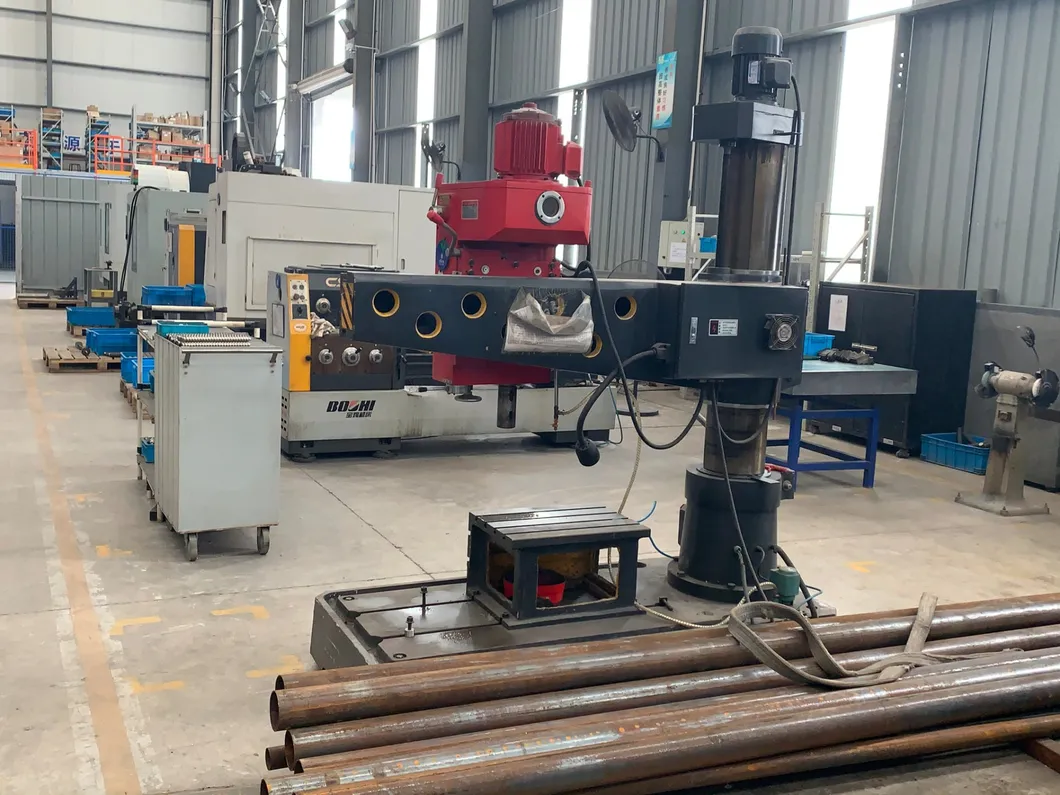

FACTORY FACILITY - GOOD TOOLS MAKING GOOD MACHINES

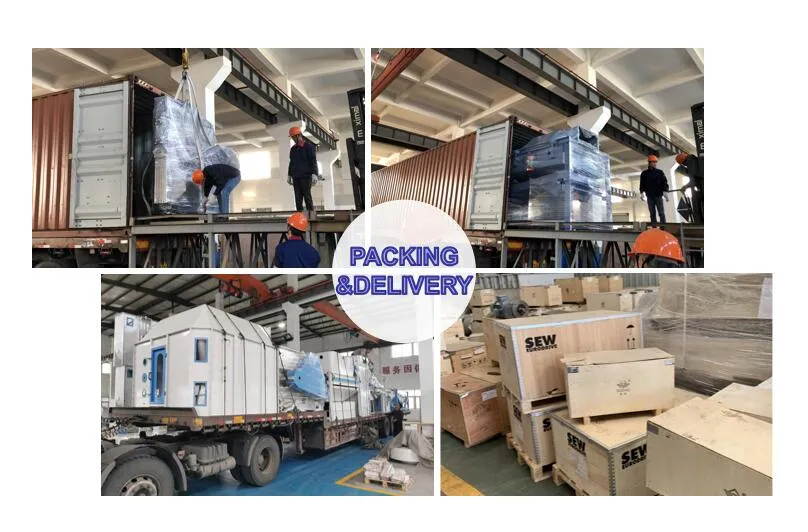

Packing & Delivery
We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team. We devote to all-round service of all the products from shipment to maintenance.
√ Our professional service includes: Free training, Guidance Installation and Debugging.
√ Guaranteed Time: 12 moths from delivery date .
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
Thank you for your reliance and support!
Why choose from us?
A.Good reputation
Because of the good quality and credit,our company are with good reputation both at home and abroad.
B.Factory direct supply
This ensure the competitive price available and brand care.
C.Advanced technology adopted
American CPM advanced technology with rich experience on site for installation and debugging,which has the good ability to provide with aftersale service.
D.Best and reasonable structure design of the pellet mill
This make sure the durability of the machinery running.
Gear drive of the pellet mill which make the pellet machine stronger for making the wood pellets.Compared with belt drive,with lower consumption for the same capacity.
