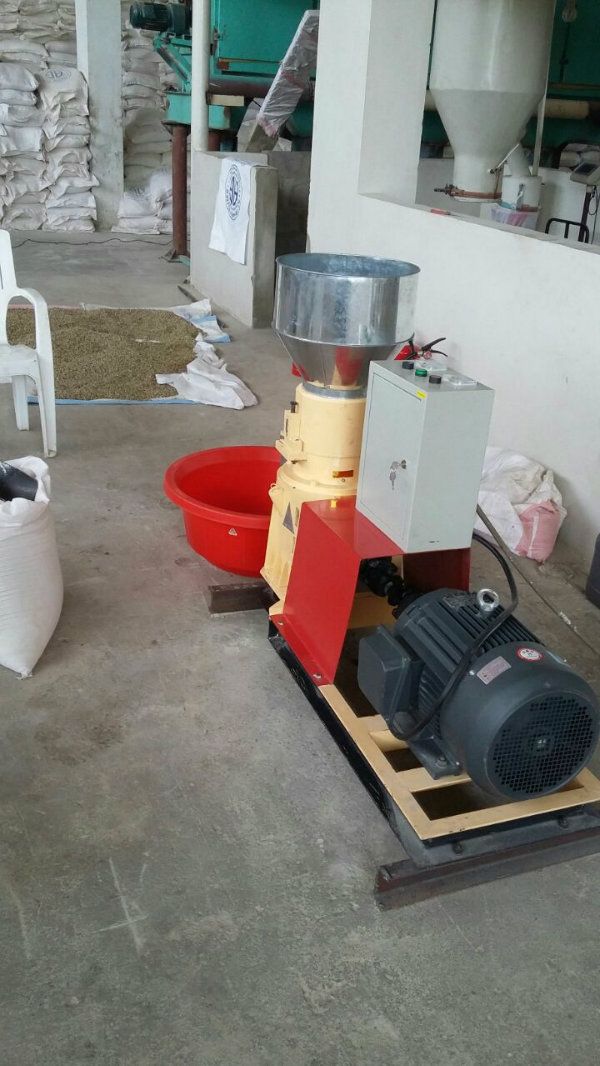

Pellet Feed Mill Flat Die Home Use
Pellet Feed Mill Flat Die Home UseFeatures:1. SKJ series small animal feed pellet is flat die, which are consisted of two rollers. Animal feed pellet machineis generally for home use. Animal feed pellet machine are widely used in pressing feed pellets.2. The animal feed pellet machine can press 2-8m......
Send Inquiry
Product Description
Pellet Feed Mill Flat Die Home Use
Features:
1. SKJ series small animal feed pellet is flat die, which are consisted of two rollers. Animal feed pellet machine
is generally for home use. Animal feed pellet machine are widely used in pressing feed pellets.
2. The animal feed pellet machine can press 2-8mm diameter animal feed pellets. Animal feed materials such as
grain, soybean, maize etc.
3. Animal feed pellet machine is handled by CNC machine, the die and rollers are handled by heat treatment,
which increase the abrasive resistance, prolong the die and rollers lifespan.
Advantages:
1. Low energy consumption and less manpower
2. Potential for 24 hour continuous running(stable and durable functionality)
3. Durable spare parts
4. Simple automated operation
5. Easily maintained
6. The flat die pellet mills are easier to clean than the ring die pellet mill
7. Able to change die and roller faster and easily.
8. Small and lightweight, making small-scale production
9. Visibility: It is possible to view into the chamber when pelletizing, so you can solve any problem in time.
Technical parameters:
Youtube link:
http://youtu.be/MUptBW1eZTw
http://youtu.be/LGHHP7-PlZk
https://youtu.be/lE_lWcAtRUk
http://youtu.be/_KoSrLc_7lw
https://youtu.be/hJAveSXk8vI
Contact information
Contact: Ms.Tracy Zhao
Mobile: +86-18764198339
Website: jnxucheng.en.made-in-china.com
Features:
1. SKJ series small animal feed pellet is flat die, which are consisted of two rollers. Animal feed pellet machine
is generally for home use. Animal feed pellet machine are widely used in pressing feed pellets.
2. The animal feed pellet machine can press 2-8mm diameter animal feed pellets. Animal feed materials such as
grain, soybean, maize etc.
3. Animal feed pellet machine is handled by CNC machine, the die and rollers are handled by heat treatment,
which increase the abrasive resistance, prolong the die and rollers lifespan.
Advantages:
1. Low energy consumption and less manpower
2. Potential for 24 hour continuous running(stable and durable functionality)
3. Durable spare parts
4. Simple automated operation
5. Easily maintained
6. The flat die pellet mills are easier to clean than the ring die pellet mill
7. Able to change die and roller faster and easily.
8. Small and lightweight, making small-scale production
9. Visibility: It is possible to view into the chamber when pelletizing, so you can solve any problem in time.
Technical parameters:
| Model | Capacity(t/h) | Power(kw) | Pellet dia.(mm) | Weight(t) | Dimension(mm) |
| SKJ120 | 0.07-0.1 | 3 | 2-8 | 0.05 | 1150×300×550 |
| SKJ150 | 0.1-0.3 | 7.5 | 2-8 | 0.15 | 1260×400×650 |
| SKJ200 | 0.3-0.5 | 11 | 2-8 | 0.2 | 1300×500×850 |
| SKJ250 | 0.4-0.7 | 15 | 2-8 | 0.5 | 1400×600×1000 |
| SKJ280 | 0.5-0.8 | 22 | 2-8 | 0.65 | 1760×670×1600 |
| SKJ300 | 0.6-1 | 30/22 | 2-10 | 0.85 | 1860×670×1600 |
| SKJ2-350 | 0.6-1 | 37 | 2-8 | 1.1 | 1700×640×1620 |
| SKJ2-450 | 1-1.5 | 45 | 2-10 | 1.58 | 1740×830×1480 |
| SKJ3-350 | 0.8-1.4 | 37-4 | 4-10 | 2.08 | 1763×610×1780 |
| SKJ3-450 | 1-2 | 55-4 | 4-10 | 4.3 | 2300×1100×1900 |
| SKJ3-550 | 2-3 | 55 | 4-12 | 5.5 | 2200×1000×2200 |
Youtube link:
http://youtu.be/MUptBW1eZTw
http://youtu.be/LGHHP7-PlZk
https://youtu.be/lE_lWcAtRUk
http://youtu.be/_KoSrLc_7lw
https://youtu.be/hJAveSXk8vI
Contact information
Contact: Ms.Tracy Zhao
Mobile: +86-18764198339
Website: jnxucheng.en.made-in-china.com
