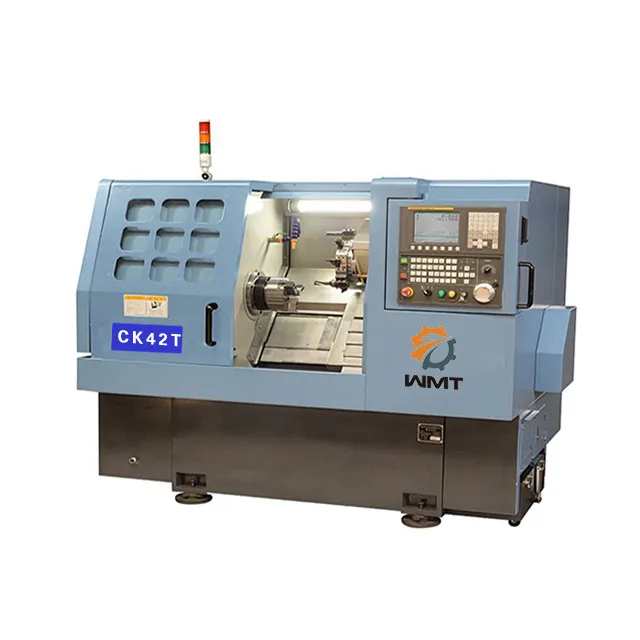

China CNC Lathe Machine Ck42t for Automatic Metal Cutting

Product Description

Features:
Integrated slant bed structure, easy liquid leaking, high rigidity and good operation.
High speed at 5000r/min. First-class precision spindle bearing.
High precision ball screw Rexroth, fast feeding for high working efficiency.
8-2 position hydraulic turret, easy machining for complex parts.
Allclosed stainless steel protection, strong liquid protection without any water leak.

Main Specificaiton for CK42T:

Specification	CK38T	CK42T	CK60T
Swing over bed	380mm	420mm	600mm
Swing over cross slide	320mm	440mm	560mm
Max.machining dia.(disk/rod)	200mm/60mm	400mm/100mm	500mm/120mm
Length of workpiece	340mm	450mm	650mm
Distance between centers	450mm	700mm	700mm
Spindle bore	52mm	62mm	87mm
Spindle nose	A2-5	A2-6	A2-8
Spindle speed range	60-5000r/min	60-3800r/min	30-2500r/min
Hydraulic chuck	6"	8"	10"/12"
Hydraulic Turret(Stations)	8	8	12
Bar auto-feeding bore	42mm	75mm	75mm
X/Z-axis travel	140/340mm	270/450mm	270/650mm
X/Z-axis rapid speed	20/20m/min	20/20m/min	20/20m/min
X/Z-axis repositioning accuracy	0.003mm	0.003mm	0.003mm
Min.input unit	0.0005/0.001mm	0.0005/0.001mm	0.0005/0.001mm
Quill travel	75mm	75mm	75mm
Quill dia./taper	80mm/MT4	80mm/MT4	90mm/MT4
Max.quill travel	80mm	80mm	80mm
Max.tool shank	20x20mm	25x25mm	25x25mm
Max.dia for boring size	25mm	32mm	40mm
Power of main motor	5.5-7.5kw	7.5-11kw	11-15kw
Packing size(mm)	2125x1345x1600	2220x1405x1640	3230x1640x1900
N.W/G.W	2600/3000kgs	3000/3400kgs	4500/5000kgs

With standard equipment:
1.Fanuc Oimate TD/Seimens/GSK
2.Spindle bearing: Japan NSK or Germany FAG P4 class.
3.Hydraulic chuck: Hollow Taiwan Brand 6" for CK38T / 8" for CK42T / 12" for CK60T
4. Hydraulic turret: 8 Position for CK38T/CK42T and 12 position for CK60T
5.Linear guideway: Japan THK or Germany Rexroth.
6.Leadscrew: Taiwan Yintai precision ball screw
7.Leadscrew bearing: Japan NSK or Germany ESKY
8.Hydraulic station: Made in Taiwan famous brand
9.Alarm lamp
10.Auto-lubricating system
11.Cooling system

Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

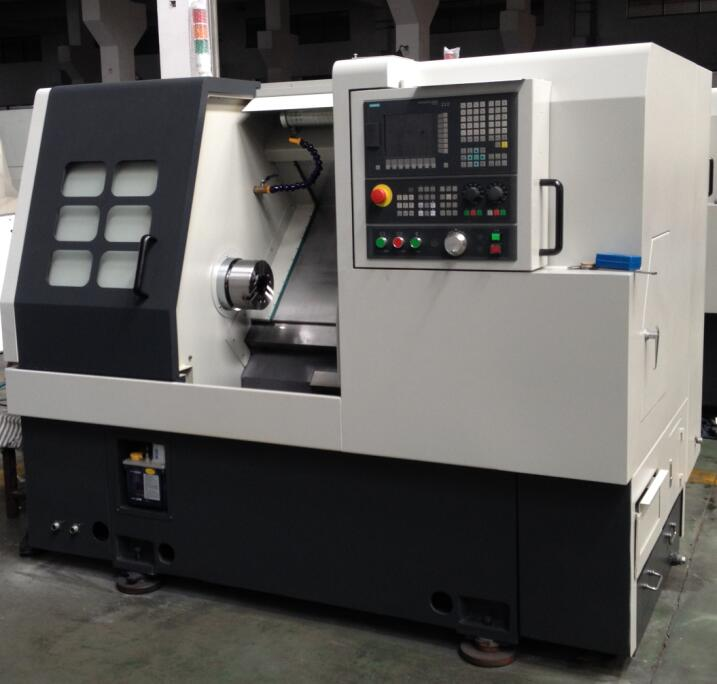

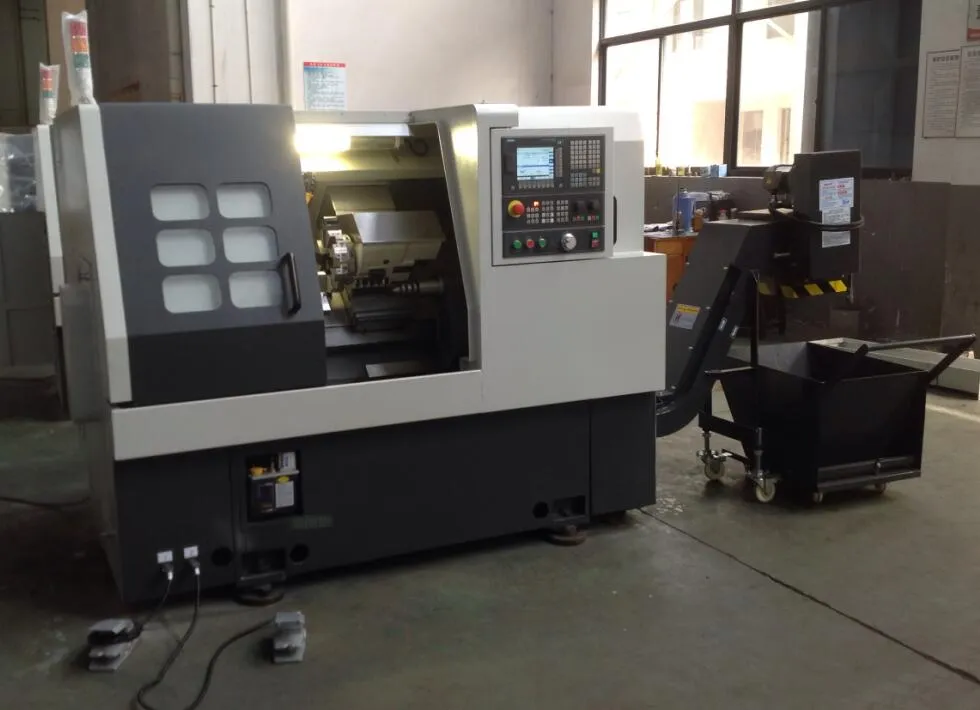

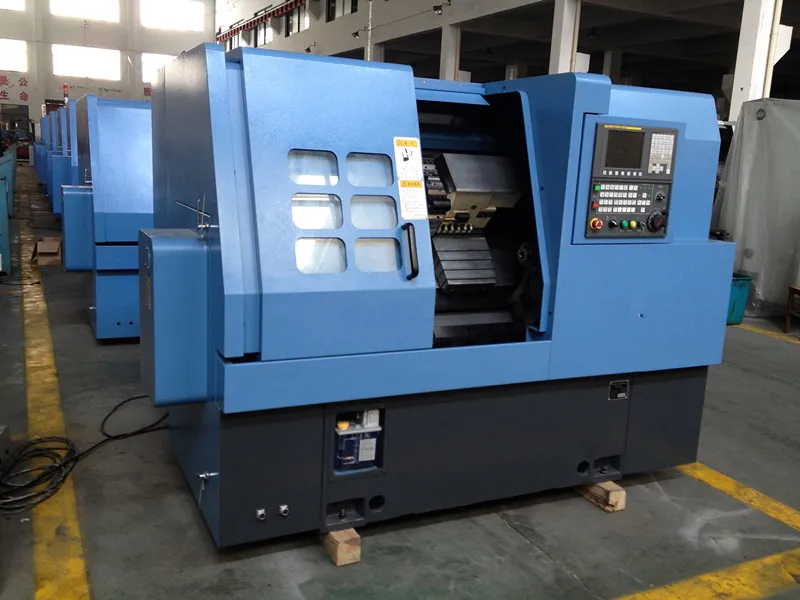

Machiners' detailed pics.
