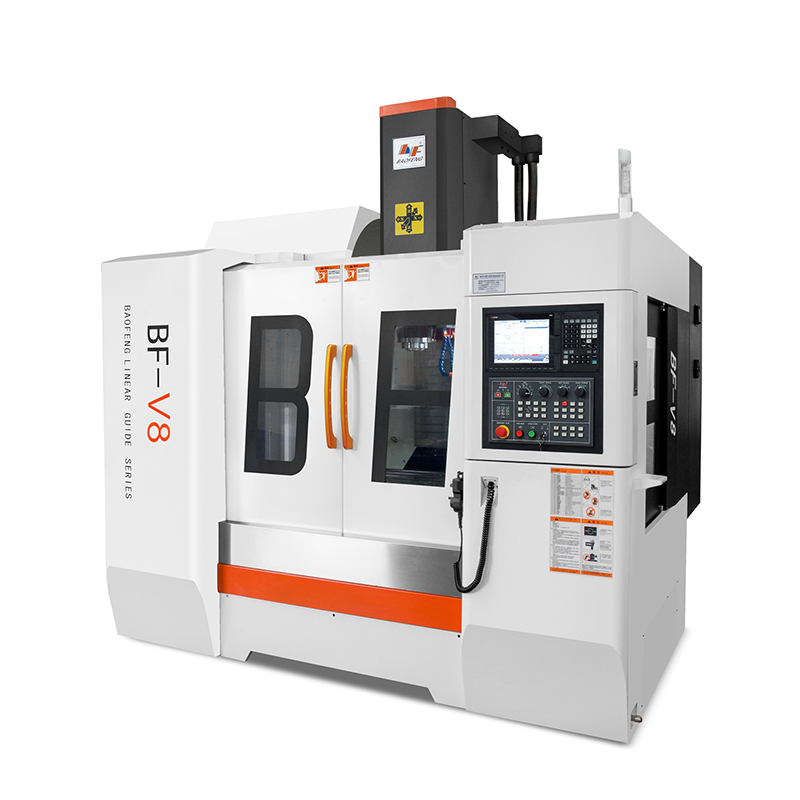

V85 High Precision Metal Processing CNC Vertical Machining Center
Specification TRAVELX/Y/Z axis travel800x500x500mmSpindle nose to table150-650mmSpindle center to column520mmPositioning accuracy±0.003/300mmRepeated positioning±0.002/300mmSpindleSpindle taperBBT40Spindle transmissionDirect driveSpindle speed12000 rpm/minControllerCNC controlF......
Send Inquiry
Product Description
Specification
| TRAVEL | |
| X/Y/Z axis travel | 800x500x500mm |
| Spindle nose to table | 150-650mm |
| Spindle center to column | 520mm |
| Positioning accuracy | ±0.003/300mm |
| Repeated positioning | ±0.002/300mm |
| Spindle | |
| Spindle taper | BBT40 |
| Spindle transmission | Direct drive |
| Spindle speed | 12000 rpm/min |
| Controller | |
| CNC control | Fanuc 0i-MF |
| Spindle motor | 11/15 kw 12000 rpm/min |
| X/Y/Z motor | 3.0/3.0/3.0kw |
| Table | |
| Table size ( W x L ) | 900x500mm |
| T slot | 5-18x100mm |
| Table load | 600kg |
| Feed | |
| X/Y/Z rapid feed rate | 48/48/48m/min |
| X/Y/Z linear guideway | 30/35/35mm-ball |
| X/Y/Z ball screw | 16mm-ball |
| MACHINE DIMENSION | |
| Dimension | 2600*2750*3030mm |
| Weight | 5000kg |
Main parts list:
| Item | Brand |
| Spindle | Taiwan-Spintrue |
| Spindle bearing | Japan-NSK |
| Ball screw | Japan-NSK-C3 |
| Linear guideway | Germany-Rexroth |
| Pneumatic parts | Japan-Mitsubishi |
| Tool magazine | Taiwan- 24T Arm type |
Optional configuration:
- SIEMENS/FANUC/Mitsubishi CNC Controller
- 4th/5th axes rotary table
- Chip conveyor
- Tool setter
- Oil mist collector
