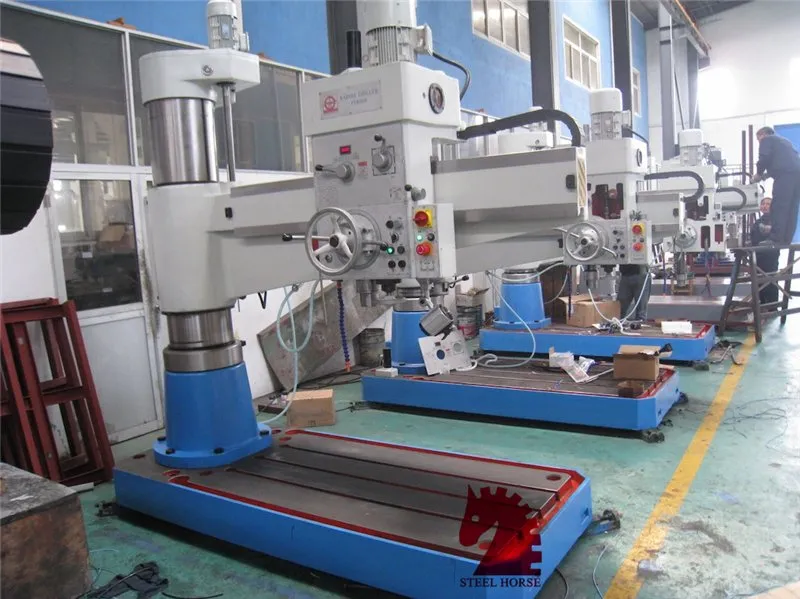

Zq3050 Gear Driller Metal Mechanical Radial Drilling Machine

ZQ3050 gear Driller Metal Mechanical Radial Drilling Machine Radail drilling machine ZQ3050×13Mechanical transmissionMachanical clampingMechanical speedAutomatic take-off and landingAutomatic feedDouble ColumnRadail drilling machine ZQ3050×161.This machine parts using mainframe d......

Send Inquiry

Product Description

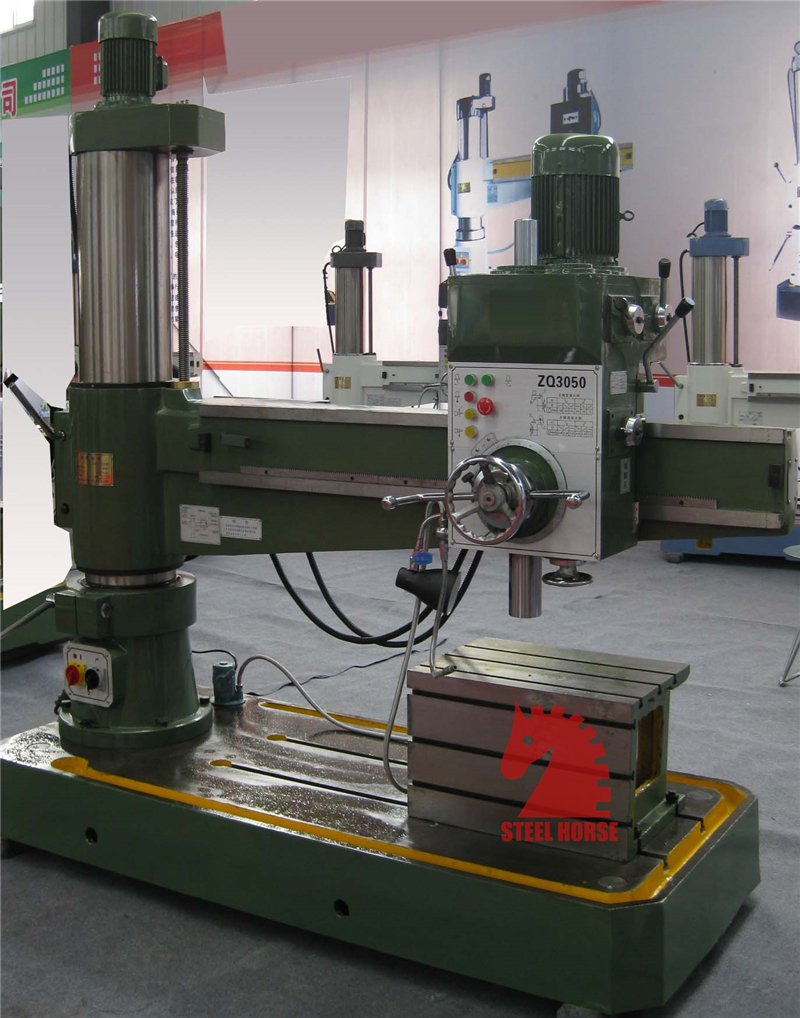

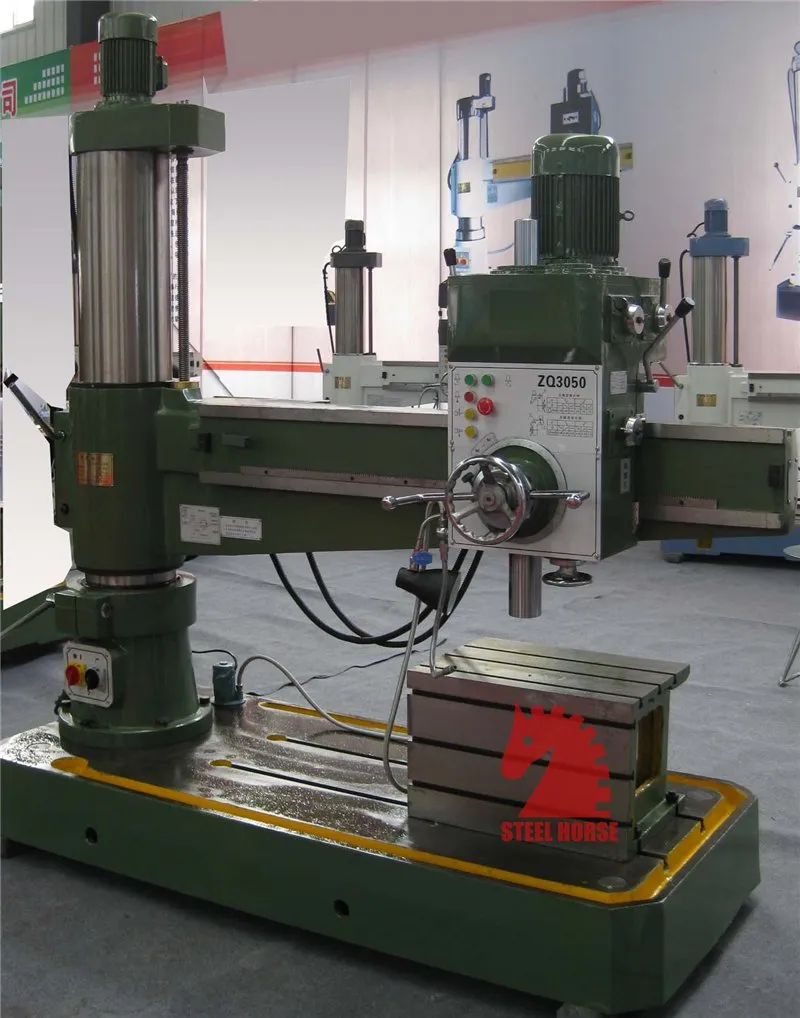

ZQ3050 gear Driller Metal Mechanical Radial Drilling Machine

Radail drilling machine ZQ3050×13	Mechanical transmission Machanical clamping Mechanical speed Automatic take-off and landing Automatic feed Double Column
Radail drilling machine ZQ3050×16

1.This machine parts using mainframe drilling,stability and high accuracy.
2.Double column thickened rotating flexible travel limits preventerroneous operation.
3.Wire mother,pure copper motor power,according to customer requirements to develop Spindle stroke lengthened.

Main date	ZQ3050×13	ZQ3050×16
Max.drilling dia mm	50	50
Distance from spindle nose to table surface mm	260-1150	260-1150
Distance between spindle asix and column surface mm	360-1600	360-1600
Spindle travel mm	200	200
Spindle Cone (Morse)	5	5
Spindle speed step	6	6
Spindle feeding step	6	6
Spindle feeding step mm/r	0.10-0.56	0.10-0.565
Spindle speeds range r/min	78/135/240/350/590/1100	78/135/240/350/590/1100
Main motor power kw	4	4
Machine shape dimension mm	1950×810×2450	2170×950×2450
Weight KG	2400	2800
