Hcvac Hardware Metal Faucet Kitchenware Physical Vapor Deposition Vacuum Coating Machine
Hardware Metal Faucet kitchenware Physical Vapor Deposition Vacuum Coating Machine1. Brief intorduction:This machine mainly integrates the technology of MF magnetron sputtering and electric arc ion evaporation, combining the ion source and the pulse bias voltage. It is full automation control when c......
Send Inquiry
Product Description
Hardware Metal Faucet kitchenware Physical Vapor Deposition Vacuum Coating Machine
1. Brief intorduction:
This machine mainly integrates the technology of MF magnetron sputtering and electric arc ion evaporation, combining the ion source and the pulse bias voltage. It is full automation control when coating films.
Applied industry: It is widely used in the sanitary ware, watchband, watchcase, mobile shell, hardware, tableware, etc. It can coat TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3 and other decorative films.
2. Detailed description:
It equips with the new target and the arc power supply, arc spot is stable. It is not easy running arc, the current is low and ionparticles is small. Applied to metal, ceramics, glass and other materials of the surface coating of hard metal film and metal compounds film. Pumping speed faster, vacuum stability, and superior quality film, widely used in hardware, watches, glasses, tools, dies, metal, glass, ceramics, building materials, and other surface treatment industry.
HCVAC decorative PVD films are routinely used as a replacement for electroplated chrome. They can be applied directly over almost any substrate material and can be deposited in a wide variety of colors. The process parameters to deposit each color are stored in software recipes with different process steps. Once the coating process has started, all of the relevant process parameters are continuously monitored and controlled by the on-board computer software.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; Combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.

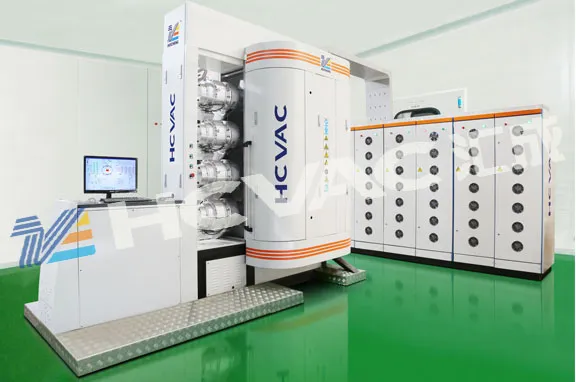

This is our machine(We have supplied to Kohler,Toto,jomoo):
Samples coated by the machine(For both metal and plastic bath products):

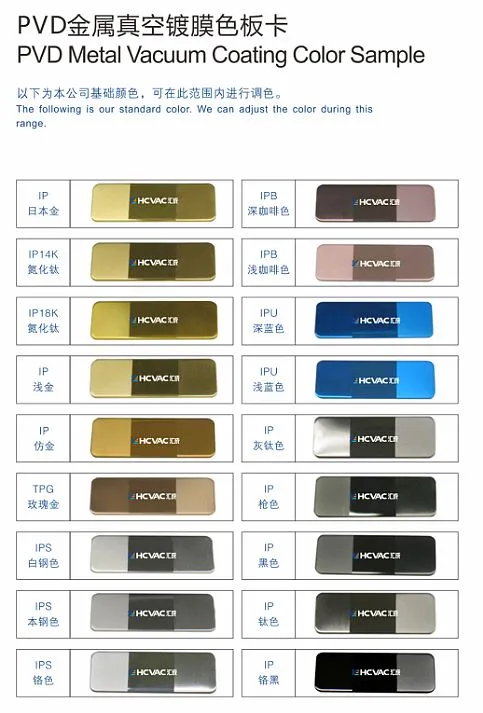

Color sample:
1. Brief intorduction:
This machine mainly integrates the technology of MF magnetron sputtering and electric arc ion evaporation, combining the ion source and the pulse bias voltage. It is full automation control when coating films.
Applied industry: It is widely used in the sanitary ware, watchband, watchcase, mobile shell, hardware, tableware, etc. It can coat TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3 and other decorative films.
2. Detailed description:
It equips with the new target and the arc power supply, arc spot is stable. It is not easy running arc, the current is low and ionparticles is small. Applied to metal, ceramics, glass and other materials of the surface coating of hard metal film and metal compounds film. Pumping speed faster, vacuum stability, and superior quality film, widely used in hardware, watches, glasses, tools, dies, metal, glass, ceramics, building materials, and other surface treatment industry.
HCVAC decorative PVD films are routinely used as a replacement for electroplated chrome. They can be applied directly over almost any substrate material and can be deposited in a wide variety of colors. The process parameters to deposit each color are stored in software recipes with different process steps. Once the coating process has started, all of the relevant process parameters are continuously monitored and controlled by the on-board computer software.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; Combine the full set production technics to meet your requirements, to ensure high efficiency of production.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
This is our machine(We have supplied to Kohler,Toto,jomoo):
Samples coated by the machine(For both metal and plastic bath products):
Color sample:
| Mode Dimension | LH-800 | LH-1250 | LH-1416 | LH-1618 |
| 800*1000mm | 1200*1500mm | 1400*1600mm | 1600*1800mm | |
| Coating mode and main confirguration | Eight multi-arc targets | Twelve multi-arc targets | Fourteen multi-arc targets | Twenty multi-arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply | |||
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve | |||
| Vacuum chamber structure | Vertical side opening door, pump system postposition, double water cooling | |||
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) | |||
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating. | |||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | |||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa | |||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | |||
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. | |||
More information about our vacuum coating machine,pls do not hesitate to contact:
Contact person:Mandy Liu
