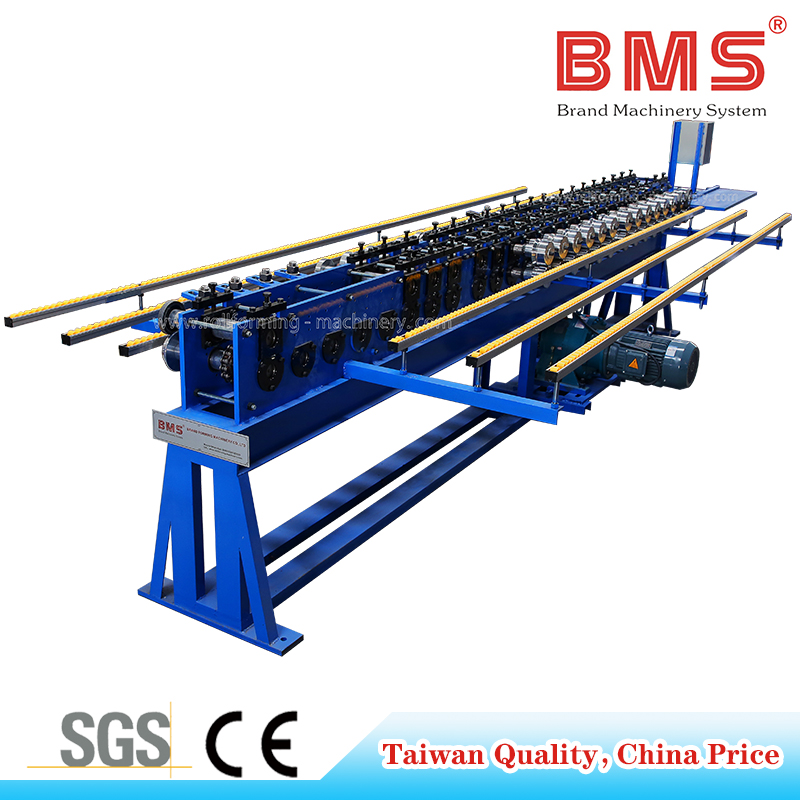

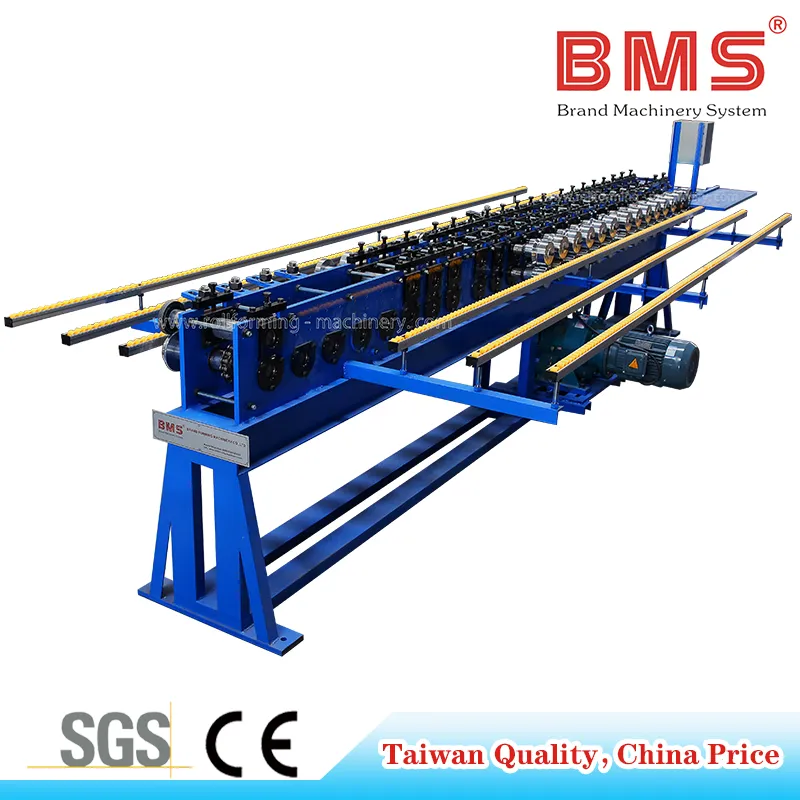

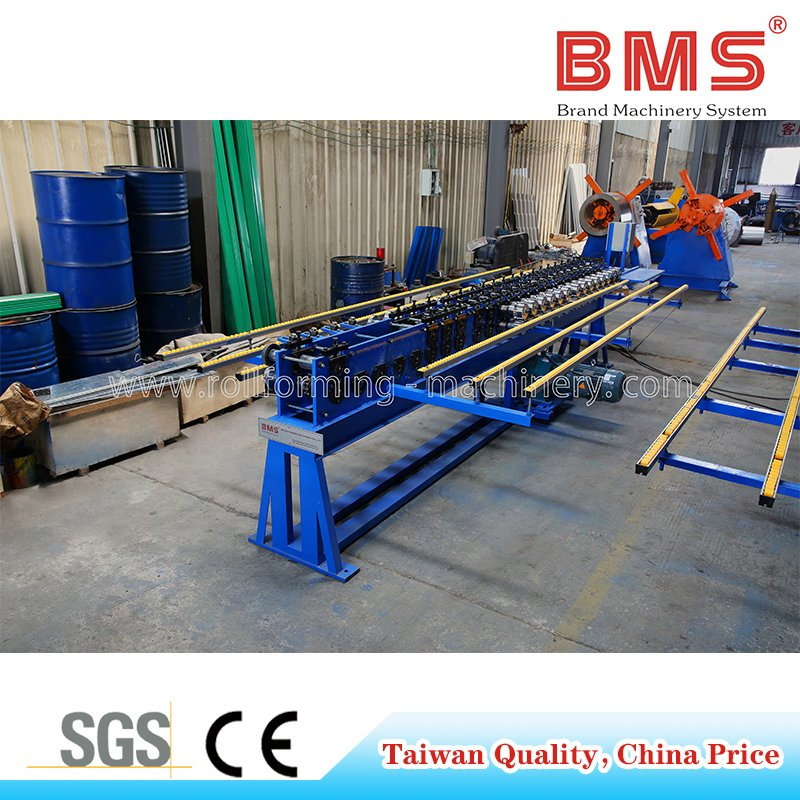

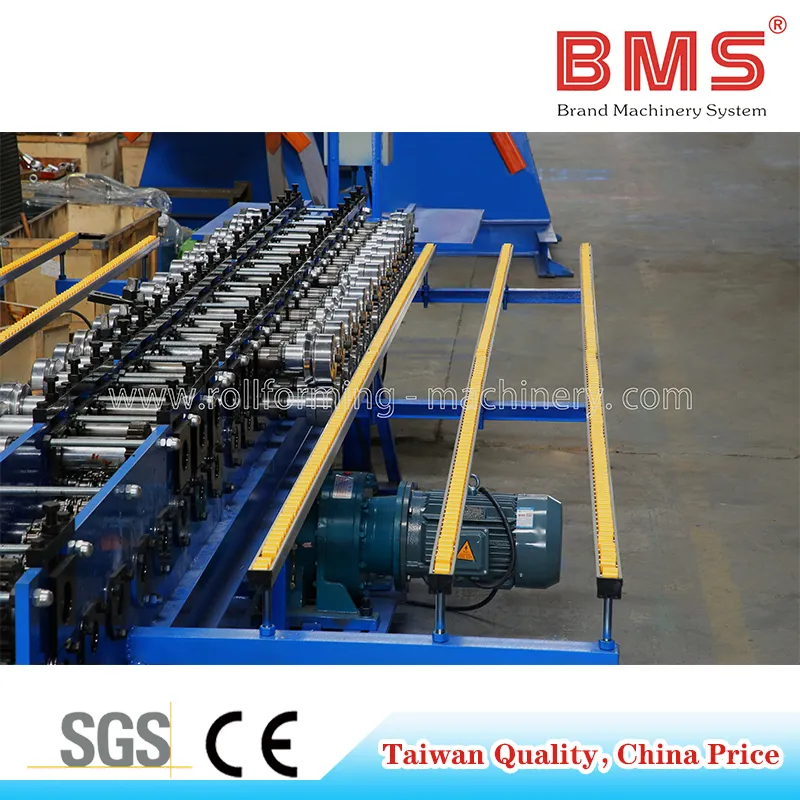

New Stock Arrival Klip Lock Panel Roll Forming Machine
New Stock Arrival Klip Lock Panel Roll Forming MachineProduct DescriptionKlip Lock Panel Roll Forming MachineMachine Components Forming MachineWith feeding material guide, body frame made from H400(Thickness is 13mm)type steel by weldingSide wall thickness: Q235 t18mm ;Roller......
Send Inquiry
Product Description
With feeding material guide, body frame made from H400(Thickness is 13mm)
type steel by welding
Side wall thickness: Q235 t18mm ;

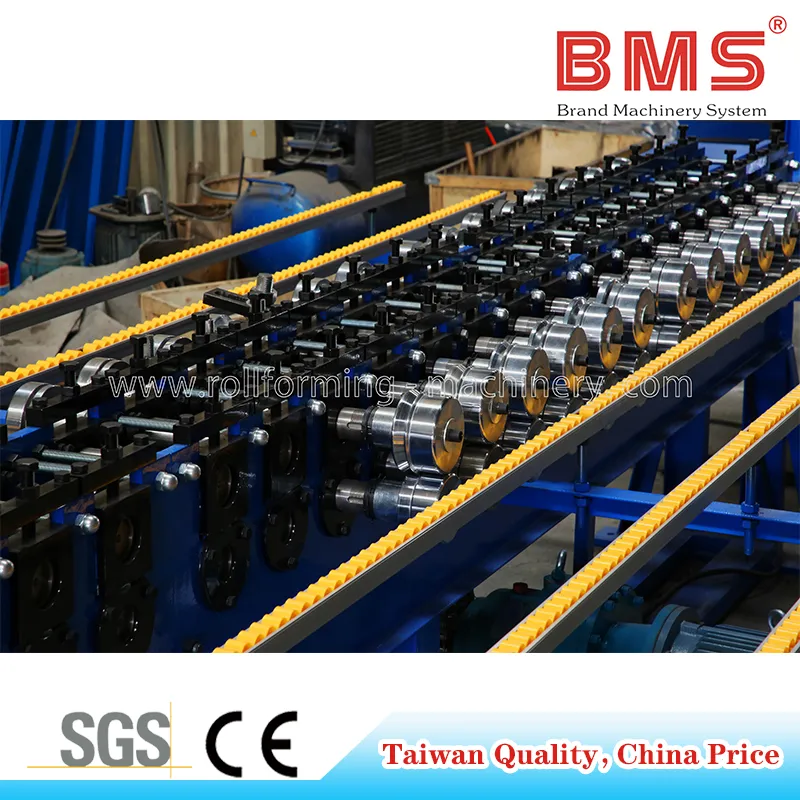

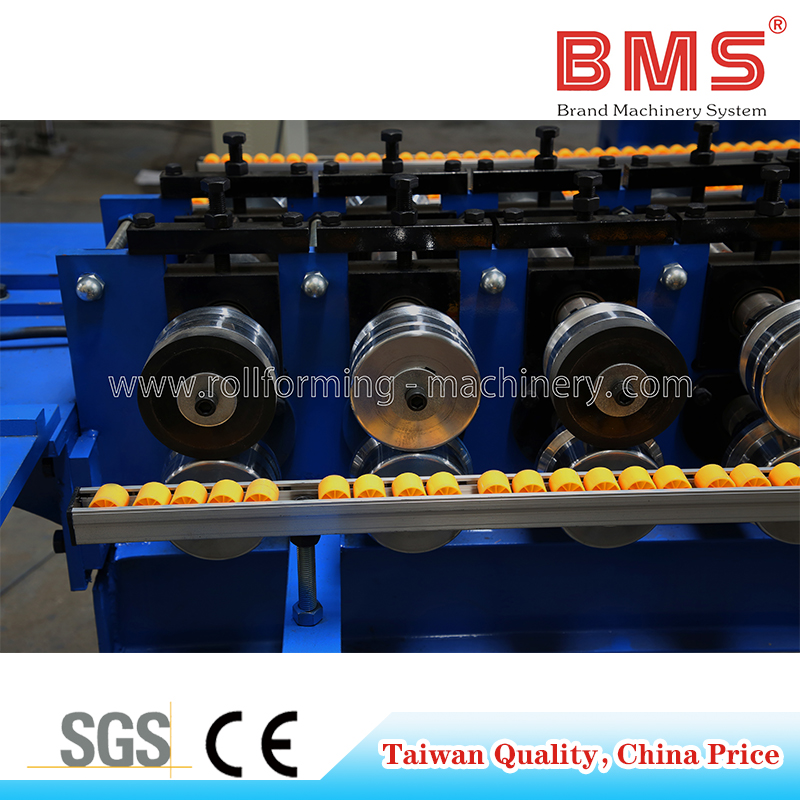

Rollers manufactured from high quality 40Cr Steel,CNC lathes, heat treatment,
hard Chrome Coated.
Shafts Diameter=ф70mm,precision machined
Gear/Sprocket driving,about 12-step to form
Main Motor=4KW, Frequency speed control
Sprocket:18 tooth;Sliding block:130*140mm;Bolt and nut: international standard 8.8
PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.
| Combined With | PLC, Inverter, Touch Screen, Encoder, etc |
| PLC | Siemens (German brand)/Schneider(French brand) |
| Inverter | Siemens (German brand)/Schneider(French brand) |
| 7-Inch Color Touch Screen | Siemens (German brand)/Schneider(French brand) |
| Encoder | Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor |
| Thermal Relay | Siemens(German brand)/Schneider(French brand) |
| Air Switch | LG-LS(Korea brand) Cut-to-Length Tolerance≤±1 mm Control Voltage 24V |
After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within The 24months, we will courier the replacement parts to the client free of charge
2.We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with extra cost
Terms Of Trade
| Minimum order quantity (MOQ) | 1 Set |
| Delivery time | about 45 workdays |
| Port of loading | port of Xiamen |
| Type of payment | by T/T or by L/C |
| Export | to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc |
Packing Style
| Packing method | Main body of machine is naked and covered by plastic film(to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation. |
