Yx34.5-237-710 Roll Forming Machine for Klip -Lock Profile
YX34.5-237-710 ROLL FORMING MACHINE FOR KLIP-LOCK PROFILEIf customization:YesSeries:Roll forming machine for klip-lock profileType:YX34.5-237-710Brand:Erudite roll formingYX34.5-237-710 ROLL FORMING MACHINE FOR KLIP-LOCK PROFILEProfile:The Chart of Process FlowTechnical Parameters The main technical......
Send Inquiry
Product Description
YX34.5-237-710 ROLL FORMING MACHINE FOR KLIP-LOCK PROFILE
If customization:Yes
Series:Roll forming machine for klip-lock profile
Type:YX34.5-237-710
Brand:Erudite roll forming
YX34.5-237-710 ROLL FORMING MACHINE FOR KLIP-LOCK PROFILE

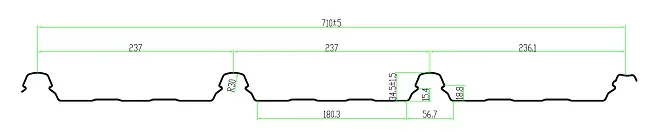

Profile:

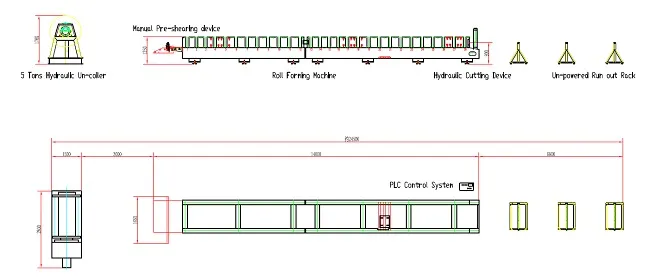

The Chart of Process Flow
Technical Parameters
The main technical parameters are for your inference only.
Only if you provide the profile required or the real objects of sectional materials,
and we will offer the accurate parameters.
If customization:Yes
Series:Roll forming machine for klip-lock profile
Type:YX34.5-237-710
Brand:Erudite roll forming
YX34.5-237-710 ROLL FORMING MACHINE FOR KLIP-LOCK PROFILE
Profile:
The Chart of Process Flow
Technical Parameters
The main technical parameters are for your inference only.
Only if you provide the profile required or the real objects of sectional materials,
and we will offer the accurate parameters.
| (1) 5 Tons un-coiler | |
| Description | There are different choices, please turn to the catalogue of un-coiler |
| (2)The general machine parameter | |
| Suitable roll forming material | Color steel sheet or galvanized steel sheet |
| Thickness | 0.5-0.7mm |
| Effective width | 914mm |
| Polythene film on device, un-powered | |
| Hydraulic pre-shearing/pre-punching device as per clients' requirement | |
| Frame design | Wall-plate-frame-design /Strong-stand-frame-design |
| Roll stages | 28stages |
| Material of forming roller | 45# steel with forge treatment, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75/95mm |
| Main motor power | 11 KW with reducer |
| Max. Line speed of roll former | 15-18m/min (Higher speed is available, depends on the specification required by the buyer) |
| Hydraulic group power | 5.5 KW |
| Material of cutting blade | Cr12, heat treatment |
| Electric Standard | 415V /50Hz/3PH or as the customer's requirements |
| Machine Dimensions | 13000mm×1420mm×1700mm (estimated only) |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer's requirements |
| (3) PLC Control system | |
| PLC | Siemens brand |
| Touch Screen | Siemens brand |
| Inverter | Schneider or Shihlin or Panasonic brand |
| Encoder | Omron brand |
| (4)Product rack | |
| Description | un-powered, 3 units |
| (5)Option: 1. 40GP/HQ container and Disposal inside for standing seam machine 2. Clipper Tooling | |
| (6) About us | |
| Please visit the web site: eruditerfm.en.made-in-china.com for detailed information | |
