16-63mm PVC pipe extrusion line
Product Overview
According to different diameter, different production requirements, a variety of special specifications of PVC
Twin-screw extrude to used. The special designed screw structure, uniform plasticizing, high output.
PVC extrusion die head used high quality alloy steel manufacturing, channel surface with brightness
And anti-corrosive. Wide flow channel design to ensure the retention time of the melt in the die head
And the largest extrusion production.
In view of the large diameter PVC pipe, the vacuum tank used double vacuum chamber structure
Design, equipped with a circular plate, making pipe roundness and forming better.
Haul-off unit used 2 to 10 caterpillars, mating with different specifications of the planetary cutting
Machine, adapt to all PVC dimensions pipe production. Optional online belling machine
Product Description
In the production of small diameter pipe and requirements under the condition of high output, especially shows the
Advantages of using dual-strand extrusion. The characteristics of using dual-strand downstream equipment is with
Two sets of independent control circuit, the speed of each pipeline can be adjusted respectively, and can even
Produce different diameter of the pipe at the same time. Four strand extrusion line is suitable for the <=32 mm pipe
With high-speed production, unilateral pipe speed up to 25 m/min. This extrusion line adopts special screw and
Mould design, materials uniform plasticizing, fast production speed, low energy consumption. Control is easy to operate,
Educe the technical requirements of the operation of operating workers. And effectively save the workshop space.
This pipe production line adopts advanced technology of Europe, it is a new research achievement of energy-saving
Production line, which is suitable for high speed extrusion of PVC pipe. Compared with common production line, the
Energy-saving effect reach on 35%, and the product efficiency increase more than 1 times, thus it is not only saving
He cost of site and manpower, but also improving efficiency.
This production line has nice appearance, higher automatic degree, production reliable and stable.
Pipeline Drawing

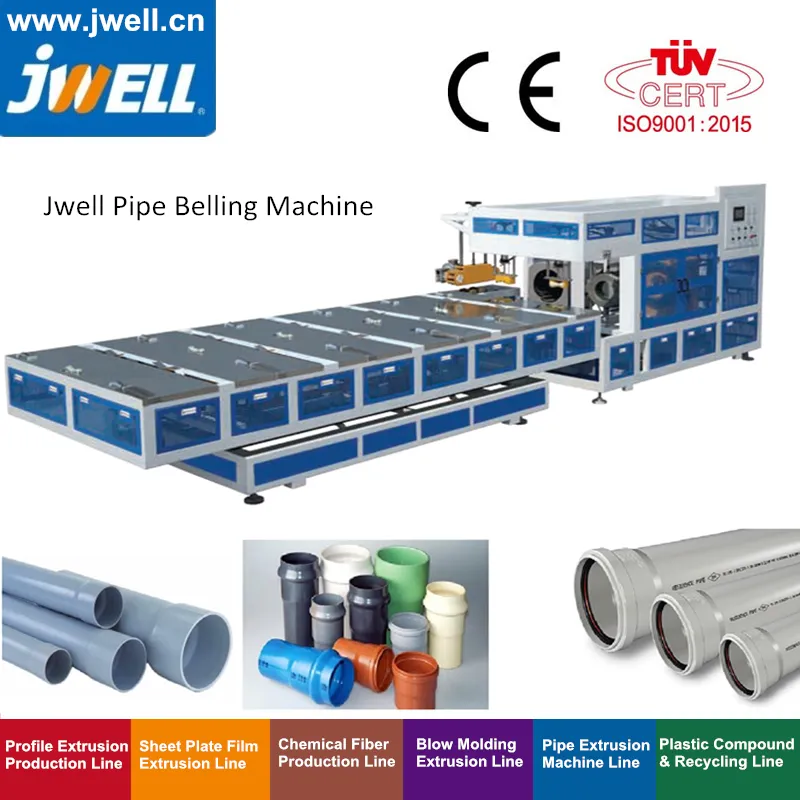

The PVC pipe machine commonly together with the belling system, adopts the advanced European
Technology used for PVC solid wall pipe and double -wall corrugated pipe. Belling type are rectangular
Type, U type and R type. Automatic control uses the japense mistsubishi PLC program control which
Stable and reliable. Belling die adopts hydraulic drive, main production range is ∅32-800mm
PVC pipe machine commonly together with the mixer
DYHL series mixer adopts PLC control, which combined machine unites mainly used batching, mixing,
Coloring and drying for various resins. This unit has combined the technology of hot mixing and cool
Mixing, which can let the material enter cool mixing after hot mixing automatically so as to cool it and
Removal of residual gas to prevent blocking
Technical date
Applications
PVC is currently used in a wide spectrum of piping applications, all helping to meet modern
Infrastructure needs.
Customized Solutions
Company Information
As the vice unit of CPMIA, Shanghai Jwell Machinery Co., Ltd is one of the biggest manufacturer of plastic extrusion
Machinery and chemical fiber spinning equipment in China, its head office is located in thewestern district of
Shanghai. There are 5 production bases, which were located in the western districtof Shanghai, Zhoushan of
Zhejiang Province, Suzhou of Jiangsu and Changzhou of Jiangsu, Dongguan of Guangdong, totally covering
700, 000 square meters. It has more than 2600 staffs, about 400 technicians and managing staffs.
Main products: Various plastic pipes extrusion lines including large diameter PE/PVC double wall corrugated
Pipe extrusion line, large diameter PE/PVC solid wall pipe extrusion line, PP-R/PEX/PE-RT cool/hot water pipe
Extrusion line, PA/PE/PVC single wall corrugated pipe extrusion line; Various plastic profile extrusion lines;
Various plastic plate & sheet extrusion lines; Chemical fiber spinning; Microcomputer controlled automatic blow
Molding machines; Plastic auxiliary recycling lines; Various single & twin screw and barrel extruders;
T die; Screen exchangers; Rollers and Robots.
