    One-Piece Sandal Making Production Line Full Automatic and Semi Automatic
    • One-Piece Sandal Making Production Line Full Automatic and Semi AutomaticOne-Piece Sandal Making Production Line Full Automatic and Semi Automatic
    • One-Piece Sandal Making Production Line Full Automatic and Semi AutomaticOne-Piece Sandal Making Production Line Full Automatic and Semi Automatic
    • One-Piece Sandal Making Production Line Full Automatic and Semi AutomaticOne-Piece Sandal Making Production Line Full Automatic and Semi Automatic
    • One-Piece Sandal Making Production Line Full Automatic and Semi AutomaticOne-Piece Sandal Making Production Line Full Automatic and Semi Automatic

    One-Piece Sandal Making Production Line Full Automatic and Semi Automatic

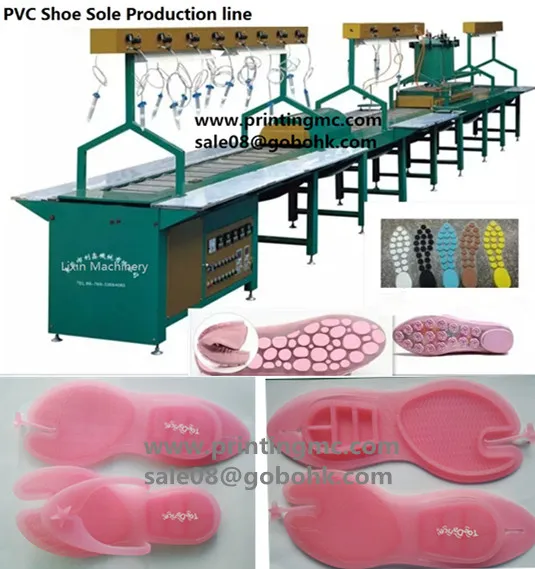

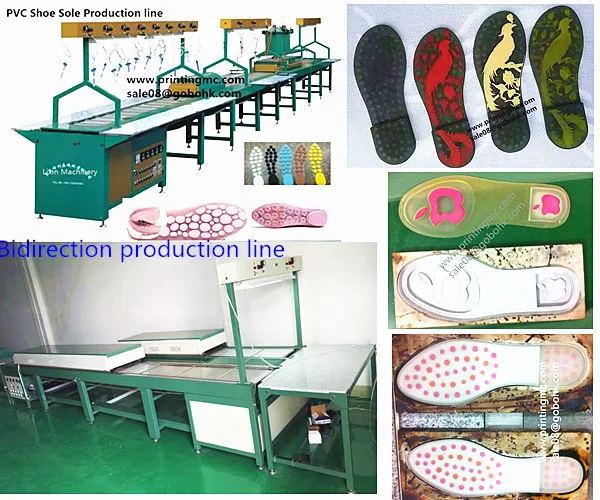

    LX-E01 One-piece Sandal Making Production Line Full Automatic and Semi AutomaticPVC automatic production line is used for car floor, Bar mat, shoe sole, one-piece sandal,PVC labels onto garments, shoe, bags, gifts, key chain, photo frame, cup holder, mobile phone holder, car mat, etc.We have three ......

    Send Inquiry

    Product Description

    LX-E01 One-piece Sandal Making Production Line Full Automatic and Semi Automatic
    One-Piece Sandal Making Production Line Full Automatic and Semi Automatic
    One-Piece Sandal Making Production Line Full Automatic and Semi Automatic

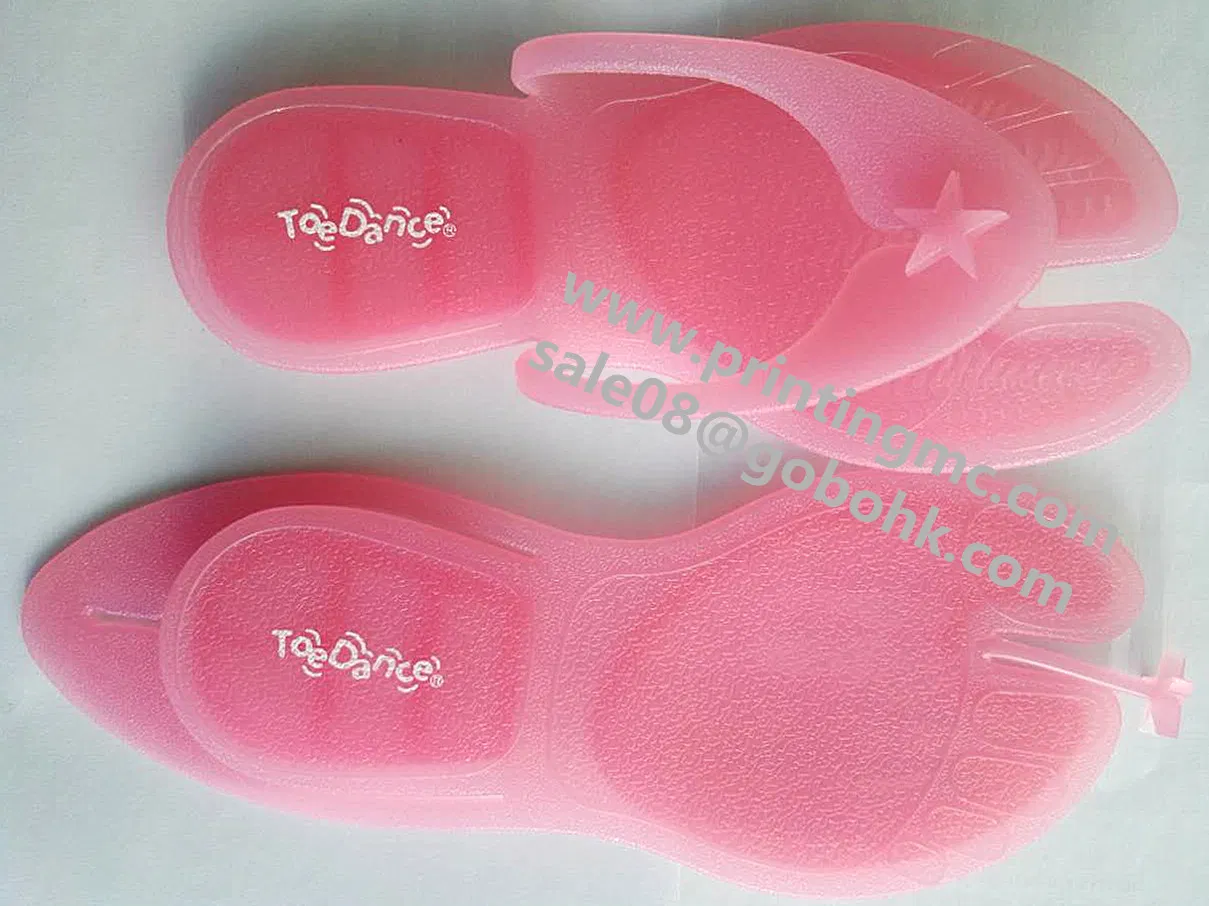

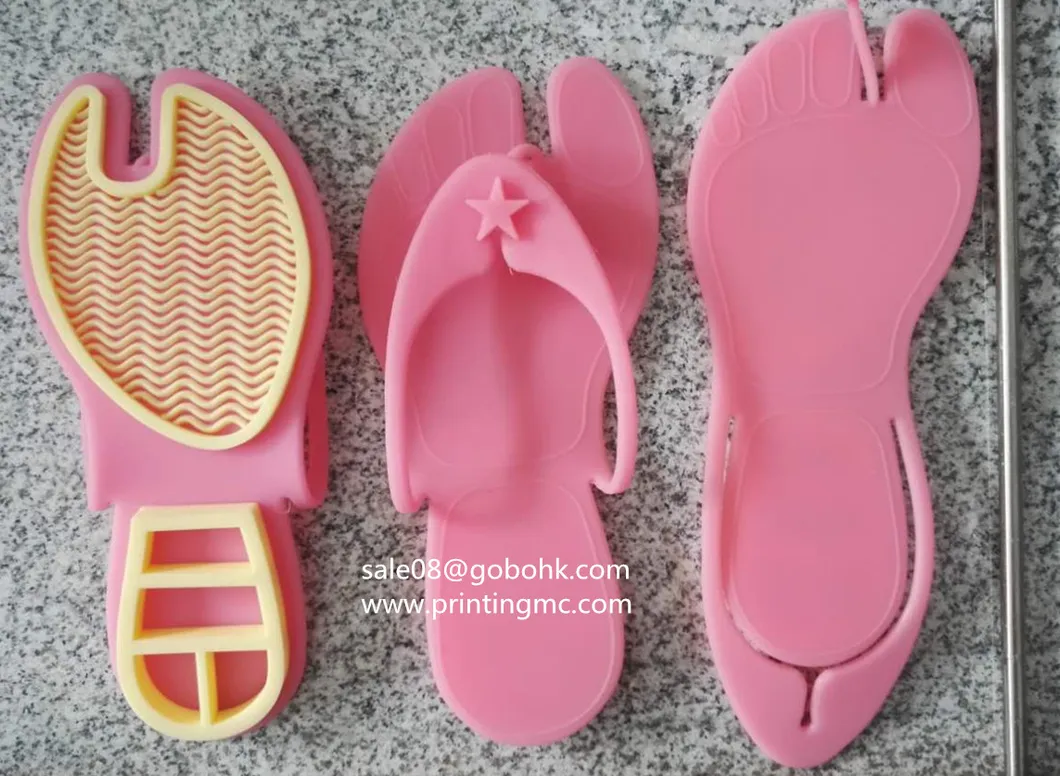

    PVC automatic production line is used for car floor, Bar mat, shoe sole, one-piece sandal,PVC labels onto garments, shoe, bags, gifts,  key chain, photo frame, cup holder, mobile phone holder, car mat, etc.We have three different sizes for your requirements.If you are interested in it,please feel free to contact me.

    Specification
    CodeLX-E01-ALX-E01-BLX-E01-C
    Max.Products size150*150mm250*330mm550*800mm
    Main conveyer width300mm350mm650mm
    Work table width300mm300mm500mm
    Mould return conveter width180mm250mm/
    Quantity of dripper20 sets24 sets18 sets
    Total power23.5KW32KW70KW
    VoltageAC/380VAC/380VAC/380V
    Weight600kg950kg2200kg
    DimensionL11000*W1250*H1800mmL17500*W1400*H1800mmL25000*W1800*H1800mm

    Advantage:
    1.Different sizes for your choice:L11000MM ;L17500MM ;L25000MM
    2.With automatic baking oven;Can heat up and down
    3.With main conveyer:Automatic transfer the mould from behind to front
    4.With two material barrels:Quantitative;Timing
    5.Save electricity:The baking oven is cloesd
    6.Save labor
    7.Easy to operate
    8.Customized accepted
     One-Piece Sandal Making Production Line Full Automatic and Semi Automatic
    Package & delivery& payment
    1. Package: Seaworthy wooden case packages.
    2. Delivery: Max 30 days after order confirmed.( If have stock, 7 days is ok ).
    3. Payment: 30% T/T in advance as deposit, 70% T/T before shipment. L/C is acceptable for special area or country.
    One-Piece Sandal Making Production Line Full Automatic and Semi Automatic
    Company profile

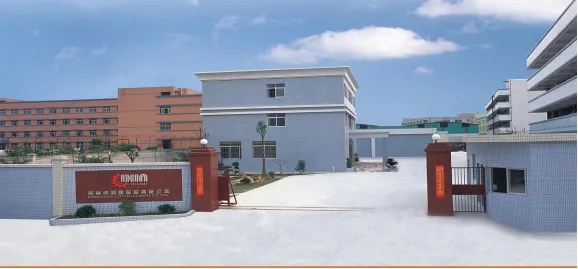

    Guang Dong Li Xin Intelligent Technology Co.,Ltd. is acting as first leader and most professional manufacture specialized in PVC and Silicone machinery. Strong R&D team and more than 20 years of experience earn us a good reputation in the world where the machine to have been. Because of development request, we establish Our oversea office in India, Bangladesh and Indonesia and also hoping to have many office in other countries very soon.
    One-Piece Sandal Making Production Line Full Automatic and Semi Automatic
    One-Piece Sandal Making Production Line Full Automatic and Semi Automatic
