Soft PVC Label/Holder Automatic Injection Production Line

Product Description

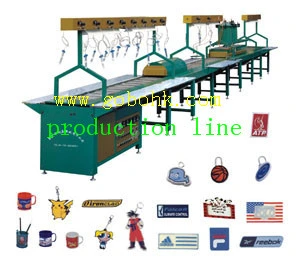

LX-E01 Soft PVC Automatic Production line

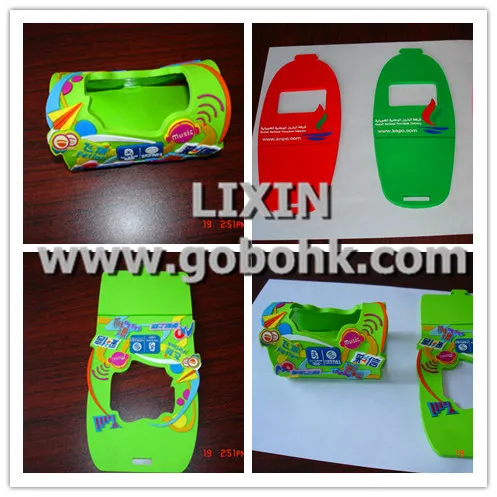

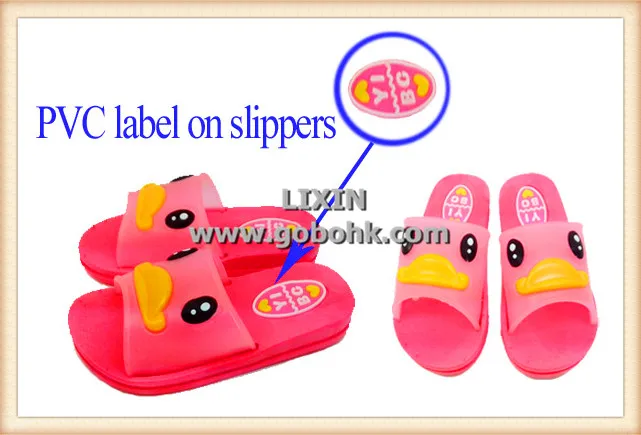

PVC automatic production line is used for make PVC labels onto garments, shoe, bags, gifts, key chain, photo frame, cup holder, mobile phone holder, bar mat, car mat, etc.We have three diferent sizes for your requirements.If you have any problems ,please feel free to contact me.

Machine parameter

Code	LX-E01-A	LX-E01-B	LX-E01-C
Max.Products size	150*150mm	250*330mm	550*800mm
Main conveyer width	300mm	350mm	650mm
Work table width	300mm	300mm	500mm
Mould return conveter width	180mm	250mm	/
Quantity of dripper	20 sets	24 sets	18 sets
Total power	23.5KW	32KW	70KW
Voltage	AC/380V	AC/380V	AC/380V
Weight	600kg	950kg	2200kg
Dimension	L11000W1250H1800mm	L17500W1400H1800mm	L25000W1800H1800mm

PVC Automatic Production Line advantage:
1.Different sizes for your choice:L11000MM ;L17500MM ;L25000MM
2.With automatic baking oven;Can heat up and down
3.With main conveyer:Automatic transfer the mould from behind to front
4.With two material barrels:Quantitative;Timing
5.Save electricity:The baking oven is cloesd
6.Save labor
7.Easy to operate
8.Customized accepted
