Pet/ PS /HIPS/PP Bowl Three Station Automatic Vacuum Forming Machine One Year Warranty PLC Control Vacuum Thermo Forming Machine

Product Description

PET/PS/HIPS/PP Bowl Three Station Automatic Vacuum Forming Machine One Year Warranty PLC Control Vacuum Thermo Forming Machine

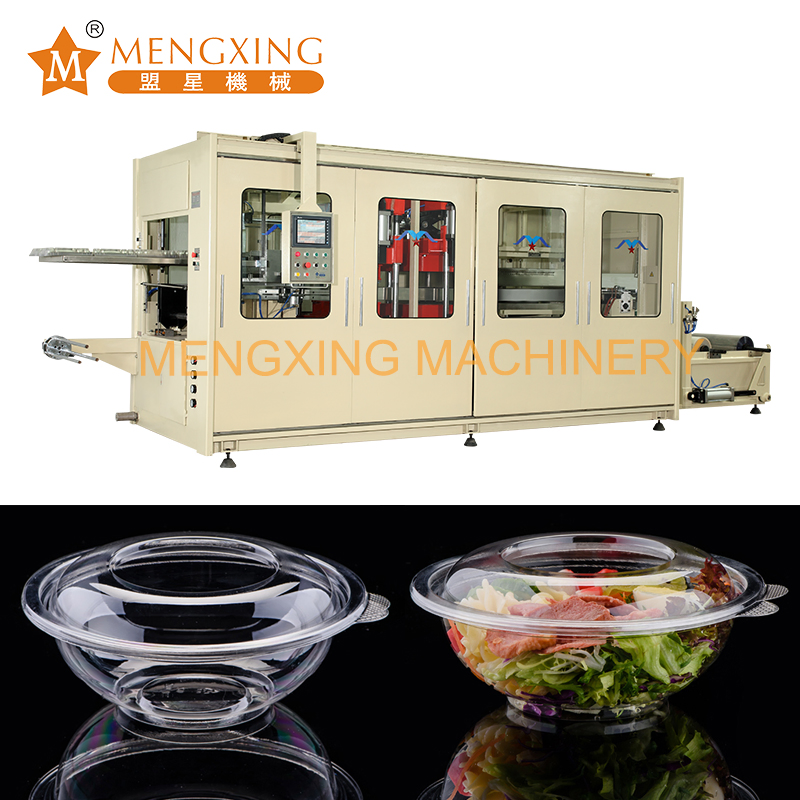

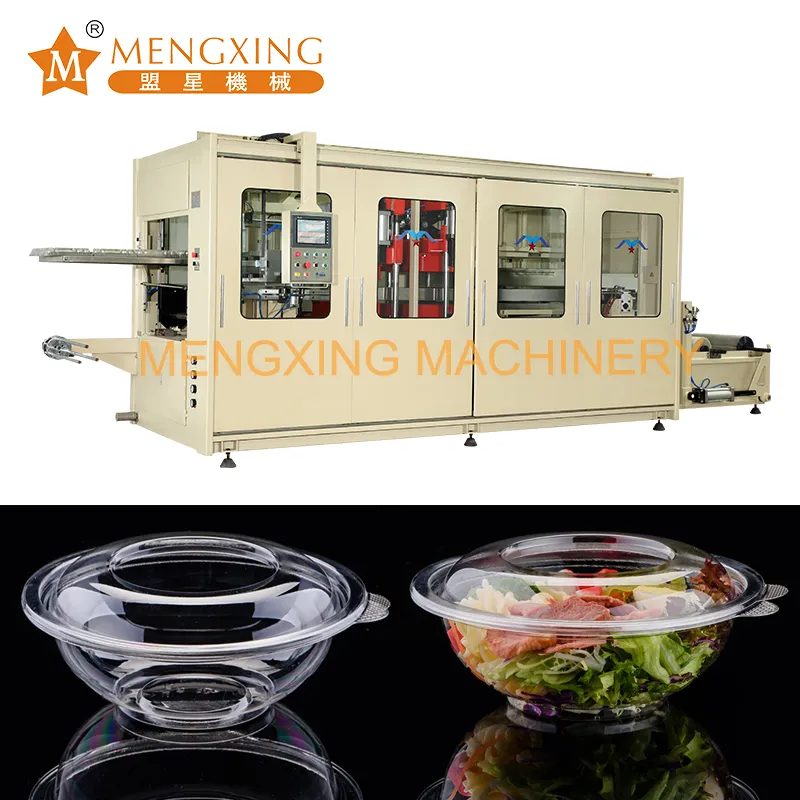

QZC46-71/54A-CWF3 AUTOMATIC THERMOFORMER

Usage:
The machine is suitable for making all size packing containers ,in open-type with thin-wall ,by using roll-sheet , under high-speed vacuum suction-forming processing .The products out of this machine can be used for the package of foods .native-products,tourist-goods,textile,medical, toy,cosmetic,electrical elements and daily used hard-ware ,etc .
Sheet fit to the machine
Starch-deposit sheets ,light-deposit sheet ,environment sheet APET ,PETG .Color sheets :PVC,HIPS,PET,PS,PP, CPET,EPS, etc.Fiber-coating-sheet.
Feature Function :
1. Mechanical , Pneumatic and Electrical Combination . All working action is controlled by PLC . Touch Screen Input , easy and convenient .
2. Three Working Position : Forming / Cutting / Stacking .
3. Pressure / Negative Forming assist with Plug
4. Upper or Lower Mold Forming Method.
5. Servo Motor Feeding , Feeding Length Stepless Adjust , High Speed and Accurate .
6. Upper heater with 3 sections heating, under heater with 2 sections heating.
7. Heater with Intellectual Temperature Control System , automatic supply the heating, Individual Heater Control , Touch Screen Digital Input , Mini-adjust & Precision and Accurate , Fast Heating ( Only 3 min from 0-400 degree ) . Stable and Reliable .It won't effect by outer voltage , lower power consumption , longer life of far infrared ceramic heater .
8. Servo Motor Stacking , Finished Production Accounting .
9. All production data and technical parameter store and recall function .
10. Edge Automatic trimming .
11. Feeding China Width separate adjust or Motor adjust .
12. Heater automatic push-out function .
13. Auto Roll Sheet Loading , Reduce the Working labor.

Technical Components

PLC	Taiwan Delta
Touch Screen Monitor ( 10.4″inch /Color )	Taiwan Delta
Feeding Servo Motor(3.0kw)	Taiwan Delta
Stacking Servo Motor (2kw)	Taiwan Delta
Heater (132PCS ) Heater	GERMANY Elstein
Solid State Relay (132 PCS )	CHINA
Contactor	Germany Siemens
Thermo Relay	Germany Siemens
Relay	Germany Weidmuller
Vacuum Pump	Busch R5 0040
Pneumatic	JAPAN SMC
Cylinder	CHINA

Technical parameters

Sheet Width (mm)		460-710
Sheet Thickness (mm)		0.2-1.8
Max Roll Sheet (mm)		600
Forming Mold Stroke (mm)		2×155
Cutting Mold Stroke (mm)		155
Cutting Base Stroke (mm)		Max 100
Max Forming Area (mm2)		670×540
Max Forming Depth / Height (mm)		80/50
Max Cutting Force(kgf)		30000
Working Capacity ( Cycle / min)		4-18 ( Max capacity is 18 Cycle/ Per Min )
Forming Cooling		Water Cooling
Air Source	Air (m3/ min)	≥5
	Air Pressure (MPa)	0.8
Vacuum Pump		Busch R5 0040
Power		3 Phase 4 Line 380V50Hz
Heater (kw)		68.4
Max Power (kw)		78
Max Dimension (L×W×H) (mm)		9480×3030×2430
Max Weight (kg)		≈8500

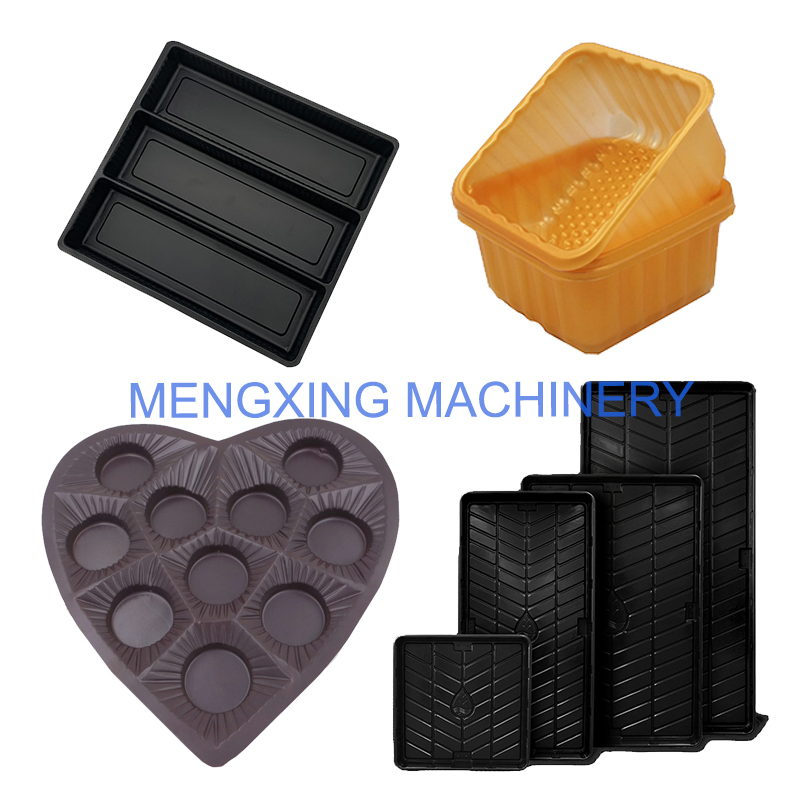

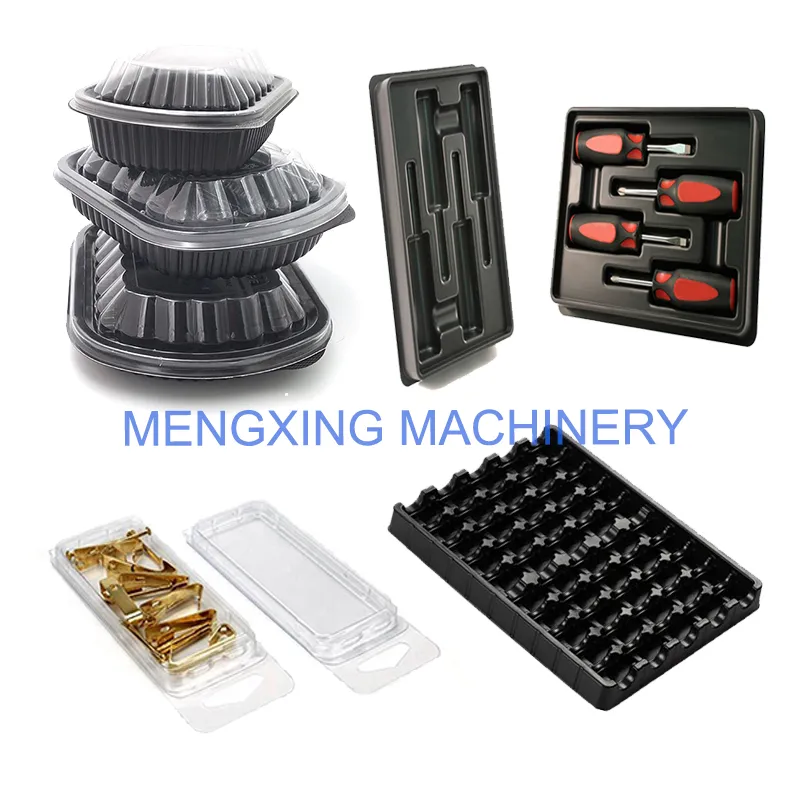

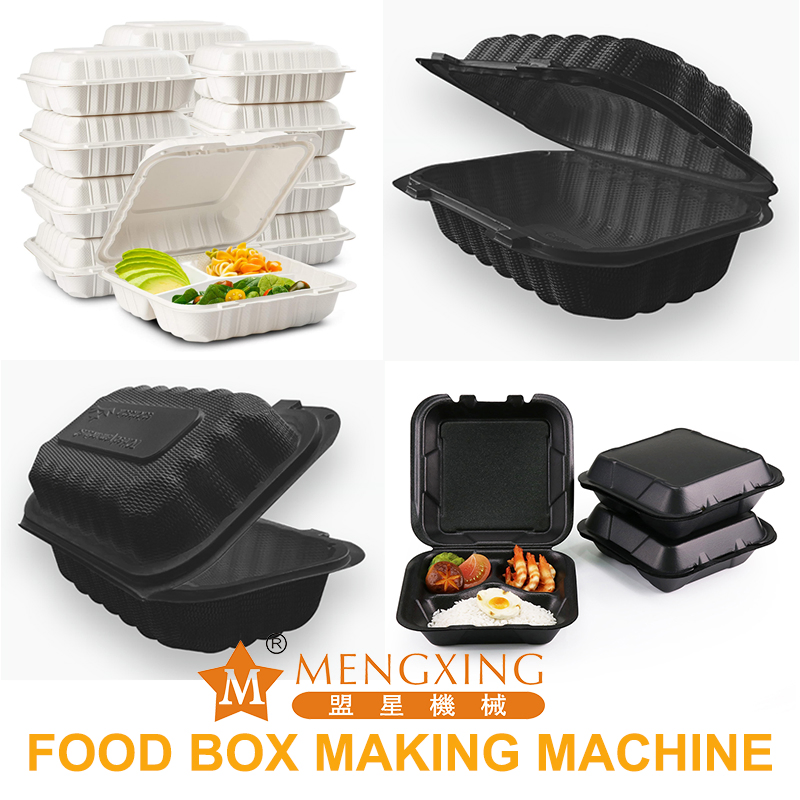

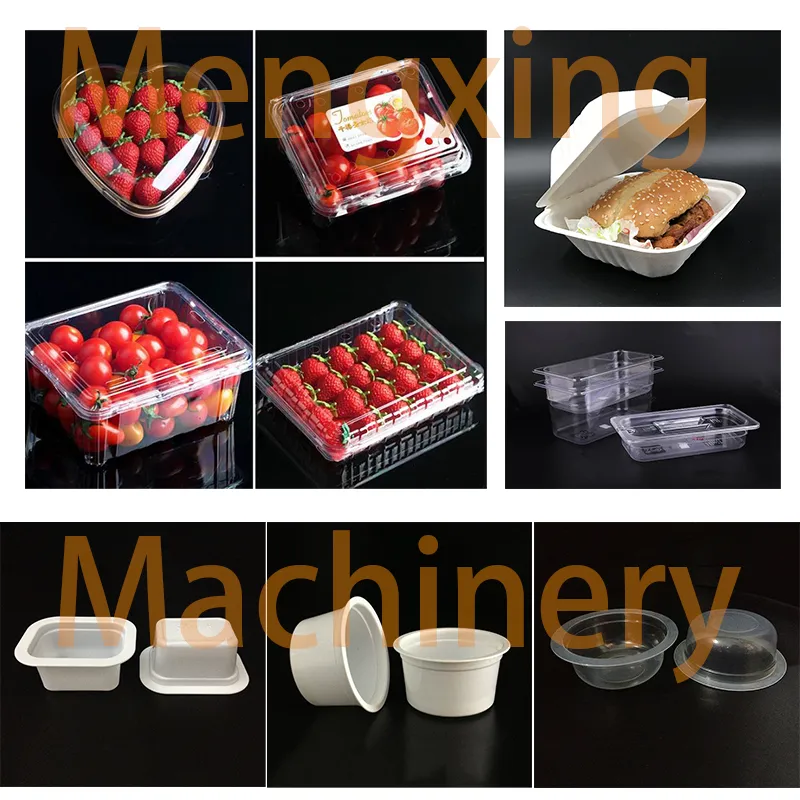

IV,Sample Pictures
