Product Description

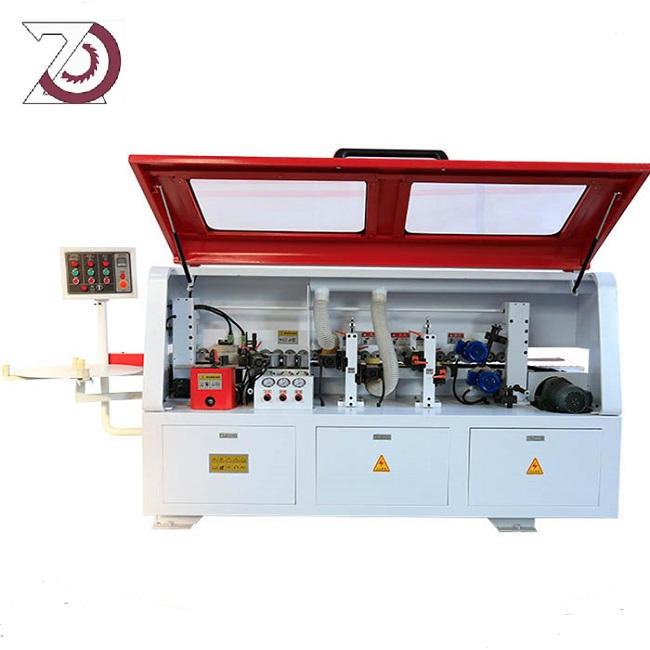

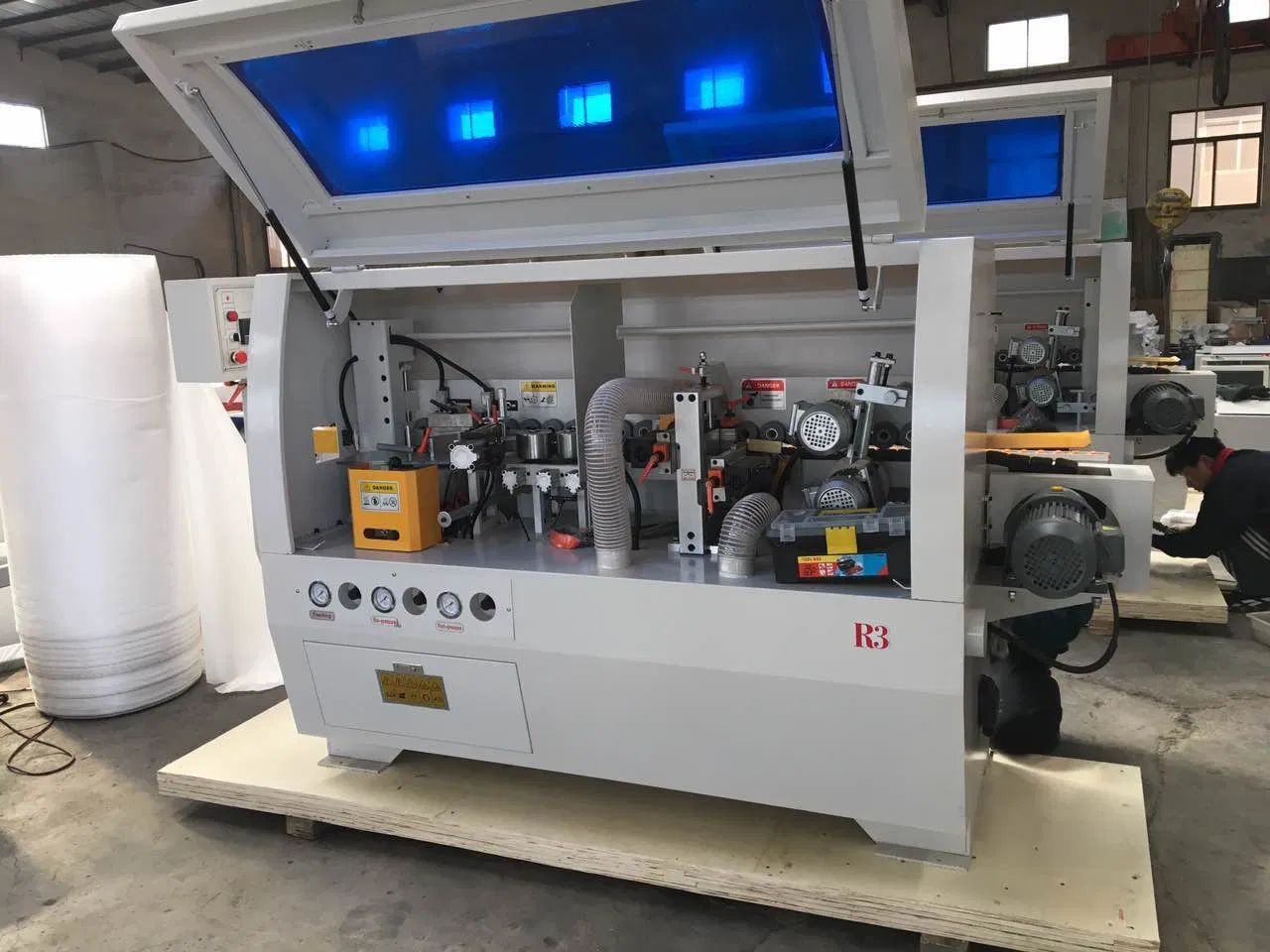

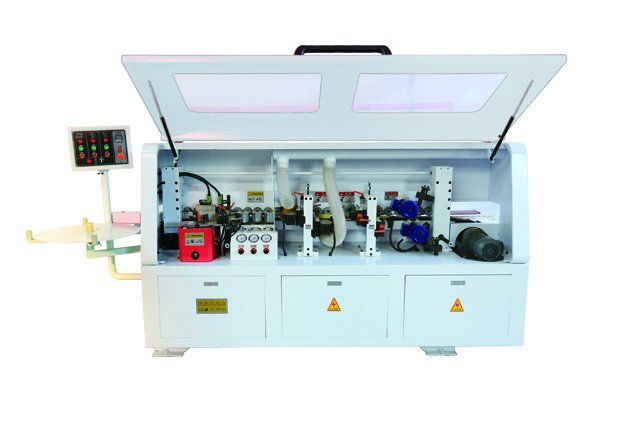

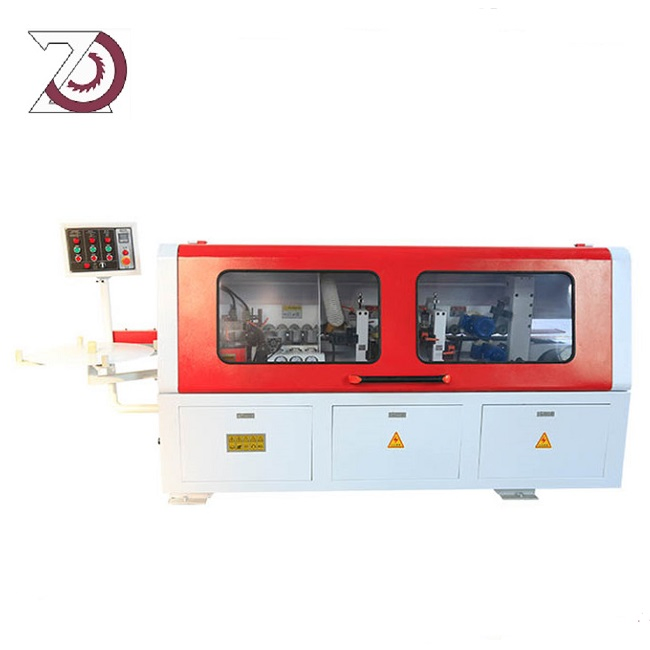

R3 Semi-Automatic Edge Banding Machine

Technical Specification:

Type	R3A
Banding tape thickness	0.4-3 mm
Banding tape width	10-60 mm
Work piece thickness	10-60 mm
Work piece length	>=100 mm
Heating power	0.75 KW
Feeding motor power	0.75 KW
Glue spreading power	0.37 KW
Fine trimming power	0.75 KW x 2
Polishing motor power	0.18 KW x 2
Feeding speed	13 m/min
Air pressure	0.7 Mpa
Machine size	29308301460mm

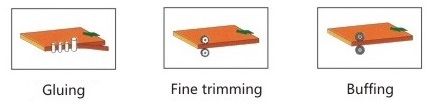

Feature:

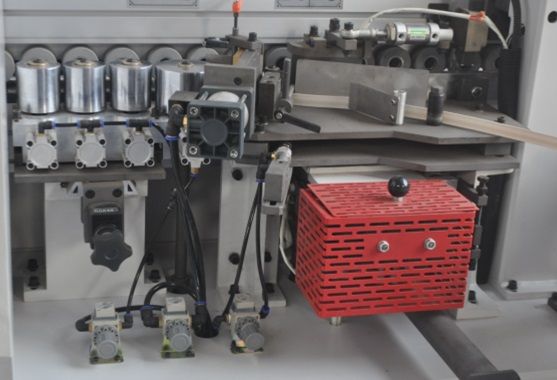

1. The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.

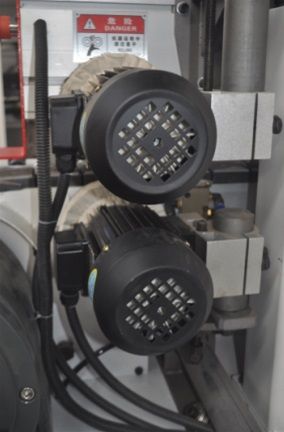

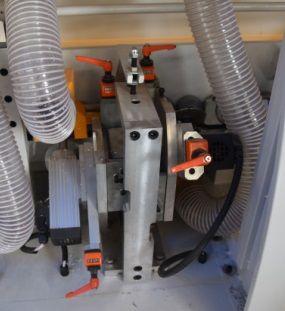

2. Fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
3. The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.

Product Details:
3 Functions Edge Banding Machine for Woodworking

3 Functions Edge Banding Machine for Woodworking

Certificate:
3 Functions Edge Banding Machine for Woodworking

Our company:

Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
