High Quality Carving Cutting Machine/Wood Lathe
Wood lathe carving machine MC1100 ModelMC1100Dscription14"x43" wood latheMotor(W)550/750No of speedVariableSpinde speed(rpm) 50 Hz500~2000Spinde speed(rpm) 60 Hz600~2400Swing over bed14"Distance between centers43"Drive spindle1"8RH thread or otherHead and tailstock taper#2 M......
Send Inquiry
Product Description

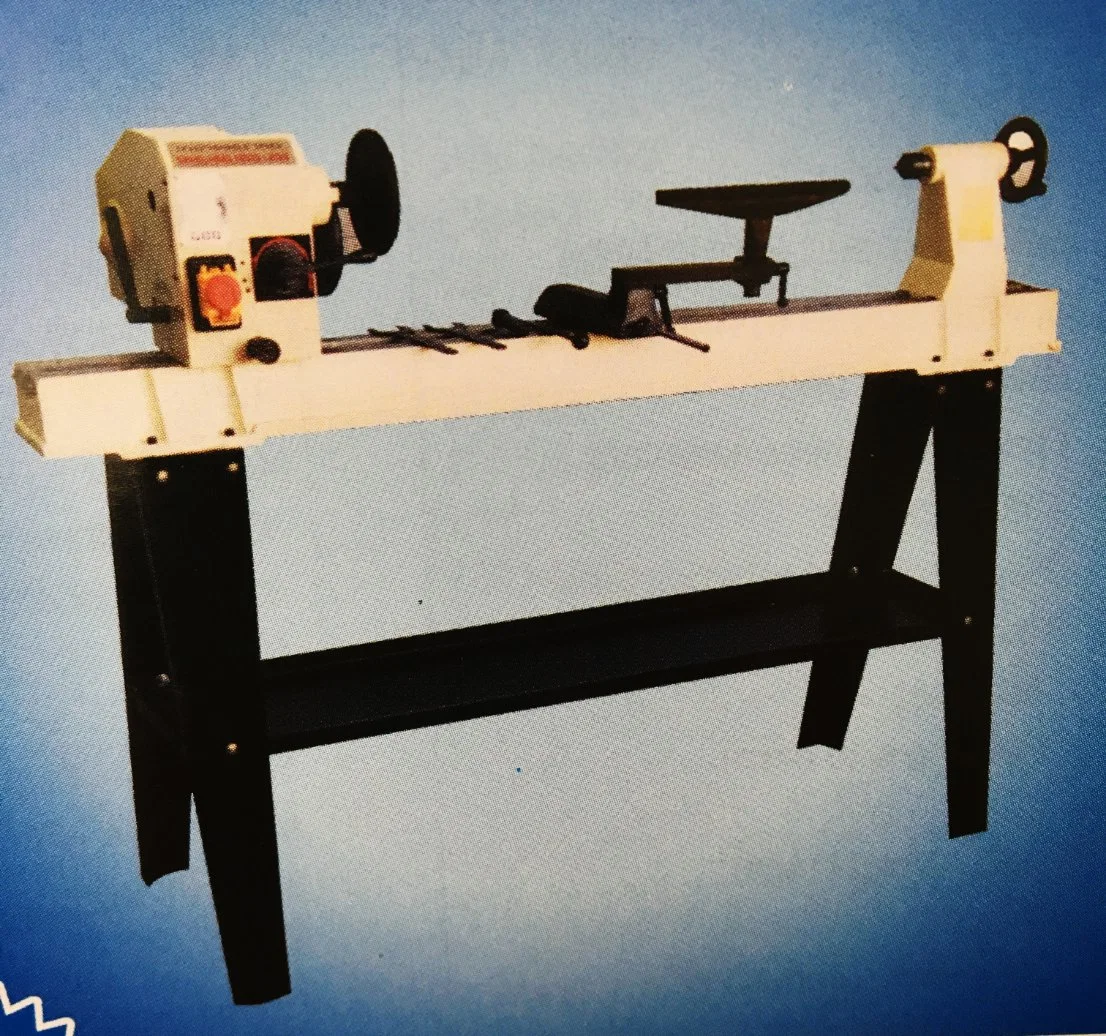

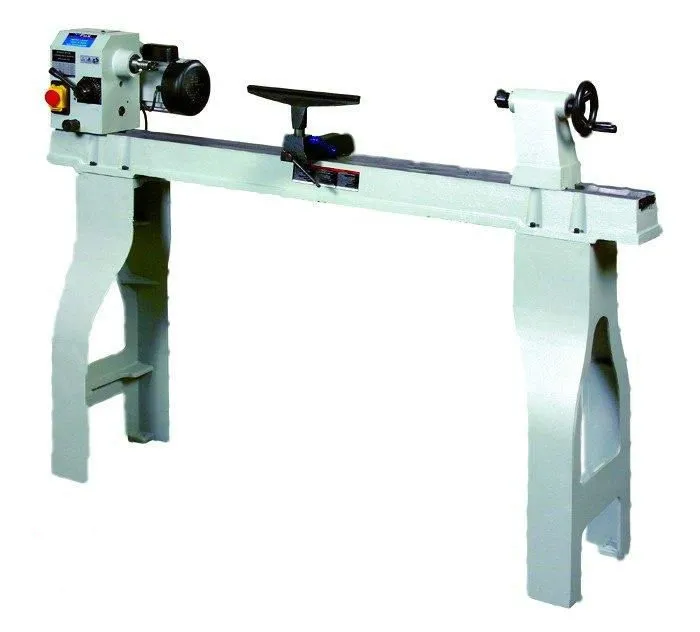

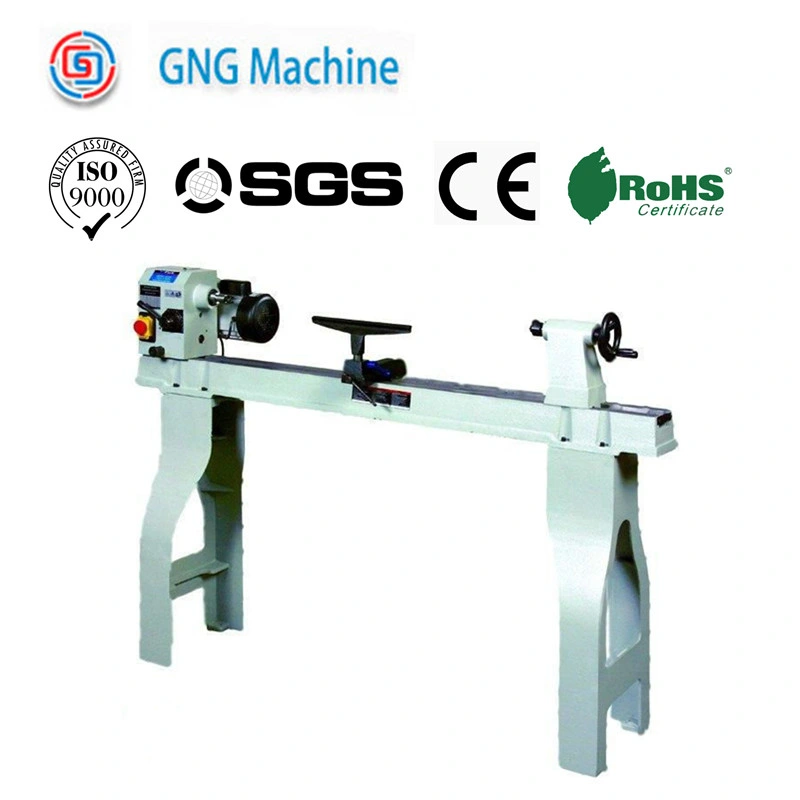

Wood lathe carving machine MC1100
The lathe MC 1100 can be fitted with two cast iron stand, which will appeal more to the professional or commiated hobody turner,who is loooking for a more rugged and powerfulmachine. This cast iron stand also can be fitted to our model MC900 turning lathe. Notable features of this excellent lathe are:
1)The solid cast iron head which can both slide to and from along the bed lathe most convenient position and rotate to allow best assess for bowl turning.
2)Mechanical variable speed which provides a choice of ten speeds
3)Heavy duty tool rest support.
4)300 mm cast iron tool height adjustable tool rest with bowl turning extension
5)Comes complete with four prong drive center, revolving tailstock center. 150mm face plate,center knock-out bar. face plate spanner.
Pcking size-1630x360x430mm(body)
810x380x250mm(stand)
N.G.weight --83/88kg(body)
45/48kg(stand)
Units/20' container-80pcs
Main features:
1. It is one of the most commonly used small machines in woodworking production.
2. The woodworking lathe performs rough and fine turning on the end face, section and cone of wood.
3. The woodworking lathe can use the forming tool to process quickly and accurately.
4. It has an easy to operate motor control system.
5. It has two belt transmission ratios with high torque when turning large diameter.
6. It can change the construction hoist quickly.
7. The lathe adopts cast iron structure, high stability and vibration free operation.
8. Matching cast iron bracket is available.
9. It can be combined with the extended operation platform to meet the requirements of large workpieces.
| Model | MC1100 |
| Dscription | 14"x43" wood lathe |
| Motor(W) | 550/750 |
| No of speed | Variable |
| Spinde speed(rpm) 50 Hz | 500~2000 |
| Spinde speed(rpm) 60 Hz | 600~2400 |
| Swing over bed | 14" |
| Distance between centers | 43" |
| Drive spindle | 1"8RH thread or other |
| Head and tailstock taper | #2 Morse or other |
| Face plate | 6" |
| Tool rest | 12" |
| N.G.weight(kgs) | 92/97 |
| Packing size(mm) | 1620x340x430 |
| Units/20' comtaier | 110 |
The lathe MC 1100 can be fitted with two cast iron stand, which will appeal more to the professional or commiated hobody turner,who is loooking for a more rugged and powerfulmachine. This cast iron stand also can be fitted to our model MC900 turning lathe. Notable features of this excellent lathe are:
1)The solid cast iron head which can both slide to and from along the bed lathe most convenient position and rotate to allow best assess for bowl turning.
2)Mechanical variable speed which provides a choice of ten speeds
3)Heavy duty tool rest support.
4)300 mm cast iron tool height adjustable tool rest with bowl turning extension
5)Comes complete with four prong drive center, revolving tailstock center. 150mm face plate,center knock-out bar. face plate spanner.
Pcking size-1630x360x430mm(body)
810x380x250mm(stand)
N.G.weight --83/88kg(body)
45/48kg(stand)
Units/20' container-80pcs
Main features:
1. It is one of the most commonly used small machines in woodworking production.
2. The woodworking lathe performs rough and fine turning on the end face, section and cone of wood.
3. The woodworking lathe can use the forming tool to process quickly and accurately.
4. It has an easy to operate motor control system.
5. It has two belt transmission ratios with high torque when turning large diameter.
6. It can change the construction hoist quickly.
7. The lathe adopts cast iron structure, high stability and vibration free operation.
8. Matching cast iron bracket is available.
9. It can be combined with the extended operation platform to meet the requirements of large workpieces.
