Home > Products > Woodworking Machinery > Wood Lathe > Wood Lathe. Professional Wood Criving Mini Tool Lathe

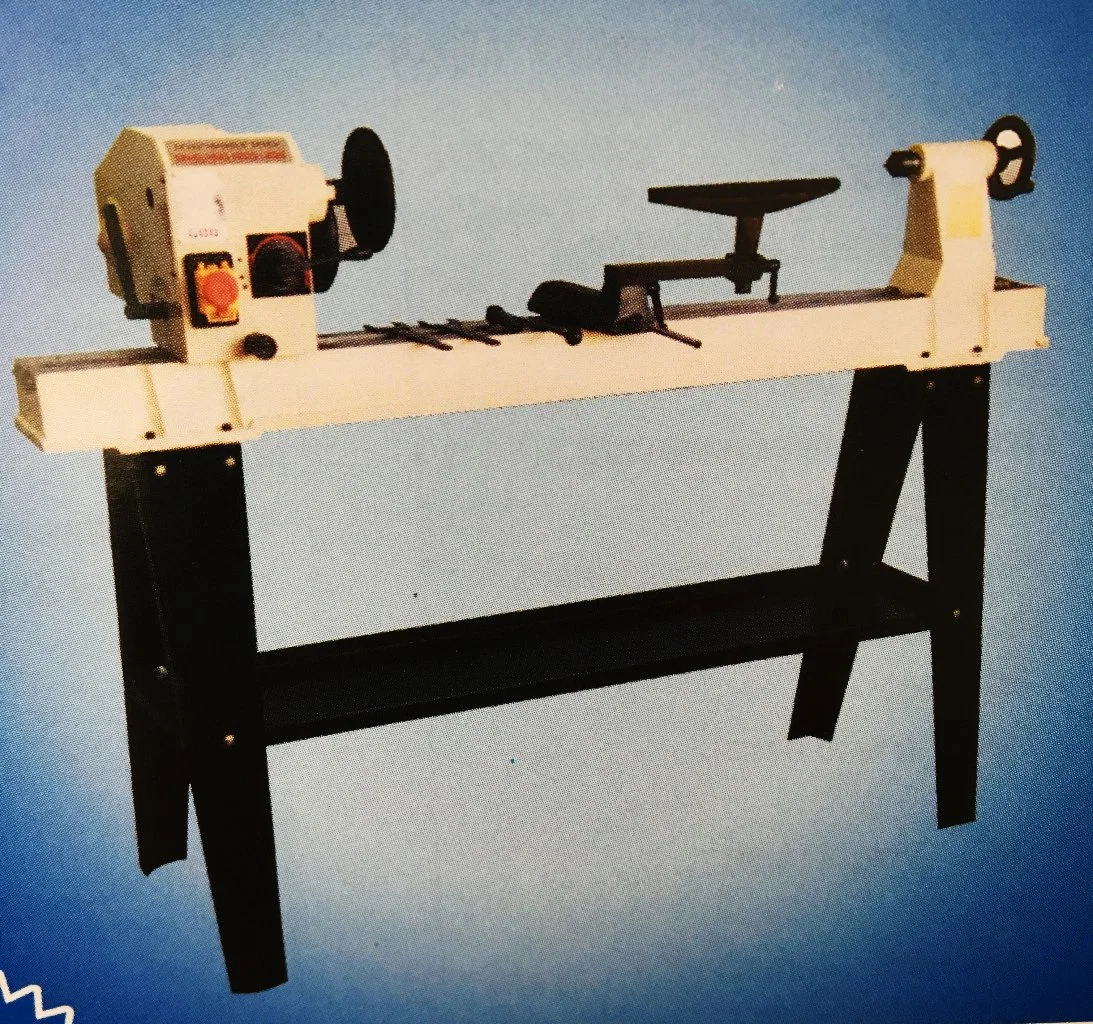

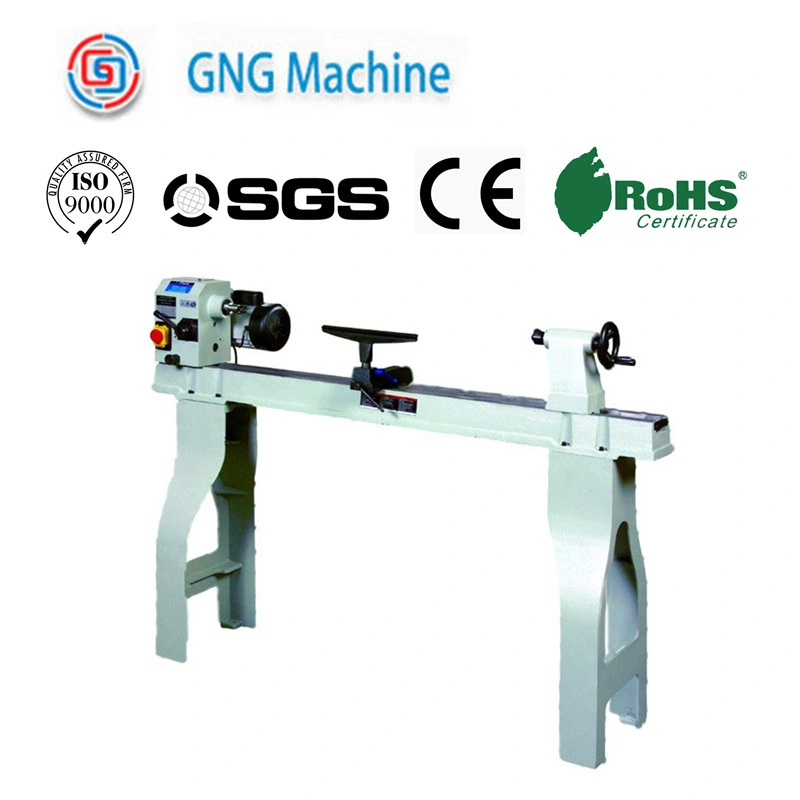

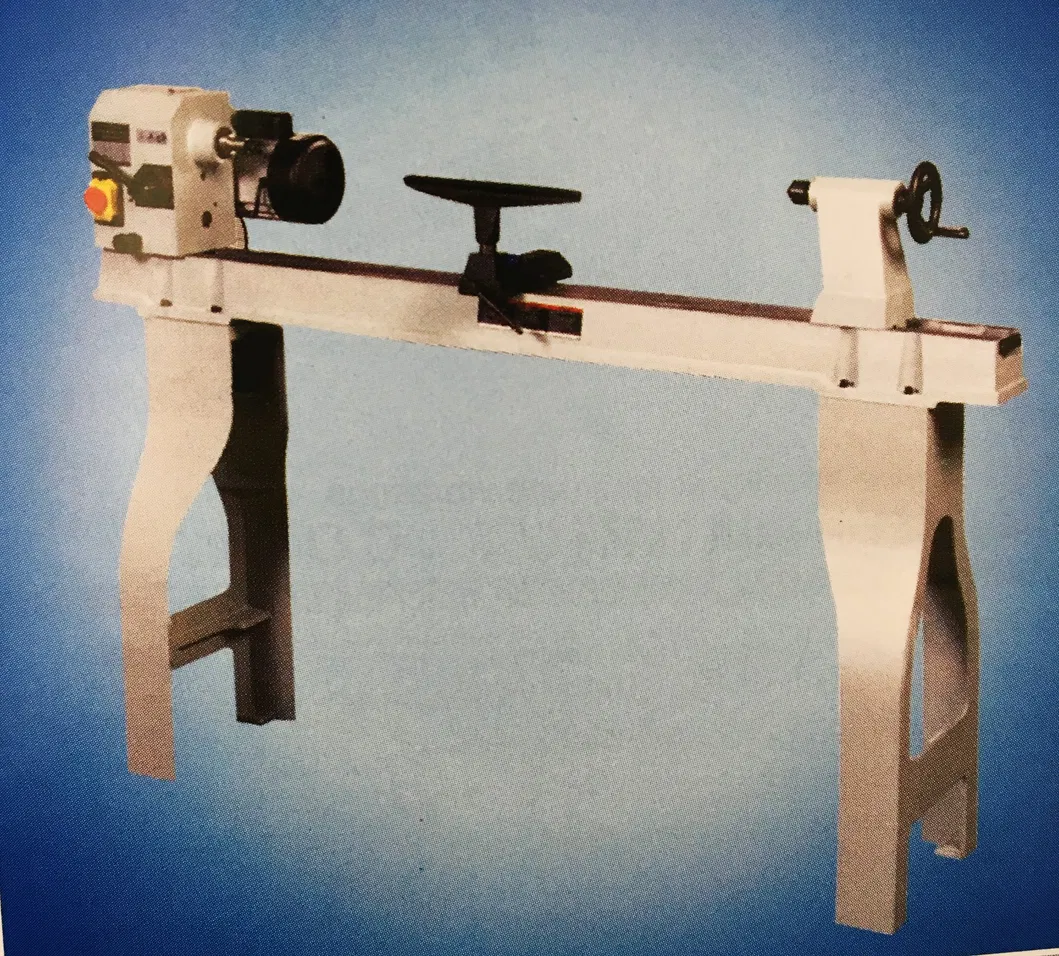

Wood Lathe. Professional Wood Criving Mini Tool Lathe
Wood Lathe Tools, Wood Lathe Crving Tool MC900ModelMC900Description12"x36" mini wood theMotor(W)370/450/550No of speedVarialeSpindle speed (rpm)50Hz500~2000Spindle speed (rpm)60Hz600~2400Swing over bed12"Distance between centers36"Drive spindle1"8 RH thread or otherHead and ......
Send Inquiry
Product Description
Wood Lathe Tools, Wood Lathe Crving Tool MC900
Packing size (mm):1380x330x370
Units/20' container:172
MAIN CHARACTERS:
1)Easy speed change.
2)Easily turn hadstock and lock in 0.60.90.120. and 180 degree.
3)Soild headstock and lathe bed construction
4)12" cast iron offset tool rest
5)6" face plate, spur and ball bearing live center included.
6)Steel stand included, all cast iron stand optional
7)Powerful totally enclosed fan cooled motor.
8)Extra bed extension makes outboard turning easy.
9)Extra sanding drum and disc optional.
Main Features:
1. It is one of the most commonly used small machines in woodworking production.
2. The woodworking lathe performs rough and fine turning on the end face, section and cone of wood.
3. The woodworking lathe can use the forming tool to process quickly and accurately.
4. It has an easy to operate motor control system.
5. It has two belt transmission ratios with high torque when turning large diameter.
6. It can change the construction hoist quickly.
7. The lathe adopts cast iron structure, high stability and vibration free operation.
8. Matching cast iron bracket is available.
9. It can be combined with the extended operation platform to meet the requirements of large workpieces.
| Model | MC900 |
| Description | 12"x36" mini wood the |
| Motor(W) | 370/450/550 |
| No of speed | Variale |
| Spindle speed (rpm)50Hz | 500~2000 |
| Spindle speed (rpm)60Hz | 600~2400 |
| Swing over bed | 12" |
| Distance between centers | 36" |
| Drive spindle | 1"8 RH thread or other |
| Head and tailstock taper | #2 Morse or other |
| Face plate | 6" |
| Tool rest | 12" |
| N.G.Weigt(kgs) | 80/85 |
Packing size (mm):1380x330x370
Units/20' container:172
MAIN CHARACTERS:
1)Easy speed change.
2)Easily turn hadstock and lock in 0.60.90.120. and 180 degree.
3)Soild headstock and lathe bed construction
4)12" cast iron offset tool rest
5)6" face plate, spur and ball bearing live center included.
6)Steel stand included, all cast iron stand optional
7)Powerful totally enclosed fan cooled motor.
8)Extra bed extension makes outboard turning easy.
9)Extra sanding drum and disc optional.
Main Features:
1. It is one of the most commonly used small machines in woodworking production.
2. The woodworking lathe performs rough and fine turning on the end face, section and cone of wood.
3. The woodworking lathe can use the forming tool to process quickly and accurately.
4. It has an easy to operate motor control system.
5. It has two belt transmission ratios with high torque when turning large diameter.
6. It can change the construction hoist quickly.
7. The lathe adopts cast iron structure, high stability and vibration free operation.
8. Matching cast iron bracket is available.
9. It can be combined with the extended operation platform to meet the requirements of large workpieces.
