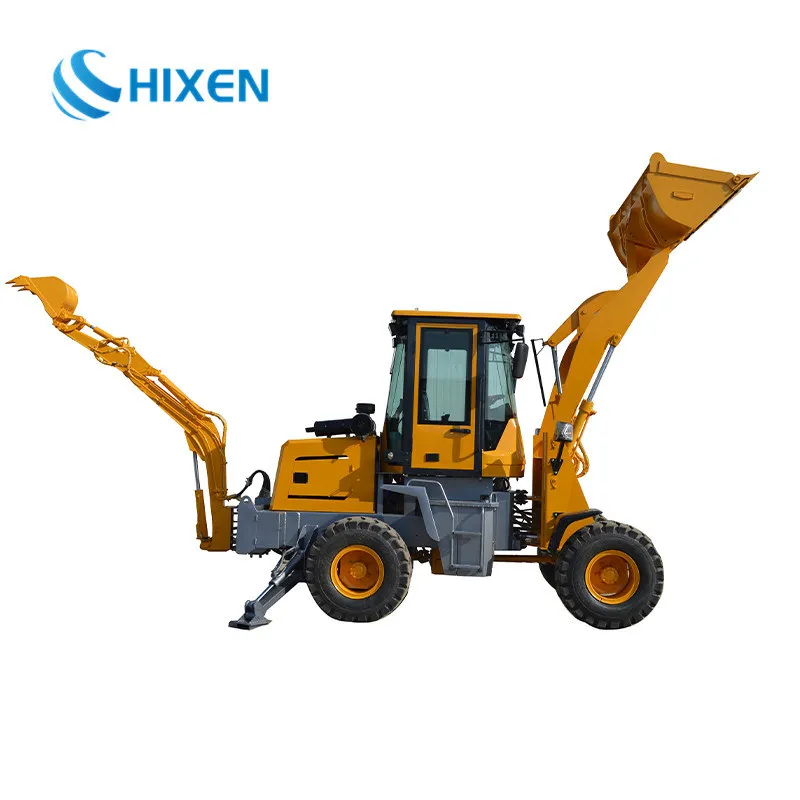

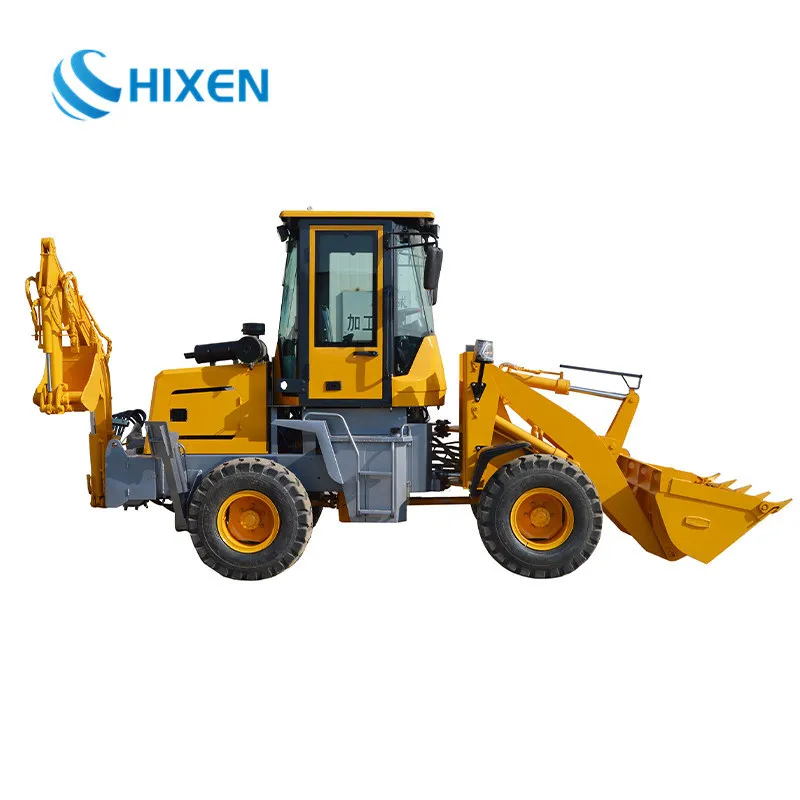

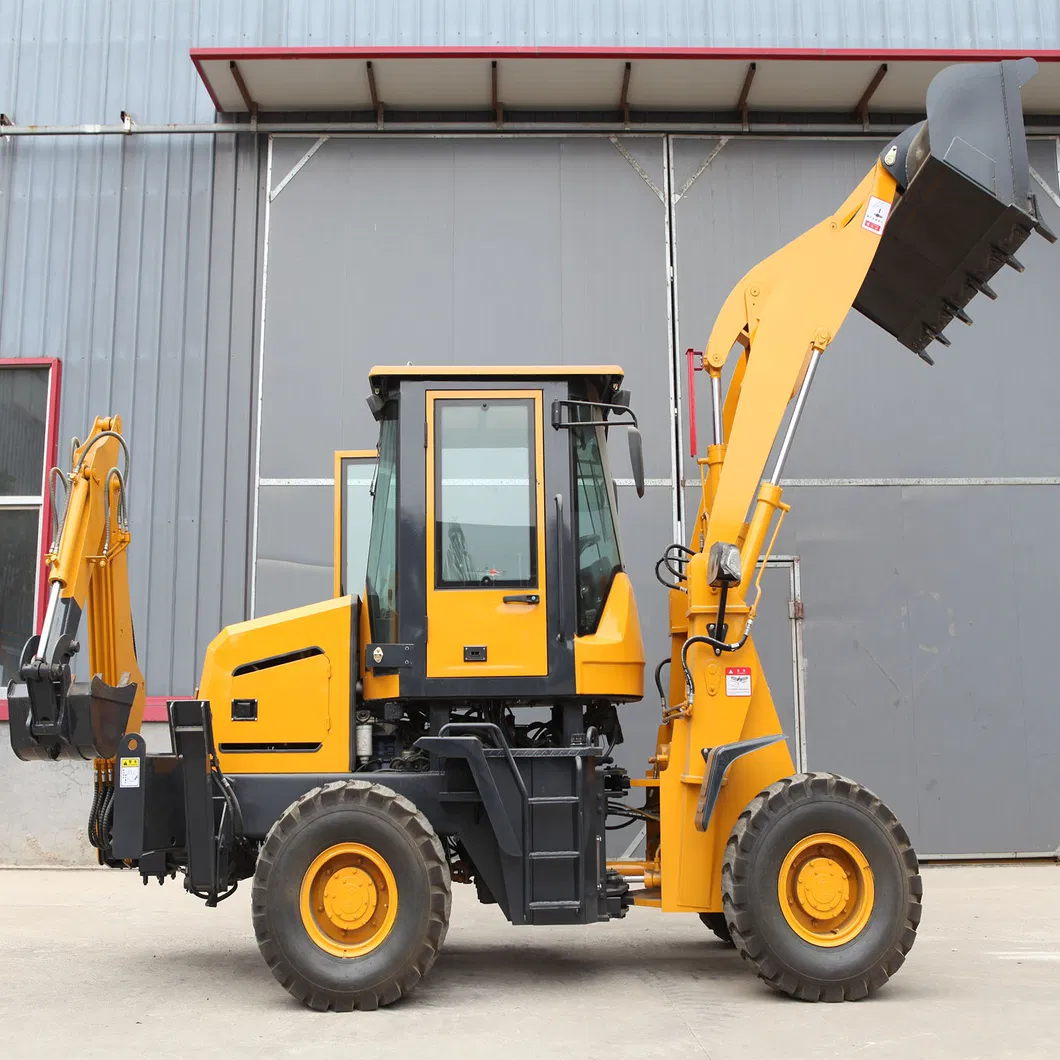

4 Ton Small Chinese Wheel China Loader Price List

Product Description

>>Product Description

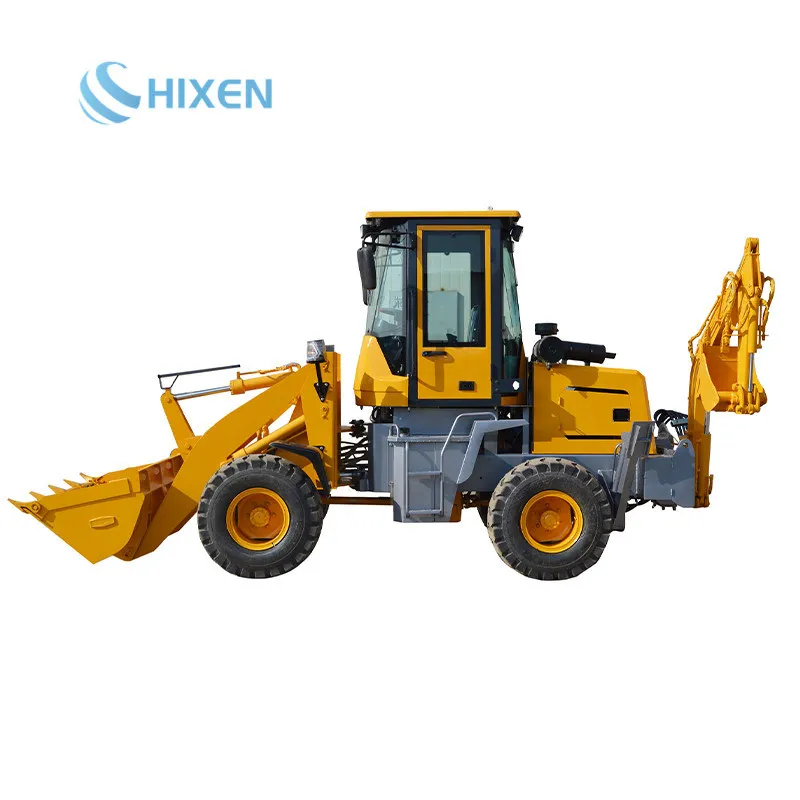

Backhoe loader is mainly used for small-scale engineering operations such as afforestation, agriculture and animal husbandry construction, channel
construction, sewer cleaning, water channel dredging, clean-up and reloading in factories and mines, and is widely used in small and medium-sized
roadways with a width of 2 meters or more.

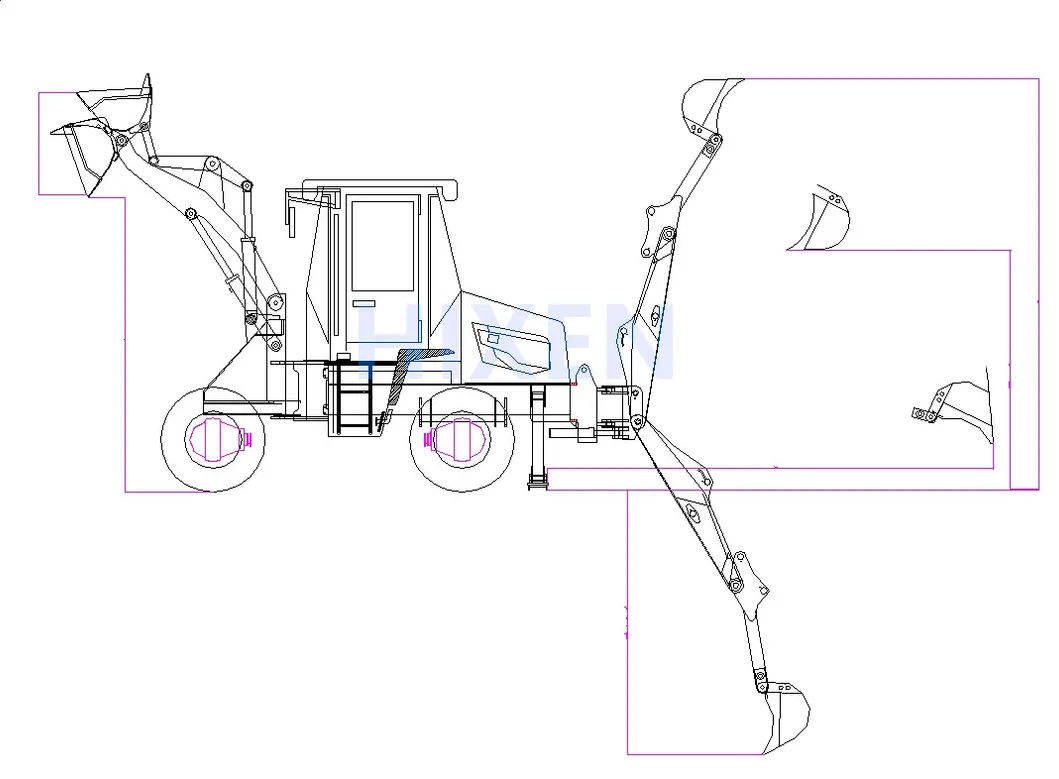

>>Product Parameters

Item	Model	WZ10-10	WZ20-16	WZ30-25	WZ40-28
Overall Dimension	Dimension	5500x1750x2650mm	5800x1850x2750mm	6200x1960x2800mm	6500x2040x2800mm
	Wheel Tread	1475 mm	1500 mm	1580 mm	1630 mm
	Wheel Base	2070 mm	2315 mm	2550 mm	2675 mm
	Min Clearance to Ground	250 mm	220 mm	290 mm	290 mm
	Hydraulic System Pressure	16 Mpa	16 Mpa	18 Mpa	18 Mpa
	Machine Weight	3400 Kg	4800 Kg	5400 Kg	6000 Kg
	Max Walking Speed	25 Km/h	26 Km/h	28 Km/h	28 Km/h
	Max Climbing Gradient	25°	25°	25°	25°
	Min Turning Radius	3500 mm	4000 mm	4500 mm	4500 mm
	Rated Load	1000KG	1600 KG	2500 KG	2800KG
	Max Digging Depth	2000 mm	2700 mm	2600 mm	2800 mm
	Digging Dumping Height	1800 mm	2200 mm	2300 mm	2400 mm
	Max Digging Radius	2700 mm	4600 mm	4600 mm	4600 mm
	Max Digging Height	3300 mm	4200 mm	4300 mm	4400 mm
	Max Digging Force	25 Kn	28 KN	28 Kn	28 Kn
	Digging Bucket Capacity	0.1 cbm	0.2 cbm	0.3 cbm	0.3 cbm
	Digging Bucket Width	400 mm	400 mm	600 mm	600 mm
	Turning Angle	180°	180°	180°	180°
	Max Dumping Height	2800 mm	3300 mm	3500 mm	3600 mm
	Max Dumping Reach	800 mm	850 mm	900 mm	950 mm
	Loading Bucket Capacity	0.5 m³	0.7 m³	1 m³	1.2 m³
	Loading Bucket Width	1800 mm	1900 mm	2100 mm	2200 mm
	Max Loading Height	3300 mm	4200 mm	4300 mm	4300 mm
	Max Force	36KN	36KN	42KN	42KN
Engine	Brand	Yunnei	Yunnei	Yunnei	Yunnei
	Type	Direct injection, 4-stroke	Turbo charged, 4-stroke	Turbo charged, 4-stroke	Turbo charged, 4-stroke
	Rated Power	37 KW	58 KW	76 KW	92 KW
	Rated Speed	2400 r/min	2400 r/min	2400 r/min	2400 r/min
Transmission	Hydraulic Torque Converter	ZL28F	ZL29A	ZL29A	ZL29A
Steer System	Hydraulic Articulated Steering
Tire	/	20.5-16	23.5-16	16/70-20	16/70-20

4 Ton Small Chinese Wheel China Loader Price List

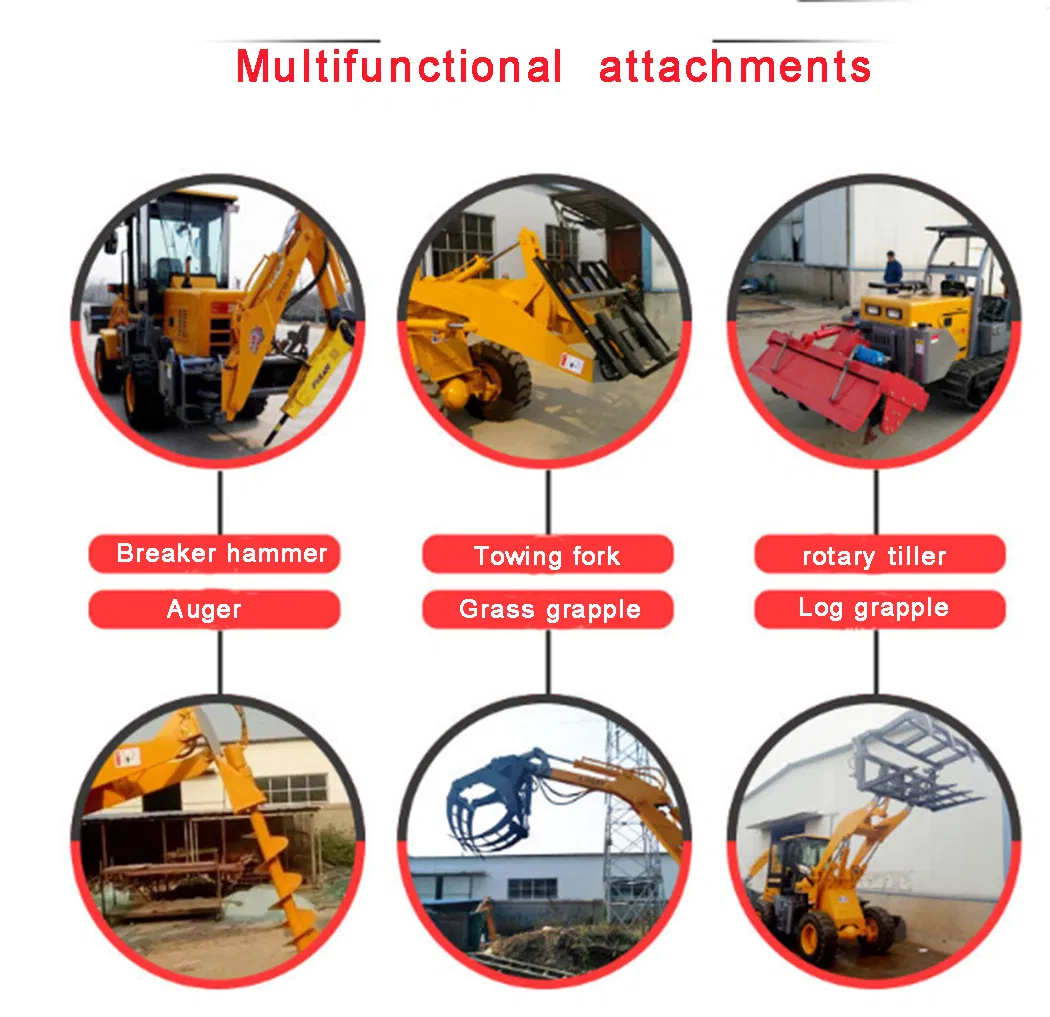

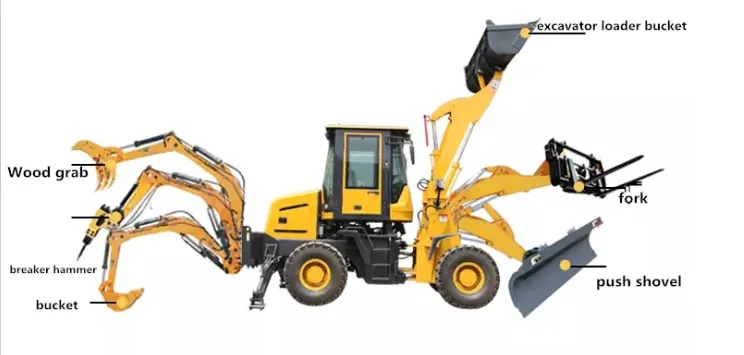

>>Multifunctional Attachments:

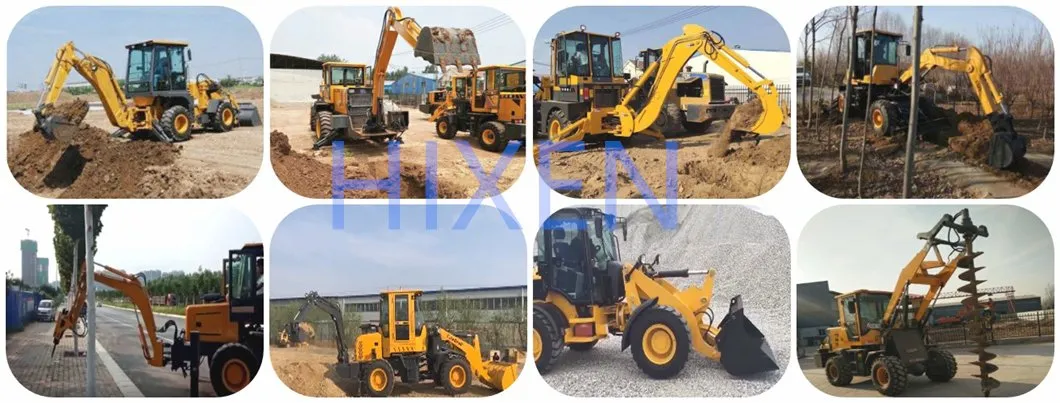

>>Application

>>Company Prifiles

>>FAQ

Q1.What is the delivery period?
After receiving the initial payment, the goods will be ready for delivery within 5 days.The rest time depends on the distance and transport method
which need to be negotiated.

Q2.What is the payment terms can you accept?
30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.

Q3.How long is the product guarantee?
We provide one year quality guarantee.

Q4.What kind of service could you provide?
1) Pre-sale service:We could assist you finding the suitable equipment according to your requirement.
2) On-sale service:We strictly follow the commercial rules, contract signing, following the production process, controlling the goods quality, tracking
the goods delivery, guaranteeing you receive the qualified goods safely.
3) After-sale service:We provide some consumables with the equipment;
We have operation manual for instructing the basic installation and operation;Video guidance for trouble shooting;Engineers ready for field maintenance
and repairing when necessary.

Q5.Can we have the special order like specification change, logo making?
Yes, we accept the customization.We can make it clear in the contract and then our technical start design and production as per your requirement.

For more questions, please feel free to contact us.
We sincerely welcome all friends paying visits to us and reach a mutual success!
