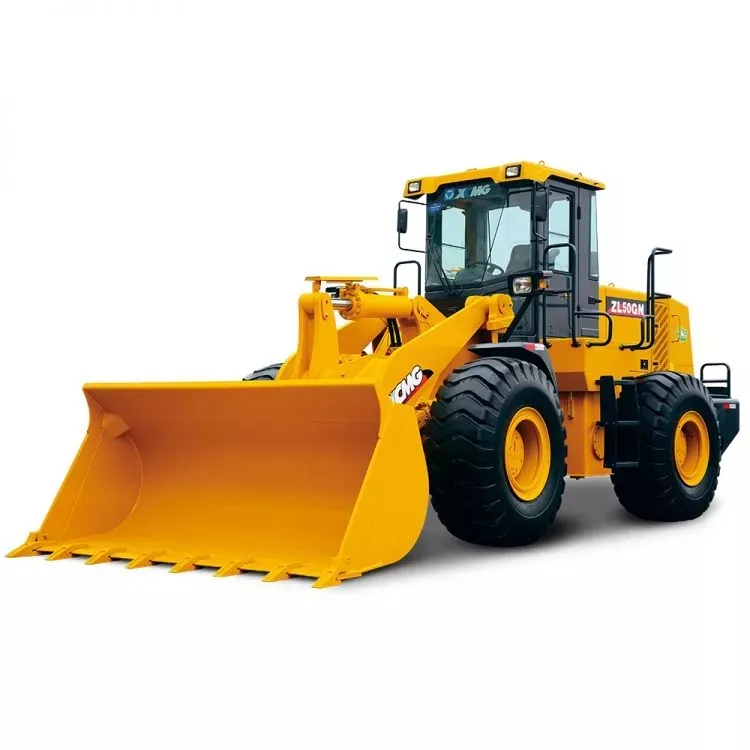

Chinese New 5ton Wheel Loader with 3cbm Bucket Loader

Product Description

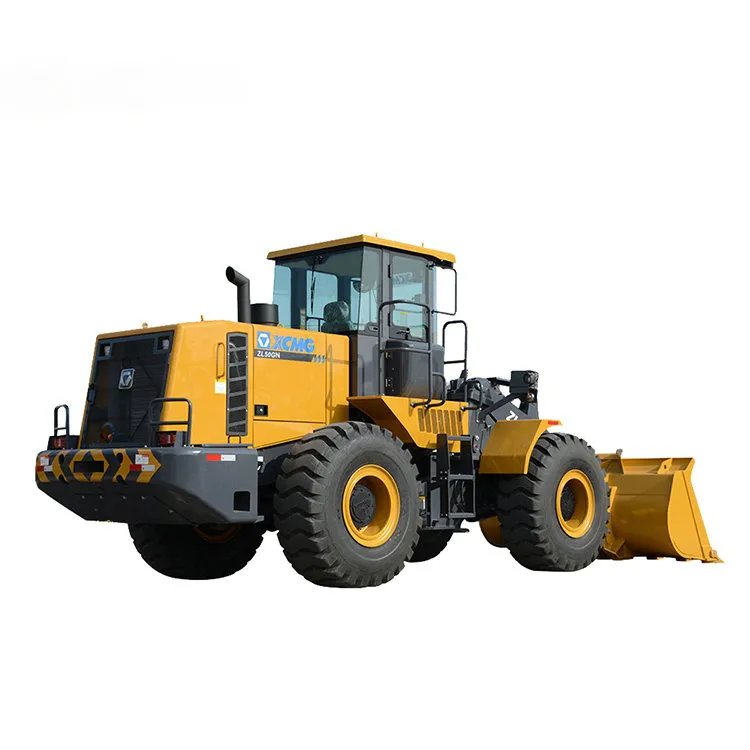

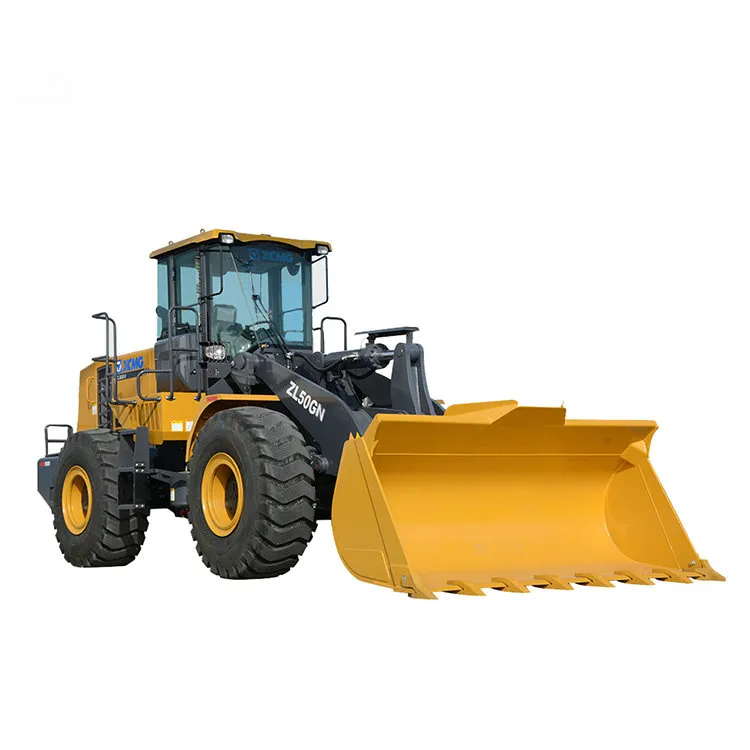

Chinese New 5ton Wheel Loader with 3cbm bucket loader

Introductions of wheel loader

Summary
Rated Load:5000kg
Type:wheel loader
Place of Origin:xuzhou,jiangsu,china
Model Number:ZL50GN
Certification:ISO
Dimension(Long * Breadth * High):822530163515mm

Details
Product Name:G5ABEEA307BFDA
Display online time:2018-11-21
weight:17500.000kg

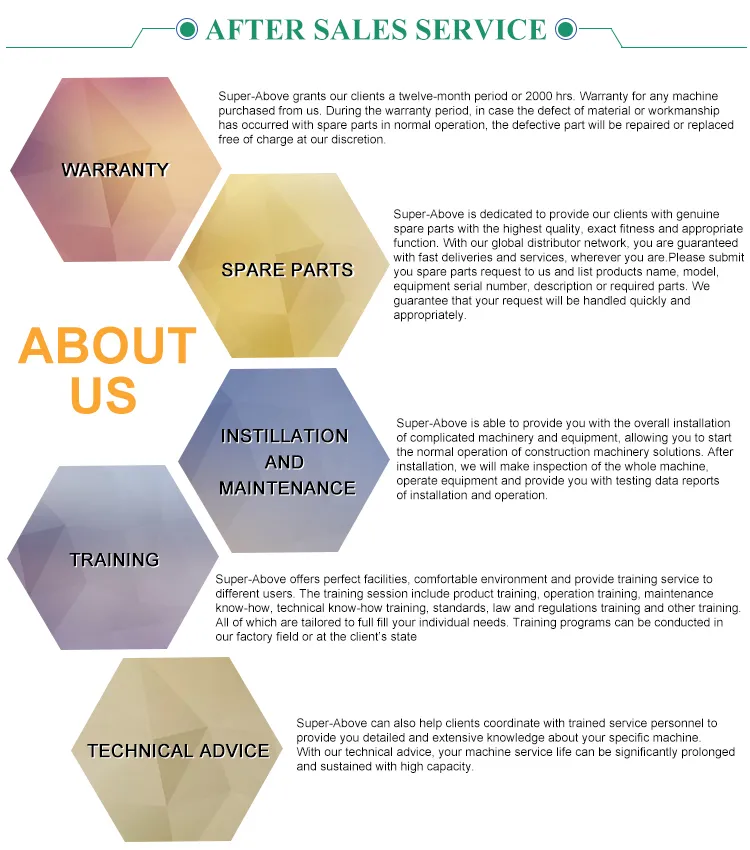

After-sales Service Provided:Engineers available to service machinery overseas
Warranty:12 Months
Condition:NEW
Moving Type:wheel

Technical Parameters of wheel loader

Bucket	ZL50GN
Bucket capacity	3.0M³
Rated load	5000kg
Rated time	6 secretary
Total cycling time	11secretary
Max.drawing force	145Kn
Max.breakout force	170Kn
Articulation angle	35.
Min.turn radius	6400mm
Climb ability	28.
Wheel base	3300mm
Tread	2200mm
Dumping clearance	3090mm
Dumping reach	1130mm
L×W×H	8110×3000×3508mm
Operating weight	18t
Clamp type
Min.clamping diameter	φ450φ800mm
Dumping clearance	3230mm
Dumping reach	1845mm
L×W×H	8414×2800×3460mm
Operating weight	18t

Advantages of wheel loader
1,High torque and high efficiency drive chain features reasonable matching.
2,The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.
3,This engine meets the instant overload demand during operations and sufficiently provides the power required for heavy-load operations.
4,The air-assisted hydraulic four-wheel caliper brakes feature stable braking and high safety and reliability.

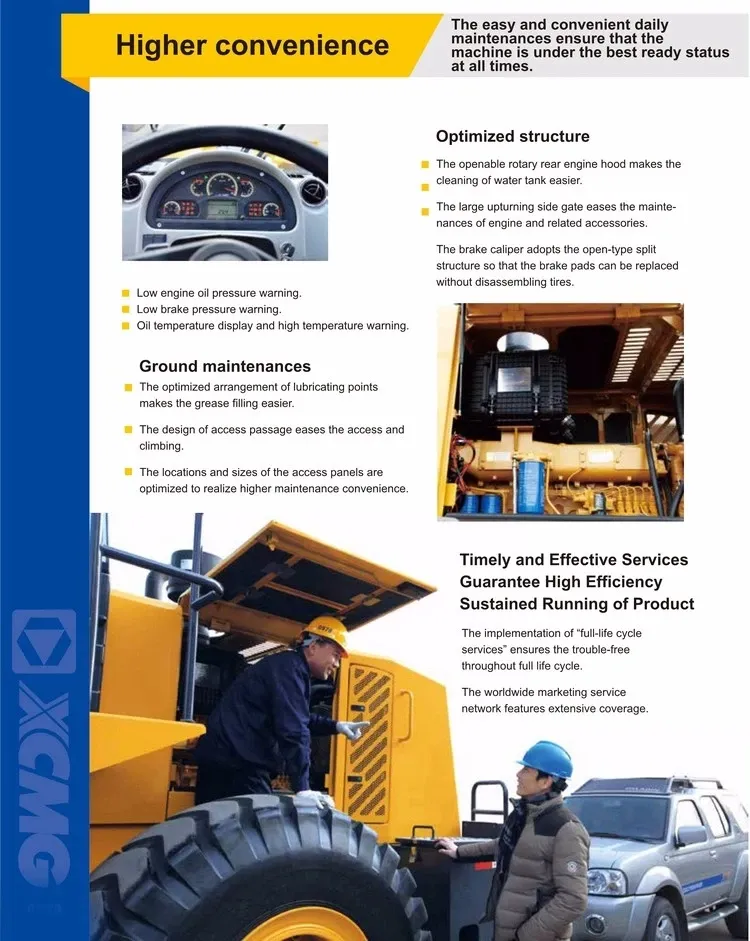

5,The easy and convenient daily maintenance ensure that the machine is under the best ready status at all times.
