12 Months Warranty Welding Machine 1000W 1500W Laser Welder Stainless Steel Carbon Steel Aluminum CNC Laser Welding Machine with Competitive Price

Product Description

1. Introduction
Laser welding is a process used to join together metals or thermoplastics using a laser beam to form a weld. Being such a concentrated heat source, in thin materials laser welding can be carried out at high welding speeds of meters per minute, and in thicker materials can produce narrow, deep welds between square-edged parts.

Suit for stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals, alloys copper-brass, titanium-gold, titanium-molybdenum, nickel-copper and so on.

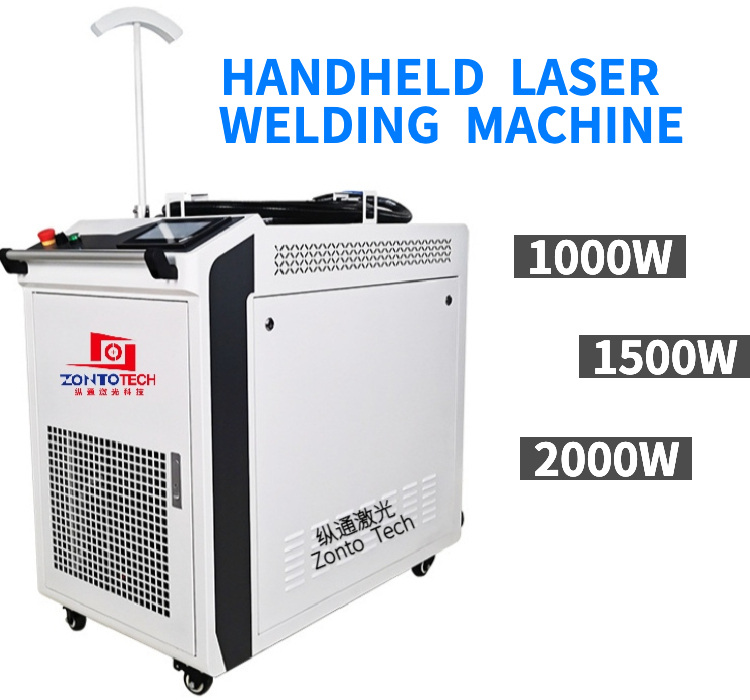

2. Product images
12 Months Warranty Welding Machine 1000W 1500W Laser Welder Stainless Steel Carbon Steel Aluminum CNC Laser Welding Machine with Competitive Price

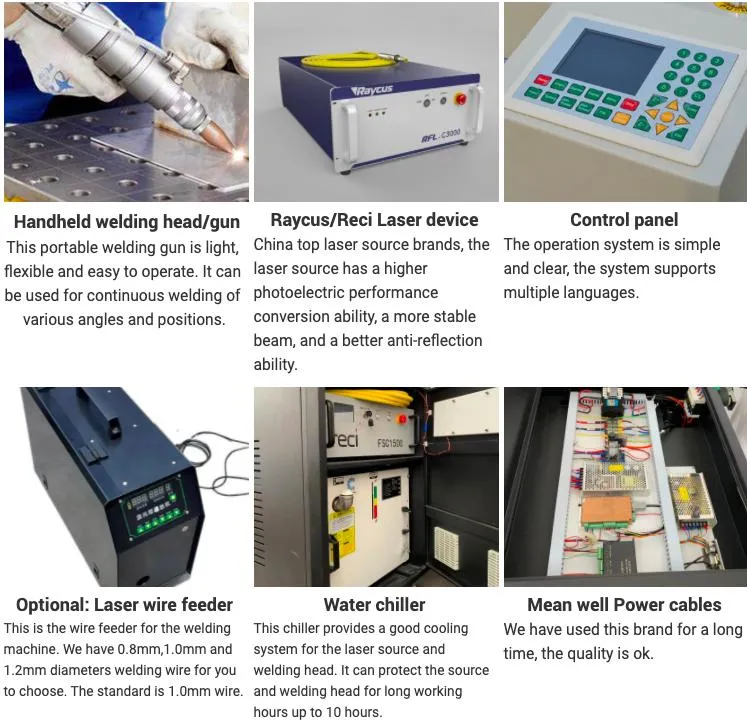

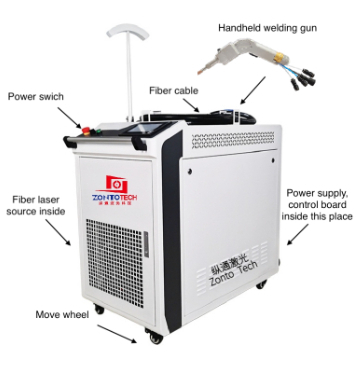

3. Main part devices of welding machine:
12 Months Warranty Welding Machine 1000W 1500W Laser Welder Stainless Steel Carbon Steel Aluminum CNC Laser Welding Machine with Competitive Price

4. Product parameters:

Product name	Handheld fiber laser welding machine	Welding head gun weight	0.8kg
Laser source wavelength	1064nm	Welding speed	0~120mm/s
Laser source brand	Raycus, Reci, JPTp	Welding method	Vertical, splicing, overlap,angle
Power supply	Single phase 220V±10% 50/60Hz Triple phase 380V±10% 50/60Hz	Welding width	0~5mm
Cooling system	Water cooling	Water tank capacity	18L
Machine weight	315kgs	Auxiliary gas	Argon or nitrogen

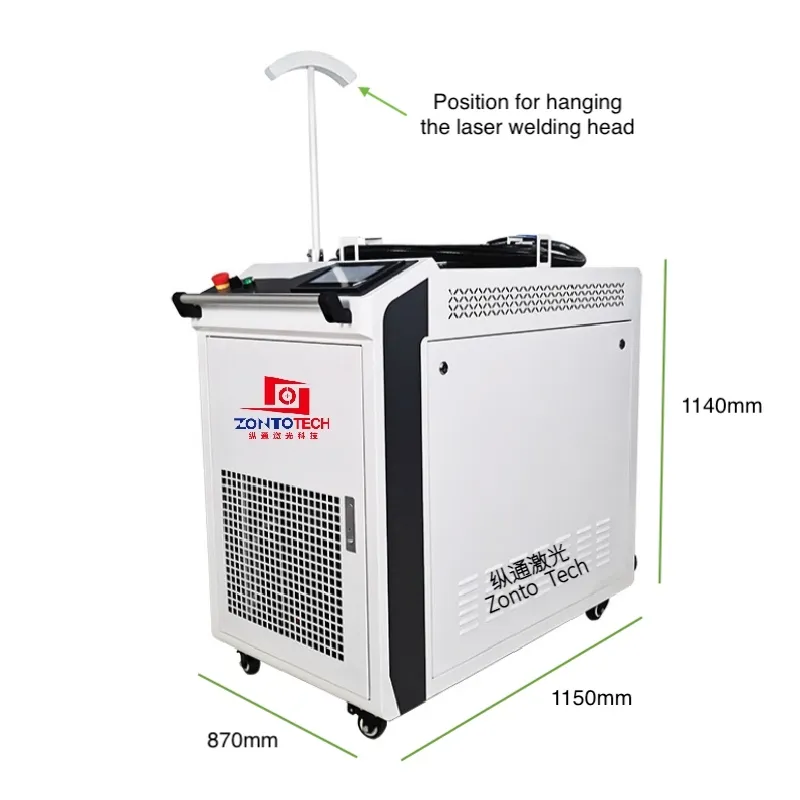

Packing weight	345kgs	Machine dimension	11070138cm

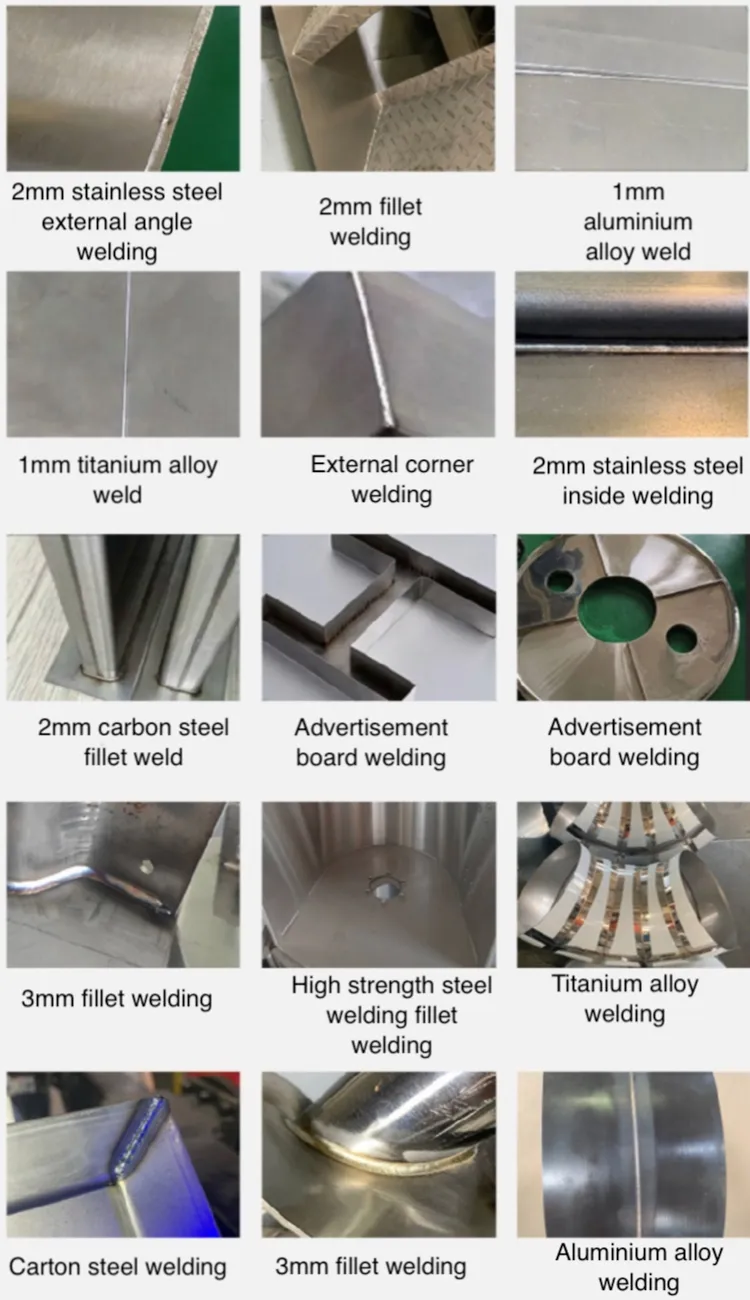

5.Welding samples:

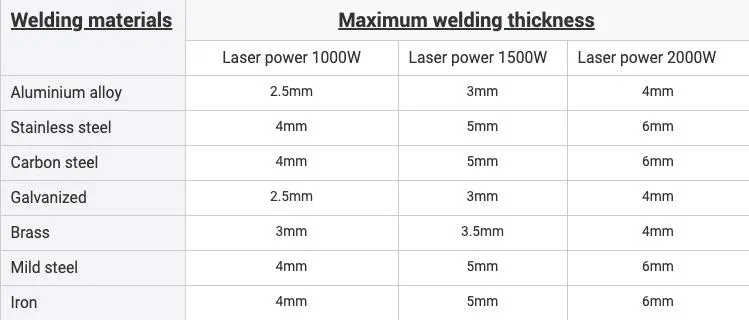

6. Welding material thickness reference list:

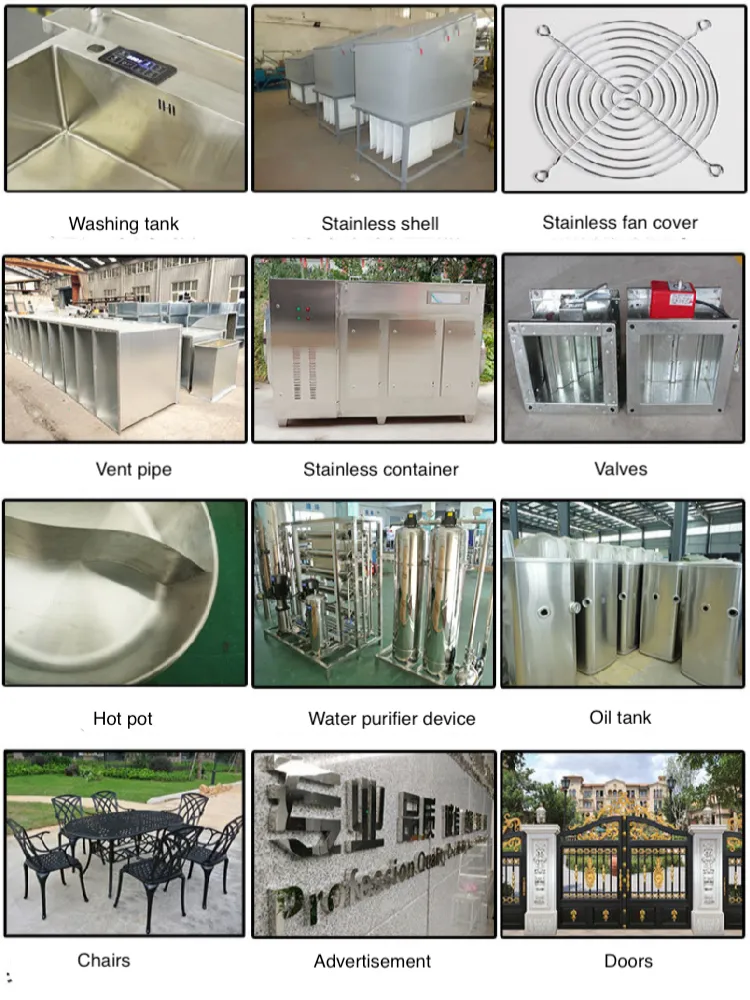

7. Application areas:

8. Hot products:

9. Why choose us?

Because we need you!!! Of course.

With over 15 years experience, Zonto Laser has established a complete system for the development and manufacture of coding, marking, printing and welding technologies, as well as its worldwide aftermarket products and customer service.
Globally-proven, flexible and high quality product printing systems for a diverse range of applications. Our coding, marking and printing solutions are versatile, easy to integrate, easy to operate - the perfect fit on many printing applications and substrates. With the latest networking technology, the laser technology and the producing graphic code quality, our machines are ideal not only for batch and date coding but also for complex code formats, logos, QR code, and barcode. If you are looking for a coding, printing and marking solution you could always find one in our products.

Award-winning product printing solutions backed by years of trust and expertise; our heritage in product coding means compliance and peace of mind.
