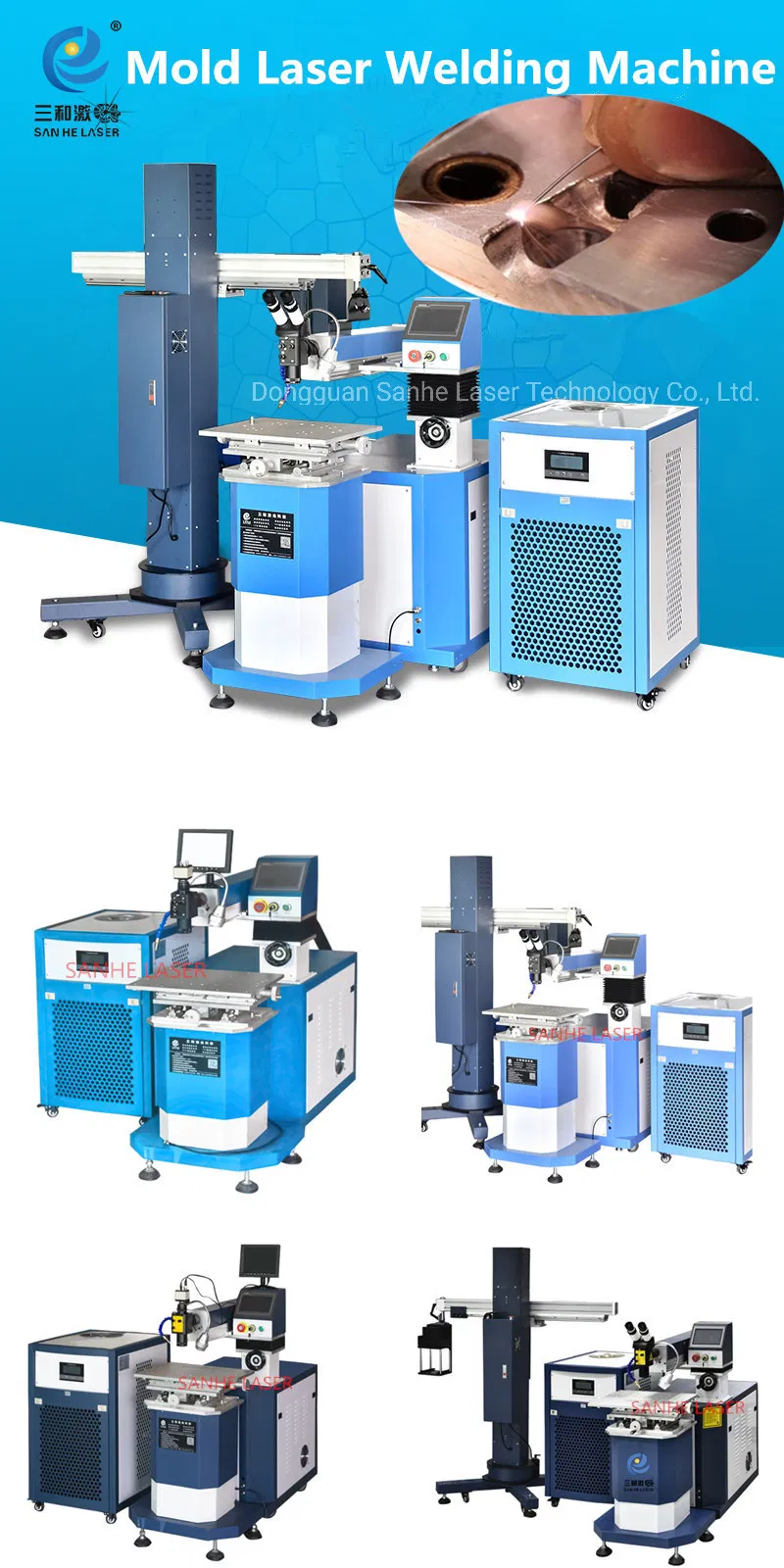

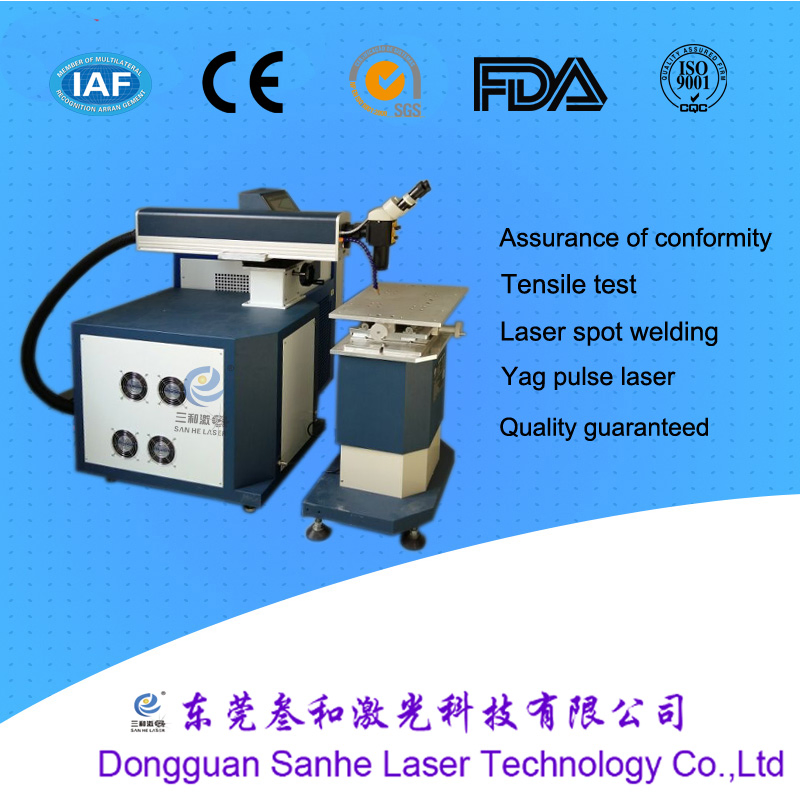

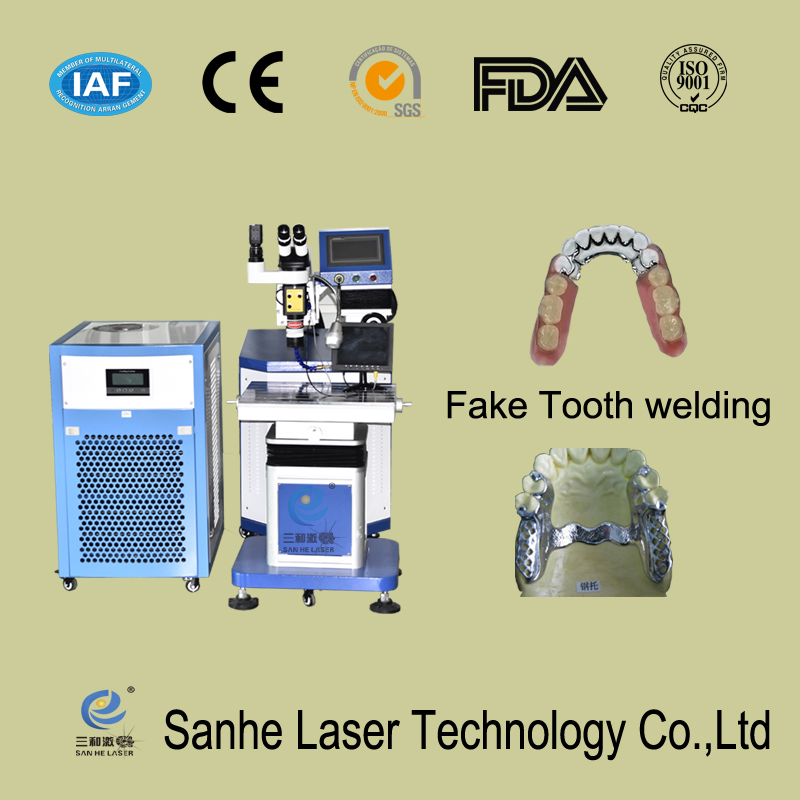

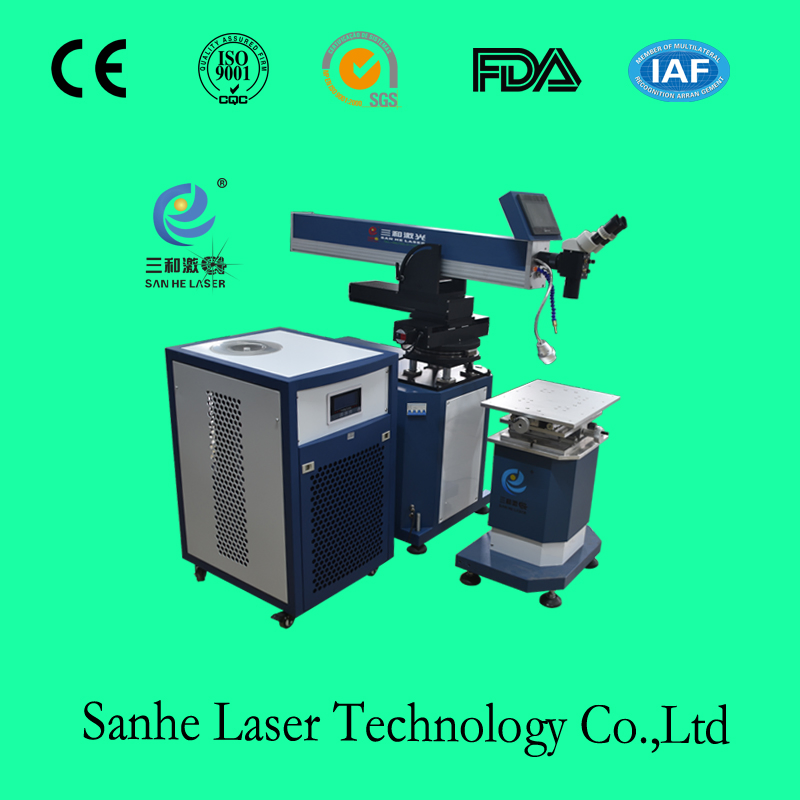

China Sanhe Laser Advanced Laser Welding Machine for Mold Repairing

Product Description

Advantage:

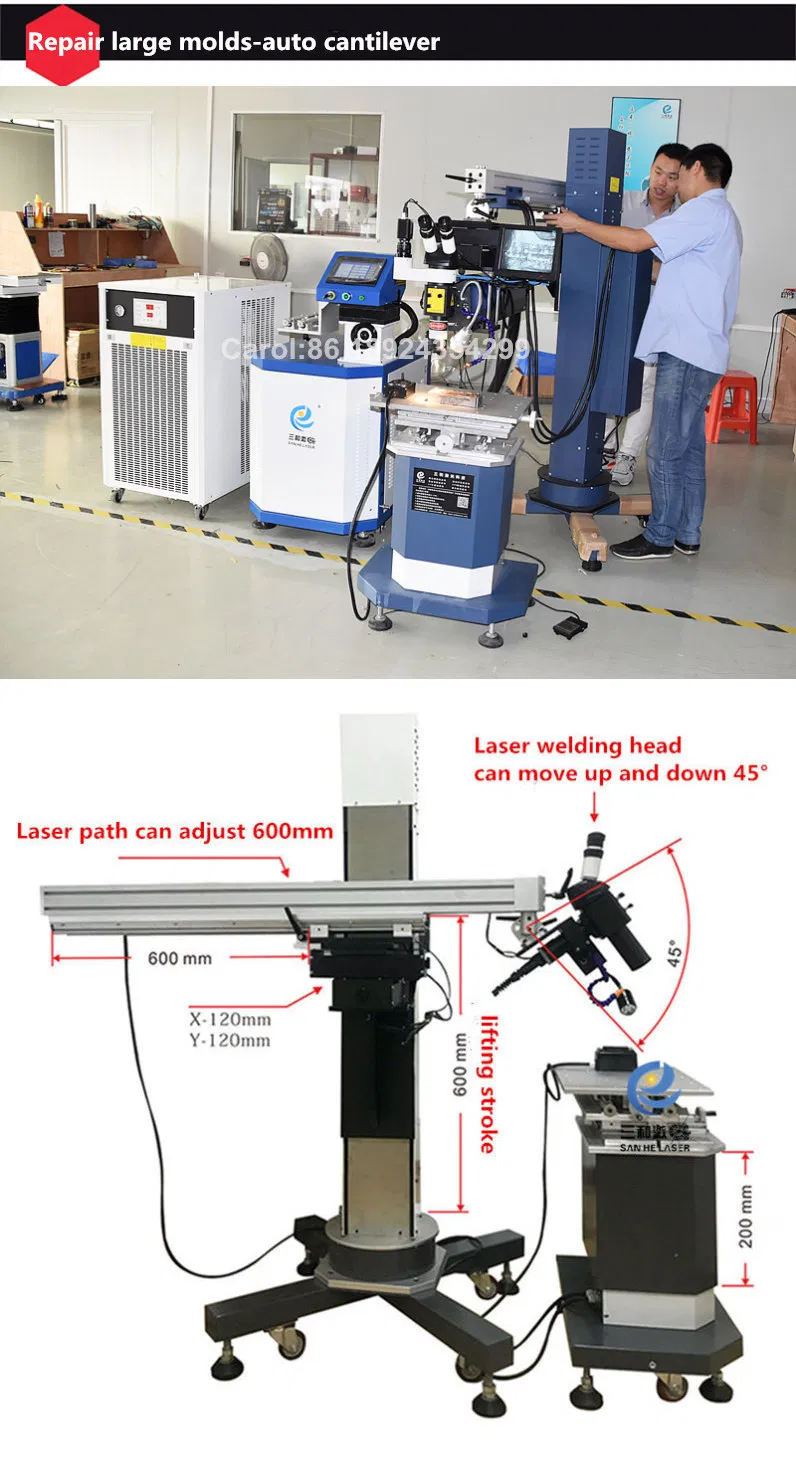

★Twelve-direction welding angle can be adjusted. Operating lever controls the electric adjustment speed of the
laser welding head.

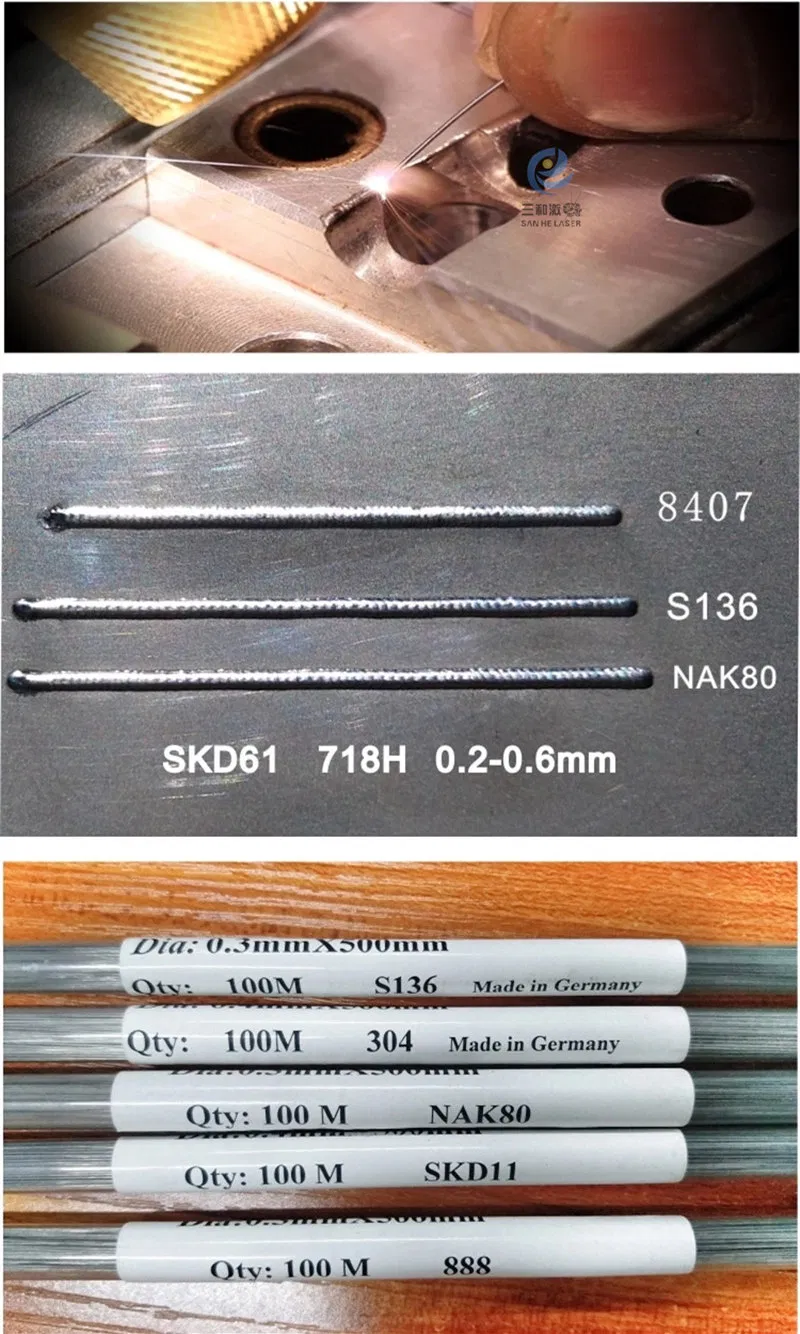

It is suitable for repair welding of any angle and position.
★United Kingdom imports ceramic condenser cavity, corrosion resistance, high temperature resistance and
Chamber life (8-10),
Xenon lamp life of more than 8 million times.
★Uses the world's most advanced automated blackout systems, eliminating time on eye irritation.
★Use 10X microscope, cross hair indicates, and uses high-speed liquid crystal light valve light automatically.
Pace with laser output of the shielding gas, ensure that solder joint appearance, oxidation of solder will not
change color.
★Use 7-inch LED screen, able to switch in Chinese and English freely, pace with the international market.

Technical parameters:

Model	3HE-MJ200W	3HE-MJ300W	3HE-400W
Max laser power	200W	300W	400W
Laser type	YAG	YAG	YAG
Laser wavelength	1064nm	1064nm	1064nm
Spot size	0.2-3.0mm	0.2-3.0mm	0.2-3.0mm
Pulse width	0.1ms-25ms	0.1-25ms	0.1-25ms
Pulse frequency	≤100Hz	≤100Hz	≤100Hz
Machine power	6KW	10KW	12KW
Position	CCD and red light	CCD and red light	CCD and red light
Welding depth	≤2mm	≤3mm	≤4mm
Host system size	560×800×400mm	560×800×400mm	560×800×400mm
Power supply	220V±10%/380±10%
Working table loading	150KG
