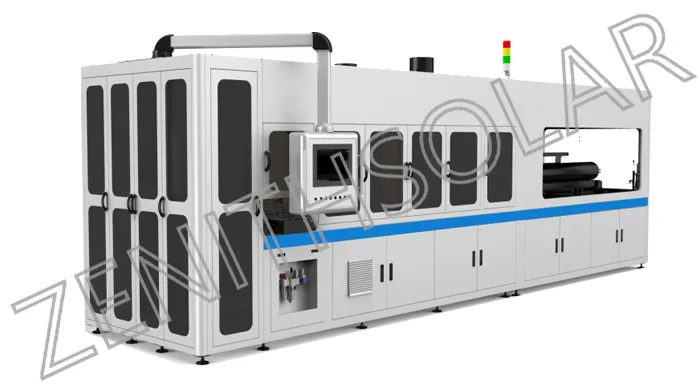

High Quality Robot Hand CCD Camera Solar Panel Tabbing Stringer Welding Machine

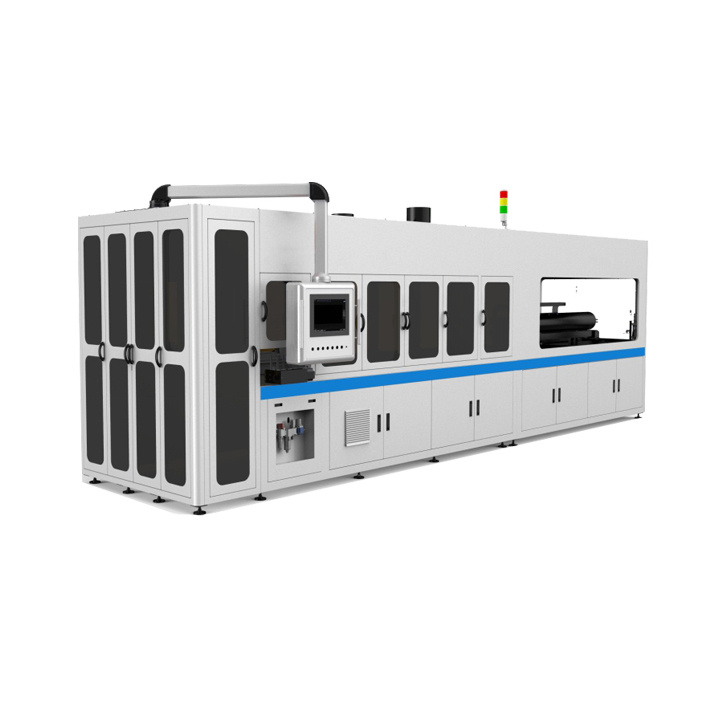

High quality robot hand CCD camera solar panel tabbing stringer welding machine Parameters Model specificationSS-3000Maximum capacityHalf piece2500pcs/hr,Whole piece 2300 pcs/hrSize of solar cell156*156-166*166mm-182*182mm-210*210mmCut cell width size≥70mmThickness of solar cell160-300&mu......
Send Inquiry
Product Description
| Model specification | SS-3000 |
| Maximum capacity | Half piece2500pcs/hr,Whole piece 2300 pcs/hr |
| Size of solar cell | 156*156-166*166mm-182*182mm-210*210mm |
| Cut cell width size | ≥70mm |
| Thickness of solar cell | 160-300μm |
| Quantity of bus-bar | 5BB, 6BB (fixture switching, customized according to customer requirements),9BB and MBB(must using flat welding ribbon) |
| Coincidence degree deviation of ribbon and bus bar | ≤±0.1mm |
| Maximum length of string soldering | 2100mm |
| Ribbon specification | Thickness: 0.15-0.3mm,Width: 0.6-2mm (Customer should confirm the welding ribbon size before placing the order, ribbon width should be a little wider than cell busbar) |
| Flux adding method | soak |
| Soldering method | IR heating |
| Breakage rate | ≤1‰ (positive A class) |
| Power consumption | 15KW |
| Voltage input | AC380V(3 phase 5 wires),50-60Hz |
| Input compressed air pressure | 0.6-0.8MPa |
| Input compressed air flow | 450L/min |
| Size | 6000×1450×2100mm |
| Net weight | 3500kg |
Characteristics
1. CCD visual defect detection and positioning, the soldering flux adopts immersion method, the unique flexible pressure holding welding band mechanism.
2. Infrared heating, section welding. The welding temperature and power closed-loop control, the temperature climbs gently, the thermal shock is small, reduces the battery chip fragment rate effectively.
3. Battery string detection system can be used to detect the position of main gate misalignment and busbar(optional)
4. Classification, handling and positioning of two high speed four-axis manipulator batteries.
About production line

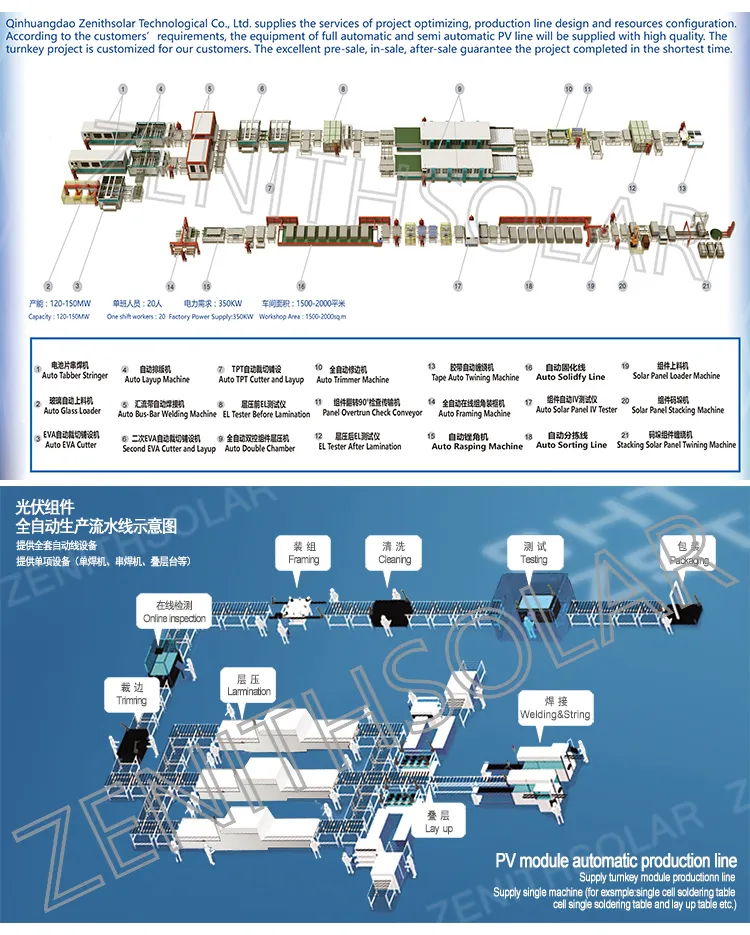

We can supply the customized complete production line. The engineer can adjust the layout and performance of the production line according to different requires of customers.
