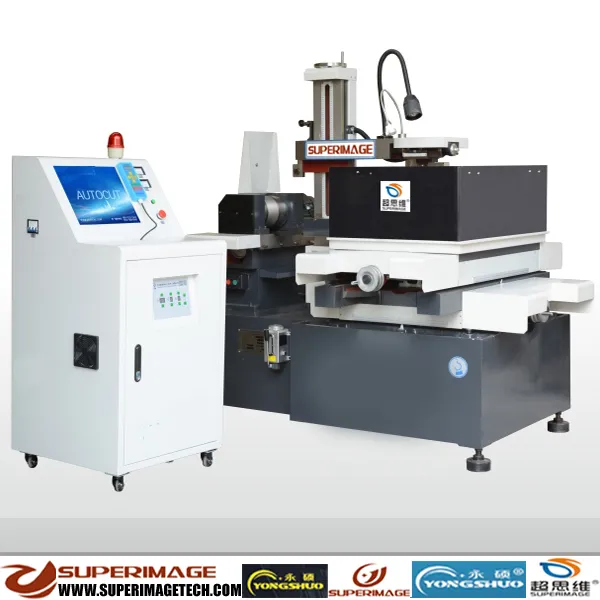

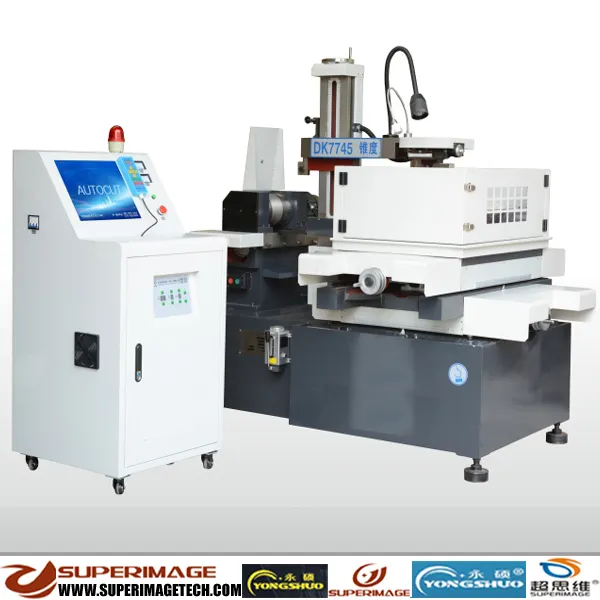

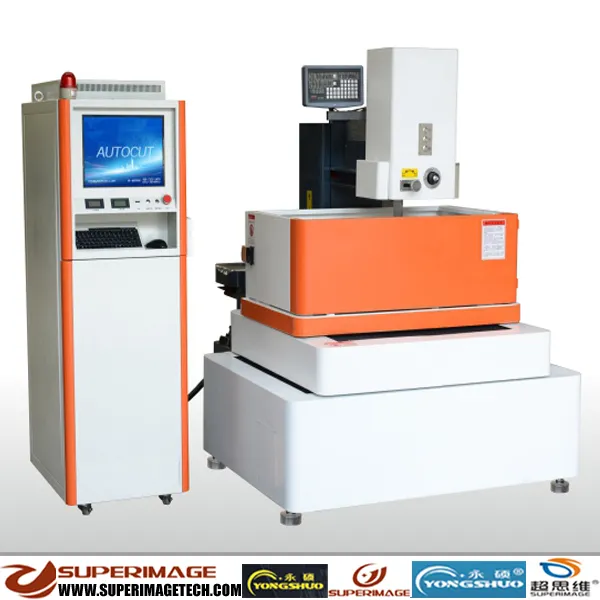

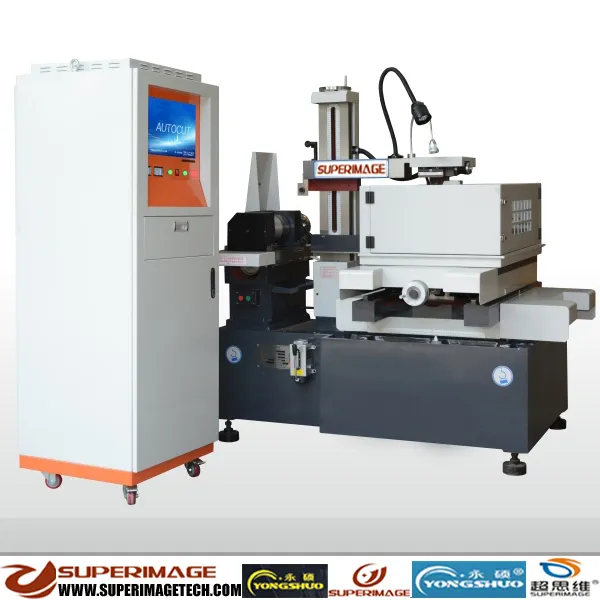

500mm* 630mm CNC Wire-Cut Machine CNC Wedm Ysm50
1. Products Name: 500mm*630mm CNC Wire Electrical Discharge MachineCNC Wire-Cut Machine4-Axis CNC WEDM500mm*630mm CNC WEDMWORK TABLE 680*960 CNC WEDM500mm*630mm ADVANCED MIDDLE-SPEED CNC WIRE CUTTING MACHINE2. Basic Technical Data: TECHNICAL DATAWEDM-YSM50CONTROL SYSTEM & AXIS QTY.AUTOCUT, 5 AXI......
Send Inquiry
Product Description
1. Products Name:
500mm*630mm CNC Wire Electrical Discharge Machine
CNC Wire-Cut Machine
4-Axis CNC WEDM
500mm*630mm CNC WEDM
WORK TABLE 680*960 CNC WEDM
500mm*630mm ADVANCED MIDDLE-SPEED CNC WIRE CUTTING MACHINE
2. Basic Technical Data:
| TECHNICAL DATA | WEDM-YSM50 |
| CONTROL SYSTEM & AXIS QTY. | AUTOCUT, 5 AXIS OR 4 AXIS |
| XY AXIS TRAVELING DISTANCE | 500*630MM |
| WORKTABLE SIZE | 680*960MM |
| MAX.LOADING WEIGHT OF WORKTABLE | 850KG |
| Z AXIS STROKE(SPINDLE STROKE) | 300MM |
| MOTOR DRIVING MODE | AC SERVO OR STEPPING DRIVE |
| MACHINING SURFACE ROUGHNESS | Ra≤0.7UM OR Ra≤0.8UM |
| MAX. CUTTING THICKNESS | 320MM |
| MAX.CUTTING SLOPE/WORKPIECE THICKNESS | +30/80MM |
| MAX.CUTTING SPEED | ≥12000MM2/HOUR |
| MULTI-CUTTER CUTTING PRECISION | +0.25(+0.4)UM |
| AVERAGE CUTTING SPEED OF THREE-CUTTER | ≥5000MM2/HOUR |
| SCREWS RUNNING SPEED | FREQUENCY CONTROL RUNNING |
| DIAMETER OF ELECTRODE WIRE | Φ0.1-0.25MM |
| MACHINE RUNNGING POWER | 2.3KW(OR 2KW) |
| MACHINE SIZE | 2000MM*1350MM*2200MM |
| MACHINE WEIGHT | 2300KG |
| HARDWARE CONFIGURATION & INTERFACE | SCHNEIDER ELECTRIC,USB,LAN/RS232 |
| OPERATION PANEL & LANGUAGE | ENGLISH,JAPAN,RUSSIA,ETC |
3. Payment methods
By T/T in advance;
Down payment: 50% of total amount. Before delivery, 50% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers "3R" quality warranty for our CNC Mach-"Replacement, Return, and Refund" will be guaranteed for inferior quality products.
