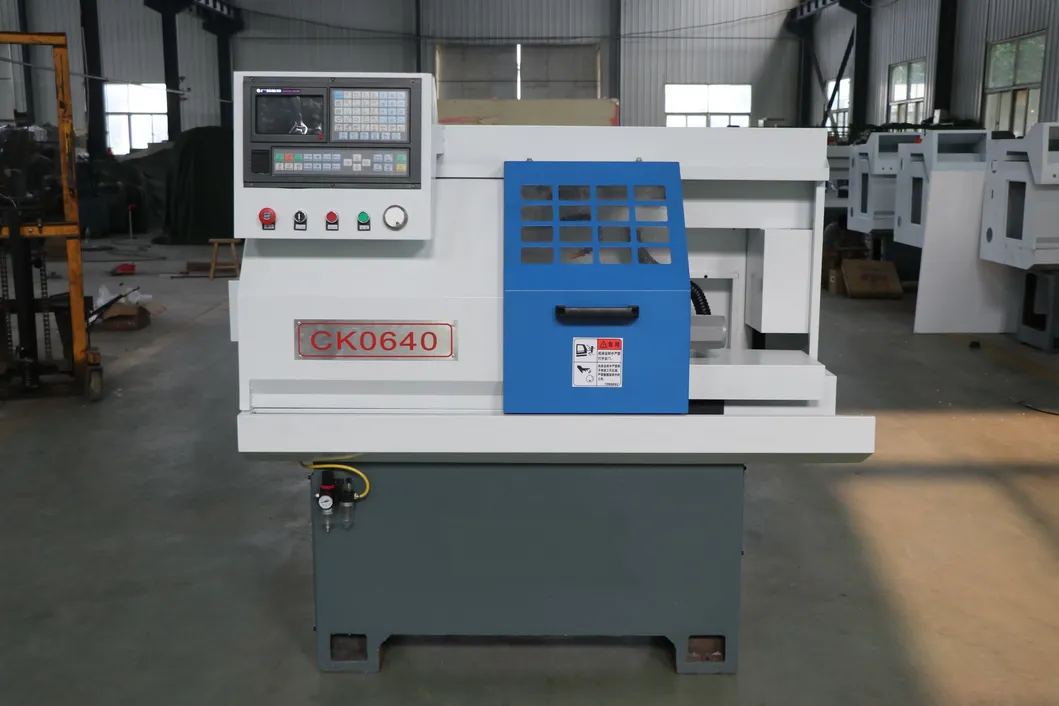

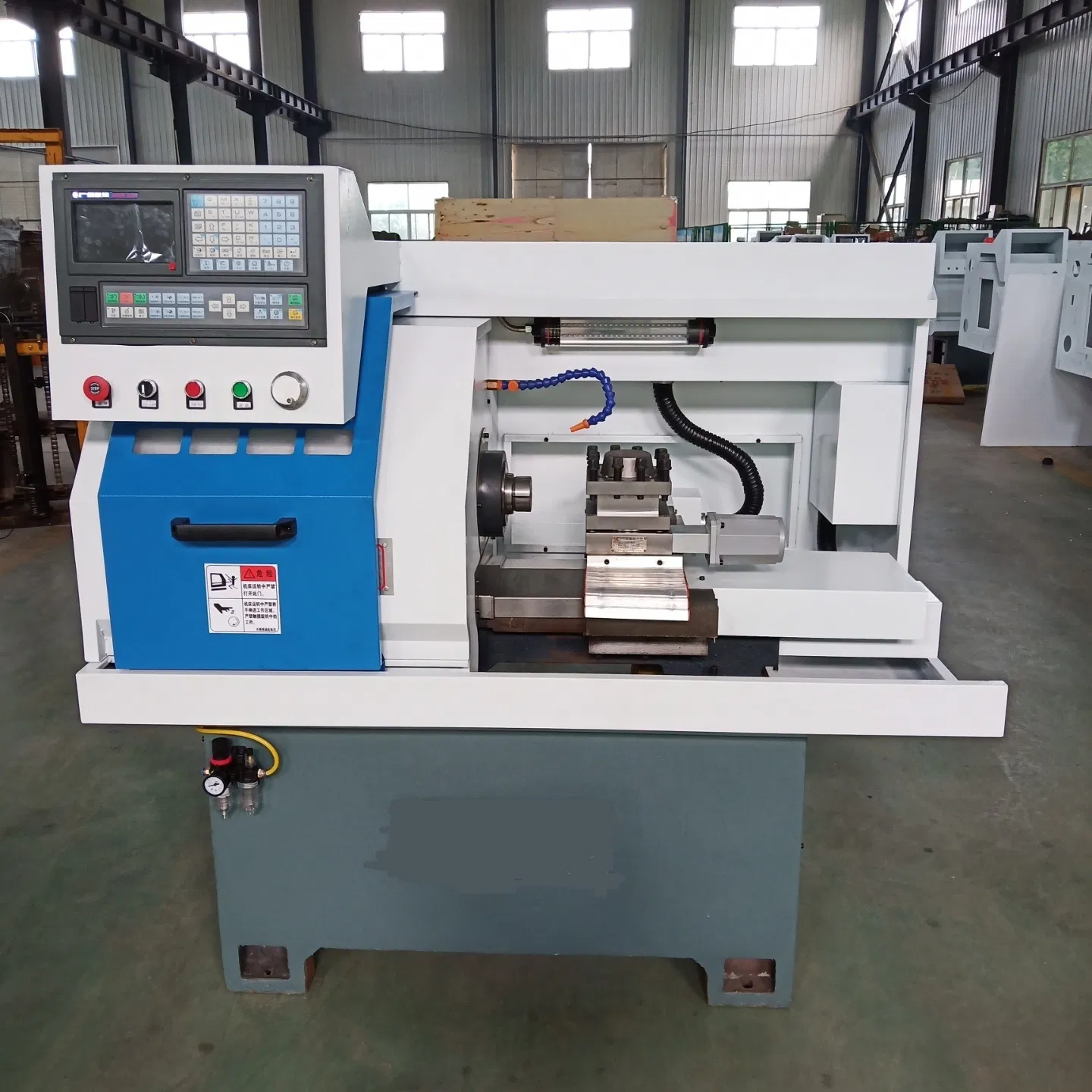

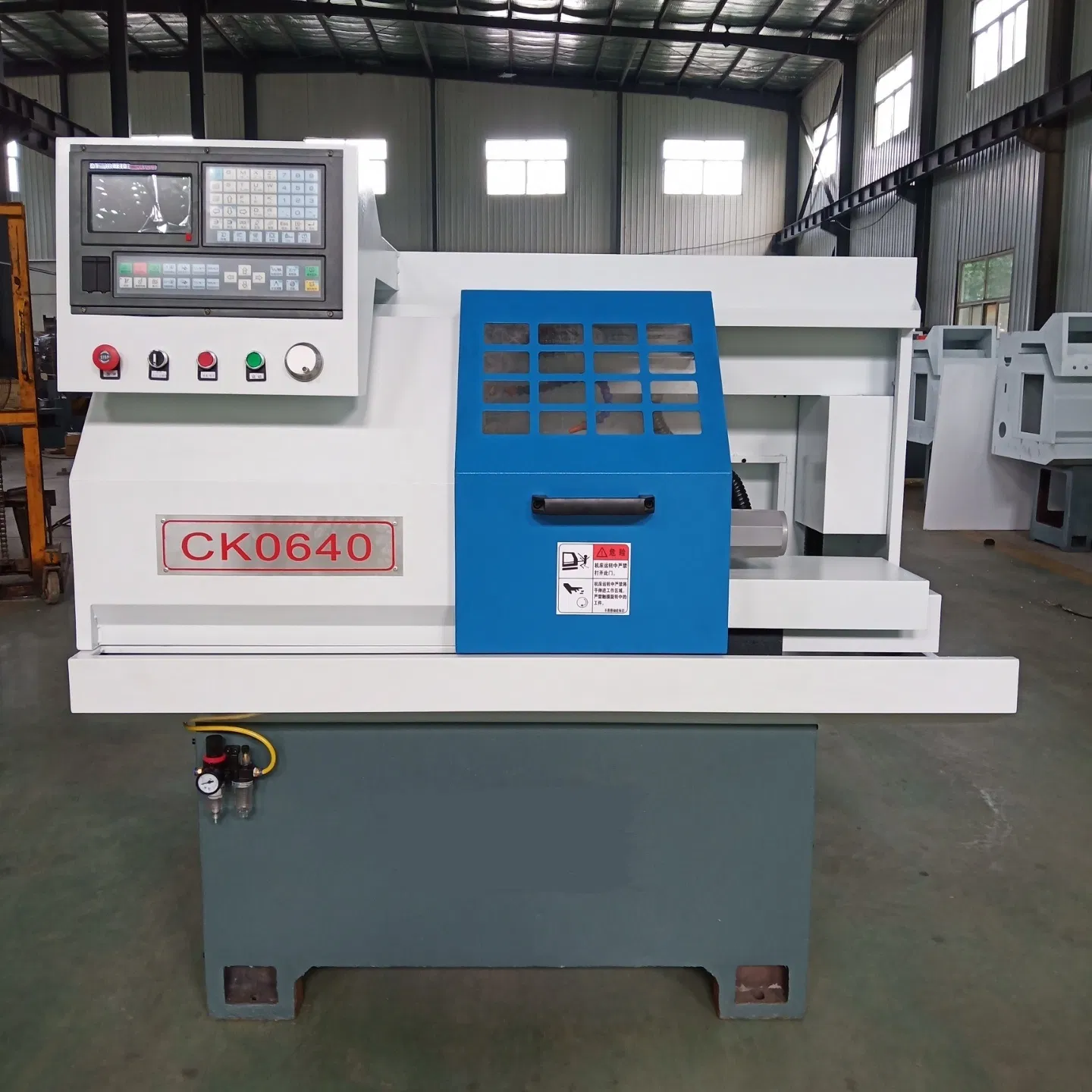

Ck0641/ Ck0660 /Ck0680 Hard Guide Way CNC Lathe
HARD GUIDE WAY CNC LATHESPECIFICATIONSUNITCK0640CK0660CK0680Max swingoverbedmmΦ240Φ260Φ280Max swingover cross slidemmΦ100Φ110Φ120Max processing lengthmm180/280180/280180/280X/Zaxis;tra-ImmX:300 Z:300X:300 Z:300X:300 Z:300Max spindle speedrpm50-300050-1......
Send Inquiry
Product Description
HARD GUIDE WAY CNC LATHE
CHC LATHE USE
This machine is widely used in processing and manufacturing the electrical appliance ,instrumentation industy automobile,motorcycle,fastener bearings,photographic and film machinery,hardware toole,watches,glasses,stationery,motors,valves and gas pipe and other high precise and complesx.It is the ideal high effcient equipment in the hardware machining industy.
CHC Lathe Features
45 degrees slant bed CNC lathe
Higher accuracy Taiwan linear guideways
Chip conveying capacity is large and conwenient,customer could choose
Chip convering in the right or in the back

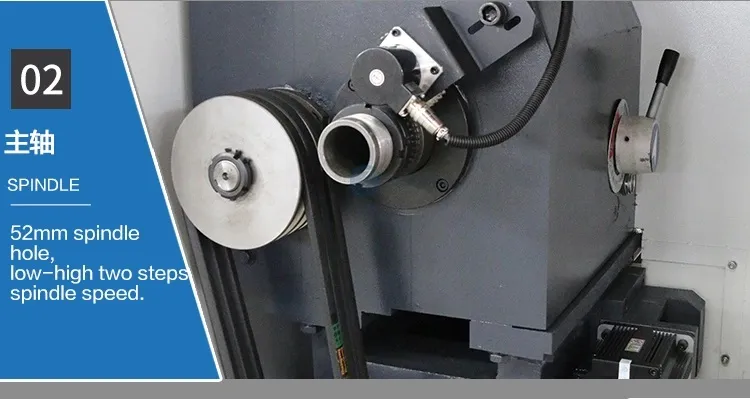

Spingdle unit has two types,the heavy cutting type and the high speed
Type,the first one is suitable for bearing and dear prosessing.Thesecond
Type is suitable for the high speed and high precision processing.Customers
Cold choose andy type of them

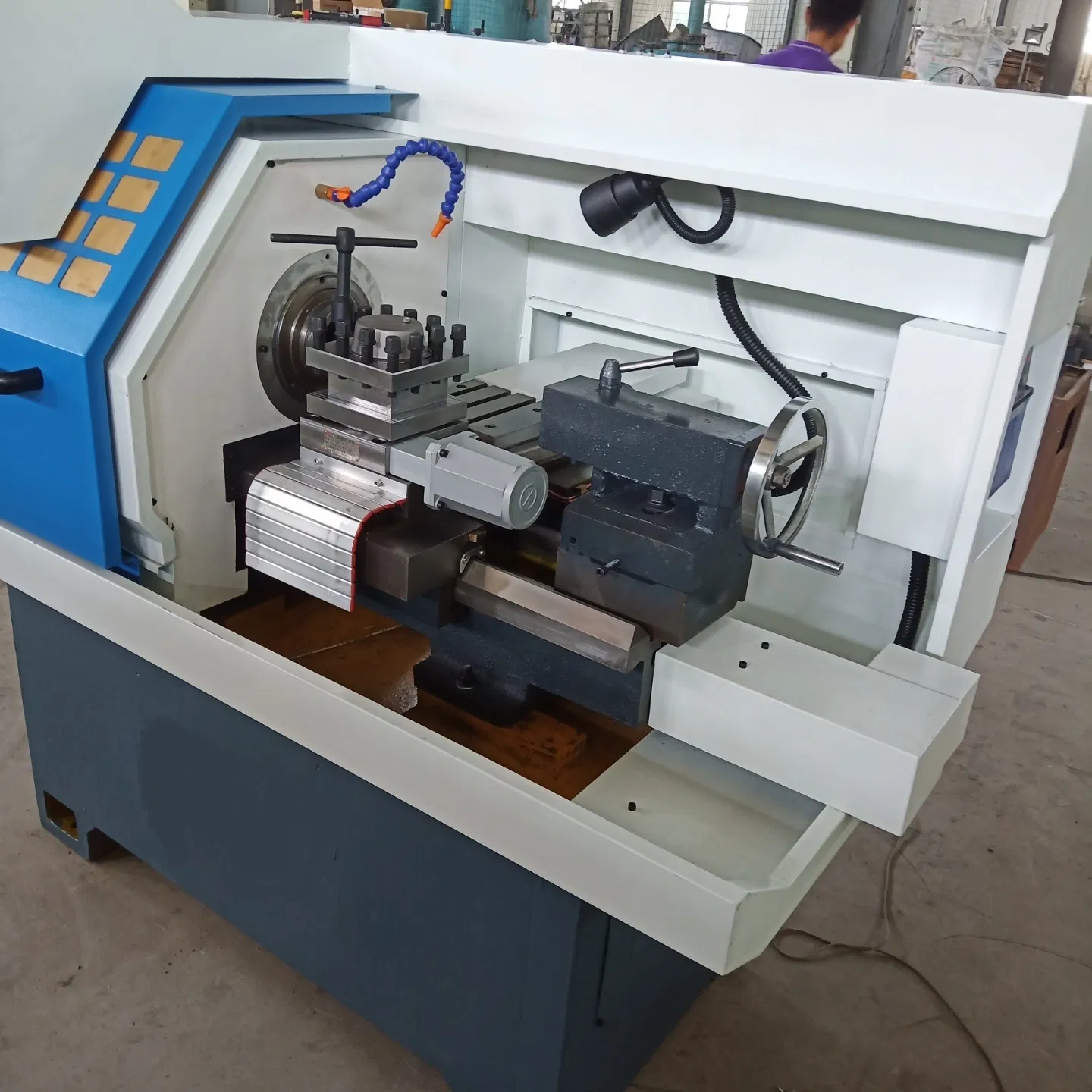

Optional turret

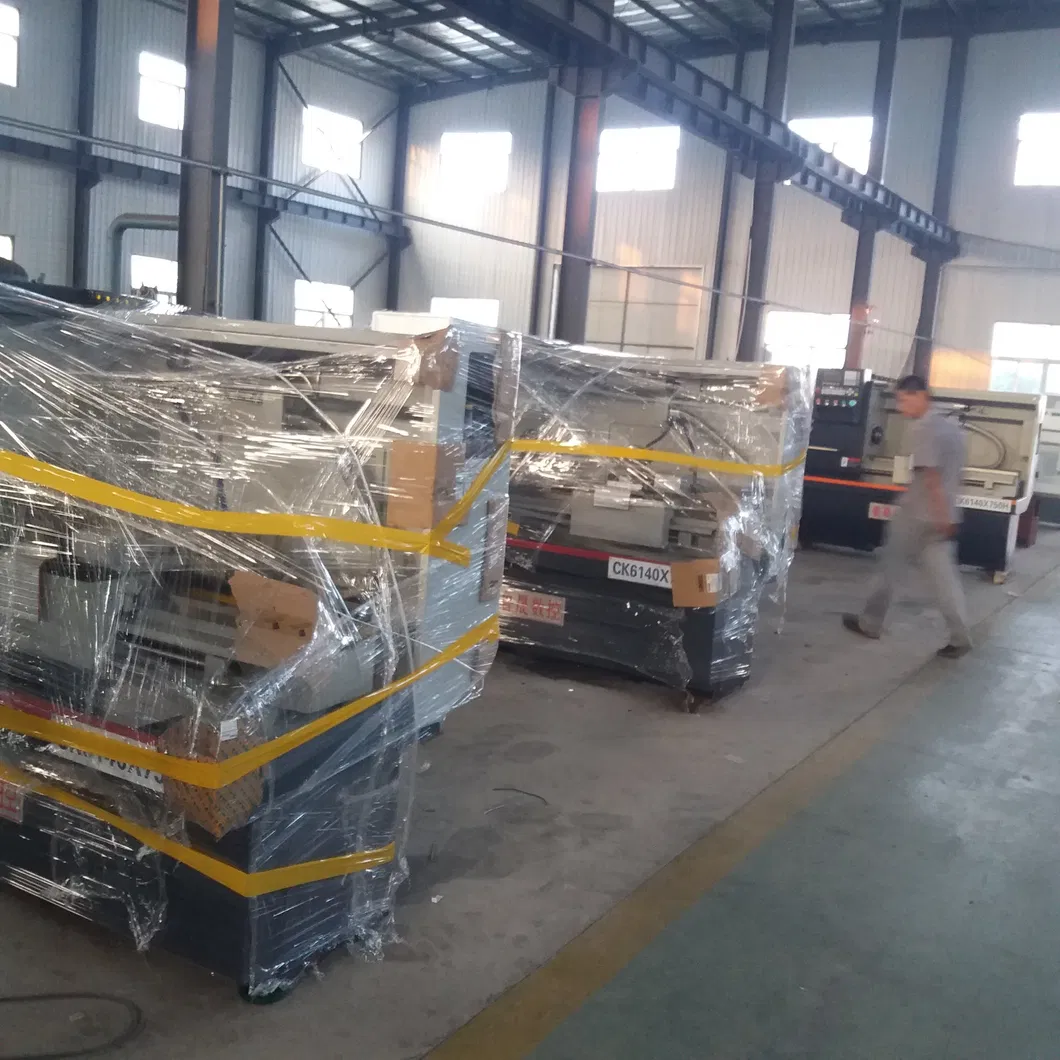

OUR FACTORY

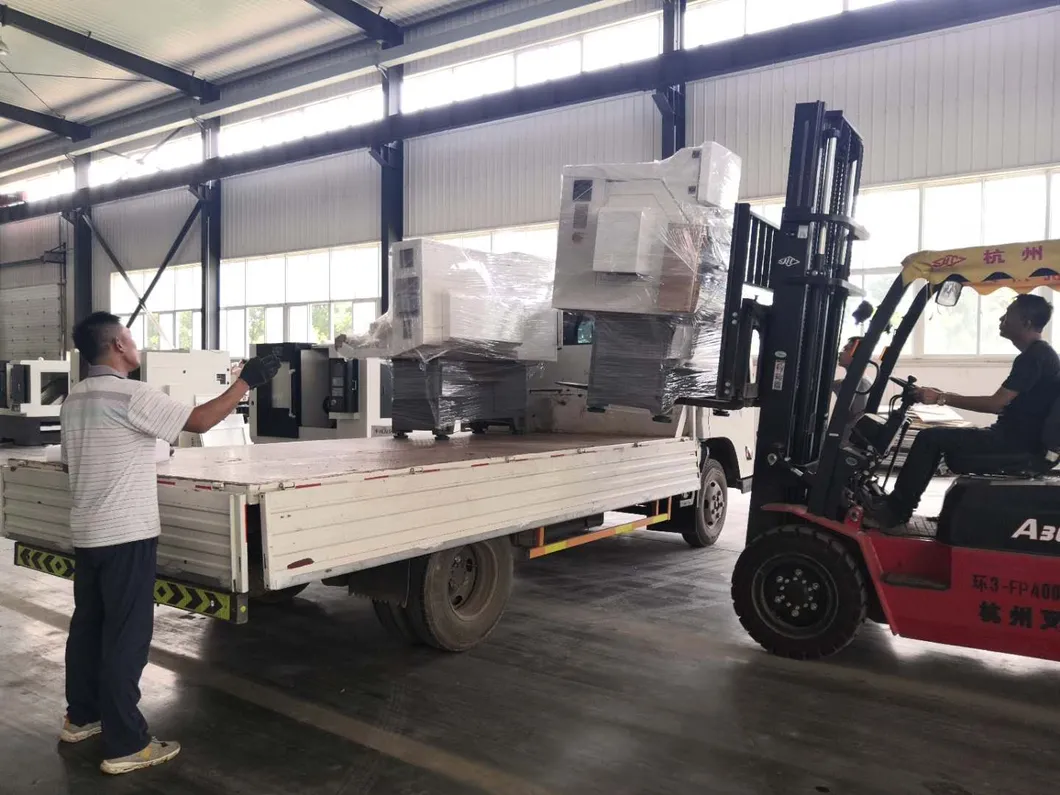

OUR PACKING

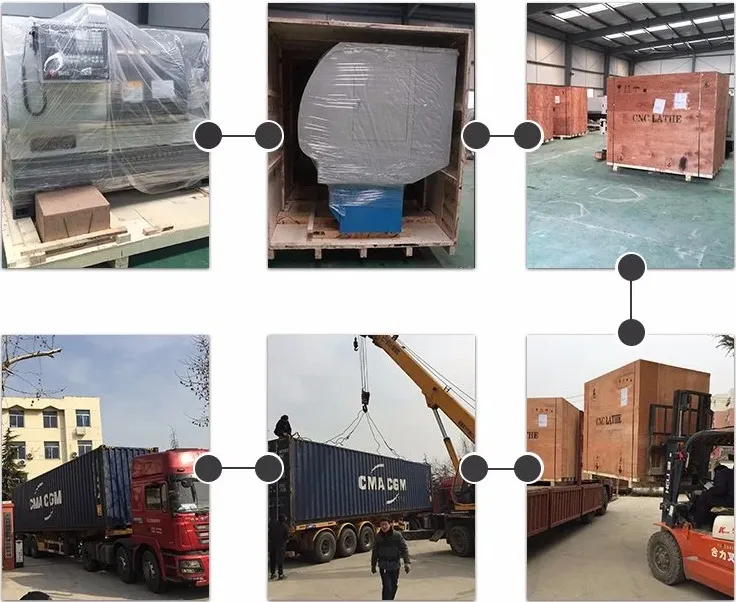

Packing Details : International Heat Treatment Standard Export Wooden Package.
workbench and the guide surface rust-proof oil daub, and oil film paper cover.
| SPECIFICATIONS | UNIT | CK0640 | CK0660 | CK0680 |
| Max swingoverbed | mm | Φ240 | Φ260 | Φ280 |
| Max swingover cross slide | mm | Φ100 | Φ110 | Φ120 |
| Max processing length | mm | 180/280 | 180/280 | 180/280 |
| X/Zaxis;tra-I | mm | X:300 Z:300 | X:300 Z:300 | X:300 Z:300 |
| Max spindle speed | rpm | 50-3000 | 50-1800 | 50-1800 |
| Spindel bore | mm | Φ48 | Φ68 | Φ88 |
| Bar capac | mm | Φ40 | Φ60 | Φ80 |
| Spindel motor | kw | 3 | 4 | 5.5 |

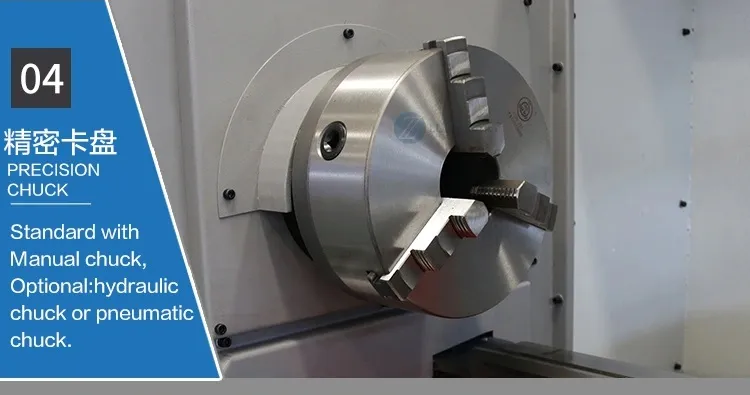

| Chuck size | mm | Φ160 | Φ160 | Φ160 |
| Ball screw dia and pitch | ** | 2505/3206 | 2505/3206 | 2505/3206 |
| X/Zaxisfeedmotortorque | N.m | 4\6 | 4\6 | 4\6 |
| X/Zaxis rapid traverse | m/min | X:10Z:10 | X:10Z:10 | X:10Z:10 |
| X/Zaxis repeatabilty | mm | ±0.005 | ±0.005 | ±0.005 |
| Processing accuracy | ** | IT6-IT7 | IT6-IT7 | IT6-IT7 |
| Workpiece surface roughness | ** | Ral.6 | Ral.6 | Ral.6 |
| Tool postform | ** | Row of knives | Row of knives | Row of knives |
| Cuttingtool shape size | mm | 20*20 | 20*20 | 20*20 |

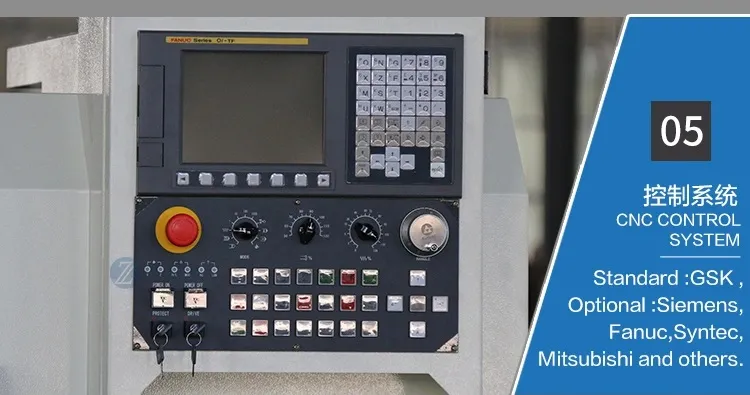

| Control System | ** | GSK | GSK | GSK |
| Voltage | V | 3 PHASE 380V 50HZ | 3 PHASE 380V 50HZ | 3 PHASE 380V 50HZ |
| Machine dimension(L*W*H) | mm | 1650*1050*1600 | 1650*1050*1600 | 1650*1050*1600 |
| Net weight | kg | 900 | 950 | 1000 |
CHC LATHE USE
This machine is widely used in processing and manufacturing the electrical appliance ,instrumentation industy automobile,motorcycle,fastener bearings,photographic and film machinery,hardware toole,watches,glasses,stationery,motors,valves and gas pipe and other high precise and complesx.It is the ideal high effcient equipment in the hardware machining industy.
CHC Lathe Features
45 degrees slant bed CNC lathe
Higher accuracy Taiwan linear guideways
Chip conveying capacity is large and conwenient,customer could choose
Chip convering in the right or in the back
Spingdle unit has two types,the heavy cutting type and the high speed
Type,the first one is suitable for bearing and dear prosessing.Thesecond
Type is suitable for the high speed and high precision processing.Customers
Cold choose andy type of them

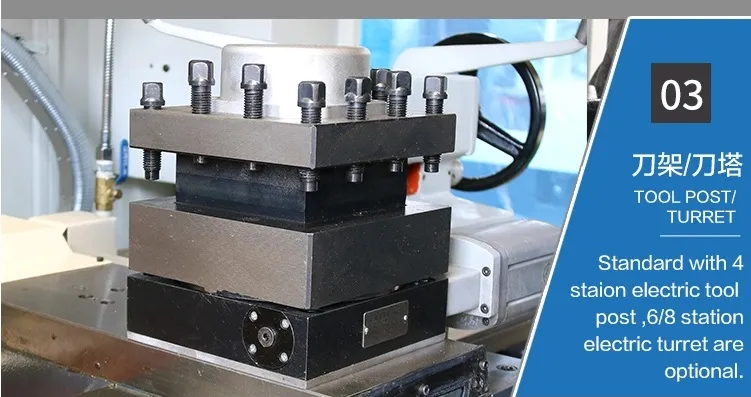

Optional turret
OUR FACTORY

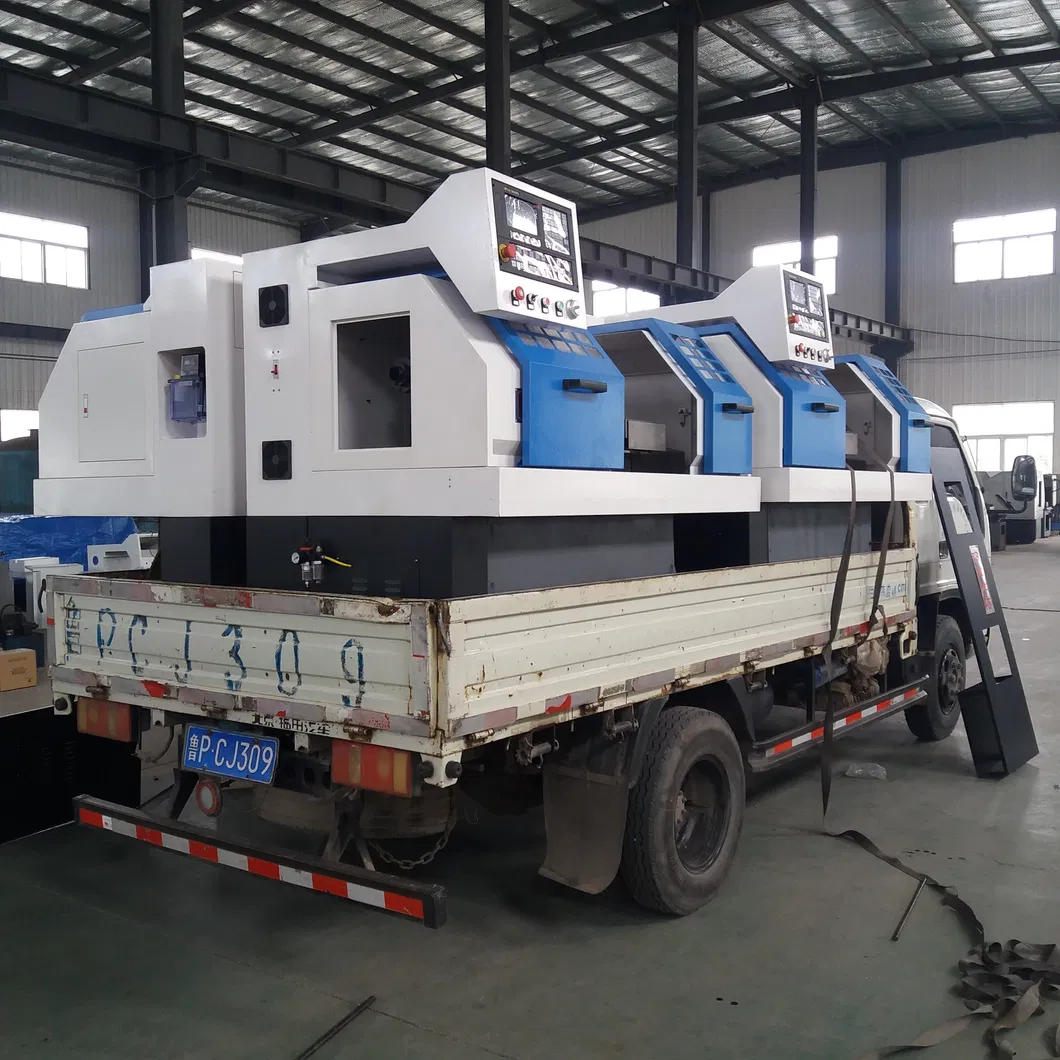

OUR PACKING
Packing Details : International Heat Treatment Standard Export Wooden Package.
workbench and the guide surface rust-proof oil daub, and oil film paper cover.
Delivery
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.Payment
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)Warranty
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. And also parts caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)Related Category
