Product Description

Description

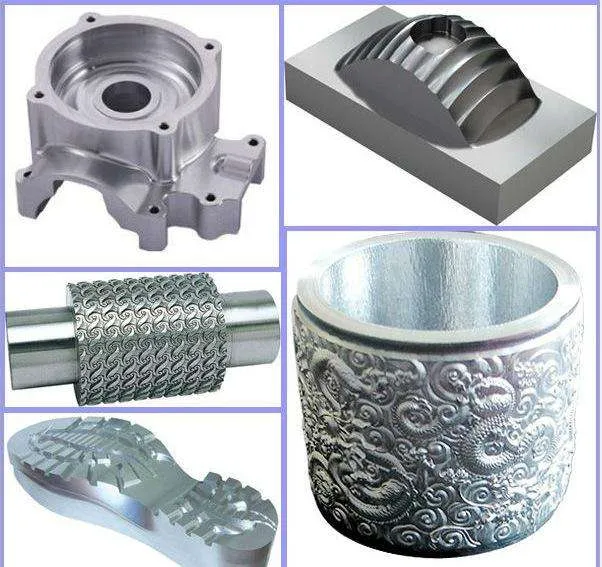

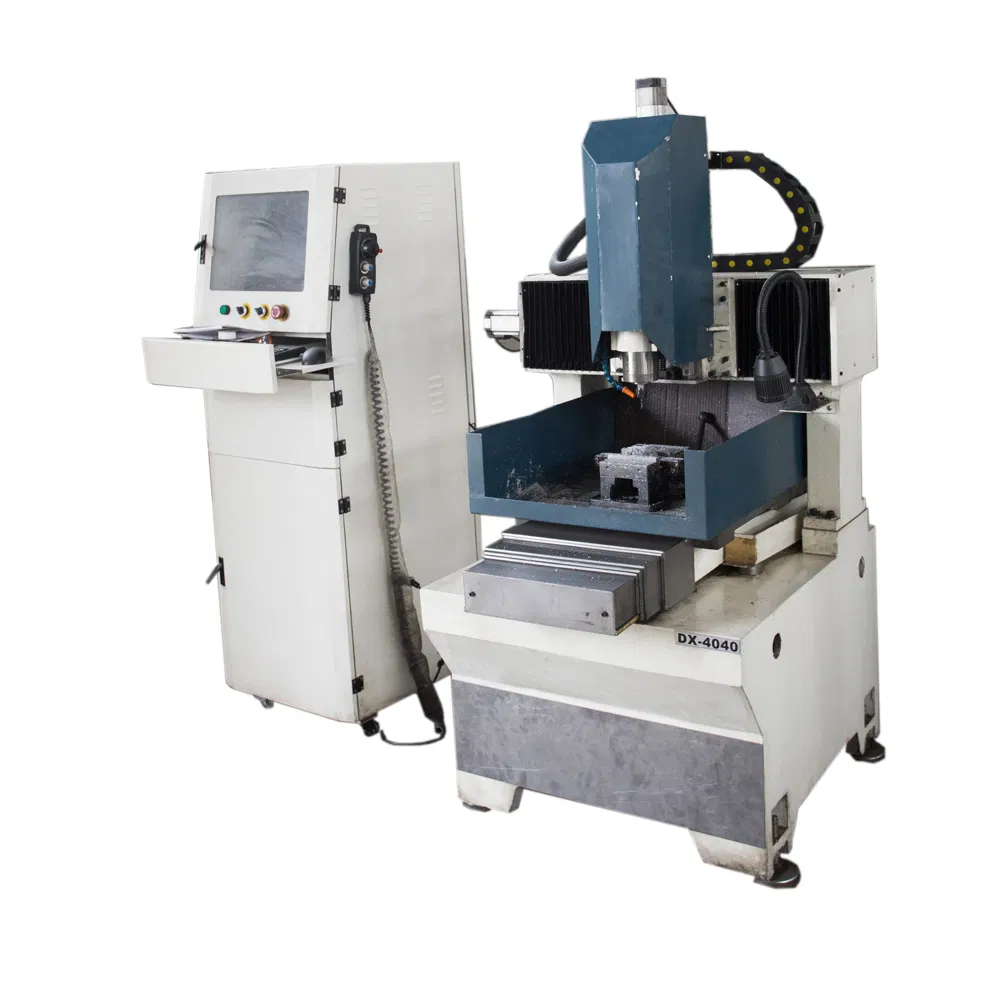

The DX4040 is an economical engraving and milling machine of our company, mainly for graphite, copper electrode and aluminum alloy processing, shoe mold manufacturing, and watch industry.

The whole machine structure uses all the cast structure of iron, two annealings eliminate stress, and the machine tool reinforcement is scientific to ensure no deformation. Increase the width of the bottom of the box base, and the stability is good when cutting at high speed. DX4040 uses grinding ball screw C3 grade, Taiwan PMI/ HIWIN H-class rail, three-axis precision less than 0.015mm. With high processing precision, small size, low price, this machine is suitable for high precision machining of small parts.

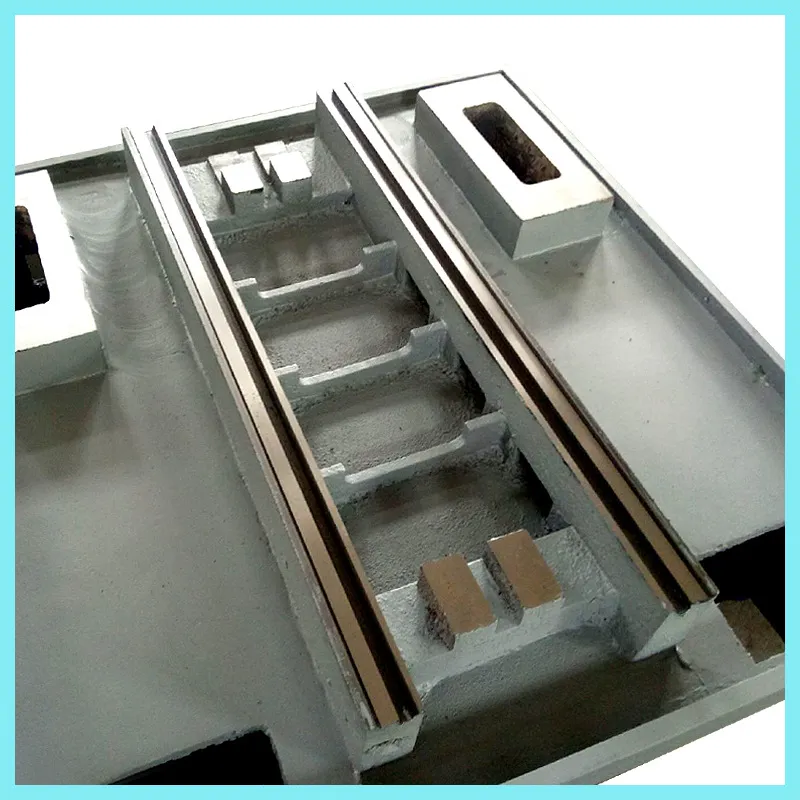

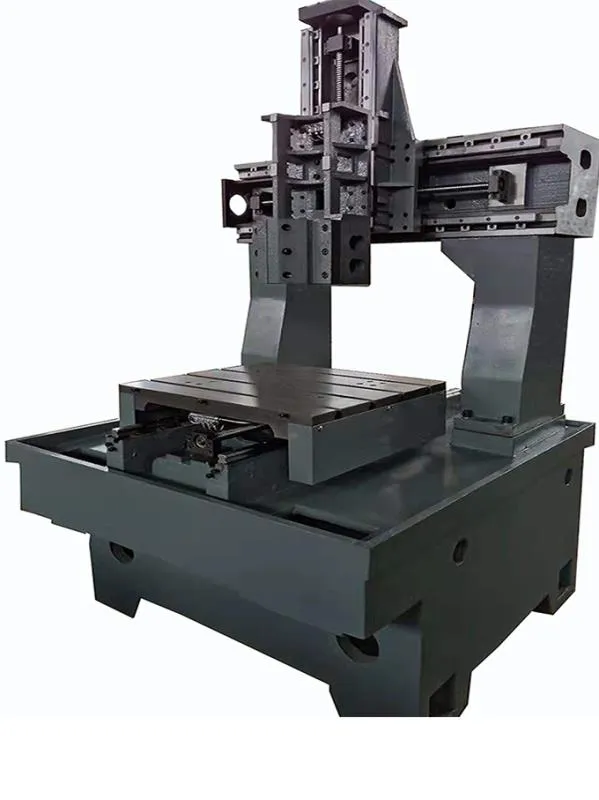

540 assembled its own fuselage
540machine body

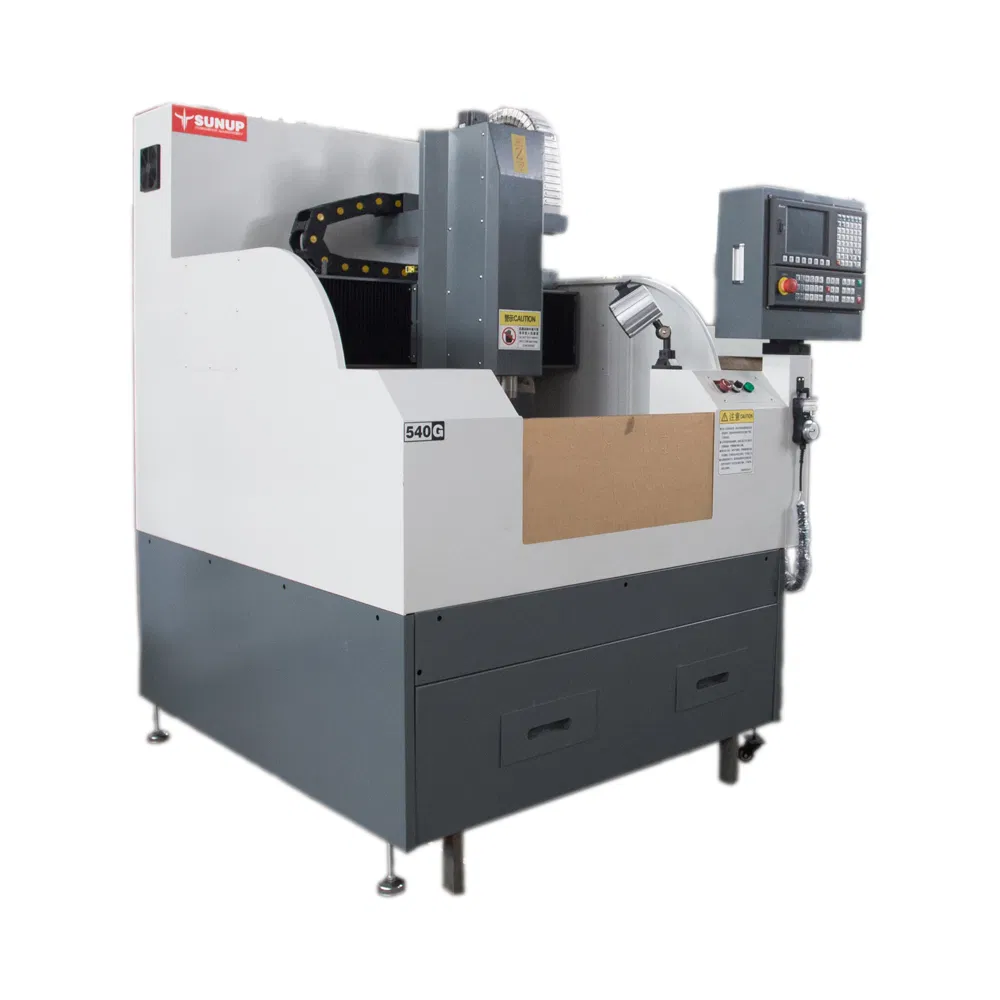

CNC Gantry Plano Milling Machine Portable Milling Machine

Specification

Specs	Unit	DX540
X/Y/Z Travel	mm	500400245
Working Table Diameter	mm	500*440
Max. loading weight	kg	150
Servo Motor Power	w	Delta 750
Control Systeom		Delta 200
Handheld		Delta
Spindle	kw	2.2
Spindle Taper Diameter	mm	80
Spindle Speed	r/min	24000
Max. Moving Speed	m/min	15
Max Working Speed	m/min	10
Distance from Spindle to Working Table	mm	150-350
XYZ Positioning Accuracy	mm	0.015
XYZ Replicate Positioning Accuracy	mm	0.01
Oil lubrication		Manual
Number of T-slot		4
Ball screw		Qijian C3 2005
Linear Guide Rail		PMI/HIWIN
Bearing		P4
Cover		Semi-closed
Machine Unit Weight	kg	1300
Machine Unit Dimensions (W x D x H)	mm	143012701850
