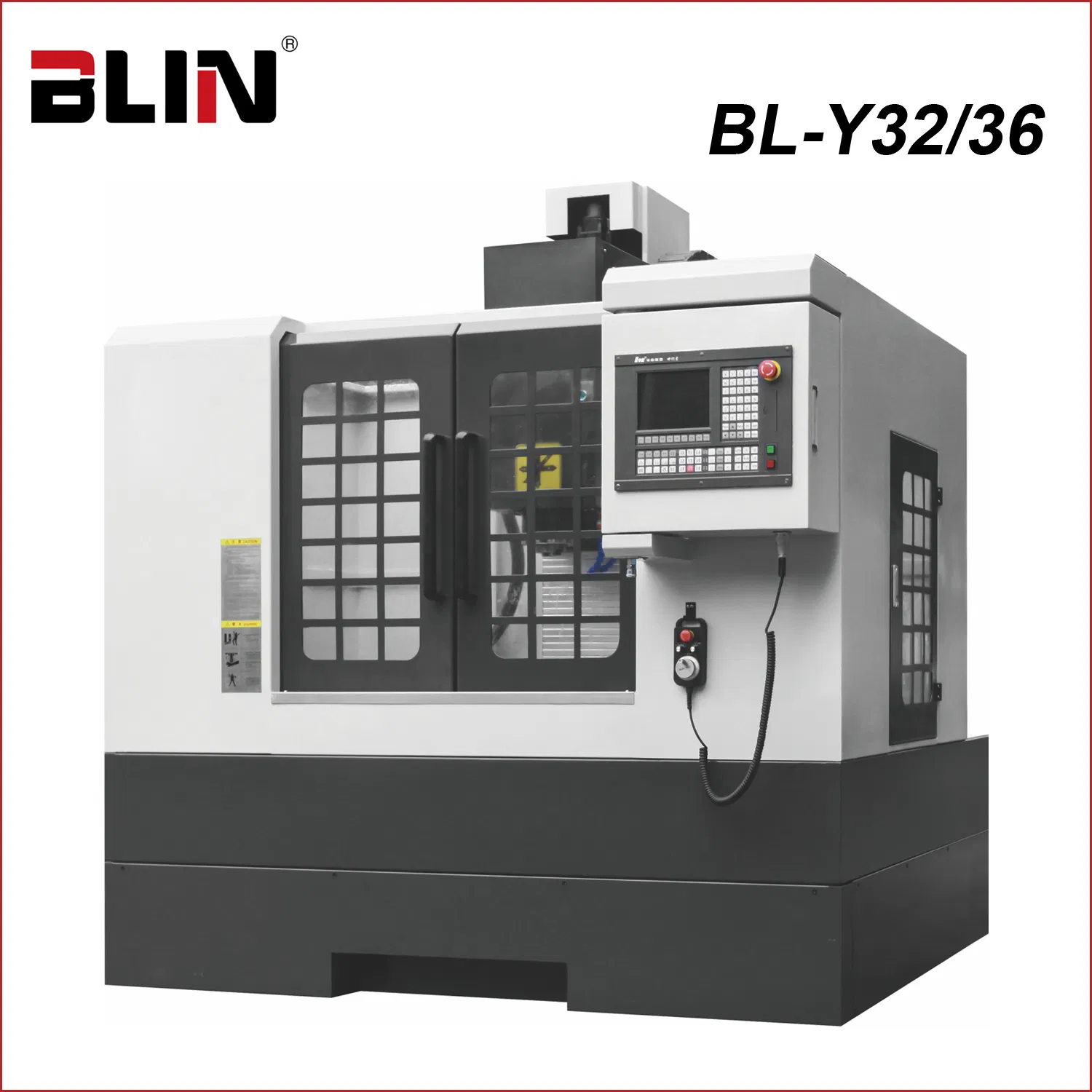

CNC Milling Machine 4 Axis
-Adopt mature conventional cnc milling machine structure, good stability. -SWALLOW-TAIL shape HARD guideway-Can mount 12T Umbrella type tool magazineDetails:ItemSpecificationUnitBL-Y32BL-Y36WorktableTable sizemm850×3201200×320T slot(NO./width/gap)mm3/14/100X/Y/Z axesX/Y/Z axes ......
Send Inquiry

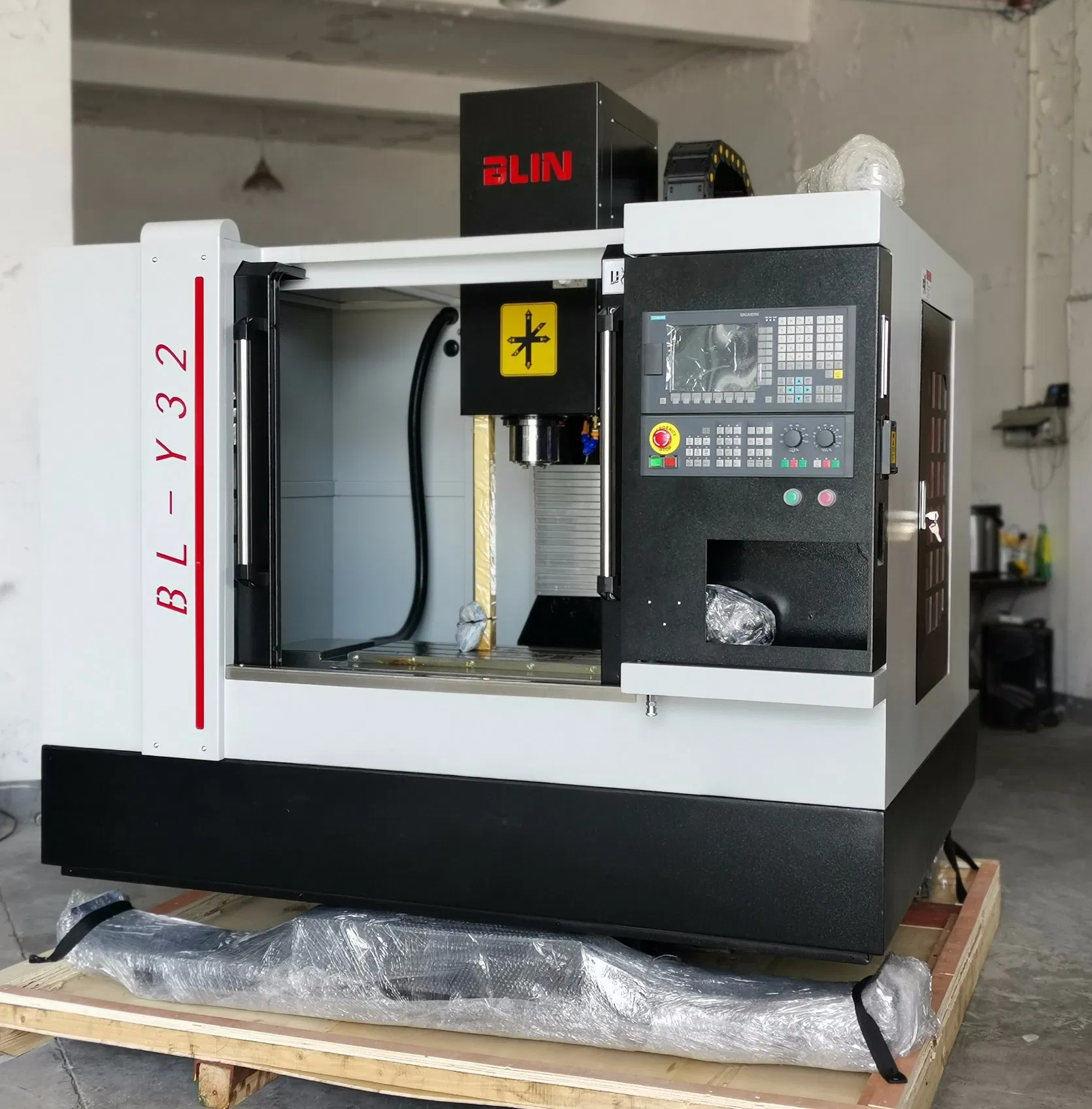

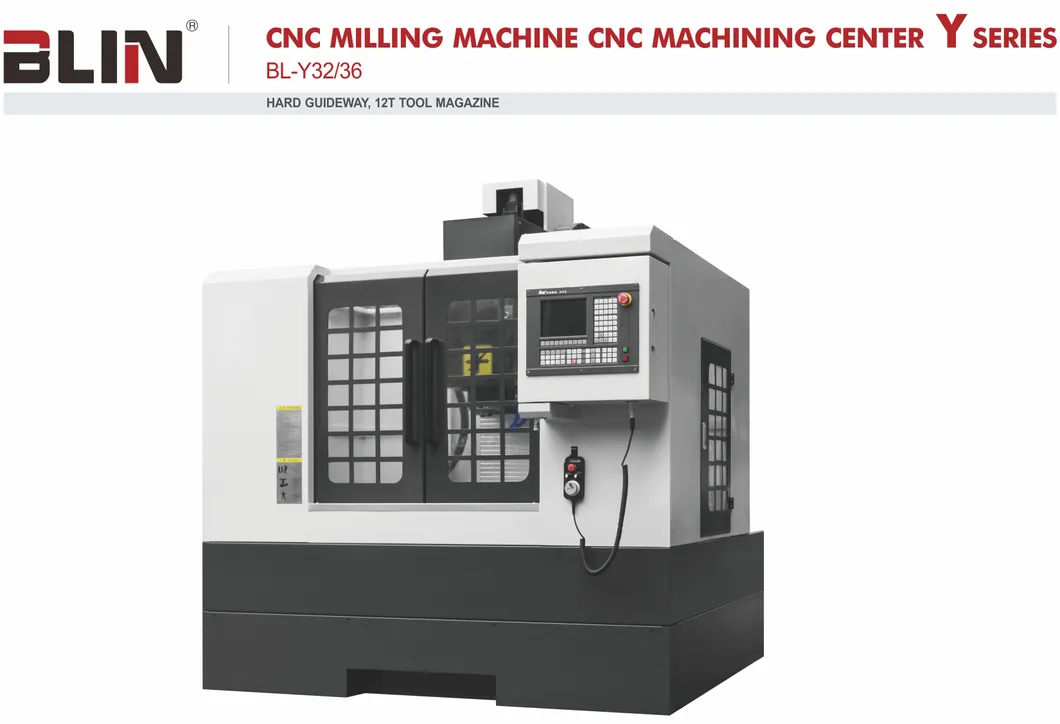

Product Description

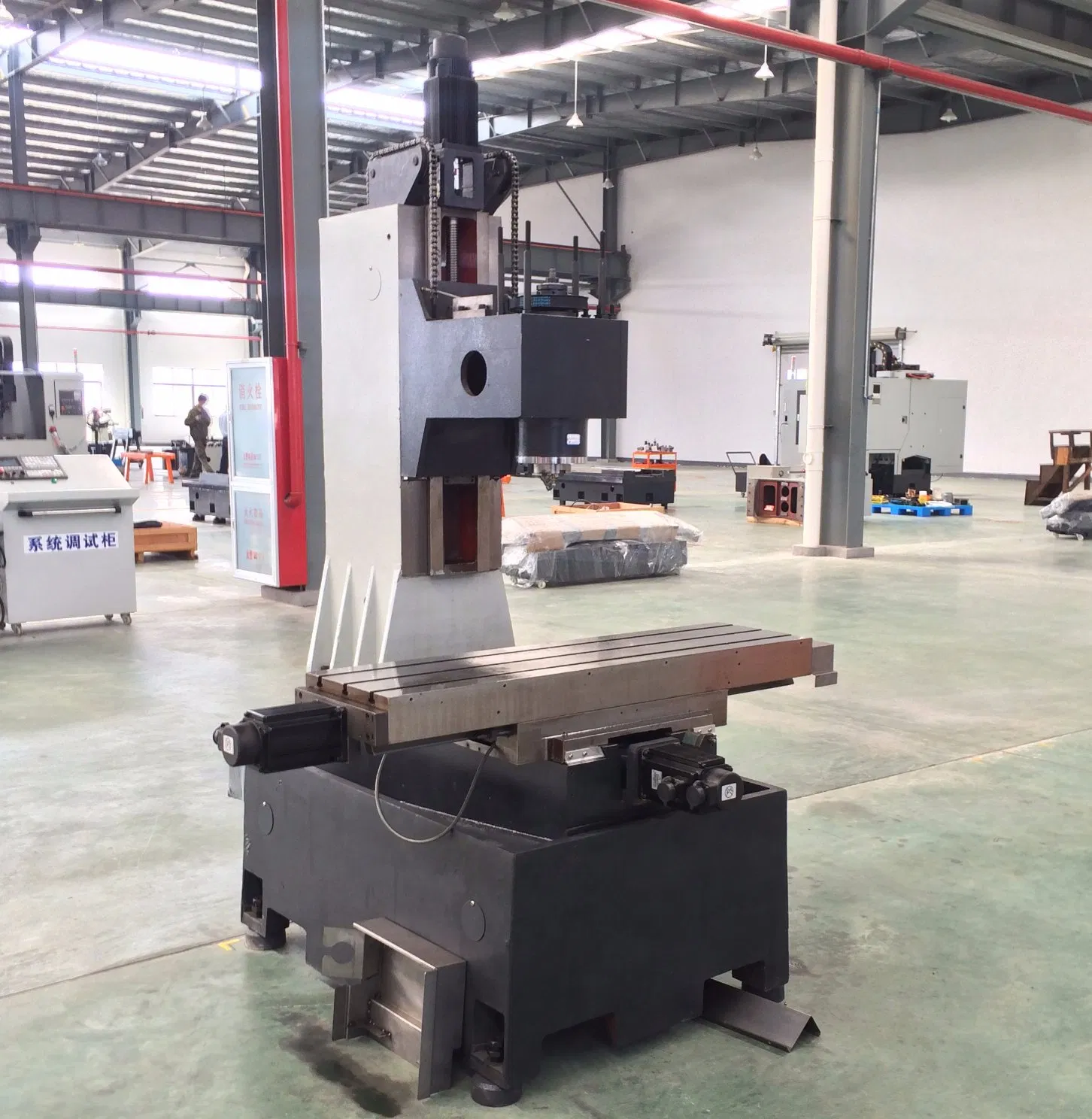

-Adopt mature conventional cnc milling machine structure, good stability.

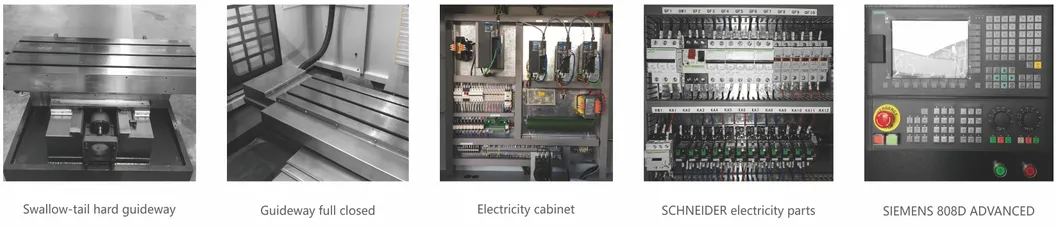

-SWALLOW-TAIL shape HARD guideway
-Can mount 12T Umbrella type tool magazine
Details:
| Item | Specification | Unit | BL-Y32 | BL-Y36 |
| Worktable | Table size | mm | 850×320 | 1200×320 |
| T slot(NO./width/gap) | mm | 3/14/100 | ||
| X/Y/Z axes | X/Y/Z axes travel | mm | 500/320/450 | 650/320/450 |
| X/Y/Z axes ball screw(dia./pitch) | mm | 32/6 | ||
| Cutting feeding speed | mm/min | 60~10000 | ||
| Rapid moving speed | m/min | 15 | ||
| Positioning precision | mm | ±0.01 | ||
| Repeatable positioning precision | mm | ±0.008 | ||
| Spindle | Max. distance from spindle nose to worktable surface | mm | 110-560 | |
| Distance from spindle center to column surface | mm | 400 | ||
| Spindle type | / | BT40 | ||
| Spindle motor | kw | 3.7(servo) | ||
| Spindle speed | rpm | 8000(opt.:10000) | ||
| Tool magazine | Tool magazine type | / | Umbrella type 12T(Optional) | |
| Others | Overall size | mm | 2060×2120×2210 | 2350×2140×2240 |
| N.W. | kg | 2300 | 2700 | |
Main parts list:
| Item | Brand |
| Bearing | JAPAN-NSK |
| Ball screw | CHINA top |
| Dishing spring | GERMANY |
| Spindle unit | TAIWAN |
| Booster cylinder | TAIWAN |
| Tool magazine | TAIWAN |
| Pneumatic parts | TAIWAN-AIRTAC |
| Relay | JAPAN-OMRON |
| Lubrication pump | Joint-venture |
Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
Optional configuration:
-GSK980MDi CNC Controller
-12T Umbrella type tool magazine
-4th axes

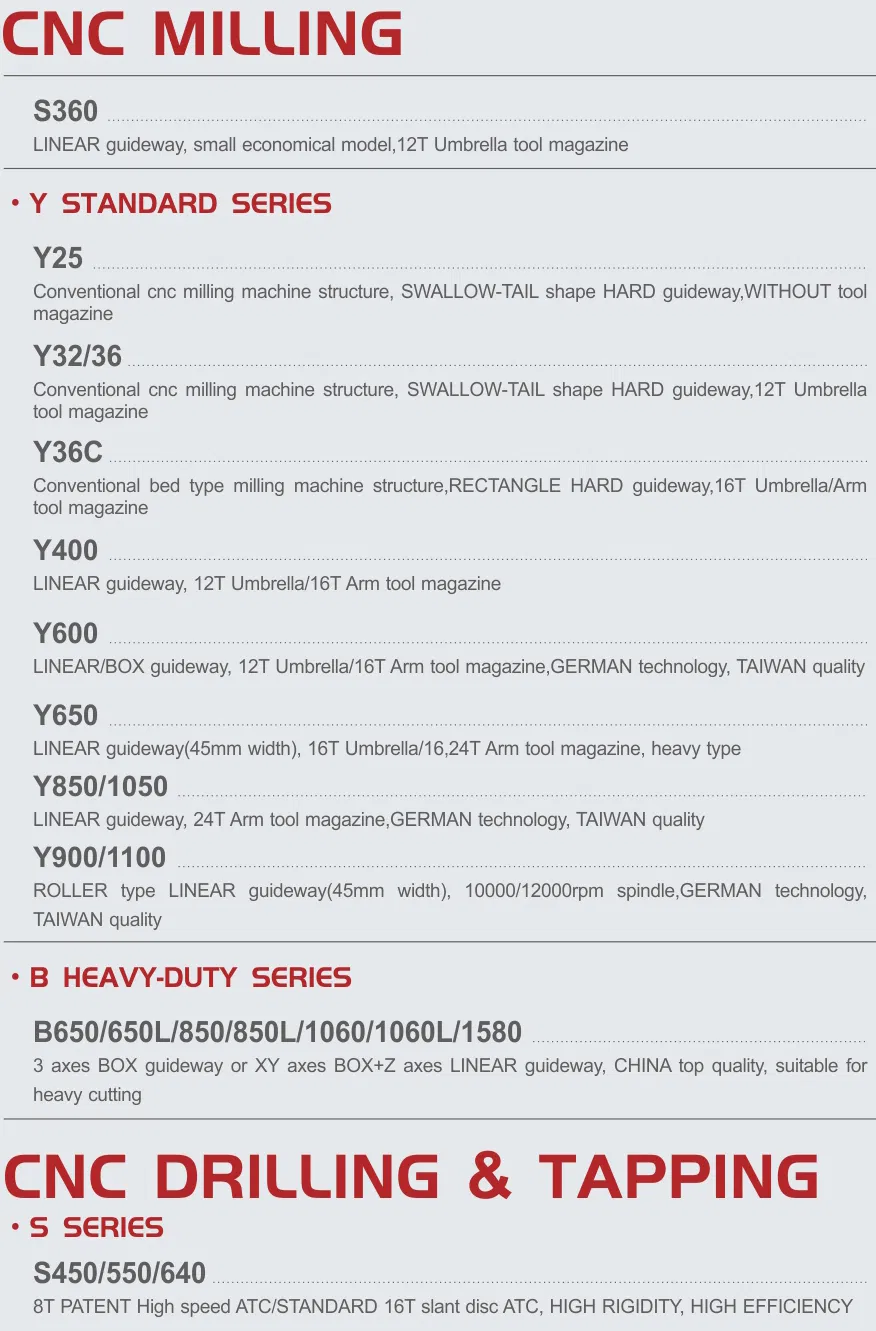

Other models choice:
All our machines range:
About us:
