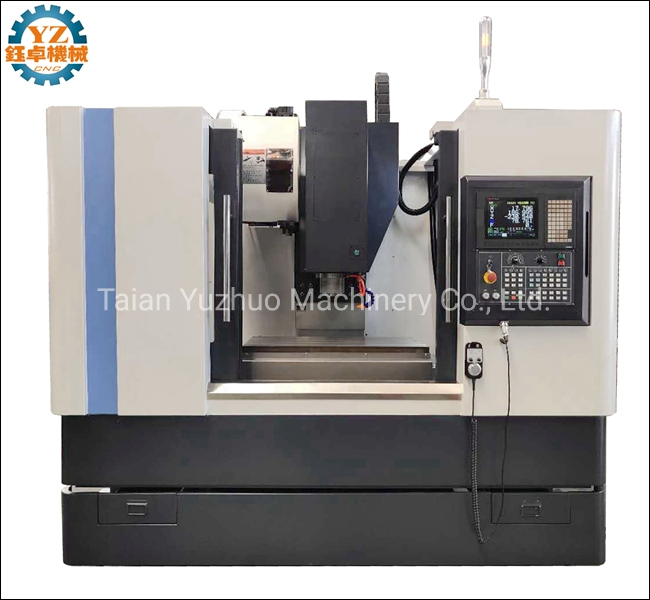

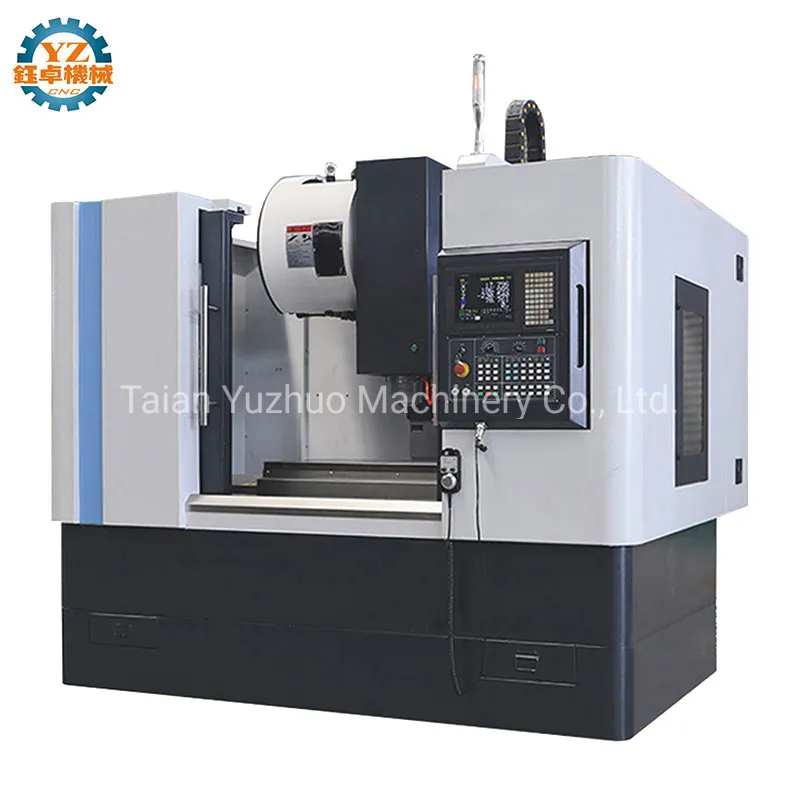

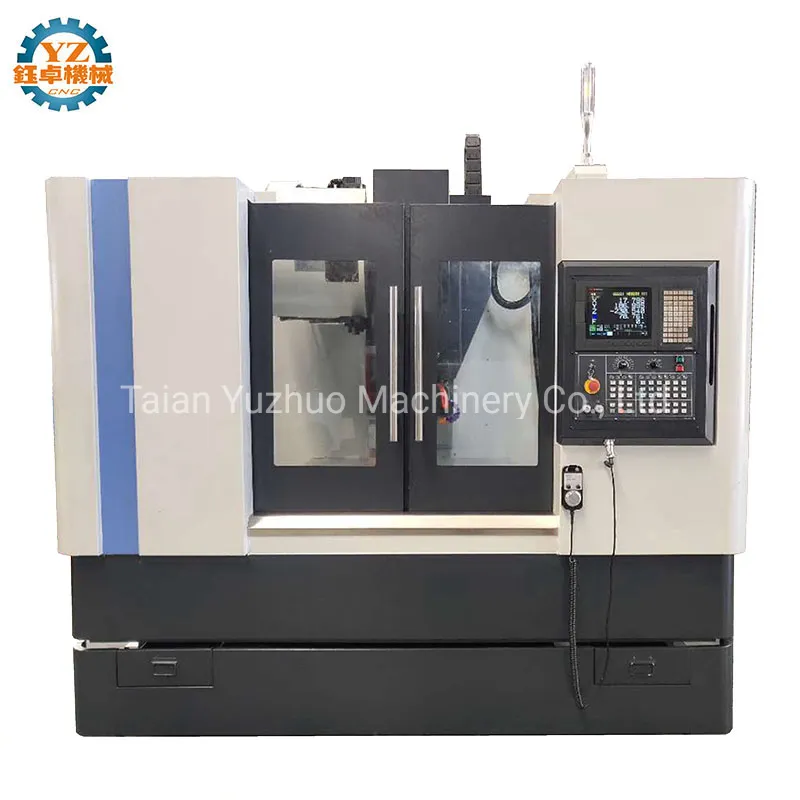

CNC Vertical Five-Axis Linkage Machining Center CNC Milling Machine

Product Description

Metal Mold Preocessing CNC Vertical Five-axis Linkage Machining Center

CNC Vertical Five-Axis Linkage Machining Center CNC Milling Machine

Product Description

	VL650---Linear guideways in 3 axes
Travel	X axis	650mm
	Y axis	400mm
	Z axis	500mm
	Spindle nose to table	100-600mm
	Spindle nose to column	481mm
Feed	max X rapid feed	36m/min
	max Y rapid feed	36m/min
	max Z rapid feed	36m/min
	Cutting feed	1-10m/min
	Torque	X:7 N.m Y:7 N.m Z:10 N.m

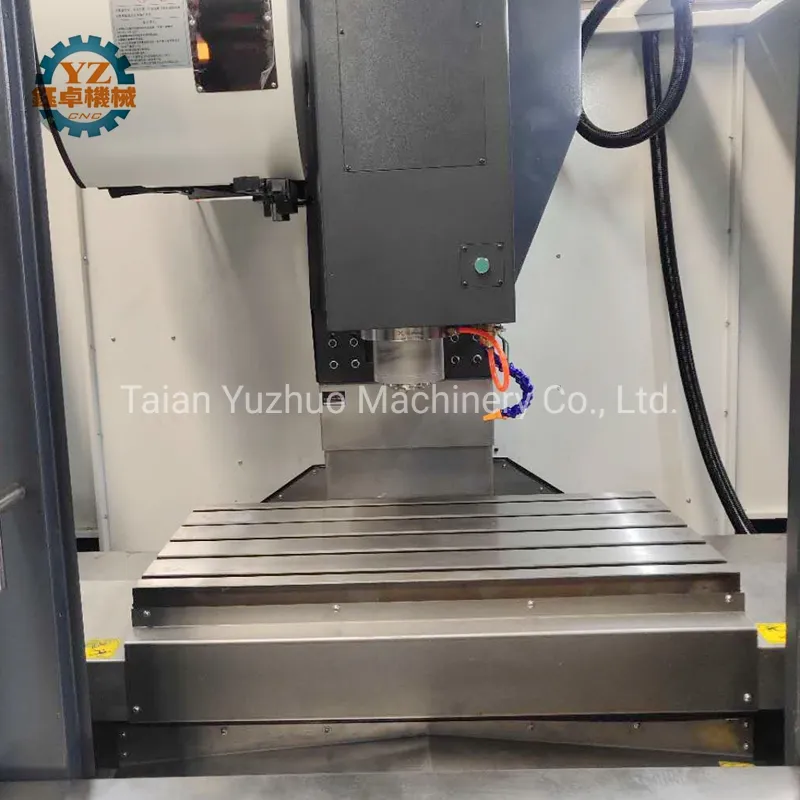

Table	Table size	800×400mm
	Max load	350Kg
	Table surface to floor	840 mm
	T slot	3×18×125mm

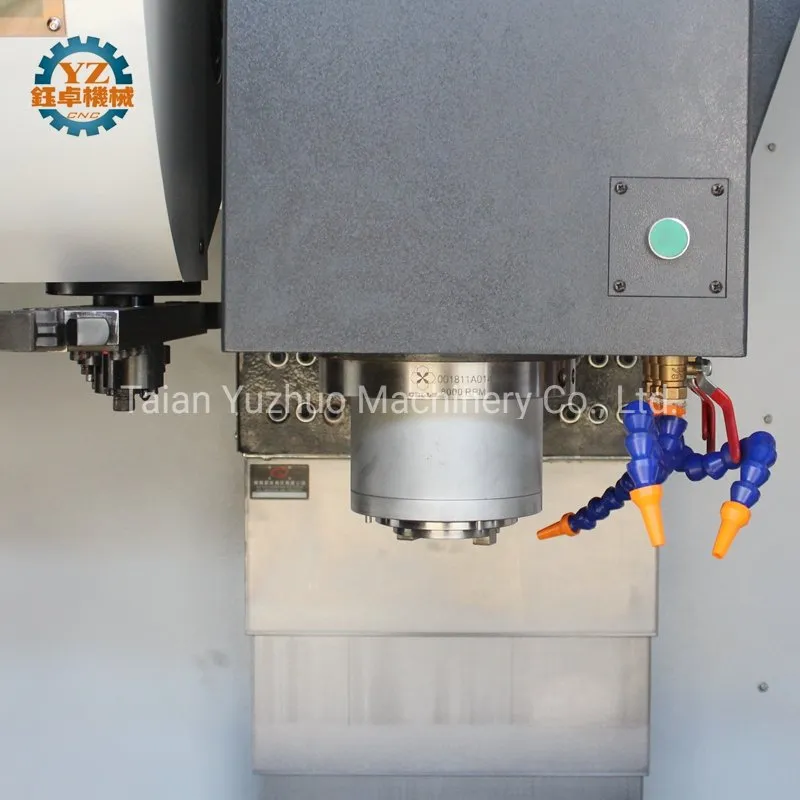

Spindle	Type	Belt
	Speed	8000 rpm
	Spindle taper	BT40
	Main motor	5.5KW
Accuracy	Accuracy (JIS)	±0.005/300mm
Accuracy	Repeatability (JIS)	±0.003mm
Other	Weight	3100 Kgs
Other	Size	2300×1950×2300

Standard accessory	Optional accessory
Fanuc-0i-mate-MD	Mitsubishi M70/GSK218M
full enclosure machine guard	Arm type tool changer

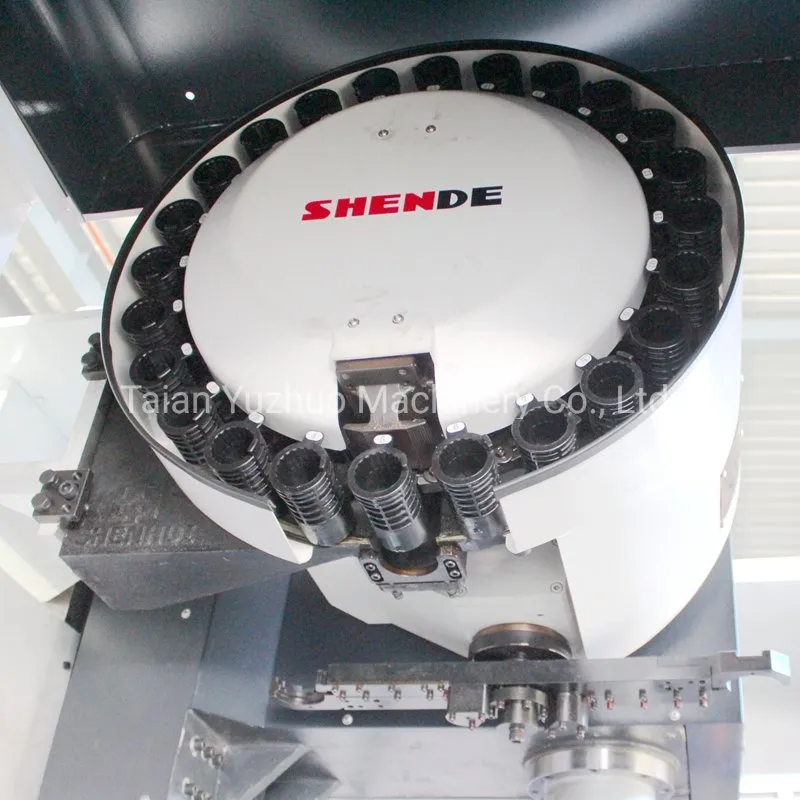

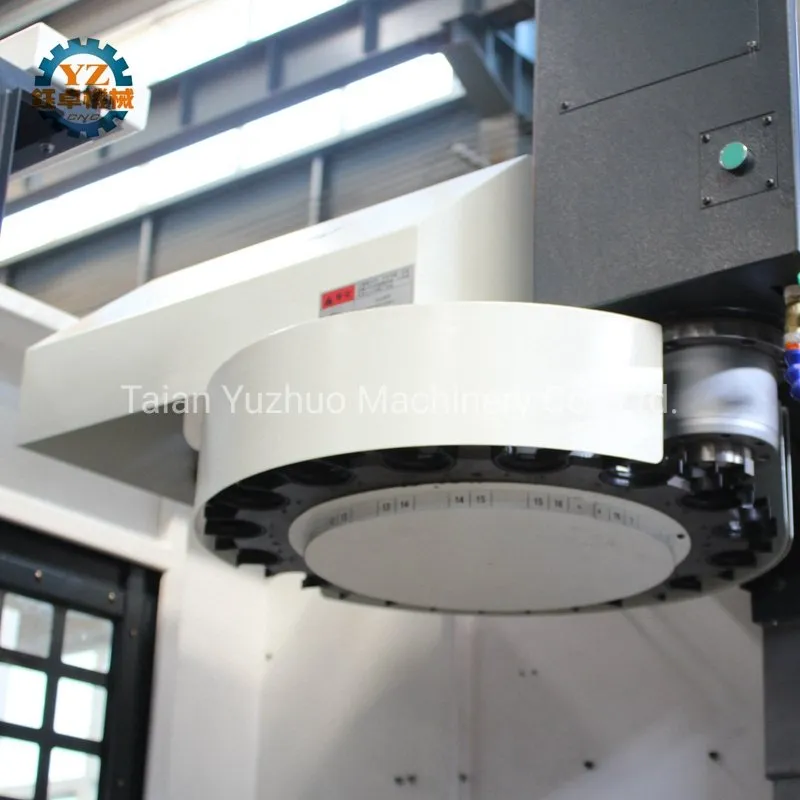

Funnel type ATC	chip cart
automatic central lubrication system with alarm	4th axis
Z axis counter-balance weight	Metrol tool setters
spindle cooling unit	transformer to suit local power supply
spindle side air blow nozzle&coolant nozzle	screw type chip conveyor
machine window with safety glasses
rigid tapping
auto power off
3 colours warning lamp
work lamp
leveling pads&bolts
operation manuals
tool holder and pull stud

Company details
mainly produce cnc lathe, cnc machining center, cnc milling machine, cnc slant bed lathe, cnc turning center, cnc wheel repair lathe , cnc big bore pipe threading lathe machine
