High Precision The Smallest 5 Axis Desktop CNC Pocket Nc Milling Machine Wzv3

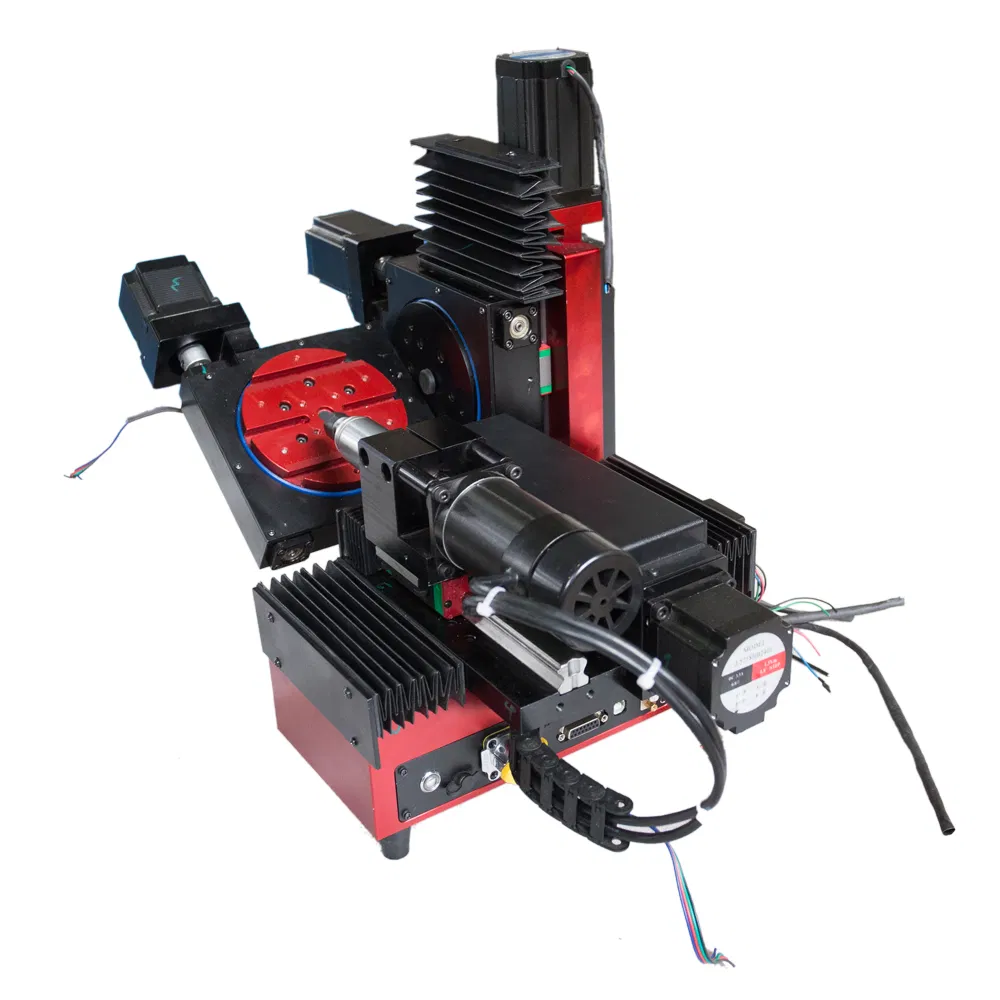

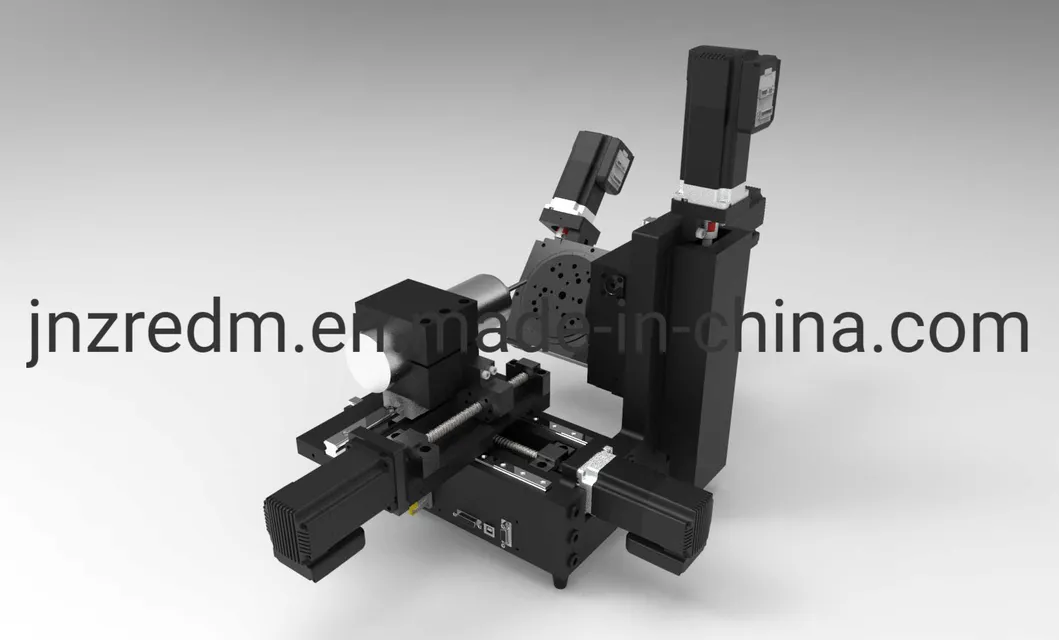

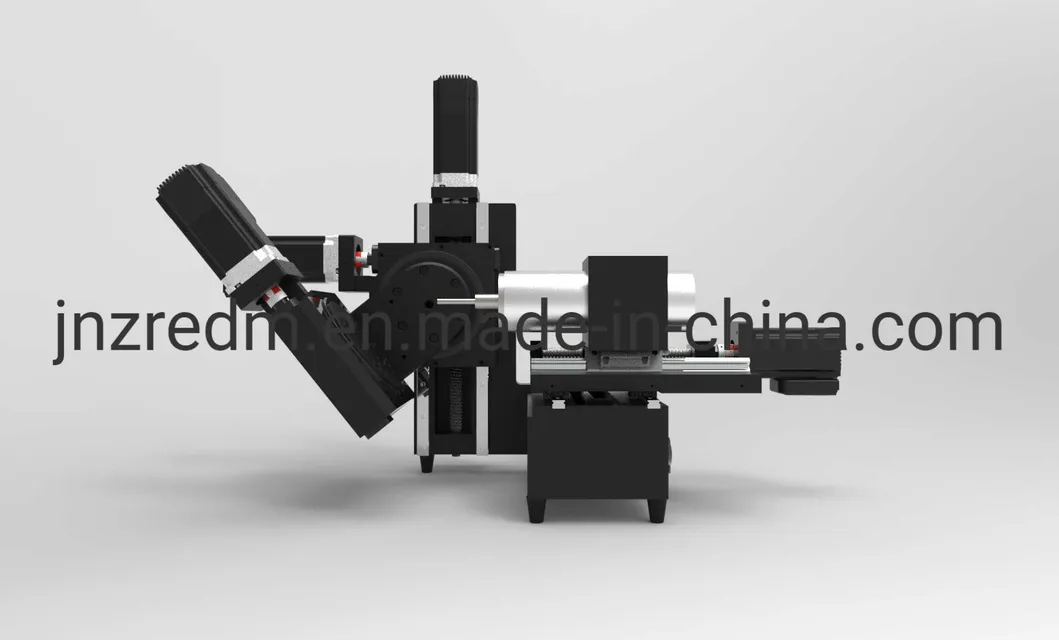

5 Axis Desktop CNC Pocket NC Milling Machine

Fit for personal inventor, digital education and low cost production. The Pocket 5 axis CNC can be used everywhere on the table, low cost quick design to production

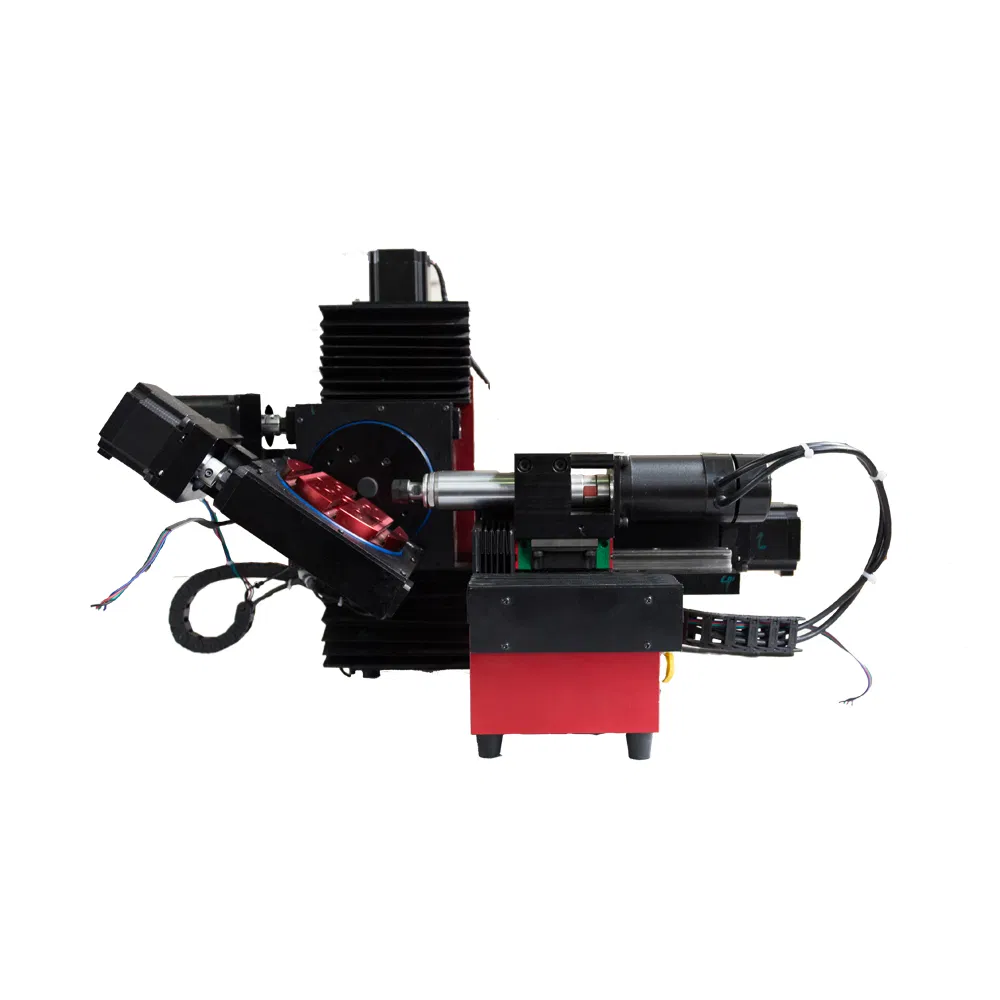

Pocket NC is 5 axis digital machine tool. Controlled by Windows system, use CAD or CAM to mill. Pocket NC support G code control as well. As pocket size, five axis motor main axis have speed 0-24000rpm, enough for professional designer basic application.

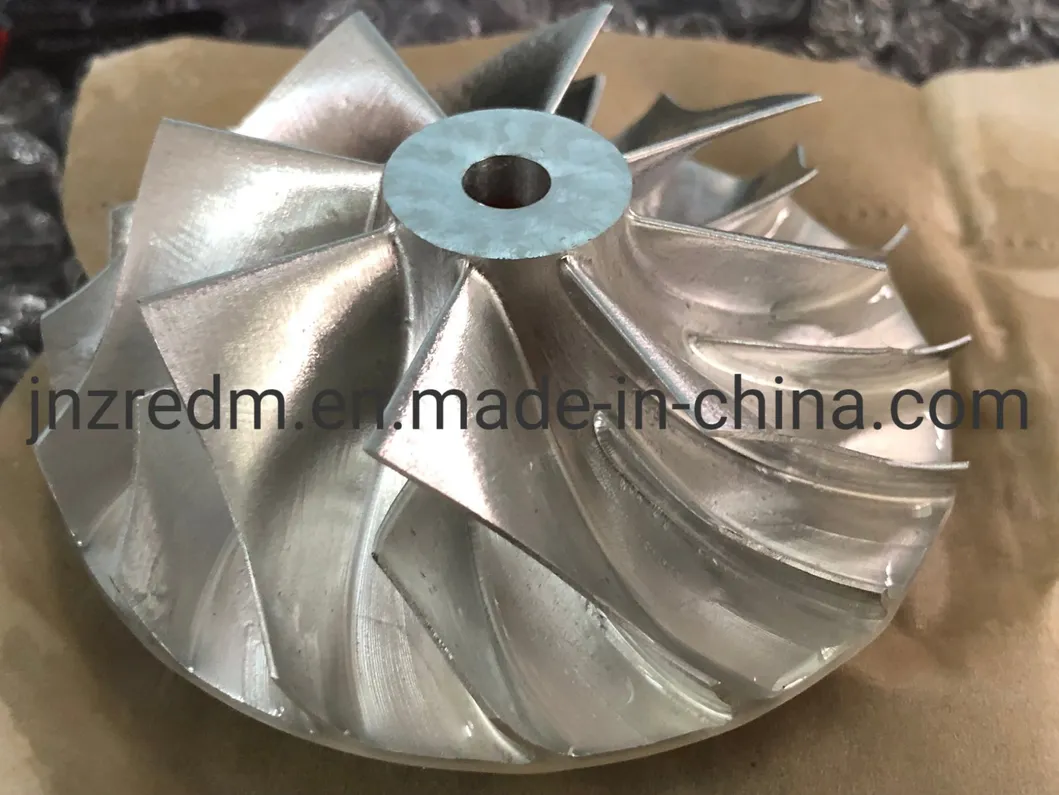

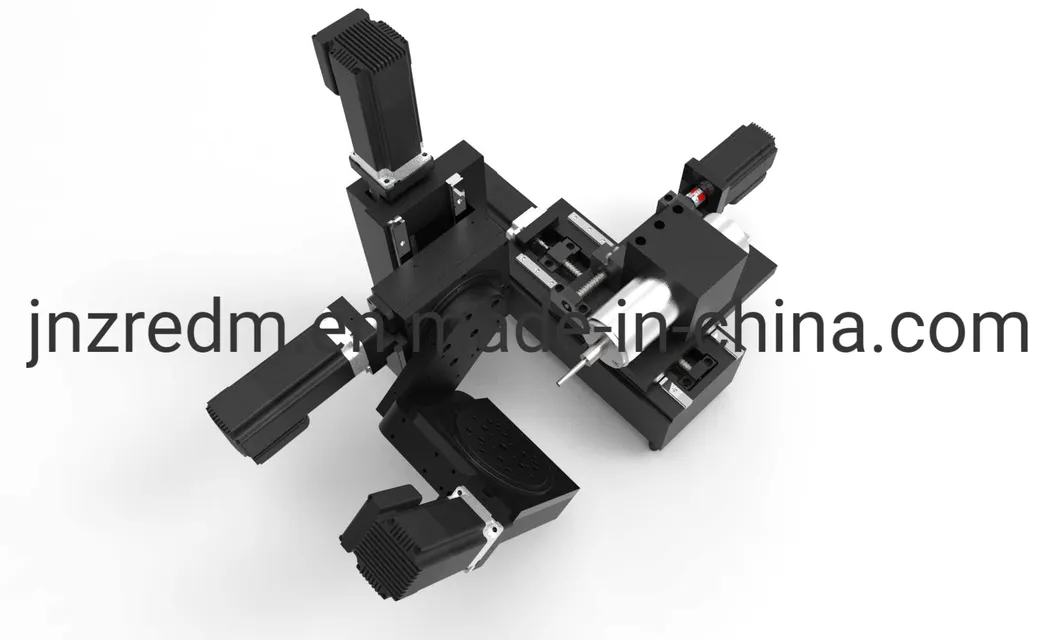

Pocket NC support to mill material as common plastics, Al alloy, Wood, Copper, Gold, Silver, Wax, different materials can use different tool bit, without use wrench, easy operation.

Technical Specs

Total dimension	650×400×450mm	Table dimension	140×130mm
Total weight	45Kg	Max table weight	10kg
X,Y,Z axis effective movement	X160×Y200×Z125	A,B rotating effective movement	A:±110°,C:360°
Effective Machining area	X150×Y150×Z125	A,B axis rotating data	1:50 grinding worm reducer and cross rolling rotating bearing
Three axis ball screw	X&Z:1204 C7, Y:1605 C7	Linear guide	X:Hiwin MGN12, Y:Hiwin MGN15, Z:Hiwin HGH20
Frame	6061T6 aviation Al + stressed parts steel No.45	Machining speed	2500mm/min (different material different speed)
Main axis Type	65mm Φ800W electrical axis 24000r/min	Parts fixture	Steel fixture, reservation hole er50 fixture stand, 63 80
Dustproof	Organ dustproof + oil seal dustproof (rotating table waterproof)	Tool dimension	ER11 0-7mm
Material	plastics, Al alloy, Wood, Copper, Gold, Silver, Wax, etc.

Detailed Parameters

	X Axis		Y Axis		Z Axis
*Max speed*	98.4 ipm (inches per minute) 2500mm/min		98.4 ipm 2500mm/min		98.4 ipm 2500mm/min
*Resolution*	0.00024in 0.001mm		0.00024in 0.006mm		0.00024in 0.006mm
*Max movement*	6.57in(-2.95~3.62in) 167mm(-75~92mm)		8.38in(-3.54~4.44in) 213mm(-90~113mm)		8.46in(-0~0.1in) 215mm(-0~8.46mm)
*Homing reset repeatability*	±0.000039in 0.001mm		±0.000039in 0.001mm		±0.000039in 0.001mm
*Repeatability*	load:0%	±0.0011in ±0.03mm	load:0%	±0.0011in ±0.03mm	load:0%	±0.0011in ±0.03mm
	A Axis		B Axis	Main Axis
*Max speed*	41.6°/s		41.6°/s	*Main axis speed*	0-24,000 rpm
*Resolution*	0.08°		0.08°	*Output*	800W
*Max movement*	±110°		360°	*Tool change*	3mm hexagon spanner
*Homing reset repeatability*	±0.03°		±0.03°	Electrical motor frequency	400Hz
*Repeatability*	0%Laod ± 0.03°		0%Load± 0.03°	*Tool*	ER11 tool fixture, max 7mm
*Jump*	<0.02"		<0.02"
*Machine control*
Software For Pocket NC			Tool software: including post processor Autodesk Fusion360 (recommended) Support Poermill

Feature

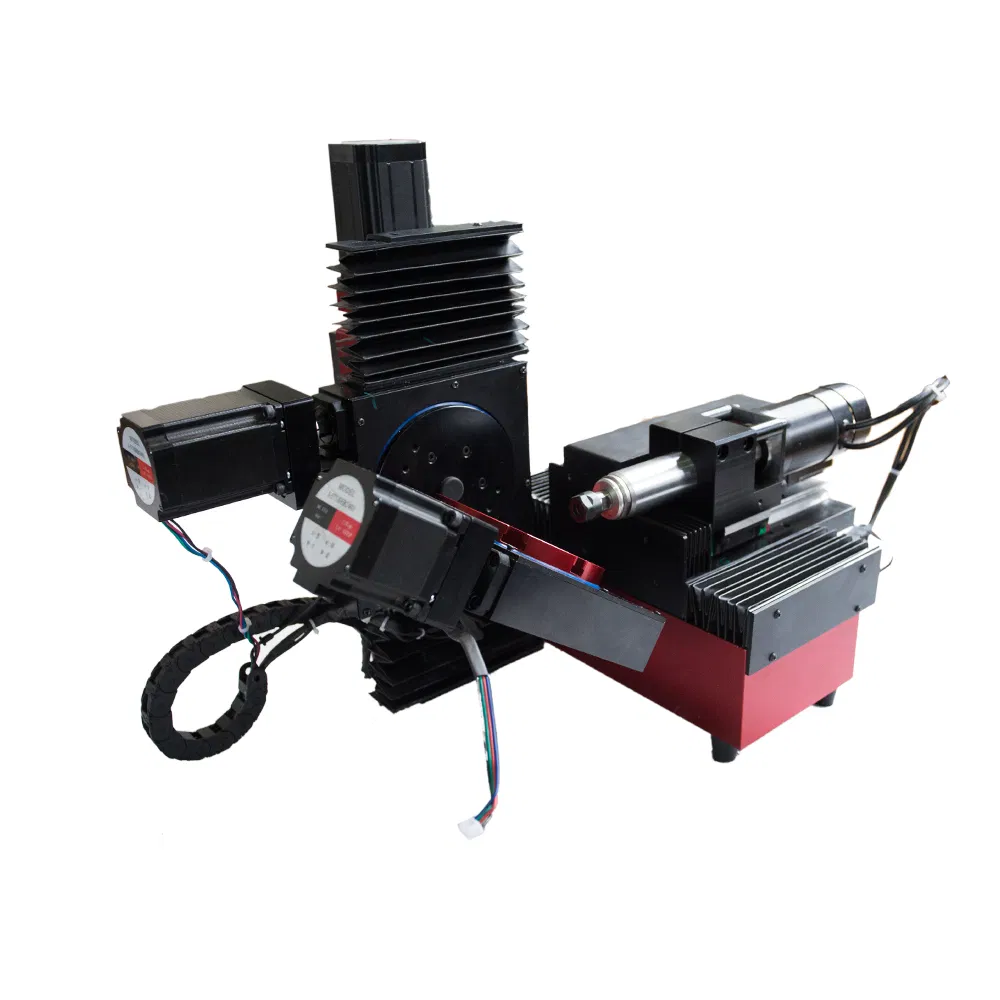

V3 is upgrade of V2 version, improve to machining copper and Al, stressed parts change to Steel No.45, rotating axis bearing change to cross rolling bearing, machining reserve position holes, easy adjustable. Y axis change to bigger guide screw. Main axis change from 400w no power to 800w electrical axis. Less noisy and less heat, bigger power and speed. Under V3 version, Al machining can use 6mm milling cutter 0.2~0.3F1500, present V2 version only 3mm 0.2F1000, more efficiency and performance, five axis change from V2 120mm*90 to V3 150mm*125mm, rotating axis is waterproof (oil seal waterproof), can be used as spray cutting processing, more suitable for metal and jade.

High Precision The Smallest 5 Axis Desktop CNC Pocket Nc Milling Machine Wzv3
