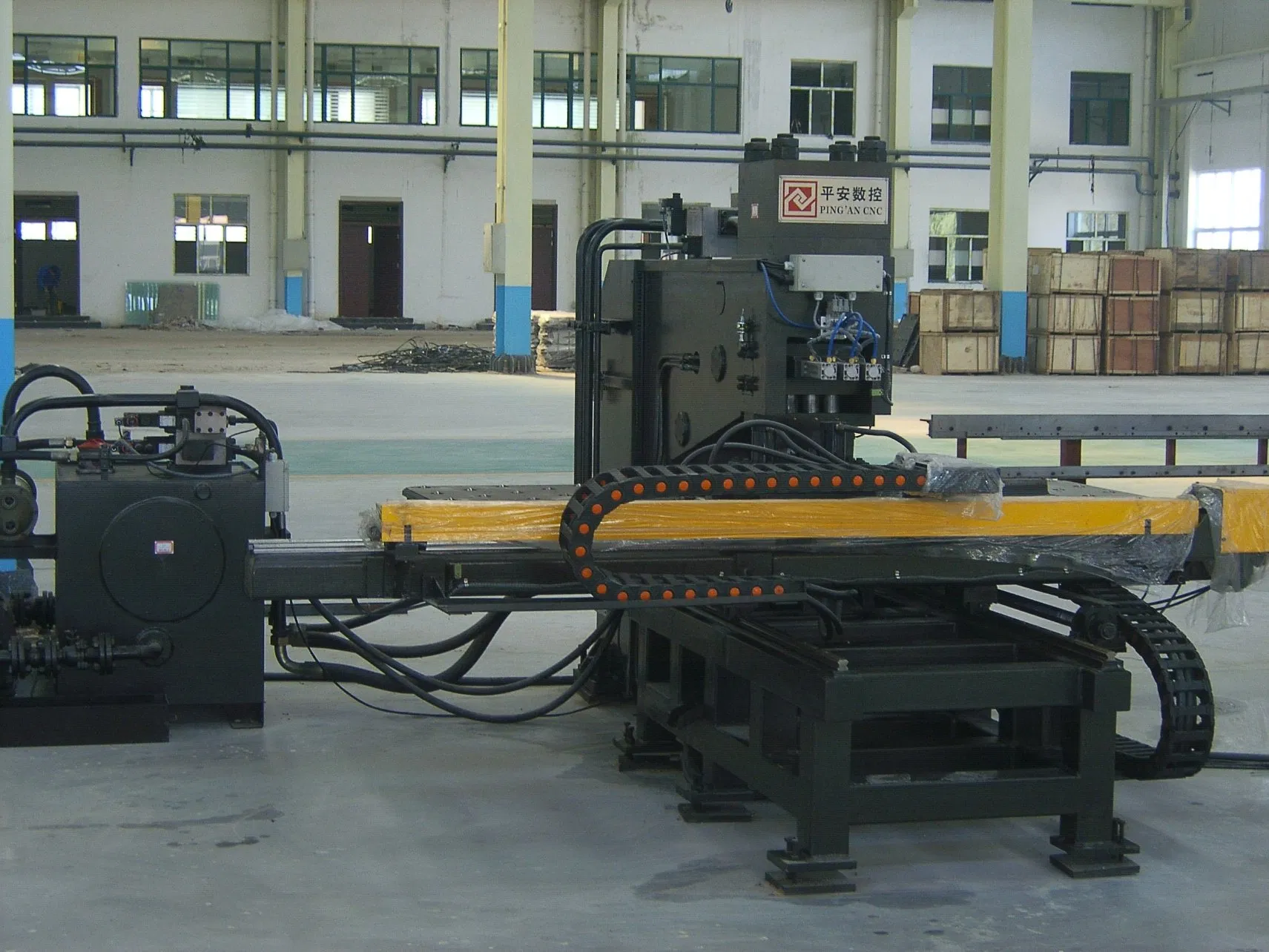

High Speed CNC Drilling Machine for Joint Plates

Product Description

Function
For drilling metal sheet in the industry of steel structure, power tower.
Feature

The bed is made of high quality gray cast iron with stable performance and no deformation.
Has four working area, which can drill and unloading workpiece at the same time,

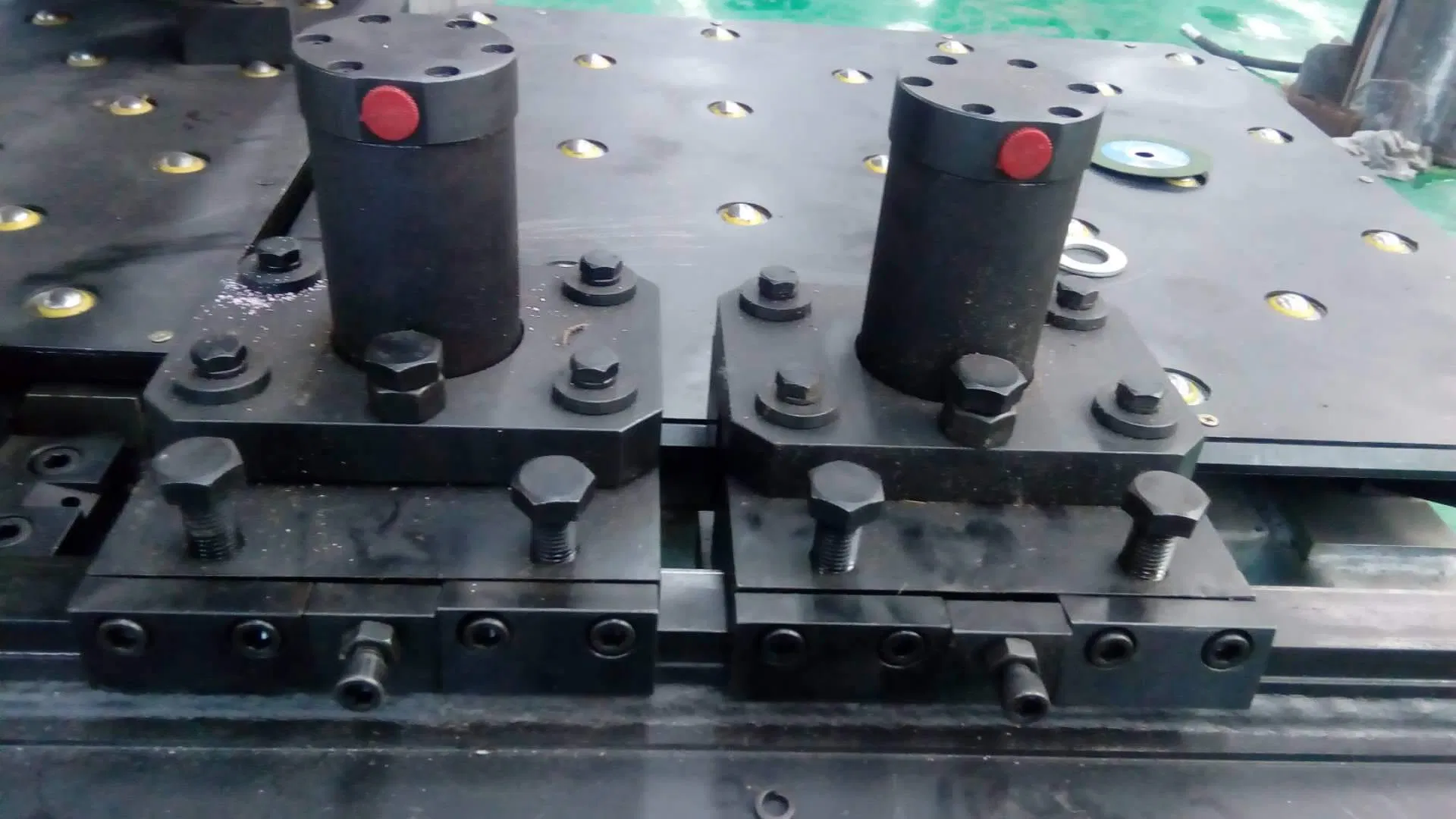

The working table has 12 hydraulic pincer, those pincer which can move quickly and can load single or overlapping workpiece at a time.

Equipped with one two set of high capacity linear guide, AC servo motor, ballscrew and synchronous belt at both sides of machine bed to ensure the moving accuracy of gantry bracket.
The power head is controlled by hydraulic sensing system to automatically perform fast forward, work-in, fast-return conversions, so no need to set the driller length and workpiece thickness by manual.
The main spindle gear reducer are imported from Germany and has high working performance.
Electric system is controle by siemens to ensure the high working accuracy and good working quality.
Equipped with Network port, it's more convenient to detect, repair and control machine through network
It is equipped with monitor function. When has fault, detailed cause and solution will be displayed on the screen.

Technology parameter

Model	Unit	PCD2012	PCD2016/2		PCD 2020/2			PCD3016/2
Processing size L×W	mm	2000x1200	2000x1600		2000x2000			3000x1600
Drilling thickness	mm	15-100
Qty. of spindle	Pcs	1	1/2		1/2			1/2
Speed of spindle	r/min	120-560 Infinitely variable speed
Feeding mode		Driller driven by the hydraulic control stroke
Feeding stroke	mm	180
Drilling dia.	mm	Φ12-Φ50(Optional: Φ12-Φ63)
Motor power	KW	5.5(Optional7.5)
Qty. of clamping cylinder	Pcs	12
Clamping force	KN	7.5
Clamping mode		Double side button control in Gantry
Hydraulic pump pressure	MPa	6
Volume of oil tank	L	100
Control mode		Siemens control system /PLC+ Host computer
X-axis servo motor	KW	1.5	2x1.5
Y-axis servo motor	KW	1.5	1.5
Precision of positioning	mm	±0.2	±0.2
Precision of repeating positioning	mm	±0.1	±0.1
Cooling mode		Circulation water cooling
Chip removal mode		Auto chip remover
Dimension(mm)		3160x2800x2370				4160x2400x2370
Weight(T)		5.2	7	7.5	8.5		9	9.5	10
