China PLC Control System Vertical Metal Milling Machine CNC 3 Axis

Product Description

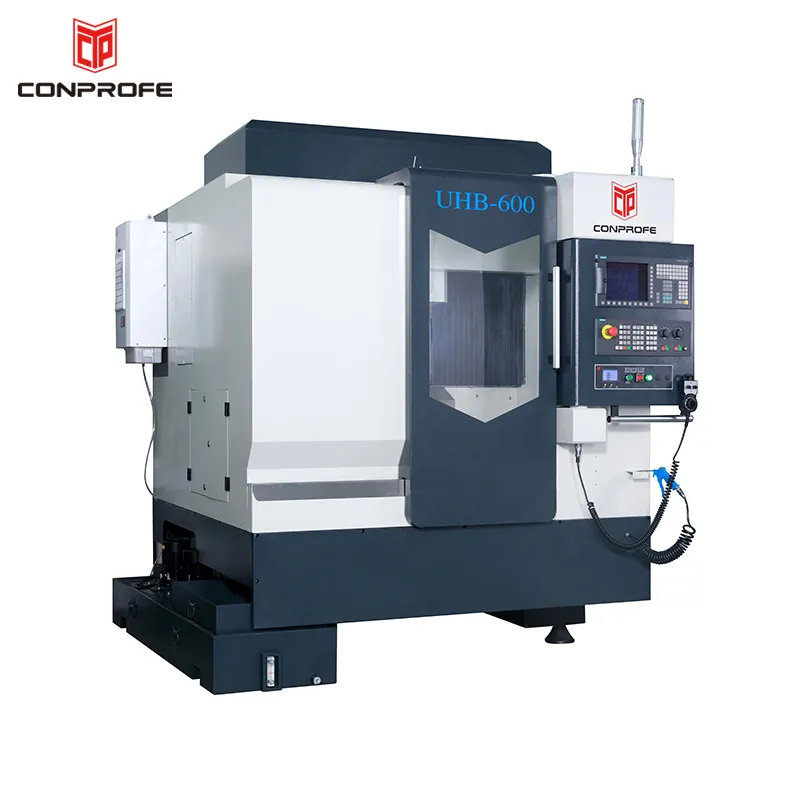

Plc Control System Vertical Metal Milling Machine Cnc 3 Axis

UHB 600 Specifications
System	SIEMENS 828D-280
Product Name	Conprofe High Precision Ultrasonic Machining Cente
Work table	Dimension	620x560
Work table	Max.Load	300
Travels	Max.Travel in X-/Y-/Z-axis	600x500x300mm
FeedRate	Rapid Traverse in X-/Y-/Z-axis	15/15/12m/min
Spindle	Diameter	120mm
	Power Rating	7.5kW
	Max.Speed	30000rpm
Magazine	Tool Capacity	13Positions
	Tool Holder Spindle	HSK-40E
	Tool Overhang	90mm
Accuracy	Positioning Accuracy in X-/Y-/Z-axis	0.005mm
Accuracy	Repeatability Accuracy in X-/Y-IZ-axis	0.003mm
Power and Dimensions	PowerSupply	3-phase AC, 380V/50Hz/25A
	Weight	5000kg
	Required Compressed Air Connection	≥0.6MPa

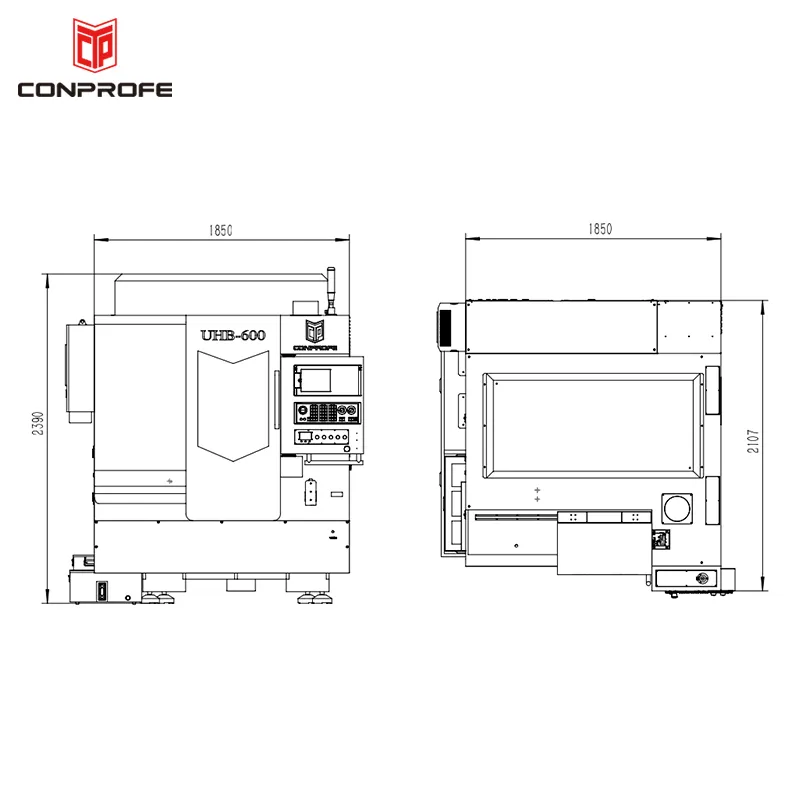

	Dimensions(X/Y/Z)	2160 × 2090 × 2390mm

Our Advantage:

1.Excellent dynamic machining
2.Easy operation offered by Siemens 828D-280 system (with Top Surface)
3.Highly rigid gantry structure for optimal structure

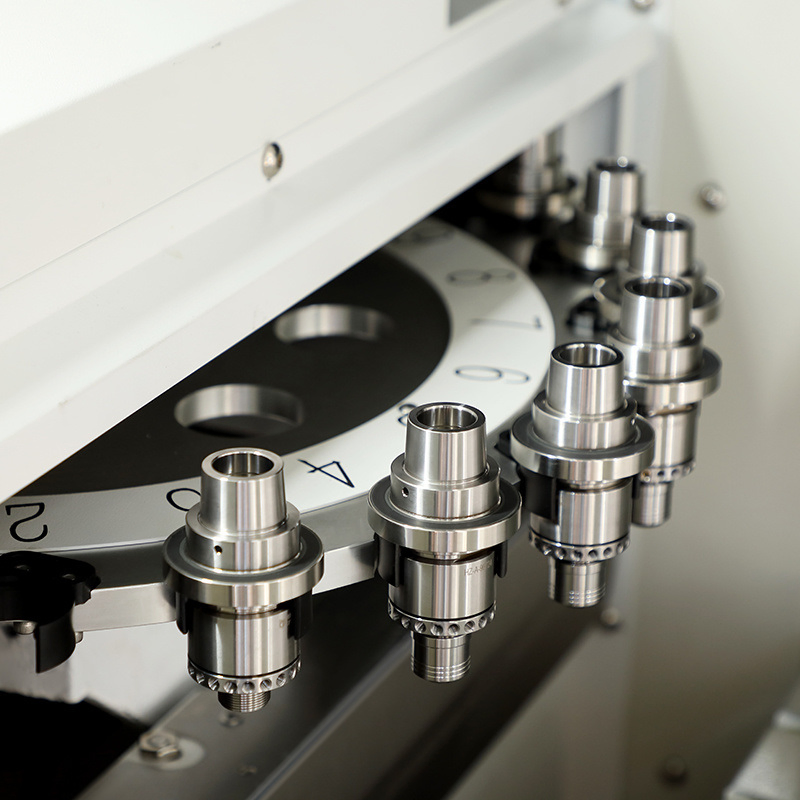

4.Quick tool change delivered by the servo umbrella type tool magazine

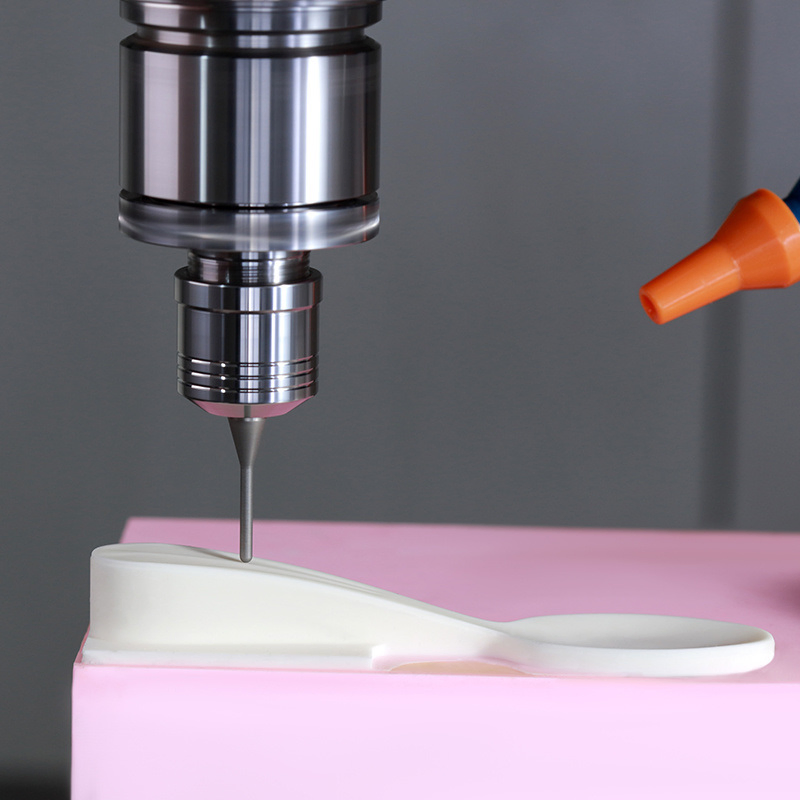

5.Integrated ultrasonic technology for better surface quality and tool life
6.Multi-angle machining with just one clamping can be realized by adding the 4th/4.5th axis (optional)
7.3D probe function can be added to realize on-line deviation correction and avoid deformed workpieces (optional)
