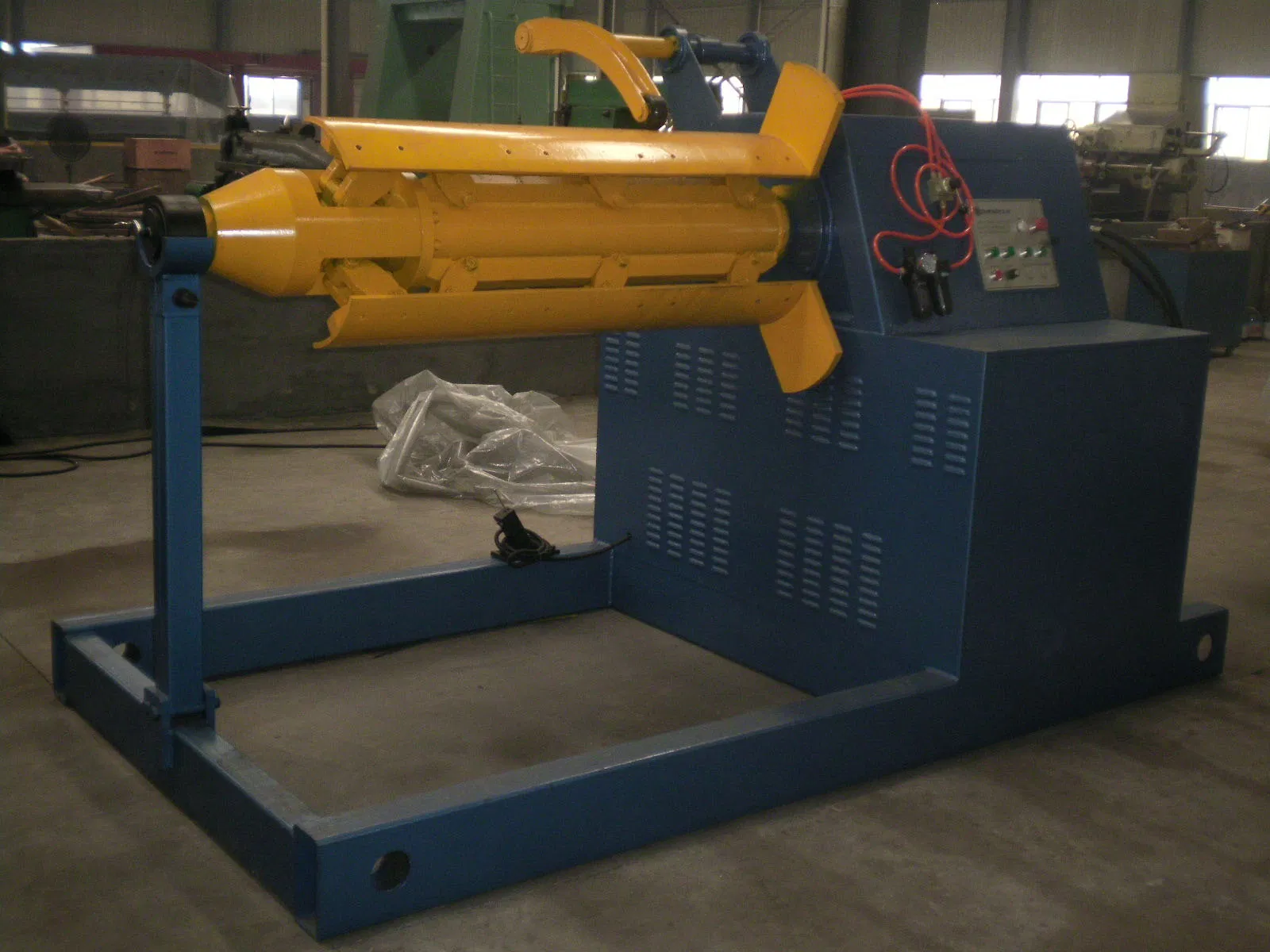

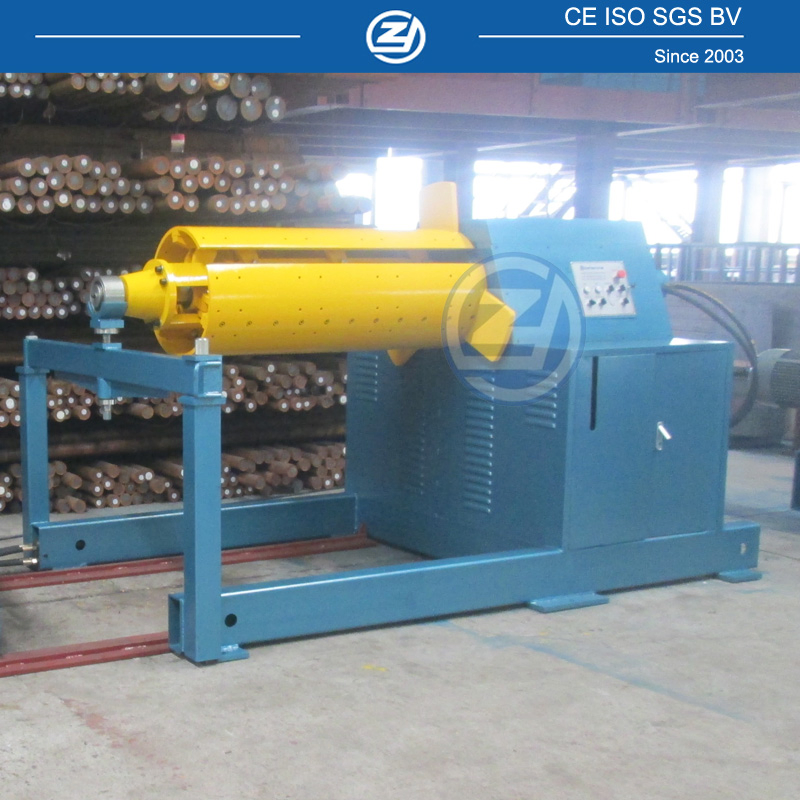

10 Ton Steel Coil Automatic Hydraulic Uncoiler Feeding Device for Roll Forming Machine with ISO9001/Ce/SGS/Soncap

Manufacturer Lifetime Service!


Why choose this hydraulic decoiler?
1. Can be Customized
2. ISO, CE, SONCAP certificate
3.24 months warranty, 24 hours service, lifetime technical support
4. Design by senior R&D members who have 15 years experience in designing roll forming machine.
5. Electric elements: Mitsubishi PLC & transducer from Japan.
6. Technician can be sent to your factory to install the machine and train your workers


5T and 10T automatical hydraulic decoiler can be choosed here, coil car for option.

Deciler Technical Parameters:
Max loading capacity 5t or 10T
Suitable coil ID φ 508mm
Suitable material width (max. ) 1250mm
Suitable coil OD (max. ) φ 1000mm
Press arm yes
Motor power 5.5Kw X 2
Electric condition 380V/3Phase/ 50Hz
Decoiling type motor driving
Separate converter and screen yes
Coil car for option
