Shutter Door Roll Forming Machine
YX15-85 Shutter Roll Forming MachineProfile:Layout:Manual de-coiler-Feeding-Roll Forming-Cutting-Out tableSpecifications:Item NODescriptionOffered specification1Roll Forming MachineShutter2Coil widthAccording the profile3Rolling Speed12-15m/min(not include cutting time)4Rolling Thickness0.8-1.0mm GI......
Send Inquiry
Product Description

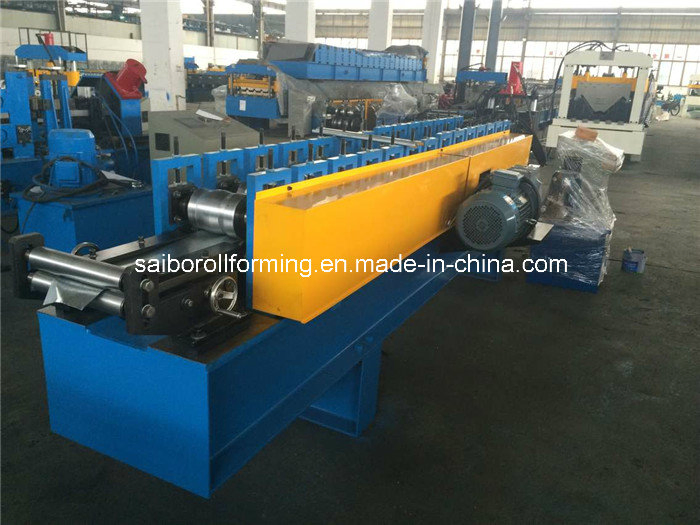

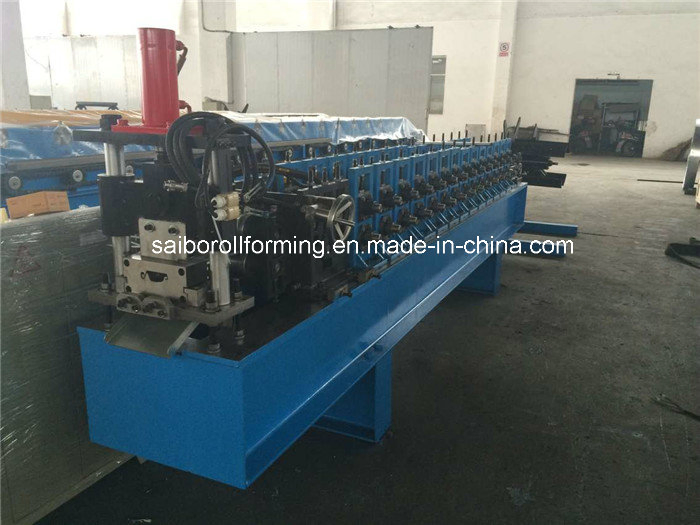

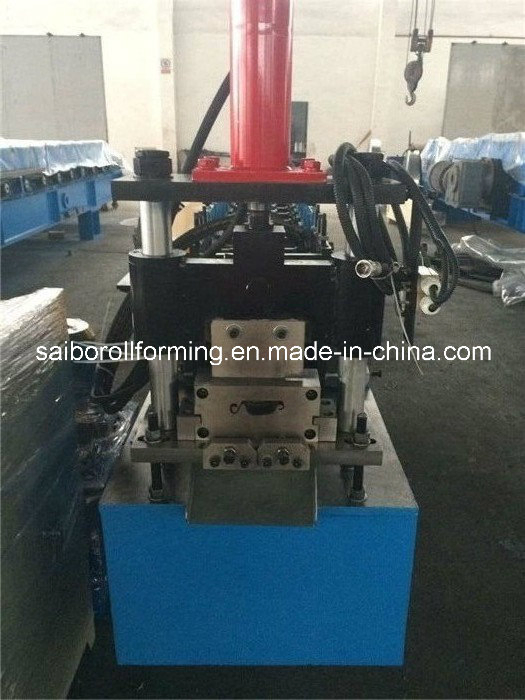

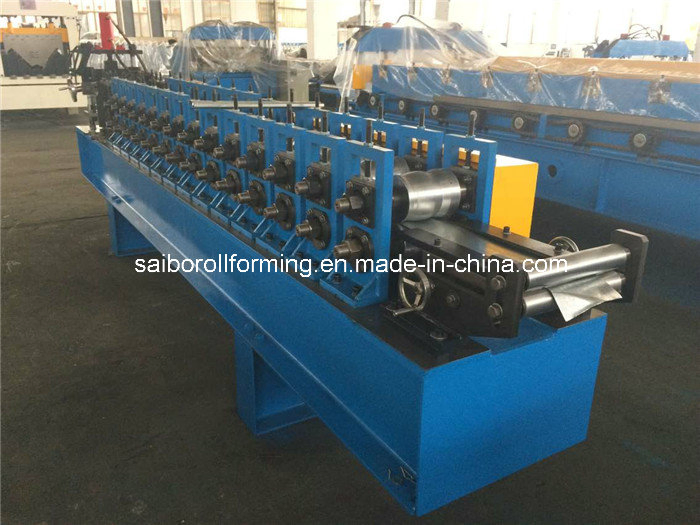

YX15-85 Shutter Roll Forming Machine

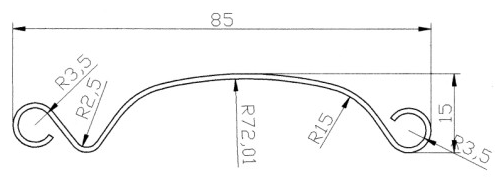

Profile:

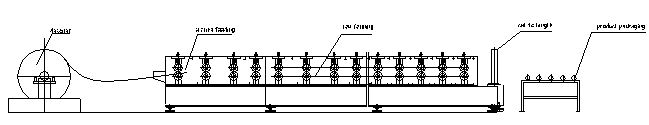

Layout:

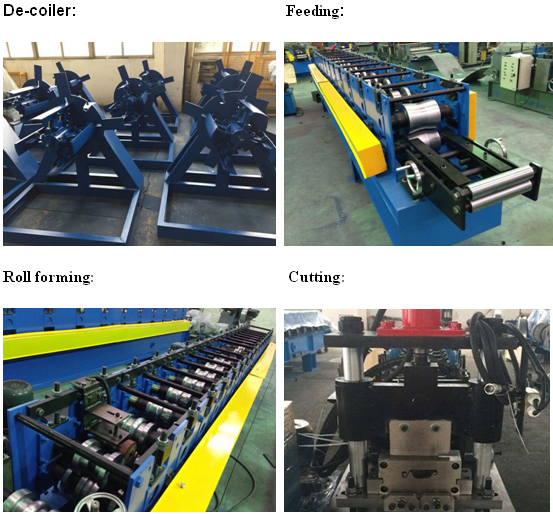

Manual de-coiler-Feeding-Roll Forming-Cutting-Out table
Specifications:
| Item NO | Description | Offered specification |
| 1 | Roll Forming Machine | Shutter |
| 2 | Coil width | According the profile |
| 3 | Rolling Speed | 12-15m/min(not include cutting time) |
| 4 | Rolling Thickness | 0.8-1.0mm GI |
| 5 | Control System | PLC (Panasonic) as list in the note |
| 6 | Un Coiler | 3T manual decoiler |
| 7 | Pre-cutting | By manual |
| 8 | Roller Stations | About 12 stations (according the final design) |
| 9 | Roller Material | 45# forge steel, coated with chrome |
| 10 | Shaft Material and DIA | ¢56mm, material is 45# forge steel |
| 11 | Post cutting | Hydraulic cutting after forming |
| 12 | Maim Motor Power | 5.5kw |
| 13 | Hydraulic Station Power | 3kw |
| 14 | Hydraulic Pressure | 10-12Mpa adjustable |
| 15 | Material Of Cutting | Cr12Mov quenching 58-62ºC |
| 16 | Structure Of The Stations | Wire-electrode cutting |
| 17 | Tolerance | 3m+-1.5mm |
| 18 | Electric Source | 380V, 50HZ,3 phase According to customer's require |
| 19 | Way Of Drive | By chain |
| 20 | Color Of The Machine | Yellow and blue |
Servies
Saibo's Online Service.
Saibo's Online Service.
Saibo Machinery Services Online gives you fast and easy online access to your Installed Base to order your SAIBO original spare parts and explore the Options & Upgrades relevant for your line.
It is a user-friendly interface, available 24/7, in 9 languages, and is your one-stop online shopping. Designed to make your life easier in your day to day business, it will help you to improve your line and maintain its performance.
SAIBO Services Online helps you:
It is a user-friendly interface, available 24/7, in 9 languages, and is your one-stop online shopping. Designed to make your life easier in your day to day business, it will help you to improve your line and maintain its performance.
SAIBO Services Online helps you:
1 - Machine running video
2 - Watch our factory online
3 - Supply a running line in your country, you can see the machine running directly.
Since we built your line, we have a comprehensive understanding of its design, and our engineering experts can analyze equipment and processes to determine how to strengthen performance. As new technologies and solutions are introduced to the market, we ensure that your production benefits accordingly, so you can stay on target in a changing, competitive marketplace.
Options & Upgrades helps you:
2 - Watch our factory online
3 - Supply a running line in your country, you can see the machine running directly.
Since we built your line, we have a comprehensive understanding of its design, and our engineering experts can analyze equipment and processes to determine how to strengthen performance. As new technologies and solutions are introduced to the market, we ensure that your production benefits accordingly, so you can stay on target in a changing, competitive marketplace.
Options & Upgrades helps you:
1 - Boost product quality
2 - Increase efficiency
3 - Reduce Total Cost of Ownership
4 - Future-proof your productivity
5 - Browse our online catalog
Packing & Delivery
2 - Increase efficiency
3 - Reduce Total Cost of Ownership
4 - Future-proof your productivity
5 - Browse our online catalog

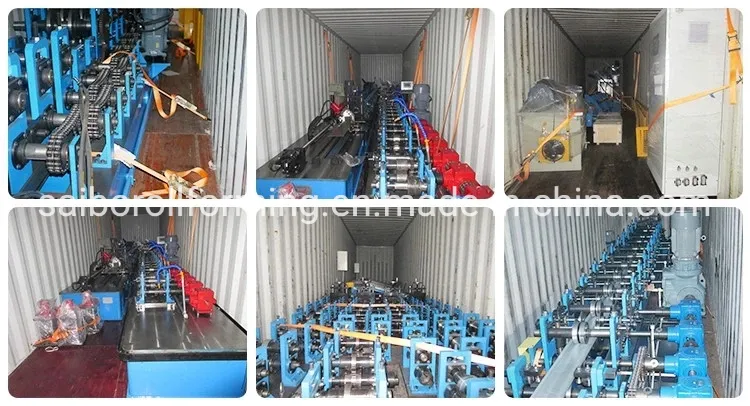

Packing & Delivery
Packing & Delivery | |
Packing | 1. We wrap the machine with film, then covered with one wooden case. |
2. Wooden case and pallets will be used subject to different models and shipping methods. | |
3. Customized package solutions offered as per customer requirements. | |
Delivery | 1. Sea shipping. |
2. Air shipping for sampling. | |
3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry. | |

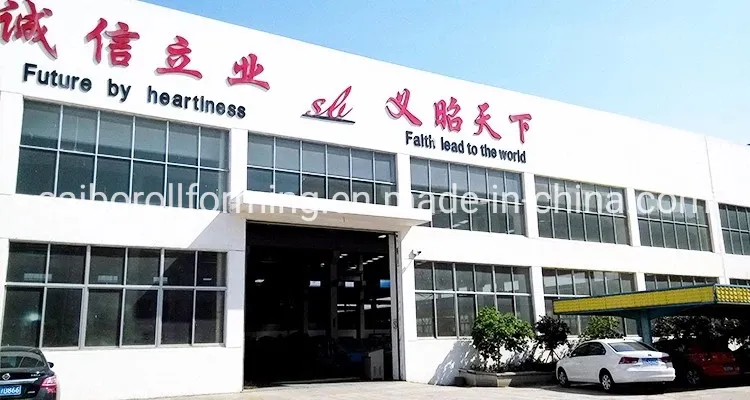

About Saibo
Saibo Science & Technology - 20 Years Experience Manufacturer in Developing and Exporting.
Zhangjiagang City Saibo Science & Technology Co., Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of the different kind purlin/channel which makes from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in Zhangjiagang city, Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality, through design, and installation. Our goal is" future by heartiness, faith leads to the world".
International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Saibo Machinery.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality, through design, and installation. Our goal is" future by heartiness, faith leads to the world".
International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Saibo Machinery.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
