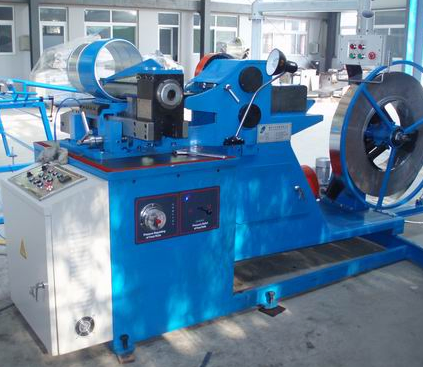

Spiral Tube Former/Spiral Duct Former (MHTF-1602) Machine
Spiral duct machine modle MHTF-1602 with fast speed, more wide diameter range, different aluminum mould based on customer choice.Performance:1. Special mould for various tube diameters, very easy to change and adjust, no need large manpower, large mould for choice.2. High speed sychro flying cutting......
Send Inquiry
Product Description
Spiral duct machine modle MHTF-1602 with fast speed, more wide diameter range, different aluminum mould based on customer choice.
Performance:
1. Special mould for various tube diameters, very easy to change and adjust, no need large manpower, large mould for choice.
2. High speed sychro flying cutting system.
3. PLC control, convinent operation.
4. Light and small, site work.
5. Perfect swage, without leakage.
Performance:
1. Special mould for various tube diameters, very easy to change and adjust, no need large manpower, large mould for choice.
2. High speed sychro flying cutting system.
3. PLC control, convinent operation.
4. Light and small, site work.
5. Perfect swage, without leakage.
| Diameter range | 80-1600mm |
| Thickness of strip | 0.4 -1.3mm Glvanized steel |
| 0.8mm Sinless steel | |
| 0.4-1.2mm Auminum | |
| Strip Width | standard 137mm up to 1mm thickness, 140mm above. Other widths on request. |
| Lockseam | Outside tube, on the inside on request. |
| Production speed | Max. 60 meters/min. depending on material |
| Cutting system | The pqtented flying slitter |
| Net weight | 2900kg |
| Gross weight | 3200kg |
| Machine dimension | 3000mm*1950mm*1700mm, |
| Package dimension | 3050mm*2000mm*1800mm |
| Options | Automatic length control system, controlled corrugation unit. METU flange slitter Saw blade cutter |
