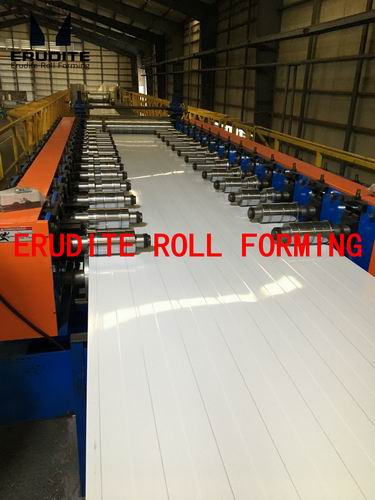

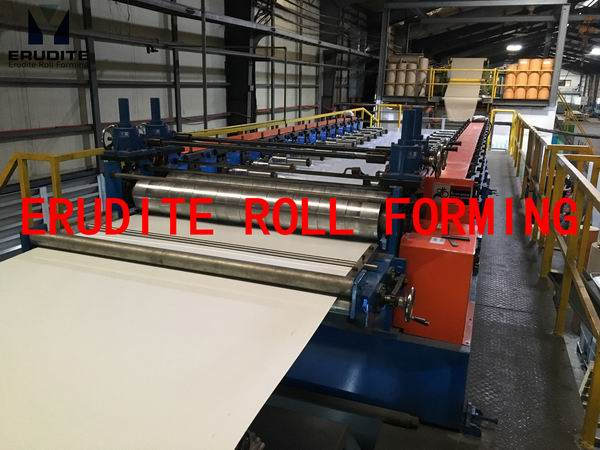

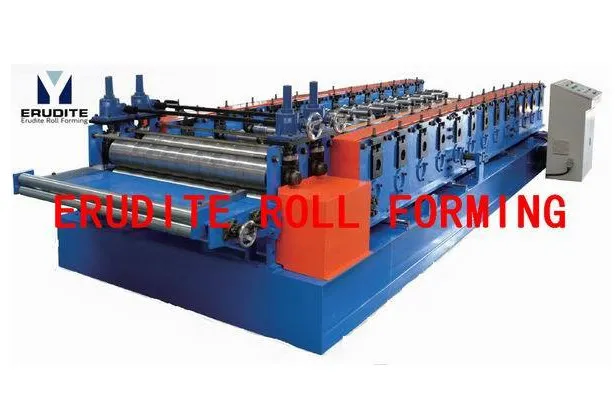

Yx15 -999/1150 Roll Forming Machine for The Inner Profile of Sandwich Panel

Product Description

YX15-999/1150 ROLL FORMING MACHINE FOR THE INNER PROFILE OF SANDWICH PANEL

If customization:Yes
Series:Roll forming machine for the inner profile of sandwich panel
Type:YX15-999/1150
Brand:Erudite roll forming

YX15-999/1150 ROLL FORMING MACHINE FOR THE INNER PROFILE OF SANDWICH PANEL

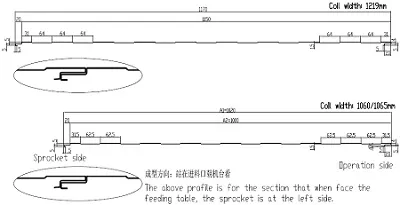

Profile:

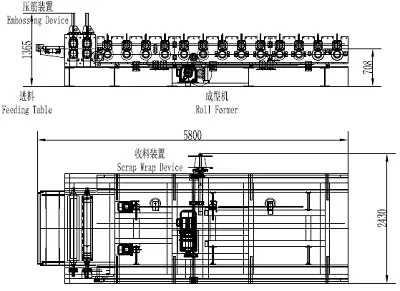

The Chart of Process Flow

Technical Parameters
The main technical parameters are for your inference only.
Only if you provide the profile required or the real objects of sectional materials, and we will offer the accurate parameters.

*(1) 5Tons un-coiler*
*Description*	*There are different choices, please turn to the catalogue of un-coiler*
*(2) The general machine parameter*
*Suitable roll forming material*	*Color steel sheet or galvanized steel sheet*
*Thickness*	*0.5mm-0.8mm*
*Feeding width*	*1060/1065/1219mm*
*Frame design*	*Wall-plate-frame-design /New-stand-frame-design*
*Roll stages*	*2+13 stages*
*Material of forming roller*	*45# steel with heat treatment, CNC lathes, Hard Chrome Coated*
*Shafts Diameter*	*Φ60/Φ70mm*
*Main motor power*	*5.5KW with reducer*
*Max. Line speed of roll former*	*6-8m/min*
*Electric Standard*	*220V /60Hz/3PH or as the customer's requirements*
*Major Color of Machine Painted*	*RAL 5015 (Blue) or as per customer's requirements*
*(3) Electric Cabinet*
*Inverter*	*Schneider or Shihlin or Panasonic brand*
*Encoder*	*Omron brand*
*(4) About us*
*Please visit the web site: eruditerfm.en.made-in-china.com for detailed information*
