    3D Engraving Wood Machines 8 Heads CNC Carver
    • 3D Engraving Wood Machines 8 Heads CNC Carver3D Engraving Wood Machines 8 Heads CNC Carver

    3D Engraving Wood Machines 8 Heads CNC Carver

    3d engraving wood machines 8 heads cnc carverFeatures 1.This machine is very suitable for mass producing of furniture accesories such as desk legs, stair handrails and others.2.The 8 spindles of this machine can work at the same time, and can also work alone. Each head can also be controlled indepe......

    Send Inquiry

    Product Description

    3d engraving wood machines 8 heads cnc carver

    Features
    1.This machine is very suitable for mass producing of furniture accesories such as desk legs, stair handrails and others.
    2.The 8 spindles of this machine can work at the same time, and can also work alone.
    Each head can also be controlled independently..
    3.Gantry movement, long time use with no distortion, higher positioning accuracy.
    4.Well compatibility with software: all kinds of 3D,4D carving.
    5. Auto Tool Changer function.
    6.We can make multi spindle heads and any working size machines according to customers' requirements.
    Application
    Stereo 3D technology,furmiture stereo feet and the cylinder, the human body,figure of Buddha,the goddess of mercy,sculpture,handicrafts,stair handrail,cylinder Musical Instruments.
    Technical parameter
    ModelJCW1325R-8H 5 Axis
    Working size1200mm ( L)* 300mm (W)* 8 rotaries
    Spindle Power3.5KW Air cooled (8pics)
    Spindle rotating18000rpm
    Max Moving speed20m/min
    Max working speed15m/min
    Reposition precision0.05mm
    Control system5 axis Syntec
    MotorServo system
    Max Burden weight1500KG
    VoltageAC380±15%,50HZ

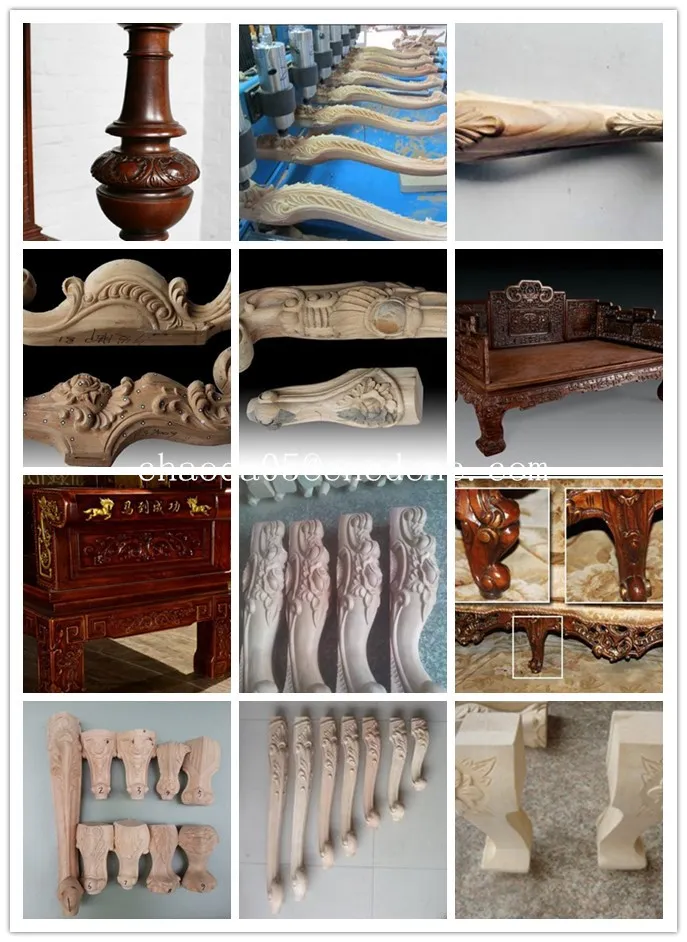

    Sample pictures:
    3D Engraving Wood Machines 8 Heads CNC Carver
    Customers learning and testing the machine:
    3D Engraving Wood Machines 8 Heads CNC Carver
    Loading:
    3D Engraving Wood Machines 8 Heads CNC Carver
