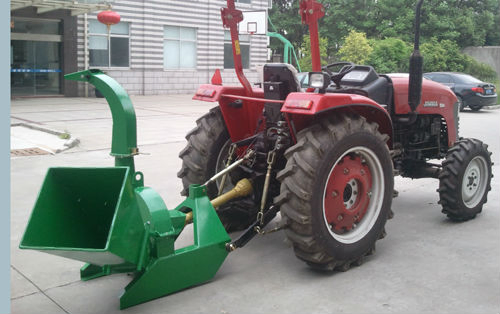

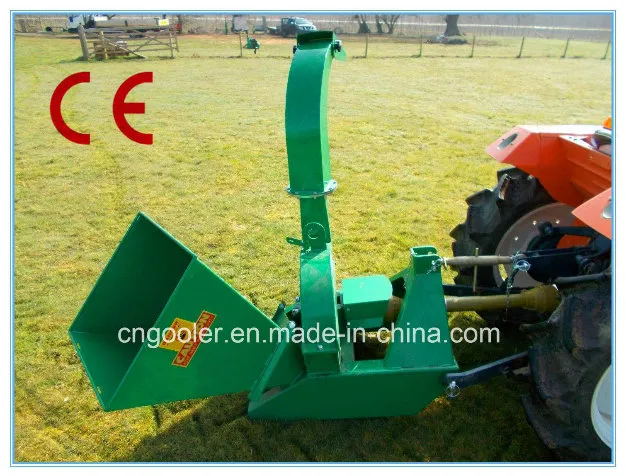

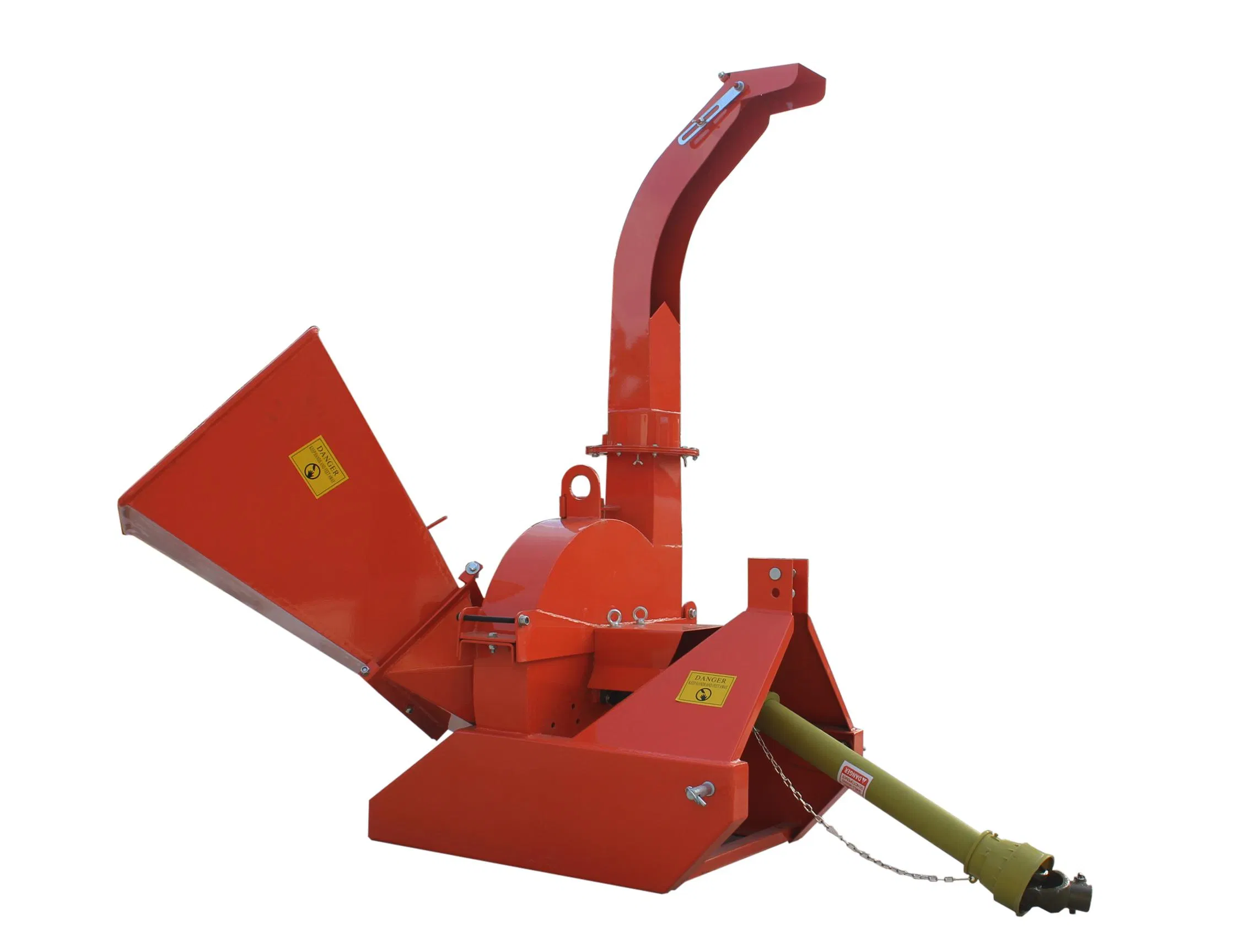

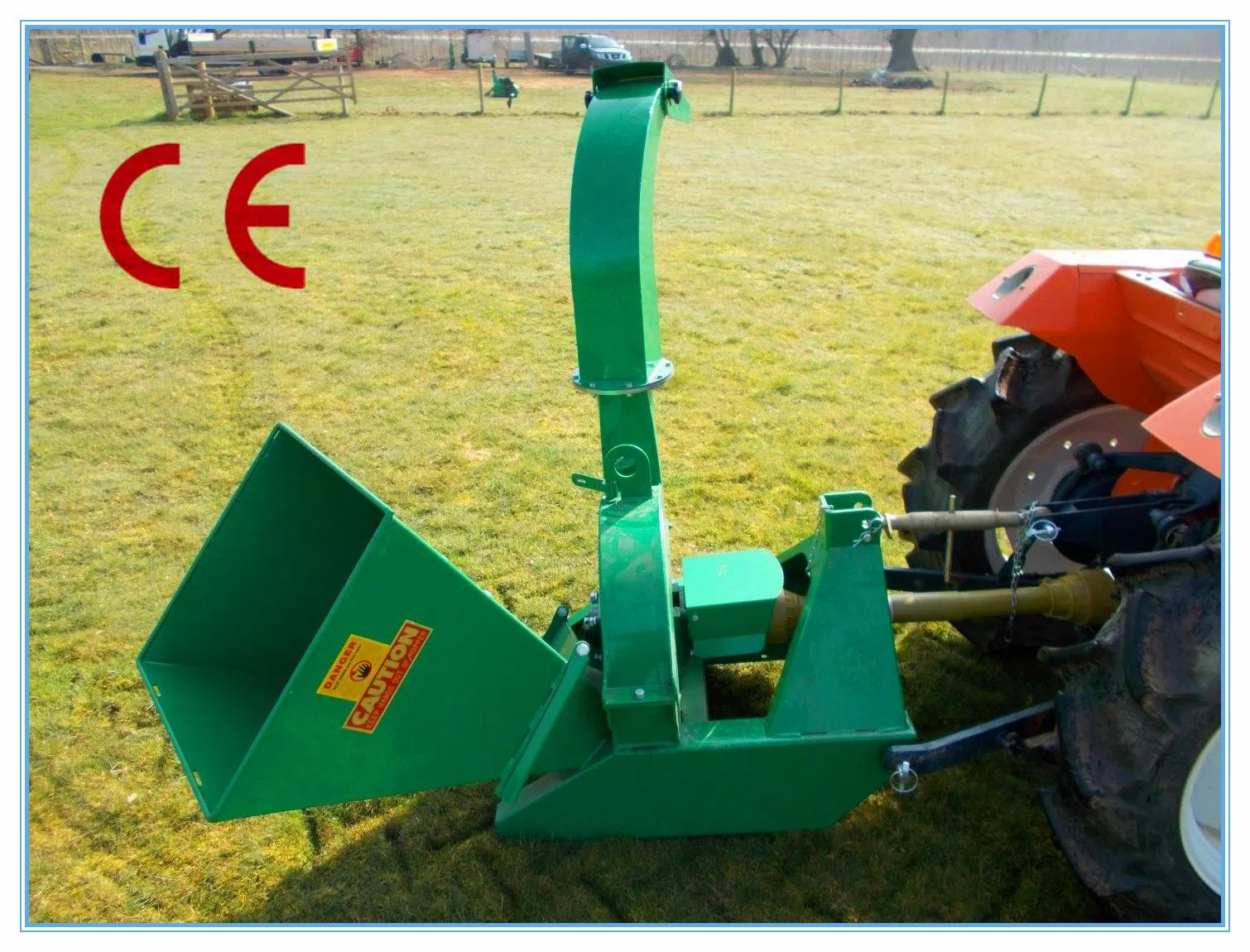

China Cheaf Chipper Bx42s/Bx62s, Small Wood Chipper, Self Feeding, CE Model

Product Description

Packaging Detail:

1. One 40HC container can hold 52units BX42S in iron crate packing.

2. One 40HC container can hold 24units BX62R in iron crate packing.

Delivery Detail: 10-15days after sign the contract.

Specifications

1. CE ARRPOVED(CE NO. --110727/WFA516)

2. DURABLE CHROMIUM CR-12 BLADE

3. ADJUSTABLE CHUTE

4.6-9CBM/H EFFICIENCY

5. AIR VENTS

BX self--feeding wood chipper

Specifications:

1. Features: Rotor, Blades

2. Air Vents, Twig Breaker Blower Paddles

3. Adjustable Chute

4. Hydraulic Feed Hopper

5. CE certificate

Mounting Configurations

There are three different mounting configurations available for the BX Wood Chipper;

A three point hitch, skidsteer mount and trailer

Model	BX42S wood chipper	BX62S/R wood chipper	BX92R wood chipper
Drive System	Direct drive, PTO w/ shearbolt	Direct drive, PTO w/ shearbolt	Direct drive, PTO w/ shearbolt
HP requirements for max. cap.	35-40	60-70	85-110
HP Range	18-50	30-100	65-150
Chipper Capacity	4" Dia. (max. 12" slab)	6" Dia. (max. 12" slab)	10" Dia. (up to 14" slab)
Chipper Housing Opening	4"x10"	6 ½ " x 12"	10 ½ " x 14"
Rotor Size	25"	30"	36"
Number of Rotor Knives	4	4	4
Knife Type	Hardened tool steel	Hardened tool steel	Hardened tool steel
Rotor Weight	110 lbs.	180 lbs.	280 lbs.
Feeding System Feed	Self Feed	Self or Hydraulic Feed	Hydraulic Feed
Mounting System	3 Point Hitch	3 Point Hitch	3 Point Hitch
Dimensions (Hopper Folded)	40"L x42"W x 60"H	50"L x 52"W x 74"H	54"L x 52"W x 88"H
Hopper Opening	20" x 20"	25" x 25"	25" x 25" (635X635mm)
Discharge Hood Rotation	360 °	360 °	360 °
Discharge Hood Height	60"	74"	84"
Rated RPM	540-1000	540-1000	540-1000
Weight	425 lbs.	BX62S-770 lbs./BX62R-1070lbs	1375 lbs. (735KGS
