Woodworking CNC Carving Machine Wood CNC Cutting Machinery in China
1325 3000W CNC Milling Machine Metalworking Engraving Machinery with Cast Iron FrameFeature:The water-cooled VFD is available operating for long time,which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood.water cooling spindle works more......
Send Inquiry
Product Description

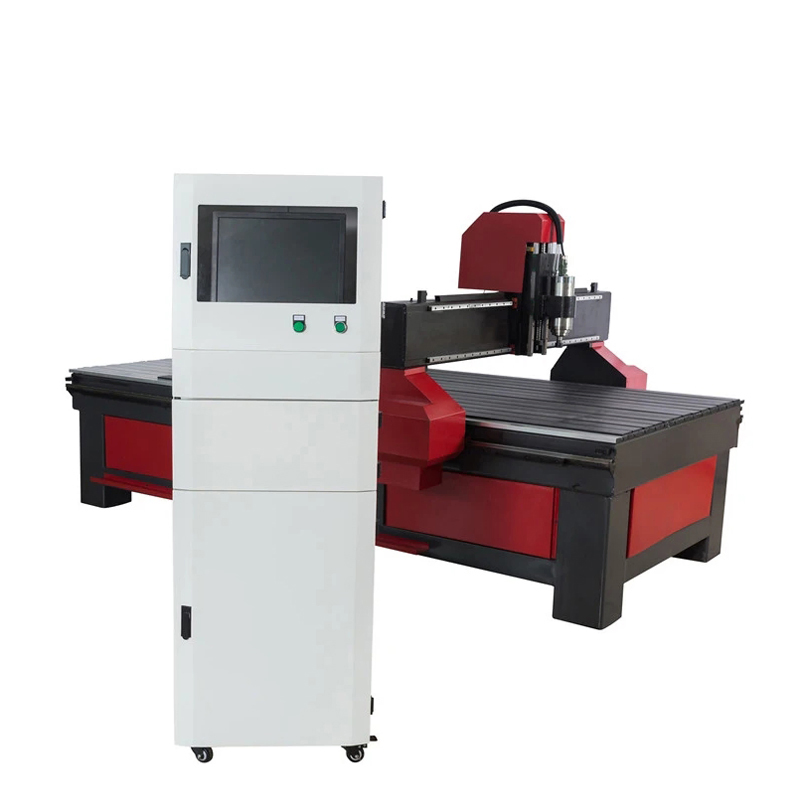

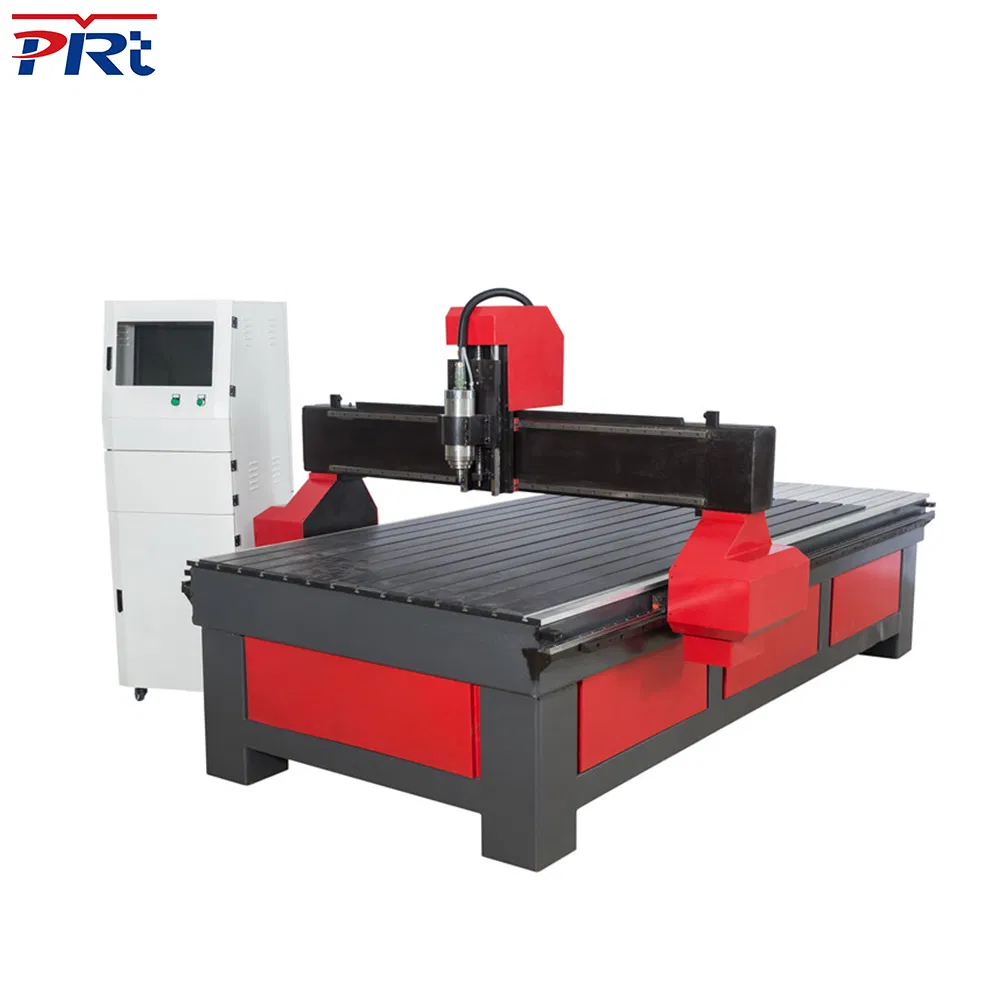

1325 3000W CNC Milling Machine Metalworking Engraving Machinery with Cast Iron Frame
Feature:
★The water-cooled VFD is available operating for long time,which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood.

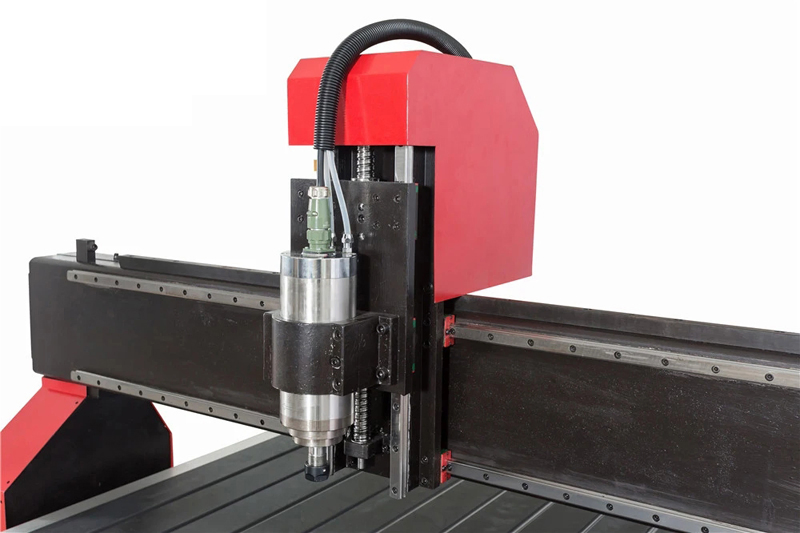

★water cooling spindle works more stable and durable.
★ High quality accurate ball Screws drive make the engraving more precision.long life circle.

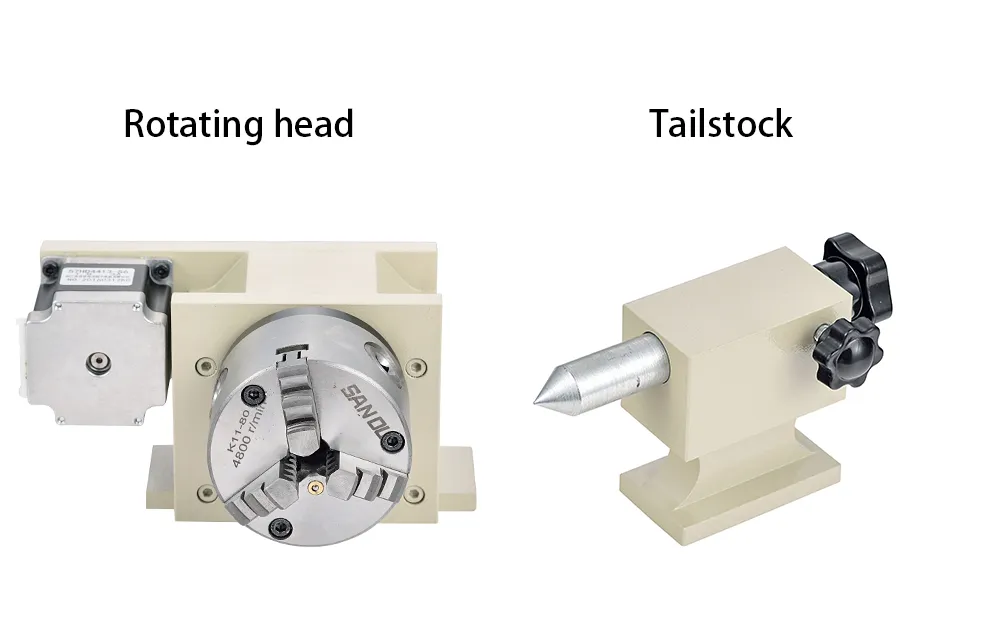

★ All 3 axis machine can be upgraded to be installed a rotational axis. More Precise Stepping Motor or servo motor.
★ CE approved.
Applications:
1. Woodworking products processing: MDF, wooden door, screens, art craft wood window fan, solid wood furniture, cabinet products processing, etc.
2. Advertising industry: engraving and cutting on acrylic, foam board, advertising sign, logo sign, advertising decorative products, including 3D cutout letters, dimensional signs, and beautiful print-to-cut designs, LED display screen, etc.
3. Molding industry: engraving on aluminum, copper/brass, plastic, wood material, circuit board, etc.
4. Other industries: The engraver could do shadow-carved, sculpture which widely used in the gift industry; can be used in aluminum cutting industry,such as aluminum, aluminum-plastic plate, aluminum honeycomb panels, aluminum, 3D engraving process, Artificial plate, cutting LED and neon letter , making plastic light box model; also can engrave on acrylic, copper, PVC board, artificial stone, MDF board, and other metal sheet.
Sample shows:
Technical data:
Frequently Asked Questions (FAQ):
1. Delivery time
5-7 days delivery time for Standard Machines
15-30 Days for machines that have been customised to client specifications
2. Payment terms
30% deposit payable upon acceptance of quotation
70% balance of invoice due before shipping.
T/T, West Union or Paypal are approved methods of payment.
3. Shipping
Good can be shipped by either of the methods below:
i. FOB or CIF, shipped by our ship partner.
ii. For EX.W, shipped by you or your agents.
4. Machine Operational Instructions
The following options are available to customers:
i. An instructional video demonstrating how to use the machine
ii. A complimentary Free training session hosted at our factory, pending availability.
iii. An Operating Manual ( English) is provided with the machine.
5. Guarantee & After-Sales Service
i. The machine comes with a 12 month guarantee.
ii. . A 24 hour, free technical support service is available via email, fax, MSN, Skype, phone, TradeMessenger.
6. Product Warranty
Replacement parts will be supplied at no cost for the period of the warranty.
Replacement parts are at the customers expense after this expiry of the warranty period. However, we guarantee customer support within 48 hours of being notified of an issue, to support product maintenance.
7. Minimum Order Quantity (MOQ)
We accept single (1) machine orders
8. How to Order
Please send us a description of how you intend on using the machine so that we may suggest customisations to better satisfy your needs.
The Product Ordering steps are listed below:
→ Consultation to determine machine configuration with professional designer
→Order Confirmation
→PI
→30 % payment deposit
→Production
→70 % balance of payment
→Shipping
→After-sales service
Feature:
★The water-cooled VFD is available operating for long time,which can reinforced the processing ability of the machine and can be used to engrave on aluminum alloy and hard wood.
★water cooling spindle works more stable and durable.
★ High quality accurate ball Screws drive make the engraving more precision.long life circle.
★ All 3 axis machine can be upgraded to be installed a rotational axis. More Precise Stepping Motor or servo motor.
★ CE approved.
Applications:
1. Woodworking products processing: MDF, wooden door, screens, art craft wood window fan, solid wood furniture, cabinet products processing, etc.
2. Advertising industry: engraving and cutting on acrylic, foam board, advertising sign, logo sign, advertising decorative products, including 3D cutout letters, dimensional signs, and beautiful print-to-cut designs, LED display screen, etc.
3. Molding industry: engraving on aluminum, copper/brass, plastic, wood material, circuit board, etc.
4. Other industries: The engraver could do shadow-carved, sculpture which widely used in the gift industry; can be used in aluminum cutting industry,such as aluminum, aluminum-plastic plate, aluminum honeycomb panels, aluminum, 3D engraving process, Artificial plate, cutting LED and neon letter , making plastic light box model; also can engrave on acrylic, copper, PVC board, artificial stone, MDF board, and other metal sheet.
Sample shows:
Technical data:
| Item | Description |
| Model | 1325C3-30T |
| Outside dimension | 2080x3160x1680mm(LxWxH) |
| Working platform size | 1500x3100mm(LxW) |
| Packing size | 2200x3300x1870mm(LxWxH) |
| Frame Material | Cast-iron + metal plate |
| Max. Feeding height | 200mm(From base of Z axis to platform) |
| X, Y, Z Working Area | 1300x2500x200mm |
| Sliding unit of X, Y, Z axis | ø20 High intensity square rail guide |
| Drive unit: | |
| X axis | Precise pinion and rack |
| Y axis | Precise pinion and rack |
| Z axis | Ball Screws; |
| Stepping motor | Hybrid servo motor |
| Driving Power for Stepping motor | Leadshine Drive Supply |
| Maximum Idle speed | 6000mm/min |
| Working Speed | 50-6000mm/min |
| Spindle motor | 3000W ,ER20 chuc, 6mm collet |
| Variable-frequency Drive (VFD) | 3000W Fuling Brand VFD |
| Drive of stepping motor | Leadshine M860H high subdivision driver |
| Speed | 0-24000rpm |
| Cooling method | Water cooling, come with water pump |
| Carving command | G code/TAB file/nc/TAB /NCC/file |
| Protection | Emergency stop button |
| Communication interface | Parallel port to computer |
| Input Volts | AC 380V/50Hz(220V 50HZ is optional) |
| Available Software | Mach3 |
| Software Environment | XP 32 bite or Windows 7 32 bite |
| Machine protection | limit switch |
| oil-way | auto-grease pump |
| Gross weight | 1100kg |
Frequently Asked Questions (FAQ):
1. Delivery time
5-7 days delivery time for Standard Machines
15-30 Days for machines that have been customised to client specifications
2. Payment terms
30% deposit payable upon acceptance of quotation
70% balance of invoice due before shipping.
T/T, West Union or Paypal are approved methods of payment.
3. Shipping
Good can be shipped by either of the methods below:
i. FOB or CIF, shipped by our ship partner.
ii. For EX.W, shipped by you or your agents.
4. Machine Operational Instructions
The following options are available to customers:
i. An instructional video demonstrating how to use the machine
ii. A complimentary Free training session hosted at our factory, pending availability.
iii. An Operating Manual ( English) is provided with the machine.
5. Guarantee & After-Sales Service
i. The machine comes with a 12 month guarantee.
ii. . A 24 hour, free technical support service is available via email, fax, MSN, Skype, phone, TradeMessenger.
6. Product Warranty
Replacement parts will be supplied at no cost for the period of the warranty.
Replacement parts are at the customers expense after this expiry of the warranty period. However, we guarantee customer support within 48 hours of being notified of an issue, to support product maintenance.
7. Minimum Order Quantity (MOQ)
We accept single (1) machine orders
8. How to Order
Please send us a description of how you intend on using the machine so that we may suggest customisations to better satisfy your needs.
The Product Ordering steps are listed below:
→ Consultation to determine machine configuration with professional designer
→Order Confirmation
→PI
→30 % payment deposit
→Production
→70 % balance of payment
→Shipping
→After-sales service
