Bx42s Wood Chipper for 18-50HP Tractor with Folded Hopper Machine
Advantages:For tractors from 18-50 HP (13-37 KW)Disc-operated chipperHopper can be foldedFinish push, better for PTO at 1000 rpmSafety kit included4 cutting blades and 1 stationary bladeDischarge hood with 360° rotationDescription:The BX42S is a very simple and at the same time efficient and......
Send Inquiry
Product Description
Advantages:
Description:
The BX42S is a very simple and at the same time efficient and sturdy wood chipper.
The wood chipper comes delivered complete with P.T.O. A shear pin has also been built into one side of the P.T.O., which is a safety precaution as it serves as a predetermined breaking point in the event of blockages or overloading. This means that even larger tractors with more than 100 HP can be used with no problem. You should have an engine power output of at least 30 HP. The P.T.O. must have a speed of 540 rpm.
The feed hopper has an opening of 51 x 51 cm; at the bottom of the opening measures 10.2 x 25.4 cm. A maximum diameter of 10 cm can be shredded. Many competitors list the maximum shredding diameter as the measurement of the bottom of the feed hopper, however, this value is unrealistic and can trigger the safety mechanism in the P.T.O. Softer woods with a width up to 15 cm can be shredded, although such diameters are usually processed to firewood and not chipped.
The BX-42S has a very sturdy finish! The material strength of the sheet metal in the weight-bearing area is 10 and 5 mm. At the hopper and the non-weight-bearing parts, it is 2 mm.

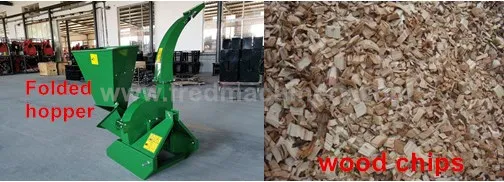

The hopper can be folded upward with ease for transport and is secured using a cotter pin.

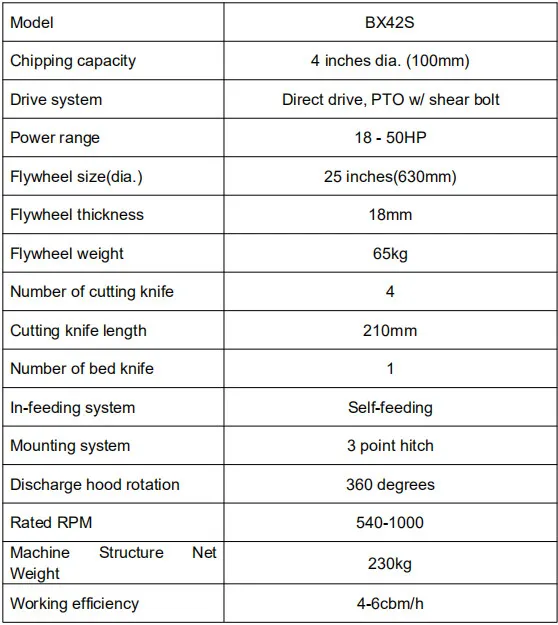

Specifications:

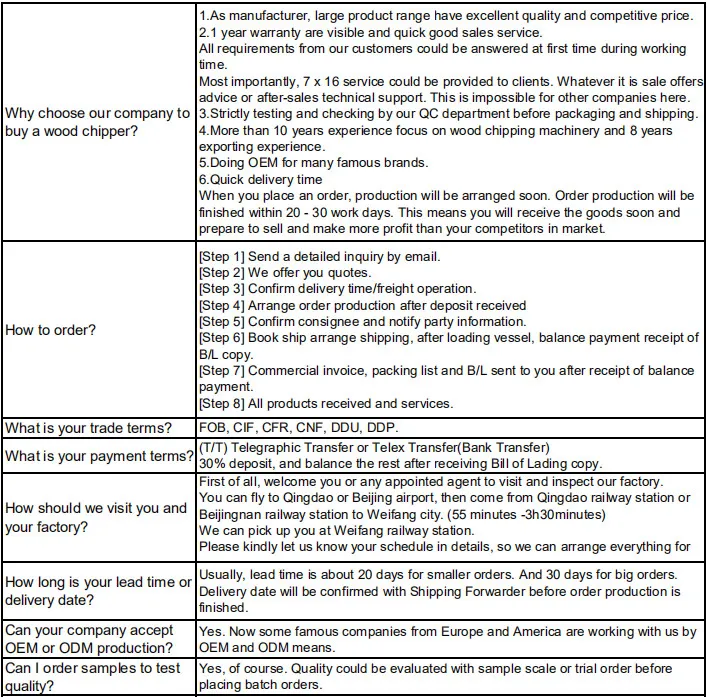

FAQ:
For tractors from 18-50 HP (13-37 KW)
Disc-operated chipper
Hopper can be folded
Finish push, better for PTO at 1000 rpm
Safety kit included

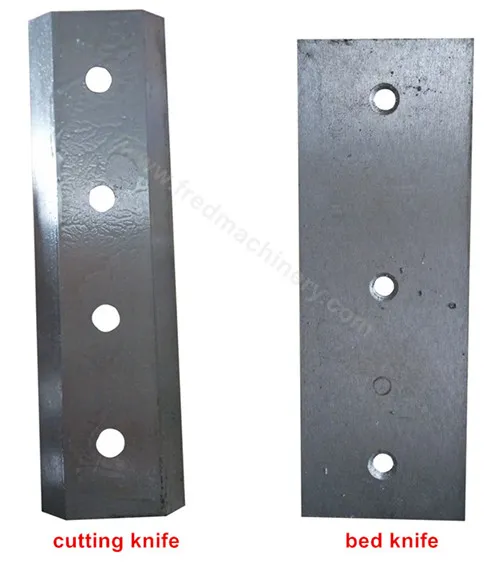

4 cutting blades and 1 stationary blade
Discharge hood with 360° rotation
Description:
The BX42S is a very simple and at the same time efficient and sturdy wood chipper.
The wood chipper comes delivered complete with P.T.O. A shear pin has also been built into one side of the P.T.O., which is a safety precaution as it serves as a predetermined breaking point in the event of blockages or overloading. This means that even larger tractors with more than 100 HP can be used with no problem. You should have an engine power output of at least 30 HP. The P.T.O. must have a speed of 540 rpm.
The feed hopper has an opening of 51 x 51 cm; at the bottom of the opening measures 10.2 x 25.4 cm. A maximum diameter of 10 cm can be shredded. Many competitors list the maximum shredding diameter as the measurement of the bottom of the feed hopper, however, this value is unrealistic and can trigger the safety mechanism in the P.T.O. Softer woods with a width up to 15 cm can be shredded, although such diameters are usually processed to firewood and not chipped.
The BX-42S has a very sturdy finish! The material strength of the sheet metal in the weight-bearing area is 10 and 5 mm. At the hopper and the non-weight-bearing parts, it is 2 mm.
The hopper can be folded upward with ease for transport and is secured using a cotter pin.

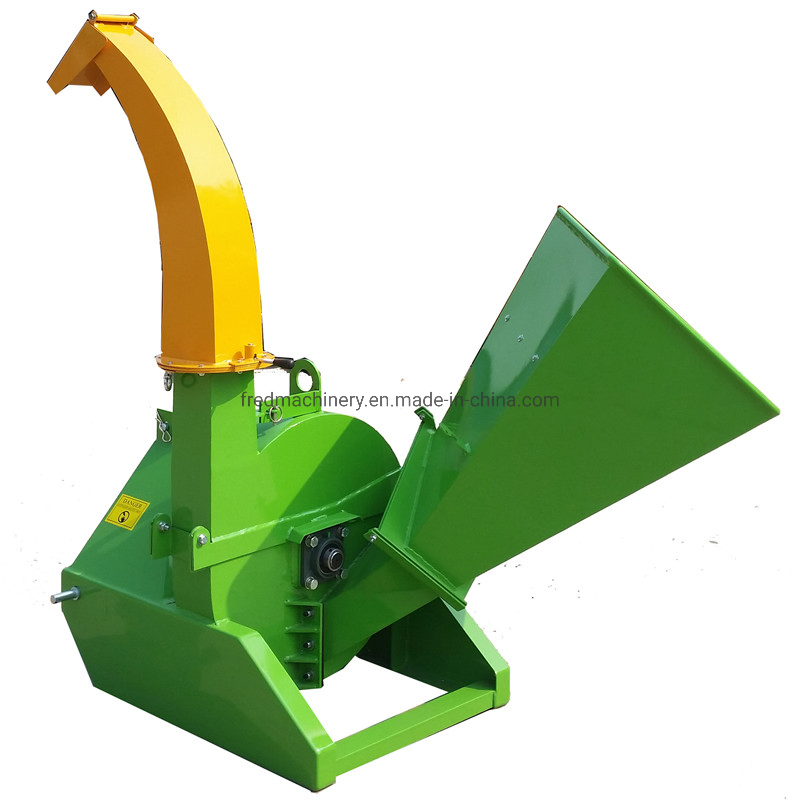

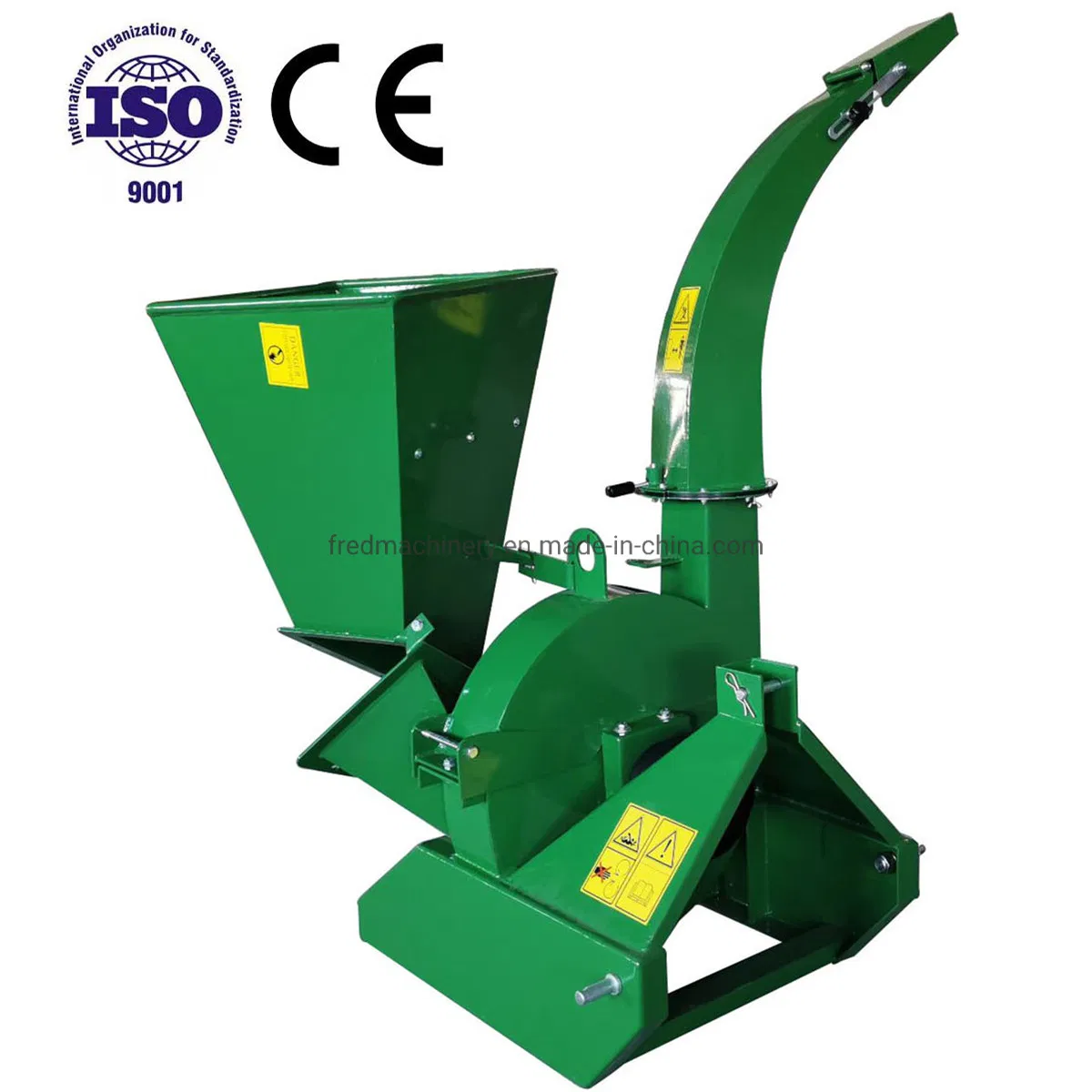

Detailed Pictures:

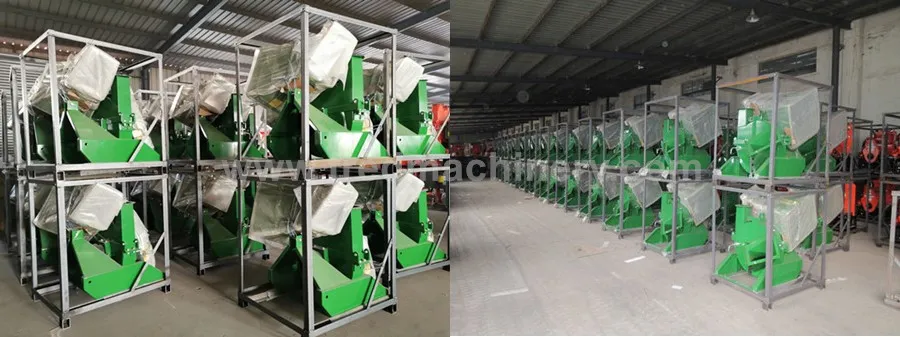

Packing & Delivery:
| Packing size | 1140*910*2480mm |
| Weight(Gross weight) | 540kgs(for 1 packages) |
| Packing details | 1 packages = 2 units |
