1815 Stone Engraving CNC Router, Stone Cutting Machine for Wood, Stone, Acrylic
1815 stone engraving cnc router , stone cutting machine for wood , stone , acrylic AdvantagesStrong power acquired by water cooling spindle 5.5kw, and customized sink work table is just right for stone, granite etc processing;Dust proof design on X and Y axis do you favor on machine maintenance;Remo......
Send Inquiry
Product Description
1815 stone engraving cnc router , stone cutting machine for wood , stone , acrylic
Advantages
- Strong power acquired by water cooling spindle 5.5kw, and customized sink work table is just right for stone, granite etc processing;
- Dust proof design on X and Y axis do you favor on machine maintenance;
- Removable rotary device just for your option, in case that you need to process cylinder objects;
Technical parameters
Model | ELECNC-1815 |
Color | According to your needs |
Effective Working Area | 1800*1500*200 mm |
Working Voltage | 380V, 3Phase, 50Hz or option |
Control system | Mach 3 4 axis control system |
Spindle | 5.5kw*4 Chang sheng ATC water cooling spindle |
Lubrication System | Auto Lubrication System |
Gantry Structure | Gantry Moving |
Table Surface | T-slot work table |
Transmission | 25# square linear guide Taiwan TBI ball screw for Z axis |
Tool Sensor | simple tool sensor calibration |
Structure | Heavy duty stone machine body |
Rotary device | Chuck Diameter in 200mm |
Inverter | 5.5KW Best inverter*4 |
| motor and driver | 450C stepper motor and YAKO2811 bigger driver |

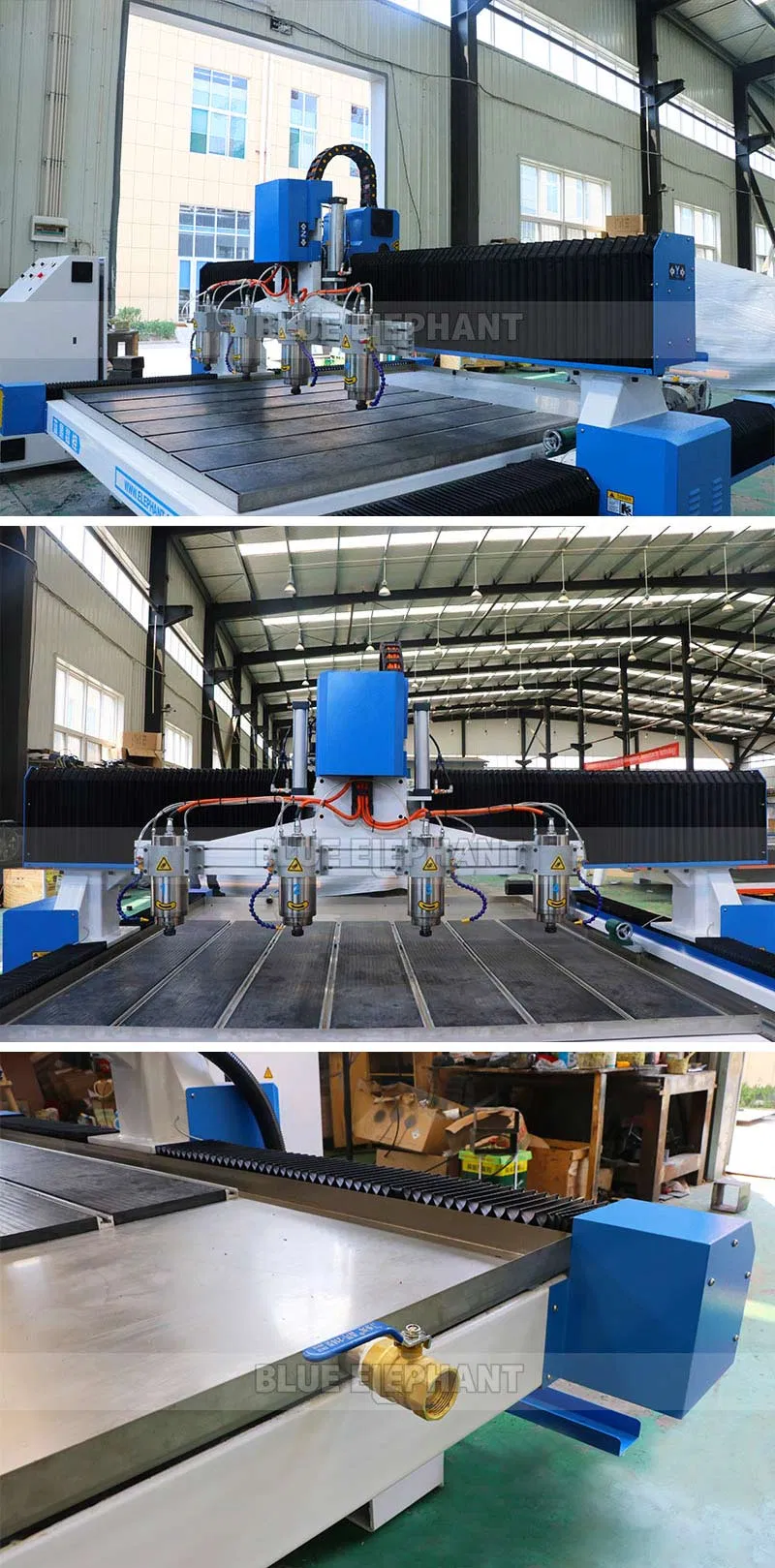

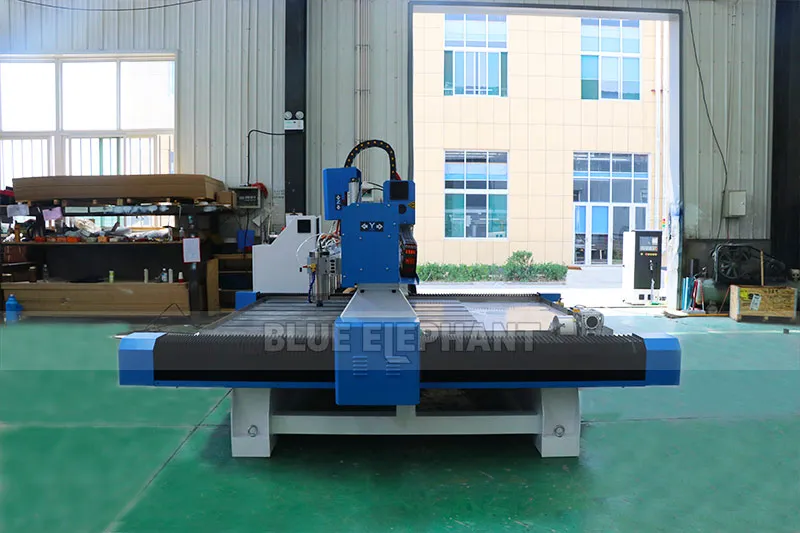

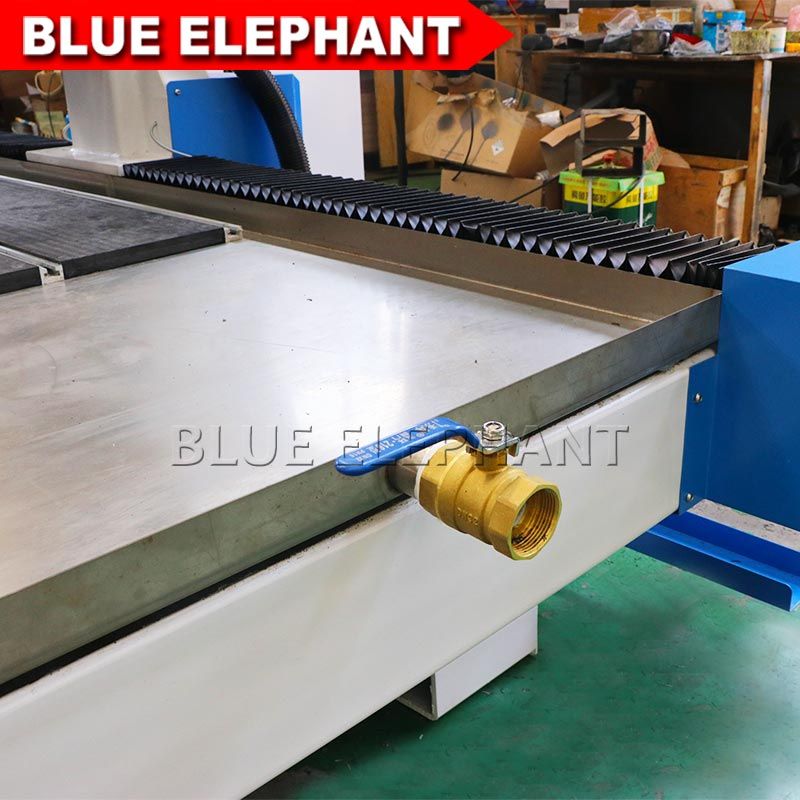

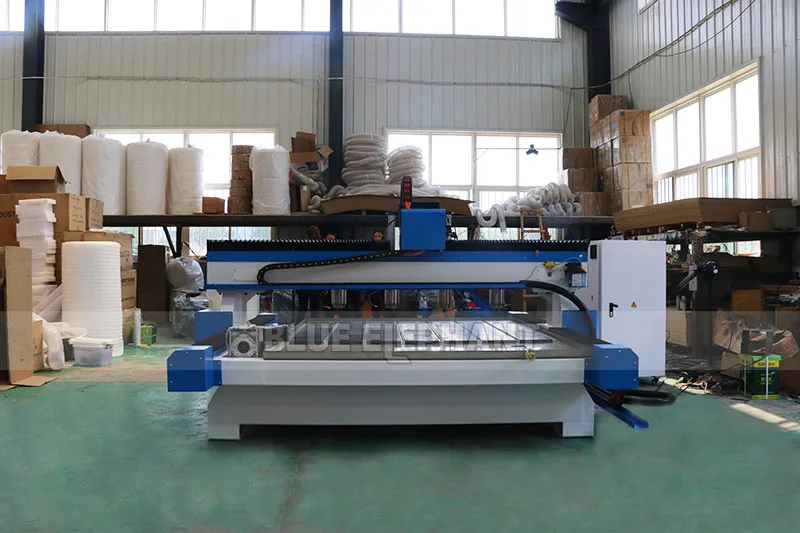

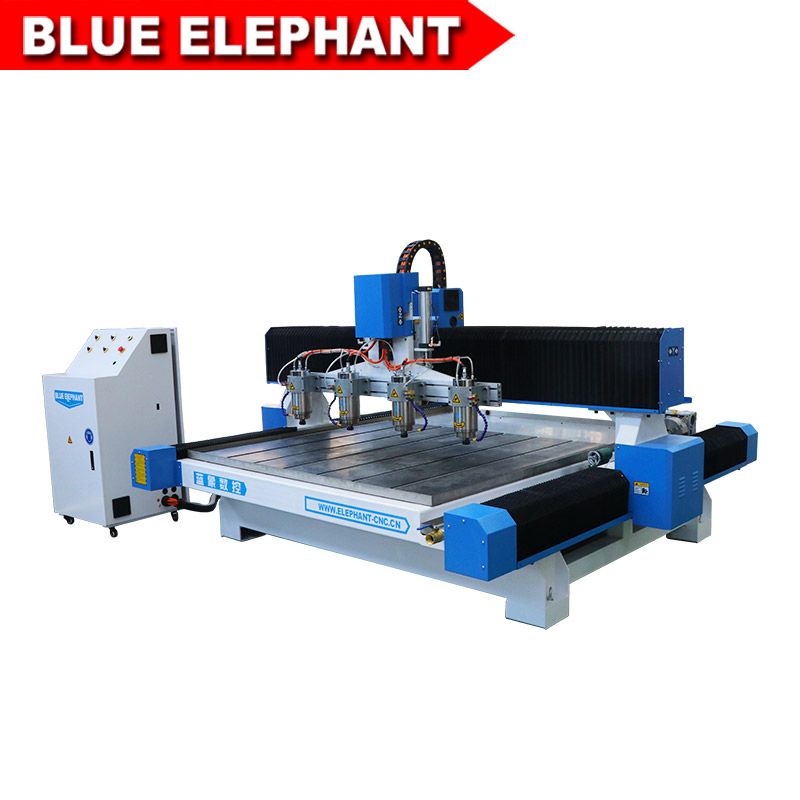

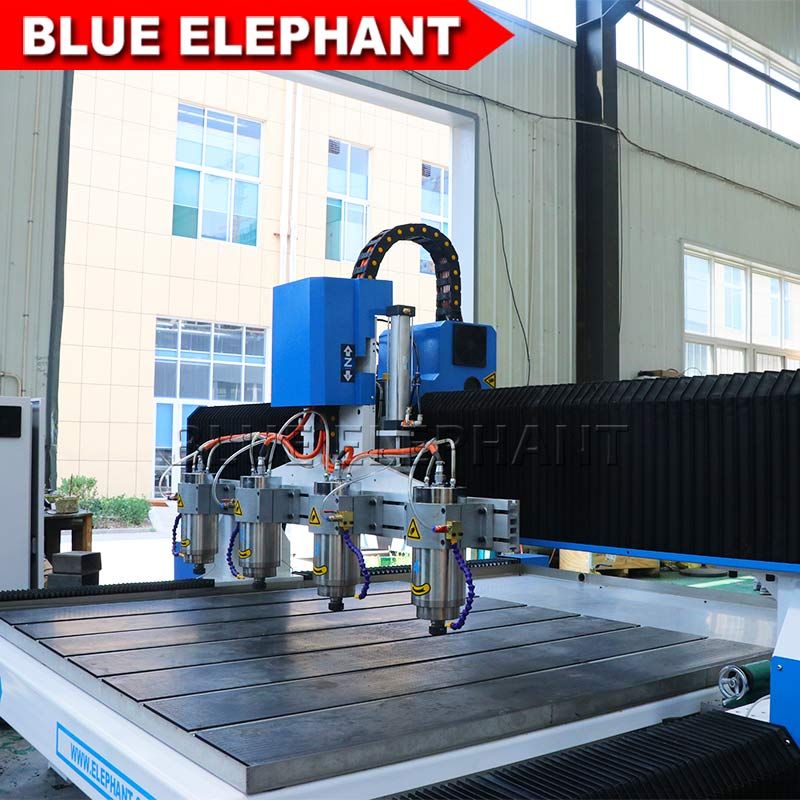

Detail Image
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. inner package: Stretchy film and plastic film for humidity.
3. We can package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
Guarantee and After-sale service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.

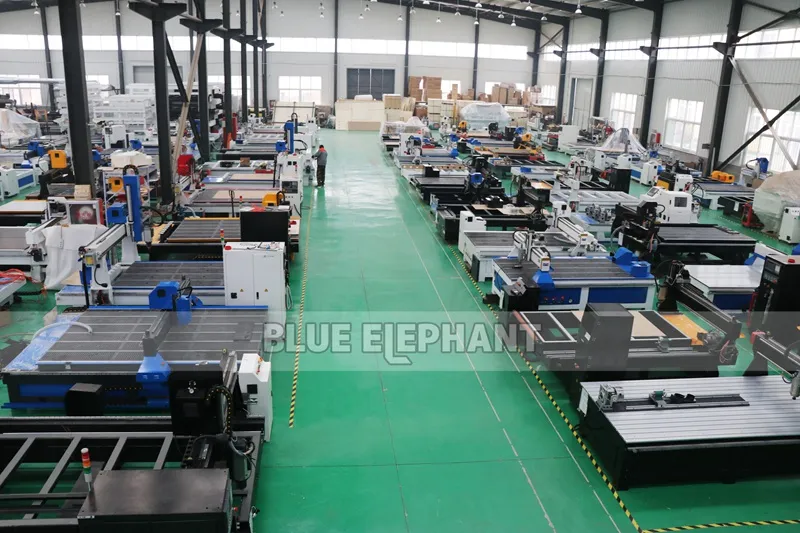

About us
Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City , Shandong Province .
We have always been developing to the research and manufacturer of CNC router machine, plasma cutter, laser cutting engraving machine, which have passed CE, SGS, TUV etc certification.
Welcome to visit us, click https://blueelephant-cnc.en.made-in-china.com to learn more about us.
Customer visiting
Contact us:
Mobile: 0086-15064026772
Web: blueelephant-cnc.en.made-in-china.com
